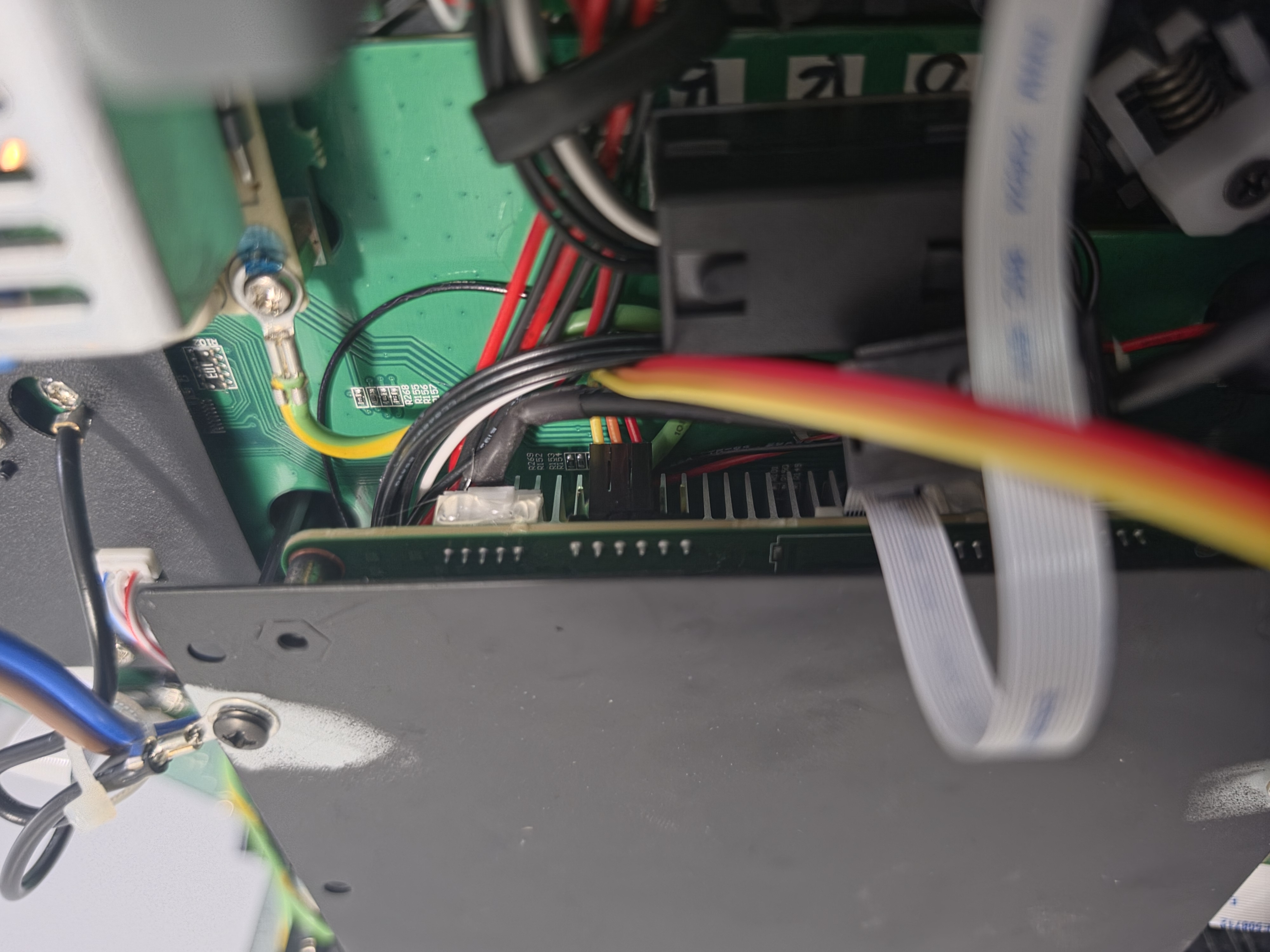

UART

oem set-flag:%s oem format oem resetenv oem update-bootloader oem set-panel-map:%s oem flash-bootloader oem inmusic-unlock-magic-7de5fbc22b8c524e oem fetch-pubkey:%s

U-Boot SPL 2016.05-inmusic-20230621 (Nov 14 2023 - 10:30:29) Trying to boot from MMC1 U-Boot 2016.05-inmusic-20230621 (Nov 14 2023 - 10:30:29 +0000), Build: jenkins-Planck-Embedded_Release-1943 Model: Denon DJ Prime GO DRAM: 2 GiB TSADC last_tshut_cru=0 (auto_con=0x01000000) MMC: dwmmc@ff0f0000: 0 In: gpio-keys Out: serial Err: serial AZ01 PCB revK (raw=9) Hit any key to stop autoboot: 0 switch to partitions #0, OK mmc0(part 0) is current device Scanning mmc 0:6... Found U-Boot script /boot/boot.scr.uimg 489 bytes read in 6 ms (79.1 KiB/s) ## Executing script at 00000000 5588344 bytes read in 262 ms (20.3 MiB/s) 49752 bytes read in 11 ms (4.3 MiB/s) Kernel image @ 0x2000000 [ 0x000000 - 0x554578 ] ## Flattened Device Tree blob at 01f00000 Booting using the fdt blob at 0x1f00000 Loading Device Tree to 1fff0000, end 1ffff257 ... OK Starting kernel ...

=> printenv arch=arm az01_bootcmd=if test x${dorecovery} = x1; then run az01_recovercmd; fi; run distro_bootcmd; echo 'Boot failed, resetting to bootloader...'; reset_bootloader az01_recovercmd=echo 'Starting fastboot...'; fastboot 0 baudrate=115200 board=az01 board_name=az01 boot_a_script=load ${devtype} ${devnum}:${distro_bootpart} ${scriptaddr} ${prefix}${script}; source ${scriptaddr} boot_extlinux=sysboot ${devtype} ${devnum}:${distro_bootpart} any ${scriptaddr} ${prefix}extlinux/extlinux.conf boot_prefixes=/ /boot/ boot_script_dhcp=boot.scr.uimg boot_scripts=boot.scr.uimg boot.scr boot_targets=mmc0 mmc1 bootargs=root=PARTUUID=24d1deac-3434-1a4e-98d1-68ee2945a5f1 rootwait ro rfkill.default_state=0 bootcmd=run az01_bootcmd bootcmd_mmc0=setenv devnum 0; run mmc_boot bootcmd_mmc1=setenv devnum 1; run mmc_boot bootdelay=0 cpu=armv7 distro_bootcmd=for target in ${boot_targets}; do run bootcmd_${target}; done dorecovery=0 ethaddr=00:05:95:04:D8:20 fastboot.partition-type:data=ext4 fastboot.partition-type:rootfs=ext4 fdt_addr_r=0x01f00000 fdt_high=0x1fffffff fdtcontroladdr=7b3a8368 fdtfile=rk3288-az01-jp11.dtb initrd_high=0x1fffffff kernel_addr_r=0x02000000 loadaddr=0x00800800 mmc_boot=if mmc dev ${devnum}; then setenv devtype mmc; run scan_dev_for_boot_part; fi panel_compatible=urt,umoh-9522md-t partitions=uuid_disk=02bebde5-b5a4-48cd-b262-512fe8b6ae06;name=uboot-spl,size=64KiB,start=32KiB,uuid=f6217a3c-1c7d-4969-8f05-88c0b9c0f0e6;name=env,size=32KiB,start=96KiB,uuid=be8b868f-89d8-4ff8-a64d-d077e73b4f09;name=uboot,size=384KiB,start=128KiB,uuid=461be792-3b29-4c0a-a6a2-3460c0119cbe;name=splash,size=4MiB,uuid=40bfa9cd-6d2c-4e22-a662-f0a803794462;name=recoverysplash,size=4MiB,uuid=e050b8e2-ee92-43ca-98ad-9aa4fbca8616;name=rootfs,bootable,size=500MiB,uuid=acded124-3434-4e1a-98d1-68ee2945a5f1;name=data,size=0,uuid=9dd41a93-59ad-4908-833a-9bf00af5b60e; pcb_rev=K pxefile_addr_r=0x00100000 ramdisk_addr_r=0x04000000 scan_dev_for_boot=echo Scanning ${devtype} ${devnum}:${distro_bootpart}...; for prefix in ${boot_prefixes}; do run scan_dev_for_extlinux; run scan_dev_for_scripts; done; scan_dev_for_boot_part=part list ${devtype} ${devnum} -bootable devplist; env exists devplist || setenv devplist 1; for distro_bootpart in ${devplist}; do if fstype ${devtype} ${devnum}:${distro_bootpart} bootfstype; then run scan_dev_for_boot; fi; done scan_dev_for_extlinux=if test -e ${devtype} ${devnum}:${distro_bootpart} ${prefix}extlinux/extlinux.conf; then echo Found ${prefix}extlinux/extlinux.conf; run boot_extlinux; echo SCRIPT FAILED: continuing...; fi scan_dev_for_scripts=for script in ${boot_scripts}; do if test -e ${devtype} ${devnum}:${distro_bootpart} ${prefix}${script}; then echo Found U-Boot script ${prefix}${script}; run boot_a_script; echo SCRIPT FAILED: continuing...; fi; done scriptaddr=0x00000000 serial#=A12403245317751 soc=rockchip splashpos=m stderr=serial stdin=serial,gpio-keys stdout=serial vendor=inmusic Environment size: 3037/8188 bytes

=> clock osc: 24000000 apll: 1608000000 dpll: 533000000 cpll: 400000000 gpll: 594000000 npll: 73000000

=> coninfo List of available devices: serial@ff690000 00000003 IO gpio-keys 00000001 I. stdin vidconsole 00000002 .O serial 00000003 IO stdout stderr nulldev 00000003 IO

=> mmc info Device: dwmmc@ff0f0000 Manufacturer ID: 15 OEM: 100 Name: 8GTF4 Tran Speed: 52000000 Rd Block Len: 512 MMC version 4.0 High Capacity: Yes Capacity: 7.3 GiB Bus Width: 8-bit Erase Group Size: 512 KiB

=> showvar HUSH_VERSION=0.01

=> version U-Boot 2016.05-inmusic-20230621 (Nov 14 2023 - 10:30:29 +0000) arm-buildroot-linux-gnueabihf-gcc.br_real (Buildroot 2023.02.3-4-g189b0a5875) 12.3.0 GNU ld (GNU Binutils) 2.38

Booting Linux on physical CPU 0x500 Linux version 6.1.92-inmusic-2024-05-28-rt32 (jenkins@d73a305bf18b) (arm-buildroot-linux-gnueabihf-gcc.br_real (Buildroot 2023.02.11-5-gfbf213aa23) 12.3.0, GNU ld (GNU Binutils) 2.38) #1 SMP PREEMPT_RT Fri Sep 20 07:36:09 UTC 2024 CPU: ARMv7 Processor [410fc0d1] revision 1 (ARMv7), cr=10c5387d CPU: div instructions available: patching division code CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache OF: fdt: Machine model: Denon DJ Prime GO Memory policy: Data cache writealloc OF: reserved mem: initialized node framebuffer, compatible id rockchip,framebuffer-memory Zone ranges: Normal [mem 0x0000000000000000-0x000000002fffffff] HighMem [mem 0x0000000030000000-0x000000007fffffff] Movable zone start for each node Early memory node ranges node 0: [mem 0x0000000000000000-0x000000007fffffff] Initmem setup node 0 [mem 0x0000000000000000-0x000000007fffffff] percpu: Embedded 12 pages/cpu s17632 r8192 d23328 u49152 pcpu-alloc: s17632 r8192 d23328 u49152 alloc=12*4096 pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 Built 1 zonelists, mobility grouping on. Total pages: 522752 Kernel command line: root=PARTUUID=24d1deac-3434-1a4e-98d1-68ee2945a5f1 rootwait rw rfkill.default_state=0 isolcpus=1-3 Dentry cache hash table entries: 131072 (order: 7, 524288 bytes, linear) Inode-cache hash table entries: 65536 (order: 6, 262144 bytes, linear) mem auto-init: stack:all(zero), heap alloc:off, heap free:off Memory: 2053884K/2097152K available (8192K kernel code, 815K rwdata, 2556K rodata, 1024K init, 278K bss, 30980K reserved, 12288K cma-reserved, 1298432K highmem) SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 rcu: Preemptible hierarchical RCU implementation. rcu: RCU event tracing is enabled. rcu: RCU priority boosting: priority 1 delay 500 ms. rcu: RCU_SOFTIRQ processing moved to rcuc kthreads. No expedited grace period (rcu_normal_after_boot). rcu: RCU calculated value of scheduler-enlistment delay is 100 jiffies. NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16 rcu: srcu_init: Setting srcu_struct sizes based on contention. rockchip: reset MMC AHB arbitor arch_timer: cp15 timer(s) running at 24.00MHz (phys). clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns Switching to timer-based delay loop, resolution 41ns Console: colour dummy device 80x30 printk: console [tty0] enabled Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=24000) CPU: Testing write buffer coherency: ok Spectre V2: workarounds disabled by configuration pid_max: default: 32768 minimum: 301 Mount-cache hash table entries: 2048 (order: 1, 8192 bytes, linear) Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes, linear) CPU0: thread -1, cpu 0, socket 5, mpidr 80000500 Setting up static identity map for 0x100000 - 0x100060 rcu: Hierarchical SRCU implementation. rcu: Max phase no-delay instances is 400. printk: console [tty0] printing thread started smp: Bringing up secondary CPUs ... CPU1: thread -1, cpu 1, socket 5, mpidr 80000501 CPU2: thread -1, cpu 2, socket 5, mpidr 80000502 CPU3: thread -1, cpu 3, socket 5, mpidr 80000503 smp: Brought up 1 node, 4 CPUs SMP: Total of 4 processors activated (192.00 BogoMIPS). CPU: All CPU(s) started in SVC mode. devtmpfs: initialized VFP support v0.3: implementor 41 architecture 3 part 30 variant d rev 0 clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 1911260446275000 ns futex hash table entries: 1024 (order: 4, 65536 bytes, linear) pinctrl core: initialized pinctrl subsystem regulator-dummy: no parameters, enabled NET: Registered PF_NETLINK/PF_ROUTE protocol family DMA: preallocated 256 KiB pool for atomic coherent allocations thermal_sys: Registered thermal governor 'step_wise' thermal_sys: Registered thermal governor 'user_space' cpuidle: using governor menu No ATAGs? hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers. hw-breakpoint: maximum watchpoint size is 4 bytes. platform ff940000.vop: Fixed dependency cycle(s) with /mipi@ff960000 platform ff960000.mipi: Fixed dependency cycle(s) with /mipi@ff960000/panel@0 platform ff960000.mipi: Fixed dependency cycle(s) with /vop@ff940000 platform pinctrl: Fixed dependency cycle(s) with /pinctrl/az01/az01-pcb-rev rockchip-gpio ff750000.gpio: probed /pinctrl/gpio@ff750000 rockchip-gpio ff780000.gpio: probed /pinctrl/gpio@ff780000 rockchip-gpio ff790000.gpio: probed /pinctrl/gpio@ff790000 rockchip-gpio ff7a0000.gpio: probed /pinctrl/gpio@ff7a0000 rockchip-gpio ff7b0000.gpio: probed /pinctrl/gpio@ff7b0000 rockchip-gpio ff7c0000.gpio: probed /pinctrl/gpio@ff7c0000 rockchip-gpio ff7d0000.gpio: probed /pinctrl/gpio@ff7d0000 rockchip-gpio ff7e0000.gpio: probed /pinctrl/gpio@ff7e0000 rockchip-gpio ff7f0000.gpio: probed /pinctrl/gpio@ff7f0000 vcc_sys: 5000 mV, enabled reg-fixed-voltage vsys-regulator: vcc_sys supplying 5000000uV reg-fixed-voltage vcc-mipi: Looking up vin-supply from device tree vcc_mipi: supplied by vcc_sys vcc_sys: could not add device link regulator.2: -ENOENT vcc_mipi: 3300 mV, enabled reg-fixed-voltage vcc-mipi: vcc_mipi supplying 3300000uV reg-fixed-voltage vcc-sata: Looking up vin-supply from device tree vcc_sata: supplied by vcc_sys vcc_sys: could not add device link regulator.3: -ENOENT vcc_sata: 5000 mV, enabled reg-fixed-voltage vcc-sata: vcc_sata supplying 5000000uV vcc_host: no parameters, enabled reg-fixed-voltage vcc-host-regulator: vcc_host supplying 0uV vcc_otg_5v: 5000 mV, enabled reg-fixed-voltage usb-otg-regulator: vcc_otg_5v supplying 5000000uV iommu: Default domain type: Translated iommu: DMA domain TLB invalidation policy: strict mode SCSI subsystem initialized usbcore: registered new interface driver usbfs usbcore: registered new interface driver hub usbcore: registered new device driver usb pps_core: LinuxPPS API ver. 1 registered pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it> PTP clock support registered Advanced Linux Sound Architecture Driver Initialized. Bluetooth: Core ver 2.22 NET: Registered PF_BLUETOOTH protocol family Bluetooth: HCI device and connection manager initialized Bluetooth: HCI socket layer initialized Bluetooth: L2CAP socket layer initialized Bluetooth: SCO socket layer initialized clocksource: Switched to clocksource arch_sys_counter NET: Registered PF_INET protocol family IP idents hash table entries: 16384 (order: 5, 131072 bytes, linear) tcp_listen_portaddr_hash hash table entries: 512 (order: 1, 10240 bytes, linear) Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) TCP established hash table entries: 8192 (order: 3, 32768 bytes, linear) TCP bind hash table entries: 8192 (order: 6, 327680 bytes, linear) TCP: Hash tables configured (established 8192 bind 8192) UDP hash table entries: 512 (order: 2, 24576 bytes, linear) UDP-Lite hash table entries: 512 (order: 2, 24576 bytes, linear) NET: Registered PF_UNIX/PF_LOCAL protocol family hw perfevents: enabled with armv7_cortex_a12 PMU driver, 7 counters available Initialise system trusted keyrings workingset: timestamp_bits=30 max_order=19 bucket_order=0 squashfs: version 4.0 (2009/01/31) Phillip Lougher fuse: init (API version 7.37) NET: Registered PF_ALG protocol family Key type asymmetric registered Asymmetric key parser 'x509' registered Asymmetric key parser 'pkcs8' registered alg: self-tests for CTR-KDF (hmac(sha256)) passed bounce: pool size: 64 pages Block layer SCSI generic (bsg) driver version 0.4 loaded (major 248) io scheduler mq-deadline registered io scheduler kyber registered io scheduler bfq registered phy phy-ff770000.syscon:usbphy.0: Looking up phy-supply from device tree phy phy-ff770000.syscon:usbphy.0: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@320 failed phy phy-ff770000.syscon:usbphy.0: Looking up vbus-supply from device tree phy phy-ff770000.syscon:usbphy.0: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@320 failed phy phy-ff770000.syscon:usbphy.1: Looking up phy-supply from device tree phy phy-ff770000.syscon:usbphy.1: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@334 failed phy phy-ff770000.syscon:usbphy.1: Looking up vbus-supply from device tree phy phy-ff770000.syscon:usbphy.1: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@334 failed phy phy-ff770000.syscon:usbphy.2: Looking up phy-supply from device tree phy phy-ff770000.syscon:usbphy.2: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@348 failed phy phy-ff770000.syscon:usbphy.2: Looking up vbus-supply from device tree phy phy-ff770000.syscon:usbphy.2: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@348 failed pwm-backlight mipi-backlight: Looking up power-supply from device tree dma-pl330 ff250000.dma-controller: WARN: Device release is not defined so it is not safe to unbind this driver while in use dma-pl330 ff250000.dma-controller: Loaded driver for PL330 DMAC-241330 dma-pl330 ff250000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-20 Num_Events-16 dma-pl330 ffb20000.dma-controller: WARN: Device release is not defined so it is not safe to unbind this driver while in use dma-pl330 ffb20000.dma-controller: Loaded driver for PL330 DMAC-241330 dma-pl330 ffb20000.dma-controller: DBUFF-64x8bytes Num_Chans-5 Num_Peri-6 Num_Events-10 Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled ff180000.serial: ttyS0 at MMIO 0xff180000 (irq = 47, base_baud = 1500000) is a 16550A serial serial0: tty port ttyS0 registered ff690000.serial: ttyS2 at MMIO 0xff690000 (irq = 48, base_baud = 1500000) is a 16550A printk: console [ttyS2] enabled ff1b0000.serial: ttyS3 at MMIO 0xff1b0000 (irq = 49, base_baud = 1500000) is a 16550A printk: console [ttyS2] printing thread started i2c_dev: i2c /dev entries driver i2c 0-005a: Fixed dependency cycle(s) with /i2c@ff650000/act8846@5a/regulators/REG4 i2c 0-005a: Fixed dependency cycle(s) with /i2c@ff650000/act8846@5a/regulators/REG2 act8865 0-005a: Looking up vp1-supply from device tree VCC_DDR: supplied by vcc_sys vcc_sys: could not add device link regulator.6: -ENOENT VCC_DDR: 1200 <--> 1500 mV at 1500 mV, enabled act8865 0-005a: Looking up vp2-supply from device tree VCC_IO: supplied by vcc_sys vcc_sys: could not add device link regulator.7: -ENOENT VCC_IO: 3300 mV, enabled act8865 0-005a: Looking up vp3-supply from device tree VDD_LOG: supplied by vcc_sys vcc_sys: could not add device link regulator.8: -ENOENT VDD_LOG: 950 <--> 1400 mV at 1200 mV, enabled act8865 0-005a: Looking up vp4-supply from device tree VCC_20: supplied by vcc_sys vcc_sys: could not add device link regulator.9: -ENOENT VCC_20: 2000 mV, enabled act8865 0-005a: Looking up inl1-supply from device tree VCCIO_SD: supplied by VCC_IO VCC_IO: could not add device link regulator.10: -ENOENT VCCIO_SD: 1800 <--> 3300 mV at 3300 mV, enabled act8865 0-005a: Looking up inl1-supply from device tree VDD10_LCD: supplied by VCC_IO VCC_IO: could not add device link regulator.11: -ENOENT VDD10_LCD: 1000 mV, enabled act8865 0-005a: Looking up inl1-supply from device tree VCCA_CODEC: supplied by VCC_IO VCC_IO: could not add device link regulator.12: -ENOENT VCCA_CODEC: 3300 mV, enabled act8865 0-005a: Looking up inl2-supply from device tree VCCA_TP: supplied by vcc_sys vcc_sys: could not add device link regulator.13: -ENOENT VCCA_TP: 3300 mV, enabled act8865 0-005a: Looking up inl2-supply from device tree VCCIO_PMU: supplied by vcc_sys vcc_sys: could not add device link regulator.14: -ENOENT VCCIO_PMU: 3300 mV, enabled act8865 0-005a: Looking up inl3-supply from device tree VDD_10: supplied by VCC_20 VCC_20: could not add device link regulator.15: -ENOENT VDD_10: 1000 mV, enabled act8865 0-005a: Looking up inl3-supply from device tree VCC_18: supplied by VCC_20 VCC_20: could not add device link regulator.16: -ENOENT VCC_18: 1800 mV, enabled act8865 0-005a: Looking up inl3-supply from device tree VCC18_LCD: supplied by VCC_20 VCC_20: could not add device link regulator.17: -ENOENT VCC18_LCD: 1800 mV, enabled fan53555-regulator 0-0040: FAN53555 Option[8] Rev[1] Detected! fan53555-regulator 0-0040: Looking up vin-supply from device tree vdd_cpu: supplied by vcc_sys vcc_sys: could not add device link regulator.18: -ENOENT vdd_cpu: 850 <--> 1500 mV at 1350 mV, enabled fan53555-regulator 0-0041: FAN53555 Option[8] Rev[1] Detected! fan53555-regulator 0-0041: Looking up vin-supply from device tree vdd_gpu: supplied by vcc_sys vcc_sys: could not add device link regulator.19: -ENOENT vdd_gpu: 850 <--> 1350 mV at 1250 mV, enabled dw-apb-uart ff180000.serial: Failed to create device link (0x180) with 0-0051 mali ffa30000.gpu: Looking up mali-supply from device tree mali ffa30000.gpu: GPU identified as 0x0750 r1p0 status 0 mali ffa30000.gpu: Protected mode not available Error -19 getting thermal zone 'gpu-thermal', not yet ready? mali ffa30000.gpu: recalculation of power model mali-simple-power-model returned error -517 mali ffa30000.gpu: IPA initialization failed ------------[ cut here ]------------ WARNING: CPU: 0 PID: 1 at drivers/opp/core.c:1516 _opp_table_kref_release+0x88/0x104 Modules linked in: CPU: 0 PID: 1 Comm: swapper/0 Not tainted 6.1.92-inmusic-2024-05-28-rt32 #1 Hardware name: Rockchip (Device Tree) unwind_backtrace from show_stack+0x10/0x14 show_stack from dump_stack_lvl+0x40/0x4c dump_stack_lvl from __warn+0x70/0xd4 __warn from warn_slowpath_fmt+0xc4/0x158 warn_slowpath_fmt from _opp_table_kref_release+0x88/0x104 _opp_table_kref_release from kbase_platform_device_remove+0x2cc/0x3ac kbase_platform_device_remove from kbase_platform_device_probe+0x5e0/0xb20 kbase_platform_device_probe from platform_probe+0x58/0xac platform_probe from really_probe+0x1ac/0x3c8 really_probe from __driver_probe_device+0x1ac/0x1e0 __driver_probe_device from driver_probe_device+0x3c/0xbc driver_probe_device from __driver_attach+0x148/0x16c __driver_attach from bus_for_each_dev+0x6c/0xac bus_for_each_dev from bus_add_driver+0xd4/0x1ec bus_add_driver from driver_register+0xac/0xf4 driver_register from do_one_initcall+0x74/0x1fc do_one_initcall from kernel_init_freeable+0x198/0x1dc kernel_init_freeable from kernel_init+0x14/0x12c kernel_init from ret_from_fork+0x14/0x28 Exception stack(0xf0831fb0 to 0xf0831ff8) 1fa0: 00000000 00000000 00000000 00000000 1fc0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 1fe0: 00000000 00000000 00000000 00000000 00000013 00000000 ---[ end trace 0000000000000000 ]--- rockchip-vop ff930000.vop: Adding to iommu group 0 rockchip-vop ff940000.vop: Adding to iommu group 1 phy phy-ff960000.mipi.3: Looking up phy-supply from device tree phy phy-ff960000.mipi.3: Looking up phy-supply property in node /mipi@ff960000 failed dw-mipi-dsi-rockchip ff960000.mipi: Fixed dependency cycle(s) with /mipi@ff960000/panel@0 mipi-dsi ff960000.mipi.0: Fixed dependency cycle(s) with /mipi@ff960000 panel-urt-umoh-9522md-t ff960000.mipi.0: Looking up power-supply from device tree rockchip_framebuffer_rmem_device_init: initializing with base address 0x7f400000 size=0x00c00000 rockchip-drm display-subsystem: assigned reserved memory node framebuffer rockchip-drm display-subsystem: bound ff930000.vop (ops 0xc0964c38) rockchip-vop ff940000.vop: enabled by bootloader rockchip-drm display-subsystem: bound ff940000.vop (ops 0xc0964c38) rockchip-drm display-subsystem: bound ff960000.mipi (ops 0xc0968a80) [drm] Initialized rockchip 1.0.0 20140818 for display-subsystem on minor 0 rockchip-drm display-subsystem: framebugger sg_size=12582912 size=12288000 rockchip-drm display-subsystem: [drm] fb0: rockchipdrmfb frame buffer device brd: module loaded loop: module loaded rk_gmac-dwmac ff290000.ethernet: IRQ eth_lpi not found rk_gmac-dwmac ff290000.ethernet: PTP uses main clock rk_gmac-dwmac ff290000.ethernet: Looking up phy-supply from device tree rk_gmac-dwmac ff290000.ethernet: clock input or output? (input). rk_gmac-dwmac ff290000.ethernet: TX delay(0x30). rk_gmac-dwmac ff290000.ethernet: RX delay(0x10). rk_gmac-dwmac ff290000.ethernet: integrated PHY? (no). rk_gmac-dwmac ff290000.ethernet: clock input from PHY rk_gmac-dwmac ff290000.ethernet: init for RGMII rk_gmac-dwmac ff290000.ethernet: User ID: 0x10, Synopsys ID: 0x35 rk_gmac-dwmac ff290000.ethernet: DWMAC1000 rk_gmac-dwmac ff290000.ethernet: DMA HW capability register supported rk_gmac-dwmac ff290000.ethernet: RX Checksum Offload Engine supported rk_gmac-dwmac ff290000.ethernet: COE Type 2 rk_gmac-dwmac ff290000.ethernet: TX Checksum insertion supported rk_gmac-dwmac ff290000.ethernet: Wake-Up On Lan supported rk_gmac-dwmac ff290000.ethernet: Normal descriptors rk_gmac-dwmac ff290000.ethernet: Ring mode enabled rk_gmac-dwmac ff290000.ethernet: Enable RX Mitigation via HW Watchdog Timer dwc2 ff540000.usb: Looking up vusb_d-supply from device tree dwc2 ff540000.usb: Looking up vusb_d-supply property in node /usb@ff540000 failed dwc2 ff540000.usb: supply vusb_d not found, using dummy regulator dwc2 ff540000.usb: Looking up vusb_a-supply from device tree dwc2 ff540000.usb: Looking up vusb_a-supply property in node /usb@ff540000 failed dwc2 ff540000.usb: supply vusb_a not found, using dummy regulator dwc2 ff540000.usb: Looking up vbus-supply from device tree dwc2 ff540000.usb: Looking up vbus-supply property in node /usb@ff540000 failed dwc2 ff540000.usb: dwc2_check_params: Invalid parameter lpm_clock_gating=1 dwc2 ff540000.usb: dwc2_check_params: Invalid parameter besl=1 dwc2 ff540000.usb: dwc2_check_params: Invalid parameter hird_threshold_en=1 dwc2 ff540000.usb: DWC OTG Controller dwc2 ff540000.usb: new USB bus registered, assigned bus number 1 usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01 usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 usb usb1: Product: DWC OTG Controller usb usb1: Manufacturer: Linux 6.1.92-inmusic-2024-05-28-rt32 dwc2_hsotg usb usb1: SerialNumber: ff540000.usb hub 1-0:1.0: USB hub found hub 1-0:1.0: 1 port detected dwc2 ff580000.usb: Looking up vusb_d-supply from device tree dwc2 ff580000.usb: Looking up vusb_d-supply property in node /usb@ff580000 failed dwc2 ff580000.usb: supply vusb_d not found, using dummy regulator dwc2 ff580000.usb: Looking up vusb_a-supply from device tree dwc2 ff580000.usb: Looking up vusb_a-supply property in node /usb@ff580000 failed dwc2 ff580000.usb: supply vusb_a not found, using dummy regulator dwc2 ff580000.usb: Looking up vbus-supply from device tree dwc2 ff580000.usb: Looking up vbus-supply property in node /usb@ff580000 failed dwc2 ff580000.usb: dwc2_check_params: Invalid parameter lpm_clock_gating=1 dwc2 ff580000.usb: dwc2_check_params: Invalid parameter besl=1 dwc2 ff580000.usb: dwc2_check_params: Invalid parameter hird_threshold_en=1 dwc2 ff580000.usb: EPs: 10, dedicated fifos, 972 entries in SPRAM dwc2 ff580000.usb: DWC OTG Controller dwc2 ff580000.usb: new USB bus registered, assigned bus number 2 usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01 usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1 usb usb2: Product: DWC OTG Controller usb usb2: Manufacturer: Linux 6.1.92-inmusic-2024-05-28-rt32 dwc2_hsotg usb usb2: SerialNumber: ff580000.usb hub 2-0:1.0: USB hub found hub 2-0:1.0: 1 port detected ehci-platform ff500000.usb: EHCI Host Controller ehci-platform ff500000.usb: new USB bus registered, assigned bus number 3 ohci-platform ff520000.usb: Generic Platform OHCI controller ohci-platform ff520000.usb: new USB bus registered, assigned bus number 4 usbcore: registered new interface driver uas usbcore: registered new interface driver usb-storage usbcore: registered new interface driver usbserial_generic usbserial: USB Serial support registered for generic usbcore: registered new interface driver cp210x usbserial: USB Serial support registered for cp210x usbcore: registered new interface driver ftdi_sio usbserial: USB Serial support registered for FTDI USB Serial Device usbcore: registered new interface driver pl2303 usbserial: USB Serial support registered for pl2303 usbcore: registered new interface driver usb_serial_simple usbserial: USB Serial support registered for carelink usbserial: USB Serial support registered for flashloader usbserial: USB Serial support registered for funsoft usbserial: USB Serial support registered for google usbserial: USB Serial support registered for hp4x usbserial: USB Serial support registered for kaufmann usbserial: USB Serial support registered for libtransistor usbserial: USB Serial support registered for moto_modem usbserial: USB Serial support registered for motorola_tetra usbserial: USB Serial support registered for nokia usbserial: USB Serial support registered for novatel_gps usbserial: USB Serial support registered for siemens_mpi usbserial: USB Serial support registered for suunto usbserial: USB Serial support registered for vivopay usbserial: USB Serial support registered for zio ehci-platform ff500000.usb: irq 66, io mem 0xff500000 ohci-platform ff520000.usb: irq 67, io mem 0xff520000 rtc-hym8563 0-0051: registered as rtc0 rtc-hym8563 0-0051: setting system clock to 2024-10-22T19:29:50 UTC (1729625390) dw-apb-uart ff180000.serial: Failed to create device link (0x180) with 0-0051 dw_wdt ff800000.watchdog: No valid TOPs array specified device-mapper: uevent: version 1.0.3 device-mapper: ioctl: 4.47.0-ioctl (2022-07-28) initialised: dm-devel@redhat.com cpu cpu0: Looking up cpu0-supply from device tree Synopsys Designware Multimedia Card Interface Driver hid: raw HID events driver (C) Jiri Kosina usbcore: registered new interface driver usbhid usbhid: USB HID core driver usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 6.01 usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1 usb usb4: Product: Generic Platform OHCI controller usb usb4: Manufacturer: Linux 6.1.92-inmusic-2024-05-28-rt32 ohci_hcd usb usb4: SerialNumber: ff520000.usb hub 4-0:1.0: USB hub found hub 4-0:1.0: 1 port detected dwmmc_rockchip ff0d0000.dwmmc: IDMAC supports 32-bit address mode. dwmmc_rockchip ff0d0000.dwmmc: Using internal DMA controller. dwmmc_rockchip ff0d0000.dwmmc: Version ID is 270a dwmmc_rockchip ff0d0000.dwmmc: DW MMC controller at irq 73,32 bit host data width,256 deep fifo dwmmc_rockchip ff0d0000.dwmmc: Looking up vmmc-supply from device tree rockchip-saradc ff100000.saradc: Looking up vref-supply from device tree dwmmc_rockchip ff0d0000.dwmmc: Looking up vqmmc-supply from device tree dwmmc_rockchip ff0d0000.dwmmc: allocated mmc-pwrseq mmc_host mmc2: card is non-removable. usbcore: registered new interface driver snd-usb-audio NET: Registered PF_PACKET protocol family Bluetooth: HIDP (Human Interface Emulation) ver 1.2 Bluetooth: HIDP socket layer initialized Registering SWP/SWPB emulation handler Loading compiled-in X.509 certificates Key type .fscrypt registered Key type fscrypt-provisioning registered ili2117 4-0026: ILI2117 vendor 0x00 firmware version 5.0 input: ILI2117 Touchscreen as /devices/platform/ff160000.i2c/i2c-4/4-0026/input/input0 ili2117 4-0026: bad packet ID (expected 0x5a): 0x00 usb 1-1: new full-speed USB device number 2 using dwc2 ehci-platform ff500000.usb: USB 2.0 started, EHCI 1.00 usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01 usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1 usb usb3: Product: EHCI Host Controller usb usb3: Manufacturer: Linux 6.1.92-inmusic-2024-05-28-rt32 ehci_hcd usb usb3: SerialNumber: ff500000.usb hub 3-0:1.0: USB hub found hub 3-0:1.0: 1 port detected vcc_flash: will resolve supply early: vin reg-fixed-voltage flash-regulator: Looking up vin-supply from device tree vcc_flash: supplied by VCC_IO VCC_IO: could not add device link regulator.20: -ENOENT vcc_flash: 1800 mV, enabled reg-fixed-voltage flash-regulator: vcc_flash supplying 1800000uV vcc_sd: 3300 mV, disabled reg-fixed-voltage sdmmc-regulator: Looking up vin-supply from device tree vcc_sd: supplied by VCC_IO reg-fixed-voltage sdmmc-regulator: vcc_sd supplying 3300000uV rockchip-iodomain ff770000.syscon:io-domains: Looking up lcdc-supply from device tree rockchip-iodomain ff770000.syscon:io-domains: Looking up dvp-supply from device tree rockchip-iodomain ff770000.syscon:io-domains: Looking up flash0-supply from device tree rockchip-iodomain ff770000.syscon:io-domains: Looking up flash1-supply from device tree rockchip-iodomain ff770000.syscon:io-domains: Looking up wifi-supply from device tree rockchip-iodomain ff770000.syscon:io-domains: Looking up bb-supply from device tree rockchip-iodomain ff770000.syscon:io-domains: Looking up audio-supply from device tree mmc_host mmc2: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) rockchip-iodomain ff770000.syscon:io-domains: Looking up sdcard-supply from device tree rockchip-iodomain ff770000.syscon:io-domains: Looking up gpio30-supply from device tree rockchip-iodomain ff770000.syscon:io-domains: Looking up gpio1830-supply from device tree mali ffa30000.gpu: Looking up mali-supply from device tree mali ffa30000.gpu: GPU identified as 0x0750 r1p0 status 0 mali ffa30000.gpu: Protected mode not available mali ffa30000.gpu: Using configured power model mali-simple-power-model, and fallback mali-simple-power-model mali ffa30000.gpu: Probed as mali0 sbs-battery 3-000b: bq40z50: battery gas gauge device registered dwmmc_rockchip ff0f0000.dwmmc: IDMAC supports 32-bit address mode. dwmmc_rockchip ff0f0000.dwmmc: Using internal DMA controller. dwmmc_rockchip ff0f0000.dwmmc: Version ID is 270a dwmmc_rockchip ff0c0000.dwmmc: IDMAC supports 32-bit address mode. dwmmc_rockchip ff0c0000.dwmmc: Using internal DMA controller. dwmmc_rockchip ff0c0000.dwmmc: Version ID is 270a dwmmc_rockchip ff0c0000.dwmmc: DW MMC controller at irq 76,32 bit host data width,256 deep fifo dwmmc_rockchip ff0c0000.dwmmc: Looking up vmmc-supply from device tree dwmmc_rockchip ff0c0000.dwmmc: Looking up vqmmc-supply from device tree dwmmc_rockchip ff0f0000.dwmmc: DW MMC controller at irq 74,32 bit host data width,256 deep fifo dwmmc_rockchip ff0f0000.dwmmc: Looking up vmmc-supply from device tree input: gpio-keys as /devices/platform/gpio-keys/input/input1 dwmmc_rockchip ff0c0000.dwmmc: Got CD GPIO dwmmc_rockchip ff0c0000.dwmmc: Got WP GPIO dwmmc_rockchip ff0f0000.dwmmc: Looking up vqmmc-supply from device tree dwmmc_rockchip ff0f0000.dwmmc: allocated mmc-pwrseq mmc_host mmc0: card is non-removable. clk: Disabling unused clocks ALSA device list: No soundcards found. dw-apb-uart ff690000.serial: forbid DMA for kernel console mmc_host mmc0: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) sbs-battery 3-000b: I2C adapter does not support I2C_FUNC_SMBUS_READ_BLOCK_DATA. Fallback method does not support PEC. usb 1-1: New USB device found, idVendor=15e4, idProduct=800c, bcdDevice= 0.62 usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 usb 1-1: Product: PRIME GO Control Surface usb 1-1: Manufacturer: Denon DJ mmc_host mmc0: Bus speed (slot 0) = 50000000Hz (slot req 52000000Hz, actual 50000000HZ div = 0) mmc0: new high speed MMC card at address 0001 mmcblk0: mmc0:0001 8GTF4R 7.28 GiB mmcblk0: p1 p2 p3 p4 p5 p6 p7 mmcblk0boot0: mmc0:0001 8GTF4R 4.00 MiB mmcblk0boot1: mmc0:0001 8GTF4R 4.00 MiB mmcblk0rpmb: mmc0:0001 8GTF4R 512 KiB, chardev (245:0) EXT4-fs (mmcblk0p6): mounted filesystem without journal. Quota mode: disabled. VFS: Mounted root (ext4 filesystem) on device 179:6. devtmpfs: mounted Freeing unused kernel image (initmem) memory: 1024K Run /sbin/init as init process with arguments: /sbin/init with environment: HOME=/ TERM=linux mmc_host mmc2: Bus speed (slot 0) = 25000000Hz (slot req 25000000Hz, actual 25000000HZ div = 0) mmc2: new ultra high speed SDR12 SDIO card at address 0001 systemd[1]: systemd 252 running in system mode (-PAM -AUDIT -SELINUX -APPARMOR -IMA -SMACK -SECCOMP -GCRYPT -GNUTLS +OPENSSL -ACL +BLKID +CURL +ELFUTILS -FIDO2 -IDN2 -IDN +IPTC +KMOD -LIBCRYPTSETUP +LIBFDISK +PCRE2 -PWQUALITY -P11KIT -QRENCODE -TPM2 +BZIP2 -LZ4 +XZ +ZLIB +ZSTD -BPF_FRAMEWORK +XKBCOMMON -UTMP -SYSVINIT default-hierarchy=unified) systemd[1]: Detected architecture arm. systemd[1]: Hostname set to <buildroot>. systemd[1]: /etc/systemd/system/connman.service.d/disable_onlinecheck.conf:1: Unknown section 'General'. Ignoring. systemd[1]: Queued start job for default target Multi-User System. systemd[1]: Created slice Slice /system/getty. systemd[1]: Created slice Slice /system/modprobe. systemd[1]: Created slice Slice /system/serial-getty. systemd[1]: Started Dispatch Password Requests to Console Directory Watch. systemd[1]: Started Forward Password Requests to Wall Directory Watch. systemd[1]: Reached target Path Units. systemd[1]: Reached target Remote File Systems. systemd[1]: Reached target Slice Units. systemd[1]: Reached target Swaps. systemd[1]: Journal Audit Socket was skipped because of an unmet condition check (ConditionSecurity=audit). systemd[1]: Listening on Journal Socket (/dev/log). systemd[1]: Listening on Journal Socket. systemd[1]: Listening on udev Control Socket. systemd[1]: Listening on udev Kernel Socket. systemd[1]: Huge Pages File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/mm/hugepages). systemd[1]: POSIX Message Queue File System was skipped because of an unmet condition check (ConditionPathExists=/proc/sys/fs/mqueue). systemd[1]: Mounting Mount /media... systemd[1]: Mounting Mount /secure-media... systemd[1]: Mounting Kernel Debug File System... systemd[1]: Kernel Trace File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/tracing). systemd[1]: Mounting Temporary Directory /tmp... systemd[1]: Starting Mali GPU driver setup for AZ01... systemd[1]: Started Entropy Daemon based on the HAVEGE algorithm. systemd[1]: Create List of Static Device Nodes was skipped because of an unmet condition check (ConditionFileNotEmpty=/lib/modules/6.1.92-inmusic-2024-05-28-rt32/modules.devname). systemd[1]: Starting Load Kernel Module configfs... systemd[1]: Starting Load Kernel Module efi_pstore... systemd[1]: Starting Load Kernel Module fuse... systemd[1]: File System Check on Root Device was skipped because of an unmet condition check (ConditionPathIsReadWrite=!/). systemd[1]: systemd-journald.service: unit configures an IP firewall, but the local system does not support BPF/cgroup firewalling. systemd[1]: (This warning is only shown for the first unit using IP firewalling.) systemd[1]: Starting Journal Service... systemd[1]: Load Kernel Modules was skipped because no trigger condition checks were met. systemd[1]: Starting Generate network units from Kernel command line... systemd[1]: Starting Remount Root and Kernel File Systems... systemd[1]: Starting Apply Kernel Variables... systemd[1]: Starting Create Static Device Nodes in /dev... EXT4-fs (mmcblk0p6): re-mounted. Quota mode: disabled. systemd[1]: Starting Coldplug All udev Devices... systemd[1]: Mounted Mount /media. systemd[1]: Mounted Mount /secure-media. systemd[1]: Mounted Kernel Debug File System. systemd[1]: Mounted Temporary Directory /tmp. systemd[1]: Finished Mali GPU driver setup for AZ01. systemd[1]: modprobe@configfs.service: Deactivated successfully. systemd[1]: Finished Load Kernel Module configfs. systemd[1]: modprobe@efi_pstore.service: Deactivated successfully. systemd[1]: Finished Load Kernel Module efi_pstore. systemd[1]: modprobe@fuse.service: Deactivated successfully. systemd[1]: Finished Load Kernel Module fuse. systemd[1]: Finished Generate network units from Kernel command line. systemd[1]: Finished Remount Root and Kernel File Systems. systemd[1]: Finished Apply Kernel Variables. systemd[1]: Mounting FUSE Control File System... systemd[1]: Mounting Kernel Configuration File System... systemd[1]: Mounted FUSE Control File System. systemd[1]: Finished Create Static Device Nodes in /dev. systemd[1]: Mounted Kernel Configuration File System. systemd[1]: Reached target Preparation for Local File Systems. systemd[1]: Starting Rule-based Manager for Device Events and Files... systemd[1]: Started Journal Service. random: crng init done Bluetooth: HCI UART driver ver 2.3 Bluetooth: HCI UART protocol H4 registered Bluetooth: HCI UART protocol Broadcom registered hci_uart_bcm serial0-0: Looking up vbat-supply from device tree hci_uart_bcm serial0-0: Looking up vbat-supply property in node /serial@ff180000/bluetooth failed hci_uart_bcm serial0-0: supply vbat not found, using dummy regulator hci_uart_bcm serial0-0: Looking up vddio-supply from device tree hci_uart_bcm serial0-0: Looking up vddio-supply property in node /serial@ff180000/bluetooth failed hci_uart_bcm serial0-0: supply vddio not found, using dummy regulator cfg80211: Loading compiled-in X.509 certificates for regulatory database dw-apb-uart ff180000.serial: failed to request DMA cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7' cfg80211: Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600' brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43456-sdio for chip BCM4345/9 brcmfmac mmc2:0001:1: Direct firmware load for brcm/brcmfmac43456-sdio.inmusic,jp11.bin failed with error -2 brcmfmac mmc2:0001:1: Direct firmware load for brcm/brcmfmac43456-sdio.clm_blob failed with error -2 Bluetooth: hci0: BCM: chip id 130 Bluetooth: hci0: BCM: features 0x0f Bluetooth: hci0: BCM4345C5 Bluetooth: hci0: BCM4345C5 (003.006.006) build 0000 Bluetooth: hci0: BCM4345C5 'brcm/BCM4345C5.hcd' Patch jp07-audio sound: jp07_get_dai_fmt: gpio_val=-1, fmt=0x00001001 jp07-codec sound-codec: jp07_codec_set_bias_level: 0 -> 1; mute=1 brcmfmac: brcmf_c_process_clm_blob: no clm_blob available (err=-2), device may have limited channels available brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM4345/9 wl0: Aug 25 2022 12:38:28 version 7.45.96.150 (g31bd2ca8) FWID 01-af0bb8b0 es7.c5.n4.a3 EXT4-fs (mmcblk0p7): mounted filesystem with ordered data mode. Quota mode: disabled. systemd-journald[168]: Received client request to flush runtime journal. Bluetooth: hci0: BCM: features 0x0f Bluetooth: hci0: BCM4345C5 Ampak_CL1 UART 37.4 MHz BT 5.2 [Version: 1021.1043] Bluetooth: hci0: BCM4345C5 (003.006.006) build 1043 Bluetooth: MGMT ver 1.22 rk_gmac-dwmac ff290000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0 rk_gmac-dwmac ff290000.ethernet eth0: PHY [stmmac-0:01] driver [RTL8211E Gigabit Ethernet] (irq=63) rk_gmac-dwmac ff290000.ethernet eth0: No Safety Features support found rk_gmac-dwmac ff290000.ethernet eth0: PTP not supported by HW rk_gmac-dwmac ff290000.ethernet eth0: configuring for phy/rgmii link mode process '/usr/Engine/Engine' started with executable stack fscrypt: AES-256-CTS-CBC using implementation "cts(cbc(aes-generic))" jp07-codec sound-codec: jp07_codec_set_bias_level: 1 -> 2; mute=1 jp07-codec sound-codec: jp07_codec_set_bias_level: 2 -> 3; mute=0

Oct 17 11:03:08 buildroot kernel: Booting Linux on physical CPU 0x500 Oct 17 11:03:08 buildroot kernel: Linux version 6.1.78-inmusic-2024-02-16-p2-rt24 (jenkins@673a7630a96e) (arm-buildroot-linux-gnueabihf-gcc.br_real (Buildroot 2023.02.9-5-gc80b63ff32) 12.3.0, GNU ld (GNU Binutils) 2.38) #1 SMP PREEMPT_RT Wed Sep 11 02:54:27 UTC 2024 Oct 17 11:03:08 buildroot kernel: CPU: ARMv7 Processor [410fc0d1] revision 1 (ARMv7), cr=10c5387d Oct 17 11:03:08 buildroot kernel: CPU: div instructions available: patching division code Oct 17 11:03:08 buildroot kernel: CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache Oct 17 11:03:08 buildroot kernel: OF: fdt: Machine model: Denon DJ Prime GO Oct 17 11:03:08 buildroot kernel: Memory policy: Data cache writealloc Oct 17 11:03:08 buildroot kernel: OF: reserved mem: initialized node framebuffer, compatible id rockchip,framebuffer-memory Oct 17 11:03:08 buildroot kernel: Zone ranges: Oct 17 11:03:08 buildroot kernel: Normal [mem 0x0000000000000000-0x000000002fffffff] Oct 17 11:03:08 buildroot kernel: HighMem [mem 0x0000000030000000-0x000000007fffffff] Oct 17 11:03:08 buildroot kernel: Movable zone start for each node Oct 17 11:03:08 buildroot kernel: Early memory node ranges Oct 17 11:03:08 buildroot kernel: node 0: [mem 0x0000000000000000-0x000000007fffffff] Oct 17 11:03:08 buildroot kernel: Initmem setup node 0 [mem 0x0000000000000000-0x000000007fffffff] Oct 17 11:03:08 buildroot kernel: percpu: Embedded 12 pages/cpu s17632 r8192 d23328 u49152 Oct 17 11:03:08 buildroot kernel: pcpu-alloc: s17632 r8192 d23328 u49152 alloc=12*4096 Oct 17 11:03:08 buildroot kernel: pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 Oct 17 11:03:08 buildroot kernel: Built 1 zonelists, mobility grouping on. Total pages: 522752 Oct 17 11:03:08 buildroot kernel: Kernel command line: root=PARTUUID=24d1deac-3434-1a4e-98d1-68ee2945a5f1 rootwait ro rfkill.default_state=0 isolcpus=1-3 Oct 17 11:03:08 buildroot kernel: Dentry cache hash table entries: 131072 (order: 7, 524288 bytes, linear) Oct 17 11:03:08 buildroot kernel: Inode-cache hash table entries: 65536 (order: 6, 262144 bytes, linear) Oct 17 11:03:08 buildroot kernel: mem auto-init: stack:all(zero), heap alloc:off, heap free:off Oct 17 11:03:08 buildroot kernel: Memory: 2053884K/2097152K available (8192K kernel code, 815K rwdata, 2556K rodata, 1024K init, 279K bss, 30980K reserved, 12288K cma-reserved, 1298432K highmem) Oct 17 11:03:08 buildroot kernel: SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 Oct 17 11:03:08 buildroot kernel: rcu: Preemptible hierarchical RCU implementation. Oct 17 11:03:08 buildroot kernel: rcu: RCU event tracing is enabled. Oct 17 11:03:08 buildroot kernel: rcu: RCU priority boosting: priority 1 delay 500 ms. Oct 17 11:03:08 buildroot kernel: rcu: RCU_SOFTIRQ processing moved to rcuc kthreads. Oct 17 11:03:08 buildroot kernel: No expedited grace period (rcu_normal_after_boot). Oct 17 11:03:08 buildroot kernel: rcu: RCU calculated value of scheduler-enlistment delay is 100 jiffies. Oct 17 11:03:08 buildroot kernel: NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16 Oct 17 11:03:08 buildroot kernel: rcu: srcu_init: Setting srcu_struct sizes based on contention. Oct 17 11:03:08 buildroot kernel: rockchip: reset MMC AHB arbitor Oct 17 11:03:08 buildroot kernel: arch_timer: cp15 timer(s) running at 24.00MHz (phys). Oct 17 11:03:08 buildroot kernel: clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns Oct 17 11:03:08 buildroot kernel: sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns Oct 17 11:03:08 buildroot kernel: Switching to timer-based delay loop, resolution 41ns Oct 17 11:03:08 buildroot kernel: Console: colour dummy device 80x30 Oct 17 11:03:08 buildroot kernel: printk: console [tty0] enabled Oct 17 11:03:08 buildroot kernel: Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=24000) Oct 17 11:03:08 buildroot kernel: CPU: Testing write buffer coherency: ok Oct 17 11:03:08 buildroot kernel: Spectre V2: workarounds disabled by configuration Oct 17 11:03:08 buildroot kernel: pid_max: default: 32768 minimum: 301 Oct 17 11:03:08 buildroot kernel: Mount-cache hash table entries: 2048 (order: 1, 8192 bytes, linear) Oct 17 11:03:08 buildroot kernel: Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes, linear) Oct 17 11:03:08 buildroot kernel: CPU0: thread -1, cpu 0, socket 5, mpidr 80000500 Oct 17 11:03:08 buildroot kernel: Setting up static identity map for 0x100000 - 0x100060 Oct 17 11:03:08 buildroot kernel: rcu: Hierarchical SRCU implementation. Oct 17 11:03:08 buildroot kernel: rcu: Max phase no-delay instances is 400. Oct 17 11:03:08 buildroot kernel: printk: console [tty0] printing thread started Oct 17 11:03:08 buildroot kernel: smp: Bringing up secondary CPUs ... Oct 17 11:03:08 buildroot kernel: CPU1: thread -1, cpu 1, socket 5, mpidr 80000501 Oct 17 11:03:08 buildroot kernel: CPU2: thread -1, cpu 2, socket 5, mpidr 80000502 Oct 17 11:03:08 buildroot kernel: CPU3: thread -1, cpu 3, socket 5, mpidr 80000503 Oct 17 11:03:08 buildroot kernel: smp: Brought up 1 node, 4 CPUs Oct 17 11:03:08 buildroot kernel: SMP: Total of 4 processors activated (192.00 BogoMIPS). Oct 17 11:03:08 buildroot kernel: CPU: All CPU(s) started in SVC mode. Oct 17 11:03:08 buildroot kernel: devtmpfs: initialized Oct 17 11:03:08 buildroot kernel: VFP support v0.3: implementor 41 architecture 3 part 30 variant d rev 0 Oct 17 11:03:08 buildroot kernel: clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 1911260446275000 ns Oct 17 11:03:08 buildroot kernel: futex hash table entries: 1024 (order: 4, 65536 bytes, linear) Oct 17 11:03:08 buildroot kernel: pinctrl core: initialized pinctrl subsystem Oct 17 11:03:08 buildroot kernel: regulator-dummy: no parameters, enabled Oct 17 11:03:08 buildroot kernel: NET: Registered PF_NETLINK/PF_ROUTE protocol family Oct 17 11:03:08 buildroot kernel: DMA: preallocated 256 KiB pool for atomic coherent allocations Oct 17 11:03:08 buildroot kernel: thermal_sys: Registered thermal governor 'step_wise' Oct 17 11:03:08 buildroot kernel: thermal_sys: Registered thermal governor 'user_space' Oct 17 11:03:08 buildroot kernel: cpuidle: using governor menu Oct 17 11:03:08 buildroot kernel: No ATAGs? Oct 17 11:03:08 buildroot kernel: hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers. Oct 17 11:03:08 buildroot kernel: hw-breakpoint: maximum watchpoint size is 4 bytes. Oct 17 11:03:08 buildroot kernel: platform ff960000.mipi: Fixed dependency cycle(s) with /mipi@ff960000/panel@0/ports/port@0/endpoint Oct 17 11:03:08 buildroot kernel: platform ff960000.mipi: Fixed dependency cycle(s) with /vop@ff940000/port/endpoint@2 Oct 17 11:03:08 buildroot kernel: platform pinctrl: Fixed dependency cycle(s) with /pinctrl/az01/az01-pcb-rev Oct 17 11:03:08 buildroot kernel: rockchip-gpio ff750000.gpio: probed /pinctrl/gpio@ff750000 Oct 17 11:03:08 buildroot kernel: rockchip-gpio ff780000.gpio: probed /pinctrl/gpio@ff780000 Oct 17 11:03:08 buildroot kernel: rockchip-gpio ff790000.gpio: probed /pinctrl/gpio@ff790000 Oct 17 11:03:08 buildroot kernel: rockchip-gpio ff7a0000.gpio: probed /pinctrl/gpio@ff7a0000 Oct 17 11:03:08 buildroot kernel: rockchip-gpio ff7b0000.gpio: probed /pinctrl/gpio@ff7b0000 Oct 17 11:03:08 buildroot kernel: rockchip-gpio ff7c0000.gpio: probed /pinctrl/gpio@ff7c0000 Oct 17 11:03:08 buildroot kernel: rockchip-gpio ff7d0000.gpio: probed /pinctrl/gpio@ff7d0000 Oct 17 11:03:08 buildroot kernel: rockchip-gpio ff7e0000.gpio: probed /pinctrl/gpio@ff7e0000 Oct 17 11:03:08 buildroot kernel: rockchip-gpio ff7f0000.gpio: probed /pinctrl/gpio@ff7f0000 Oct 17 11:03:08 buildroot kernel: vcc_sys: 5000 mV, enabled Oct 17 11:03:08 buildroot kernel: reg-fixed-voltage vsys-regulator: vcc_sys supplying 5000000uV Oct 17 11:03:08 buildroot kernel: reg-fixed-voltage vcc-mipi: Looking up vin-supply from device tree Oct 17 11:03:08 buildroot kernel: vcc_mipi: supplied by vcc_sys Oct 17 11:03:08 buildroot kernel: vcc_sys: could not add device link regulator.2: -ENOENT Oct 17 11:03:08 buildroot kernel: vcc_mipi: 3300 mV, enabled Oct 17 11:03:08 buildroot kernel: reg-fixed-voltage vcc-mipi: vcc_mipi supplying 3300000uV Oct 17 11:03:08 buildroot kernel: reg-fixed-voltage vcc-sata: Looking up vin-supply from device tree Oct 17 11:03:08 buildroot kernel: vcc_sata: supplied by vcc_sys Oct 17 11:03:08 buildroot kernel: vcc_sys: could not add device link regulator.3: -ENOENT Oct 17 11:03:08 buildroot kernel: vcc_sata: 5000 mV, enabled Oct 17 11:03:08 buildroot kernel: reg-fixed-voltage vcc-sata: vcc_sata supplying 5000000uV Oct 17 11:03:08 buildroot kernel: vcc_host: no parameters, enabled Oct 17 11:03:08 buildroot kernel: reg-fixed-voltage vcc-host-regulator: vcc_host supplying 0uV Oct 17 11:03:08 buildroot kernel: vcc_otg_5v: 5000 mV, enabled Oct 17 11:03:08 buildroot kernel: reg-fixed-voltage usb-otg-regulator: vcc_otg_5v supplying 5000000uV Oct 17 11:03:08 buildroot kernel: iommu: Default domain type: Translated Oct 17 11:03:08 buildroot kernel: iommu: DMA domain TLB invalidation policy: strict mode Oct 17 11:03:08 buildroot kernel: SCSI subsystem initialized Oct 17 11:03:08 buildroot kernel: usbcore: registered new interface driver usbfs Oct 17 11:03:08 buildroot kernel: usbcore: registered new interface driver hub Oct 17 11:03:08 buildroot kernel: usbcore: registered new device driver usb Oct 17 11:03:08 buildroot kernel: pps_core: LinuxPPS API ver. 1 registered Oct 17 11:03:08 buildroot kernel: pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it> Oct 17 11:03:08 buildroot kernel: PTP clock support registered Oct 17 11:03:08 buildroot kernel: Advanced Linux Sound Architecture Driver Initialized. Oct 17 11:03:08 buildroot kernel: Bluetooth: Core ver 2.22 Oct 17 11:03:08 buildroot kernel: NET: Registered PF_BLUETOOTH protocol family Oct 17 11:03:08 buildroot kernel: Bluetooth: HCI device and connection manager initialized Oct 17 11:03:08 buildroot kernel: Bluetooth: HCI socket layer initialized Oct 17 11:03:08 buildroot kernel: Bluetooth: L2CAP socket layer initialized Oct 17 11:03:08 buildroot kernel: Bluetooth: SCO socket layer initialized Oct 17 11:03:08 buildroot kernel: clocksource: Switched to clocksource arch_sys_counter Oct 17 11:03:08 buildroot kernel: NET: Registered PF_INET protocol family Oct 17 11:03:08 buildroot kernel: IP idents hash table entries: 16384 (order: 5, 131072 bytes, linear) Oct 17 11:03:08 buildroot kernel: tcp_listen_portaddr_hash hash table entries: 512 (order: 1, 10240 bytes, linear) Oct 17 11:03:08 buildroot kernel: Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) Oct 17 11:03:08 buildroot kernel: TCP established hash table entries: 8192 (order: 3, 32768 bytes, linear) Oct 17 11:03:08 buildroot kernel: TCP bind hash table entries: 8192 (order: 6, 327680 bytes, linear) Oct 17 11:03:08 buildroot kernel: TCP: Hash tables configured (established 8192 bind 8192) Oct 17 11:03:08 buildroot kernel: UDP hash table entries: 512 (order: 2, 24576 bytes, linear) Oct 17 11:03:08 buildroot kernel: UDP-Lite hash table entries: 512 (order: 2, 24576 bytes, linear) Oct 17 11:03:08 buildroot kernel: NET: Registered PF_UNIX/PF_LOCAL protocol family Oct 17 11:03:08 buildroot kernel: hw perfevents: enabled with armv7_cortex_a12 PMU driver, 7 counters available Oct 17 11:03:08 buildroot kernel: Initialise system trusted keyrings Oct 17 11:03:08 buildroot kernel: workingset: timestamp_bits=30 max_order=19 bucket_order=0 Oct 17 11:03:08 buildroot kernel: squashfs: version 4.0 (2009/01/31) Phillip Lougher Oct 17 11:03:08 buildroot kernel: fuse: init (API version 7.37) Oct 17 11:03:08 buildroot kernel: NET: Registered PF_ALG protocol family Oct 17 11:03:08 buildroot kernel: Key type asymmetric registered Oct 17 11:03:08 buildroot kernel: Asymmetric key parser 'x509' registered Oct 17 11:03:08 buildroot kernel: Asymmetric key parser 'pkcs8' registered Oct 17 11:03:08 buildroot kernel: alg: self-tests for CTR-KDF (hmac(sha256)) passed Oct 17 11:03:08 buildroot kernel: bounce: pool size: 64 pages Oct 17 11:03:08 buildroot kernel: Block layer SCSI generic (bsg) driver version 0.4 loaded (major 248) Oct 17 11:03:08 buildroot kernel: io scheduler mq-deadline registered Oct 17 11:03:08 buildroot kernel: io scheduler kyber registered Oct 17 11:03:08 buildroot kernel: io scheduler bfq registered Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.0: Looking up phy-supply from device tree Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.0: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@320 failed Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.0: Looking up vbus-supply from device tree Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.0: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@320 failed Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.1: Looking up phy-supply from device tree Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.1: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@334 failed Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.1: Looking up vbus-supply from device tree Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.1: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@334 failed Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.2: Looking up phy-supply from device tree Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.2: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@348 failed Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.2: Looking up vbus-supply from device tree Oct 17 11:03:08 buildroot kernel: phy phy-ff770000.syscon:usbphy.2: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@348 failed Oct 17 11:03:08 buildroot kernel: pwm-backlight mipi-backlight: Looking up power-supply from device tree Oct 17 11:03:08 buildroot kernel: dma-pl330 ff250000.dma-controller: WARN: Device release is not defined so it is not safe to unbind this driver while in use Oct 17 11:03:08 buildroot kernel: dma-pl330 ff250000.dma-controller: Loaded driver for PL330 DMAC-241330 Oct 17 11:03:08 buildroot kernel: dma-pl330 ff250000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-20 Num_Events-16 Oct 17 11:03:08 buildroot kernel: dma-pl330 ffb20000.dma-controller: WARN: Device release is not defined so it is not safe to unbind this driver while in use Oct 17 11:03:08 buildroot kernel: dma-pl330 ffb20000.dma-controller: Loaded driver for PL330 DMAC-241330 Oct 17 11:03:08 buildroot kernel: dma-pl330 ffb20000.dma-controller: DBUFF-64x8bytes Num_Chans-5 Num_Peri-6 Num_Events-10 Oct 17 11:03:08 buildroot kernel: Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled Oct 17 11:03:08 buildroot kernel: ff180000.serial: ttyS0 at MMIO 0xff180000 (irq = 47, base_baud = 1500000) is a 16550A Oct 17 11:03:08 buildroot kernel: serial serial0: tty port ttyS0 registered Oct 17 11:03:08 buildroot kernel: ff690000.serial: ttyS2 at MMIO 0xff690000 (irq = 48, base_baud = 1500000) is a 16550A Oct 17 11:03:08 buildroot kernel: printk: console [ttyS2] enabled Oct 17 11:03:08 buildroot kernel: ff1b0000.serial: ttyS3 at MMIO 0xff1b0000 (irq = 49, base_baud = 1500000) is a 16550A Oct 17 11:03:08 buildroot kernel: printk: console [ttyS2] printing thread started Oct 17 11:03:08 buildroot kernel: i2c_dev: i2c /dev entries driver Oct 17 11:03:08 buildroot kernel: i2c 0-005a: Fixed dependency cycle(s) with /i2c@ff650000/act8846@5a/regulators/REG4 Oct 17 11:03:08 buildroot kernel: i2c 0-005a: Fixed dependency cycle(s) with /i2c@ff650000/act8846@5a/regulators/REG2 Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up vp1-supply from device tree Oct 17 11:03:08 buildroot kernel: VCC_DDR: supplied by vcc_sys Oct 17 11:03:08 buildroot kernel: vcc_sys: could not add device link regulator.6: -ENOENT Oct 17 11:03:08 buildroot kernel: VCC_DDR: 1200 <--> 1500 mV at 1500 mV, enabled Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up vp2-supply from device tree Oct 17 11:03:08 buildroot kernel: VCC_IO: supplied by vcc_sys Oct 17 11:03:08 buildroot kernel: vcc_sys: could not add device link regulator.7: -ENOENT Oct 17 11:03:08 buildroot kernel: VCC_IO: 3300 mV, enabled Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up vp3-supply from device tree Oct 17 11:03:08 buildroot kernel: VDD_LOG: supplied by vcc_sys Oct 17 11:03:08 buildroot kernel: vcc_sys: could not add device link regulator.8: -ENOENT Oct 17 11:03:08 buildroot kernel: VDD_LOG: 950 <--> 1400 mV at 1200 mV, enabled Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up vp4-supply from device tree Oct 17 11:03:08 buildroot kernel: VCC_20: supplied by vcc_sys Oct 17 11:03:08 buildroot kernel: vcc_sys: could not add device link regulator.9: -ENOENT Oct 17 11:03:08 buildroot kernel: VCC_20: 2000 mV, enabled Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up inl1-supply from device tree Oct 17 11:03:08 buildroot kernel: VCCIO_SD: supplied by VCC_IO Oct 17 11:03:08 buildroot kernel: VCC_IO: could not add device link regulator.10: -ENOENT Oct 17 11:03:08 buildroot kernel: VCCIO_SD: 1800 <--> 3300 mV at 3300 mV, enabled Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up inl1-supply from device tree Oct 17 11:03:08 buildroot kernel: VDD10_LCD: supplied by VCC_IO Oct 17 11:03:08 buildroot kernel: VCC_IO: could not add device link regulator.11: -ENOENT Oct 17 11:03:08 buildroot kernel: VDD10_LCD: 1000 mV, enabled Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up inl1-supply from device tree Oct 17 11:03:08 buildroot kernel: VCCA_CODEC: supplied by VCC_IO Oct 17 11:03:08 buildroot kernel: VCC_IO: could not add device link regulator.12: -ENOENT Oct 17 11:03:08 buildroot kernel: VCCA_CODEC: 3300 mV, enabled Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up inl2-supply from device tree Oct 17 11:03:08 buildroot kernel: VCCA_TP: supplied by vcc_sys Oct 17 11:03:08 buildroot kernel: vcc_sys: could not add device link regulator.13: -ENOENT Oct 17 11:03:08 buildroot kernel: VCCA_TP: 3300 mV, enabled Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up inl2-supply from device tree Oct 17 11:03:08 buildroot kernel: VCCIO_PMU: supplied by vcc_sys Oct 17 11:03:08 buildroot kernel: vcc_sys: could not add device link regulator.14: -ENOENT Oct 17 11:03:08 buildroot kernel: VCCIO_PMU: 3300 mV, enabled Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up inl3-supply from device tree Oct 17 11:03:08 buildroot kernel: VDD_10: supplied by VCC_20 Oct 17 11:03:08 buildroot kernel: VCC_20: could not add device link regulator.15: -ENOENT Oct 17 11:03:08 buildroot kernel: VDD_10: 1000 mV, enabled Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up inl3-supply from device tree Oct 17 11:03:08 buildroot kernel: VCC_18: supplied by VCC_20 Oct 17 11:03:08 buildroot kernel: VCC_20: could not add device link regulator.16: -ENOENT Oct 17 11:03:08 buildroot kernel: VCC_18: 1800 mV, enabled Oct 17 11:03:08 buildroot kernel: act8865 0-005a: Looking up inl3-supply from device tree Oct 17 11:03:08 buildroot kernel: VCC18_LCD: supplied by VCC_20 Oct 17 11:03:08 buildroot kernel: VCC_20: could not add device link regulator.17: -ENOENT Oct 17 11:03:08 buildroot kernel: VCC18_LCD: 1800 mV, enabled Oct 17 11:03:08 buildroot kernel: fan53555-regulator 0-0040: FAN53555 Option[8] Rev[1] Detected! Oct 17 11:03:08 buildroot kernel: fan53555-regulator 0-0040: Looking up vin-supply from device tree Oct 17 11:03:08 buildroot kernel: vdd_cpu: supplied by vcc_sys Oct 17 11:03:08 buildroot kernel: vcc_sys: could not add device link regulator.18: -ENOENT Oct 17 11:03:08 buildroot kernel: vdd_cpu: 850 <--> 1500 mV at 1350 mV, enabled Oct 17 11:03:08 buildroot kernel: fan53555-regulator 0-0041: FAN53555 Option[8] Rev[1] Detected! Oct 17 11:03:08 buildroot kernel: fan53555-regulator 0-0041: Looking up vin-supply from device tree Oct 17 11:03:08 buildroot kernel: vdd_gpu: supplied by vcc_sys Oct 17 11:03:08 buildroot kernel: vcc_sys: could not add device link regulator.19: -ENOENT Oct 17 11:03:08 buildroot kernel: vdd_gpu: 850 <--> 1350 mV at 1250 mV, enabled Oct 17 11:03:08 buildroot kernel: dw-apb-uart ff180000.serial: Failed to create device link (0x180) with 0-0051 Oct 17 11:03:08 buildroot kernel: mali ffa30000.gpu: Looking up mali-supply from device tree Oct 17 11:03:08 buildroot kernel: mali ffa30000.gpu: GPU identified as 0x0750 r1p0 status 0 Oct 17 11:03:08 buildroot kernel: mali ffa30000.gpu: Protected mode not available Oct 17 11:03:08 buildroot kernel: Error -19 getting thermal zone 'gpu-thermal', not yet ready? Oct 17 11:03:08 buildroot kernel: mali ffa30000.gpu: recalculation of power model mali-simple-power-model returned error -517 Oct 17 11:03:08 buildroot kernel: mali ffa30000.gpu: IPA initialization failed Oct 17 11:03:08 buildroot kernel: ------------[ cut here ]------------ Oct 17 11:03:08 buildroot kernel: WARNING: CPU: 0 PID: 1 at drivers/opp/core.c:1516 _opp_table_kref_release+0x88/0x104 Oct 17 11:03:08 buildroot kernel: Modules linked in: Oct 17 11:03:08 buildroot kernel: CPU: 0 PID: 1 Comm: swapper/0 Not tainted 6.1.78-inmusic-2024-02-16-p2-rt24 #1 Oct 17 11:03:08 buildroot kernel: Hardware name: Rockchip (Device Tree) Oct 17 11:03:08 buildroot kernel: unwind_backtrace from show_stack+0x10/0x14 Oct 17 11:03:08 buildroot kernel: show_stack from dump_stack_lvl+0x40/0x4c Oct 17 11:03:08 buildroot kernel: dump_stack_lvl from __warn+0x70/0xd4 Oct 17 11:03:08 buildroot kernel: __warn from warn_slowpath_fmt+0xc4/0x158 Oct 17 11:03:08 buildroot kernel: warn_slowpath_fmt from _opp_table_kref_release+0x88/0x104 Oct 17 11:03:08 buildroot kernel: _opp_table_kref_release from kbase_platform_device_remove+0x2cc/0x3ac Oct 17 11:03:08 buildroot kernel: kbase_platform_device_remove from kbase_platform_device_probe+0x5e0/0xb20 Oct 17 11:03:08 buildroot kernel: kbase_platform_device_probe from platform_probe+0x58/0xac Oct 17 11:03:08 buildroot kernel: platform_probe from really_probe+0x1ac/0x3c8 Oct 17 11:03:08 buildroot kernel: really_probe from __driver_probe_device+0x1ac/0x1e0 Oct 17 11:03:08 buildroot kernel: __driver_probe_device from driver_probe_device+0x3c/0xbc Oct 17 11:03:08 buildroot kernel: driver_probe_device from __driver_attach+0x148/0x16c Oct 17 11:03:08 buildroot kernel: __driver_attach from bus_for_each_dev+0x6c/0xac Oct 17 11:03:08 buildroot kernel: bus_for_each_dev from bus_add_driver+0xd4/0x1ec Oct 17 11:03:08 buildroot kernel: bus_add_driver from driver_register+0xac/0xf4 Oct 17 11:03:08 buildroot kernel: driver_register from do_one_initcall+0x74/0x1fc Oct 17 11:03:08 buildroot kernel: do_one_initcall from kernel_init_freeable+0x198/0x1dc Oct 17 11:03:08 buildroot kernel: kernel_init_freeable from kernel_init+0x14/0x12c Oct 17 11:03:08 buildroot kernel: kernel_init from ret_from_fork+0x14/0x28 Oct 17 11:03:08 buildroot kernel: Exception stack(0xf0831fb0 to 0xf0831ff8) Oct 17 11:03:08 buildroot kernel: 1fa0: 00000000 00000000 00000000 00000000 Oct 17 11:03:08 buildroot kernel: 1fc0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 Oct 17 11:03:08 buildroot kernel: 1fe0: 00000000 00000000 00000000 00000000 00000013 00000000 Oct 17 11:03:08 buildroot kernel: ---[ end trace 0000000000000000 ]--- Oct 17 11:03:08 buildroot kernel: rockchip-vop ff930000.vop: Adding to iommu group 0 Oct 17 11:03:08 buildroot kernel: rockchip-vop ff940000.vop: Adding to iommu group 1 Oct 17 11:03:08 buildroot kernel: phy phy-ff960000.mipi.3: Looking up phy-supply from device tree Oct 17 11:03:08 buildroot kernel: phy phy-ff960000.mipi.3: Looking up phy-supply property in node /mipi@ff960000 failed Oct 17 11:03:08 buildroot kernel: mipi-dsi ff960000.mipi.0: Fixed dependency cycle(s) with /mipi@ff960000/ports/port@1/endpoint Oct 17 11:03:08 buildroot kernel: panel-urt-umoh-9522md-t ff960000.mipi.0: Looking up power-supply from device tree Oct 17 11:03:08 buildroot kernel: rockchip_framebuffer_rmem_device_init: initializing with base address 0x7f400000 size=0x00c00000 Oct 17 11:03:08 buildroot kernel: rockchip-drm display-subsystem: assigned reserved memory node framebuffer Oct 17 11:03:08 buildroot kernel: rockchip-drm display-subsystem: bound ff930000.vop (ops 0xc0964c38) Oct 17 11:03:08 buildroot kernel: rockchip-vop ff940000.vop: enabled by bootloader Oct 17 11:03:08 buildroot kernel: rockchip-drm display-subsystem: bound ff940000.vop (ops 0xc0964c38) Oct 17 11:03:08 buildroot kernel: rockchip-drm display-subsystem: bound ff960000.mipi (ops 0xc0968a80) Oct 17 11:03:08 buildroot kernel: [drm] Initialized rockchip 1.0.0 20140818 for display-subsystem on minor 0 Oct 17 11:03:08 buildroot kernel: rockchip-drm display-subsystem: framebugger sg_size=12582912 size=12288000 Oct 17 11:03:08 buildroot kernel: rockchip-drm display-subsystem: [drm] fb0: rockchipdrmfb frame buffer device Oct 17 11:03:08 buildroot kernel: brd: module loaded Oct 17 11:03:08 buildroot kernel: loop: module loaded Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: IRQ eth_lpi not found Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: PTP uses main clock Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: Looking up phy-supply from device tree Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: clock input or output? (input). Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: TX delay(0x30). Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: RX delay(0x10). Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: integrated PHY? (no). Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: clock input from PHY Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: init for RGMII Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: User ID: 0x10, Synopsys ID: 0x35 Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: DWMAC1000 Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: DMA HW capability register supported Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: RX Checksum Offload Engine supported Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: COE Type 2 Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: TX Checksum insertion supported Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: Wake-Up On Lan supported Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: Normal descriptors Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: Ring mode enabled Oct 17 11:03:08 buildroot kernel: rk_gmac-dwmac ff290000.ethernet: Enable RX Mitigation via HW Watchdog Timer Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: Looking up vusb_d-supply from device tree Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: Looking up vusb_d-supply property in node /usb@ff540000 failed Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: supply vusb_d not found, using dummy regulator Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: Looking up vusb_a-supply from device tree Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: Looking up vusb_a-supply property in node /usb@ff540000 failed Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: supply vusb_a not found, using dummy regulator Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: Looking up vbus-supply from device tree Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: Looking up vbus-supply property in node /usb@ff540000 failed Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: dwc2_check_params: Invalid parameter lpm_clock_gating=1 Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: dwc2_check_params: Invalid parameter besl=1 Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: dwc2_check_params: Invalid parameter hird_threshold_en=1 Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: DWC OTG Controller Oct 17 11:03:08 buildroot kernel: dwc2 ff540000.usb: new USB bus registered, assigned bus number 1 Oct 17 11:03:08 buildroot kernel: usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01 Oct 17 11:03:08 buildroot kernel: usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 Oct 17 11:03:08 buildroot kernel: usb usb1: Product: DWC OTG Controller Oct 17 11:03:08 buildroot kernel: usb usb1: Manufacturer: Linux 6.1.78-inmusic-2024-02-16-p2-rt24 dwc2_hsotg Oct 17 11:03:08 buildroot kernel: usb usb1: SerialNumber: ff540000.usb Oct 17 11:03:08 buildroot kernel: hub 1-0:1.0: USB hub found Oct 17 11:03:08 buildroot kernel: hub 1-0:1.0: 1 port detected Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: Looking up vusb_d-supply from device tree Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: Looking up vusb_d-supply property in node /usb@ff580000 failed Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: supply vusb_d not found, using dummy regulator Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: Looking up vusb_a-supply from device tree Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: Looking up vusb_a-supply property in node /usb@ff580000 failed Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: supply vusb_a not found, using dummy regulator Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: Looking up vbus-supply from device tree Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: Looking up vbus-supply property in node /usb@ff580000 failed Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: dwc2_check_params: Invalid parameter lpm_clock_gating=1 Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: dwc2_check_params: Invalid parameter besl=1 Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: dwc2_check_params: Invalid parameter hird_threshold_en=1 Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: EPs: 10, dedicated fifos, 972 entries in SPRAM Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: DWC OTG Controller Oct 17 11:03:08 buildroot kernel: dwc2 ff580000.usb: new USB bus registered, assigned bus number 2 Oct 17 11:03:08 buildroot kernel: usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01 Oct 17 11:03:08 buildroot kernel: usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1 Oct 17 11:03:08 buildroot kernel: usb usb2: Product: DWC OTG Controller Oct 17 11:03:08 buildroot kernel: usb usb2: Manufacturer: Linux 6.1.78-inmusic-2024-02-16-p2-rt24 dwc2_hsotg Oct 17 11:03:08 buildroot kernel: usb usb2: SerialNumber: ff580000.usb Oct 17 11:03:08 buildroot kernel: hub 2-0:1.0: USB hub found Oct 17 11:03:08 buildroot kernel: hub 2-0:1.0: 1 port detected Oct 17 11:03:08 buildroot kernel: ehci-platform ff500000.usb: EHCI Host Controller Oct 17 11:03:08 buildroot kernel: ehci-platform ff500000.usb: new USB bus registered, assigned bus number 3 Oct 17 11:03:08 buildroot kernel: ohci-platform ff520000.usb: Generic Platform OHCI controller Oct 17 11:03:08 buildroot kernel: ohci-platform ff520000.usb: new USB bus registered, assigned bus number 4 Oct 17 11:03:08 buildroot kernel: usbcore: registered new interface driver uas Oct 17 11:03:08 buildroot kernel: usbcore: registered new interface driver usb-storage Oct 17 11:03:08 buildroot kernel: usbcore: registered new interface driver usbserial_generic Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for generic Oct 17 11:03:08 buildroot kernel: usbcore: registered new interface driver cp210x Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for cp210x Oct 17 11:03:08 buildroot kernel: usbcore: registered new interface driver ftdi_sio Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for FTDI USB Serial Device Oct 17 11:03:08 buildroot kernel: usbcore: registered new interface driver pl2303 Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for pl2303 Oct 17 11:03:08 buildroot kernel: usbcore: registered new interface driver usb_serial_simple Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for carelink Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for flashloader Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for funsoft Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for google Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for hp4x Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for kaufmann Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for libtransistor Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for moto_modem Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for motorola_tetra Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for nokia Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for novatel_gps Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for siemens_mpi Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for suunto Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for vivopay Oct 17 11:03:08 buildroot kernel: usbserial: USB Serial support registered for zio Oct 17 11:03:08 buildroot kernel: ehci-platform ff500000.usb: irq 66, io mem 0xff500000 Oct 17 11:03:08 buildroot kernel: ohci-platform ff520000.usb: irq 67, io mem 0xff520000 Oct 17 11:03:08 buildroot kernel: rtc-hym8563 0-0051: registered as rtc0 Oct 17 11:03:08 buildroot kernel: rtc-hym8563 0-0051: setting system clock to 2024-10-17T15:03:06 UTC (1729177386) Oct 17 11:03:08 buildroot kernel: dw-apb-uart ff180000.serial: Failed to create device link (0x180) with 0-0051 Oct 17 11:03:08 buildroot kernel: dw_wdt ff800000.watchdog: No valid TOPs array specified Oct 17 11:03:08 buildroot kernel: device-mapper: uevent: version 1.0.3 Oct 17 11:03:08 buildroot kernel: device-mapper: ioctl: 4.47.0-ioctl (2022-07-28) initialised: dm-devel@redhat.com Oct 17 11:03:08 buildroot kernel: cpu cpu0: Looking up cpu0-supply from device tree Oct 17 11:03:08 buildroot kernel: Synopsys Designware Multimedia Card Interface Driver Oct 17 11:03:08 buildroot kernel: hid: raw HID events driver (C) Jiri Kosina Oct 17 11:03:08 buildroot kernel: usbcore: registered new interface driver usbhid Oct 17 11:03:08 buildroot kernel: usbhid: USB HID core driver Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0d0000.dwmmc: IDMAC supports 32-bit address mode. Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0d0000.dwmmc: Using internal DMA controller. Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0d0000.dwmmc: Version ID is 270a Oct 17 11:03:08 buildroot kernel: rockchip-saradc ff100000.saradc: Looking up vref-supply from device tree Oct 17 11:03:08 buildroot kernel: usbcore: registered new interface driver snd-usb-audio Oct 17 11:03:08 buildroot kernel: NET: Registered PF_PACKET protocol family Oct 17 11:03:08 buildroot kernel: Bluetooth: HIDP (Human Interface Emulation) ver 1.2 Oct 17 11:03:08 buildroot kernel: Bluetooth: HIDP socket layer initialized Oct 17 11:03:08 buildroot kernel: Registering SWP/SWPB emulation handler Oct 17 11:03:08 buildroot kernel: Loading compiled-in X.509 certificates Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0d0000.dwmmc: DW MMC controller at irq 73,32 bit host data width,256 deep fifo Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0d0000.dwmmc: Looking up vmmc-supply from device tree Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0d0000.dwmmc: Looking up vqmmc-supply from device tree Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0d0000.dwmmc: allocated mmc-pwrseq Oct 17 11:03:08 buildroot kernel: mmc_host mmc2: card is non-removable. Oct 17 11:03:08 buildroot kernel: usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 6.01 Oct 17 11:03:08 buildroot kernel: usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1 Oct 17 11:03:08 buildroot kernel: usb usb4: Product: Generic Platform OHCI controller Oct 17 11:03:08 buildroot kernel: usb usb4: Manufacturer: Linux 6.1.78-inmusic-2024-02-16-p2-rt24 ohci_hcd Oct 17 11:03:08 buildroot kernel: usb usb4: SerialNumber: ff520000.usb Oct 17 11:03:08 buildroot kernel: hub 4-0:1.0: USB hub found Oct 17 11:03:08 buildroot kernel: hub 4-0:1.0: 1 port detected Oct 17 11:03:08 buildroot kernel: Key type .fscrypt registered Oct 17 11:03:08 buildroot kernel: Key type fscrypt-provisioning registered Oct 17 11:03:08 buildroot kernel: ili2117 4-0026: ILI2117 vendor 0x00 firmware version 5.0 Oct 17 11:03:08 buildroot kernel: input: ILI2117 Touchscreen as /devices/platform/ff160000.i2c/i2c-4/4-0026/input/input0 Oct 17 11:03:08 buildroot kernel: ili2117 4-0026: bad packet ID (expected 0x5a): 0x00 Oct 17 11:03:08 buildroot kernel: usb 1-1: new full-speed USB device number 2 using dwc2 Oct 17 11:03:08 buildroot kernel: ehci-platform ff500000.usb: USB 2.0 started, EHCI 1.00 Oct 17 11:03:08 buildroot kernel: usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01 Oct 17 11:03:08 buildroot kernel: usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1 Oct 17 11:03:08 buildroot kernel: usb usb3: Product: EHCI Host Controller Oct 17 11:03:08 buildroot kernel: usb usb3: Manufacturer: Linux 6.1.78-inmusic-2024-02-16-p2-rt24 ehci_hcd Oct 17 11:03:08 buildroot kernel: usb usb3: SerialNumber: ff500000.usb Oct 17 11:03:08 buildroot kernel: hub 3-0:1.0: USB hub found Oct 17 11:03:08 buildroot kernel: hub 3-0:1.0: 1 port detected Oct 17 11:03:08 buildroot kernel: vcc_flash: will resolve supply early: vin Oct 17 11:03:08 buildroot kernel: reg-fixed-voltage flash-regulator: Looking up vin-supply from device tree Oct 17 11:03:08 buildroot kernel: vcc_flash: supplied by VCC_IO Oct 17 11:03:08 buildroot kernel: VCC_IO: could not add device link regulator.20: -ENOENT Oct 17 11:03:08 buildroot kernel: vcc_flash: 1800 mV, enabled Oct 17 11:03:08 buildroot kernel: reg-fixed-voltage flash-regulator: vcc_flash supplying 1800000uV Oct 17 11:03:08 buildroot kernel: vcc_sd: 3300 mV, disabled Oct 17 11:03:08 buildroot kernel: reg-fixed-voltage sdmmc-regulator: Looking up vin-supply from device tree Oct 17 11:03:08 buildroot kernel: vcc_sd: supplied by VCC_IO Oct 17 11:03:08 buildroot kernel: reg-fixed-voltage sdmmc-regulator: vcc_sd supplying 3300000uV Oct 17 11:03:08 buildroot kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up lcdc-supply from device tree Oct 17 11:03:08 buildroot kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up dvp-supply from device tree Oct 17 11:03:08 buildroot kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up flash0-supply from device tree Oct 17 11:03:08 buildroot kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up flash1-supply from device tree Oct 17 11:03:08 buildroot kernel: mmc_host mmc2: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) Oct 17 11:03:08 buildroot kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up wifi-supply from device tree Oct 17 11:03:08 buildroot kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up bb-supply from device tree Oct 17 11:03:08 buildroot kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up audio-supply from device tree Oct 17 11:03:08 buildroot kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up sdcard-supply from device tree Oct 17 11:03:08 buildroot kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up gpio30-supply from device tree Oct 17 11:03:08 buildroot kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up gpio1830-supply from device tree Oct 17 11:03:08 buildroot kernel: mali ffa30000.gpu: Looking up mali-supply from device tree Oct 17 11:03:08 buildroot kernel: mali ffa30000.gpu: GPU identified as 0x0750 r1p0 status 0 Oct 17 11:03:08 buildroot kernel: mali ffa30000.gpu: Protected mode not available Oct 17 11:03:08 buildroot kernel: mali ffa30000.gpu: Using configured power model mali-simple-power-model, and fallback mali-simple-power-model Oct 17 11:03:08 buildroot kernel: mali ffa30000.gpu: Probed as mali0 Oct 17 11:03:08 buildroot kernel: sbs-battery 3-000b: bq40z50: battery gas gauge device registered Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0f0000.dwmmc: IDMAC supports 32-bit address mode. Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0f0000.dwmmc: Using internal DMA controller. Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0f0000.dwmmc: Version ID is 270a Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0c0000.dwmmc: IDMAC supports 32-bit address mode. Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0c0000.dwmmc: Using internal DMA controller. Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0c0000.dwmmc: Version ID is 270a Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0c0000.dwmmc: DW MMC controller at irq 76,32 bit host data width,256 deep fifo Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0c0000.dwmmc: Looking up vmmc-supply from device tree Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0c0000.dwmmc: Looking up vqmmc-supply from device tree Oct 17 11:03:08 buildroot kernel: input: gpio-keys as /devices/platform/gpio-keys/input/input1 Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0c0000.dwmmc: Got CD GPIO Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0c0000.dwmmc: Got WP GPIO Oct 17 11:03:08 buildroot kernel: ALSA device list: Oct 17 11:03:08 buildroot kernel: No soundcards found. Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0f0000.dwmmc: DW MMC controller at irq 74,32 bit host data width,256 deep fifo Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0f0000.dwmmc: Looking up vmmc-supply from device tree Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0f0000.dwmmc: Looking up vqmmc-supply from device tree Oct 17 11:03:08 buildroot kernel: dwmmc_rockchip ff0f0000.dwmmc: allocated mmc-pwrseq Oct 17 11:03:08 buildroot kernel: mmc_host mmc0: card is non-removable. Oct 17 11:03:08 buildroot kernel: dw-apb-uart ff690000.serial: forbid DMA for kernel console Oct 17 11:03:08 buildroot kernel: sbs-battery 3-000b: I2C adapter does not support I2C_FUNC_SMBUS_READ_BLOCK_DATA. Fallback method does not support PEC. Oct 17 11:03:08 buildroot kernel: mmc_host mmc0: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) Oct 17 11:03:08 buildroot kernel: usb 1-1: New USB device found, idVendor=15e4, idProduct=800c, bcdDevice= 0.62 Oct 17 11:03:08 buildroot kernel: usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 Oct 17 11:03:08 buildroot kernel: usb 1-1: Product: PRIME GO Control Surface Oct 17 11:03:08 buildroot kernel: usb 1-1: Manufacturer: Denon DJ Oct 17 11:03:08 buildroot kernel: mmc_host mmc0: Bus speed (slot 0) = 50000000Hz (slot req 52000000Hz, actual 50000000HZ div = 0) Oct 17 11:03:08 buildroot kernel: mmc0: new high speed MMC card at address 0001 Oct 17 11:03:08 buildroot kernel: mmcblk0: mmc0:0001 8GTF4R 7.28 GiB Oct 17 11:03:08 buildroot kernel: mmcblk0: p1 p2 p3 p4 p5 p6 p7 Oct 17 11:03:08 buildroot kernel: mmcblk0boot0: mmc0:0001 8GTF4R 4.00 MiB Oct 17 11:03:08 buildroot kernel: mmcblk0boot1: mmc0:0001 8GTF4R 4.00 MiB Oct 17 11:03:08 buildroot kernel: mmcblk0rpmb: mmc0:0001 8GTF4R 512 KiB, chardev (245:0) Oct 17 11:03:08 buildroot kernel: EXT4-fs (mmcblk0p6): mounted filesystem without journal. Quota mode: disabled. Oct 17 11:03:08 buildroot kernel: VFS: Mounted root (ext4 filesystem) readonly on device 179:6. Oct 17 11:03:08 buildroot kernel: devtmpfs: mounted Oct 17 11:03:08 buildroot kernel: Freeing unused kernel image (initmem) memory: 1024K Oct 17 11:03:08 buildroot kernel: Run /sbin/init as init process Oct 17 11:03:08 buildroot kernel: with arguments: Oct 17 11:03:08 buildroot kernel: /sbin/init Oct 17 11:03:08 buildroot kernel: with environment: Oct 17 11:03:08 buildroot kernel: HOME=/ Oct 17 11:03:08 buildroot kernel: TERM=linux Oct 17 11:03:08 buildroot kernel: mmc_host mmc2: Bus speed (slot 0) = 25000000Hz (slot req 25000000Hz, actual 25000000HZ div = 0) Oct 17 11:03:08 buildroot kernel: mmc2: new ultra high speed SDR12 SDIO card at address 0001 Oct 17 11:03:08 buildroot systemd[1]: systemd 252 running in system mode (-PAM -AUDIT -SELINUX -APPARMOR -IMA -SMACK -SECCOMP -GCRYPT -GNUTLS +OPENSSL -ACL +BLKID +CURL +ELFUTILS -FIDO2 -IDN2 -IDN +IPTC +KMOD -LIBCRYPTSETUP +LIBFDISK +PCRE2 -PWQUALITY -P11KIT -QRENCODE -TPM2 +BZIP2 -LZ4 +XZ +ZLIB +ZSTD -BPF_FRAMEWORK +XKBCOMMON -UTMP -SYSVINIT default-hierarchy=unified) Oct 17 11:03:08 buildroot systemd[1]: Detected architecture arm. Oct 17 11:03:08 buildroot systemd[1]: Hostname set to <buildroot>. Oct 17 11:03:08 buildroot systemd[1]: Initializing machine ID from random generator. Oct 17 11:03:08 buildroot systemd[1]: Installed transient /etc/machine-id file. Oct 17 11:03:08 buildroot systemd[1]: /etc/systemd/system/connman.service.d/disable_onlinecheck.conf:1: Unknown section 'General'. Ignoring. Oct 17 11:03:08 buildroot systemd[1]: Queued start job for default target Multi-User System. Oct 17 11:03:08 buildroot systemd[1]: Created slice Slice /system/getty. Oct 17 11:03:08 buildroot systemd[1]: Created slice Slice /system/modprobe. Oct 17 11:03:08 buildroot systemd[1]: Created slice Slice /system/serial-getty. Oct 17 11:03:08 buildroot systemd[1]: Started Dispatch Password Requests to Console Directory Watch. Oct 17 11:03:08 buildroot systemd[1]: Started Forward Password Requests to Wall Directory Watch. Oct 17 11:03:08 buildroot systemd[1]: Reached target Path Units. Oct 17 11:03:08 buildroot systemd[1]: Reached target Remote File Systems. Oct 17 11:03:08 buildroot systemd[1]: Reached target Slice Units. Oct 17 11:03:08 buildroot systemd[1]: Reached target Swaps. Oct 17 11:03:08 buildroot systemd[1]: Journal Audit Socket was skipped because of an unmet condition check (ConditionSecurity=audit). Oct 17 11:03:08 buildroot systemd[1]: Listening on Journal Socket (/dev/log). Oct 17 11:03:08 buildroot systemd[1]: Listening on Journal Socket. Oct 17 11:03:08 buildroot systemd[1]: Listening on udev Control Socket. Oct 17 11:03:08 buildroot systemd[1]: Listening on udev Kernel Socket. Oct 17 11:03:08 buildroot systemd[1]: Huge Pages File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/mm/hugepages). Oct 17 11:03:08 buildroot systemd[1]: POSIX Message Queue File System was skipped because of an unmet condition check (ConditionPathExists=/proc/sys/fs/mqueue). Oct 17 11:03:08 buildroot systemd[1]: Mounting Mount /media... Oct 17 11:03:08 buildroot systemd[1]: Mounting Mount /secure-media... Oct 17 11:03:08 buildroot systemd[1]: Mounting Kernel Debug File System... Oct 17 11:03:08 buildroot systemd[1]: Kernel Trace File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/tracing). Oct 17 11:03:08 buildroot systemd[1]: Mounting Temporary Directory /tmp... Oct 17 11:03:08 buildroot systemd[1]: Starting Mali GPU driver setup for AZ01... Oct 17 11:03:08 buildroot systemd[1]: Started Entropy Daemon based on the HAVEGE algorithm. Oct 17 11:03:08 buildroot systemd[1]: Create List of Static Device Nodes was skipped because of an unmet condition check (ConditionFileNotEmpty=/lib/modules/6.1.78-inmusic-2024-02-16-p2-rt24/modules.devname). Oct 17 11:03:08 buildroot systemd[1]: Starting Load Kernel Module configfs... Oct 17 11:03:08 buildroot systemd[1]: Starting Load Kernel Module efi_pstore... Oct 17 11:03:08 buildroot systemd[1]: Starting Load Kernel Module fuse... Oct 17 11:03:08 buildroot systemd[1]: Starting File System Check on Root Device... Oct 17 11:03:08 buildroot systemd[1]: systemd-journald.service: unit configures an IP firewall, but the local system does not support BPF/cgroup firewalling. Oct 17 11:03:08 buildroot systemd[1]: (This warning is only shown for the first unit using IP firewalling.) Oct 17 11:03:08 buildroot systemd[1]: Starting Journal Service... Oct 17 11:03:08 buildroot systemd[1]: Load Kernel Modules was skipped because no trigger condition checks were met. Oct 17 11:03:08 buildroot systemd[1]: Starting Generate network units from Kernel command line... Oct 17 11:03:08 buildroot systemd[1]: Starting Apply Kernel Variables... Oct 17 11:03:08 buildroot systemd[1]: Starting Create Static Device Nodes in /dev... Oct 17 11:03:08 buildroot systemd[1]: Starting Coldplug All udev Devices... Oct 17 11:03:08 buildroot systemd[1]: Mounted Mount /media. Oct 17 11:03:08 buildroot systemd[1]: Mounted Mount /secure-media. Oct 17 11:03:08 buildroot systemd[1]: Mounted Kernel Debug File System. Oct 17 11:03:08 buildroot systemd[1]: Mounted Temporary Directory /tmp. Oct 17 11:03:08 buildroot systemd[1]: Finished Mali GPU driver setup for AZ01. Oct 17 11:03:08 buildroot systemd[1]: modprobe@configfs.service: Deactivated successfully. Oct 17 11:03:08 buildroot systemd[1]: Finished Load Kernel Module configfs. Oct 17 11:03:08 buildroot systemd[1]: modprobe@efi_pstore.service: Deactivated successfully. Oct 17 11:03:08 buildroot systemd[1]: Finished Load Kernel Module efi_pstore. Oct 17 11:03:08 buildroot systemd[1]: modprobe@fuse.service: Deactivated successfully. Oct 17 11:03:08 buildroot systemd[1]: Finished Load Kernel Module fuse. Oct 17 11:03:08 buildroot systemd[1]: Finished File System Check on Root Device. Oct 17 11:03:08 buildroot systemd[1]: Finished Generate network units from Kernel command line. Oct 17 11:03:08 buildroot systemd[1]: Finished Apply Kernel Variables. Oct 17 11:03:08 buildroot systemd[1]: Mounting FUSE Control File System... Oct 17 11:03:08 buildroot systemd[1]: Mounting Kernel Configuration File System... Oct 17 11:03:08 buildroot systemd[1]: Starting Remount Root and Kernel File Systems... Oct 17 11:03:08 buildroot systemd[1]: Mounted FUSE Control File System. Oct 17 11:03:08 buildroot systemd[1]: Finished Create Static Device Nodes in /dev. Oct 17 11:03:08 buildroot systemd[1]: Mounted Kernel Configuration File System. Oct 17 11:03:08 buildroot systemd[1]: Starting Rule-based Manager for Device Events and Files... Oct 17 11:03:08 buildroot kernel: EXT4-fs (mmcblk0p6): re-mounted. Quota mode: disabled. Oct 17 11:03:08 buildroot systemd[1]: Finished Remount Root and Kernel File Systems. Oct 17 11:03:08 buildroot systemd[1]: Reached target Preparation for Local File Systems. Oct 17 11:03:08 buildroot systemd-journald[169]: Journal started Oct 17 11:03:08 buildroot systemd-journald[169]: Runtime Journal (/run/log/journal/7cfb21354ae846af893241996621c5d1) is 5.0M, max 40.3M, 35.3M free. Oct 17 11:03:08 buildroot systemd[1]: Started Journal Service. Oct 17 11:03:08 buildroot systemd-udevd[181]: Using default interface naming scheme 'v252'. Oct 17 11:03:08 buildroot az01-libmali-setup[157]: Overwriting libmali with libmali-r1p0.so.14.0 Oct 17 11:03:08 buildroot haveged[158]: haveged: command socket is listening at fd 3 Oct 17 11:03:08 buildroot haveged[158]: haveged: ver: 1.9.18; arch: generic; vend: ; build: (gcc 12.3.0 CMV); collect: 128K Oct 17 11:03:08 buildroot haveged[158]: haveged: cpu: (VC); data: 16K (D); inst: 16K (D); idx: 9/40; sz: 15464/67304 Oct 17 11:03:08 buildroot haveged[158]: haveged: fills: 0, generated: 0 Oct 17 11:03:08 buildroot systemd-fsck[177]: root: clean, 6243/128016 files, 475471/512000 blocks Oct 17 11:03:08 buildroot systemd[1]: Started Rule-based Manager for Device Events and Files. Oct 17 11:03:09 buildroot kernel: random: crng init done Oct 17 11:03:09 buildroot systemd-udevd[196]: ram0: /etc/udev/rules.d/80-block-iosched.rules:1 Failed to write ATTR{/sys/devices/virtual/block/ram0/queue/iosched/strict_guarantees}, ignoring: No such file or directory Oct 17 11:03:09 buildroot systemd[1]: Found device /dev/ttyS2. Oct 17 11:03:09 buildroot systemd-udevd[186]: event_source: Failed to get device name: No such file or directory Oct 17 11:03:09 buildroot systemd[1]: Finished Coldplug All udev Devices. Oct 17 11:03:10 buildroot systemd[1]: Found device /dev/disk/by-partuuid/931ad49d-ad59-0849-833a-9bf00af5b60e. Oct 17 11:03:10 buildroot systemd[1]: Reached target Sound Card. Oct 17 11:03:10 buildroot systemd[1]: Reached target Hardware activated USB gadget. Oct 17 11:03:10 buildroot systemd[1]: Huge Pages File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/mm/hugepages). Oct 17 11:03:10 buildroot systemd[1]: POSIX Message Queue File System was skipped because of an unmet condition check (ConditionPathExists=/proc/sys/fs/mqueue). Oct 17 11:03:10 buildroot systemd[1]: Kernel Trace File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/tracing). Oct 17 11:03:10 buildroot systemd[1]: Starting Create /data filesystem if necessary... Oct 17 11:03:10 buildroot systemd[1]: Create List of Static Device Nodes was skipped because of an unmet condition check (ConditionFileNotEmpty=/lib/modules/6.1.78-inmusic-2024-02-16-p2-rt24/modules.devname). Oct 17 11:03:10 buildroot systemd[1]: Starting Load Kernel Module efi_pstore... Oct 17 11:03:10 buildroot systemd[1]: Load Kernel Modules was skipped because no trigger condition checks were met. Oct 17 11:03:10 buildroot systemd[1]: modprobe@efi_pstore.service: Deactivated successfully. Oct 17 11:03:10 buildroot systemd[1]: Finished Load Kernel Module efi_pstore. Oct 17 11:03:10 buildroot az01-data-mkfs[218]: tune2fs 1.46.5 (30-Dec-2021) Oct 17 11:03:10 buildroot az01-data-mkfs[219]: e2fsck 1.46.5 (30-Dec-2021) Oct 17 11:03:10 buildroot az01-data-mkfs[219]: az01-internal: clean, 317/445280 files, 98972/1778555 blocks Oct 17 11:03:10 buildroot systemd[1]: Finished Create /data filesystem if necessary. Oct 17 11:03:10 buildroot systemd[1]: Mounting Mount /data... Oct 17 11:03:10 buildroot kernel: EXT4-fs (mmcblk0p7): mounted filesystem with ordered data mode. Quota mode: disabled. Oct 17 11:03:10 buildroot systemd[1]: Mounted Mount /data. Oct 17 11:03:10 buildroot systemd[1]: Mounting Mount /media/az01-internal... Oct 17 11:03:10 buildroot systemd[1]: Starting Setup directories for overlayfs mounts... Oct 17 11:03:10 buildroot systemd[1]: Mounted Mount /media/az01-internal. Oct 17 11:03:10 buildroot systemd[1]: Finished Setup directories for overlayfs mounts. Oct 17 11:03:10 buildroot systemd[1]: etc.mount: Directory /etc to mount over is not empty, mounting anyway. Oct 17 11:03:10 buildroot systemd[1]: Mounting Writable /etc via OverlayFS... Oct 17 11:03:10 buildroot systemd[1]: var.mount: Directory /var to mount over is not empty, mounting anyway. Oct 17 11:03:10 buildroot systemd[1]: Mounting Writable /var via OverlayFS... Oct 17 11:03:10 buildroot systemd[1]: Mounted Writable /etc via OverlayFS. Oct 17 11:03:10 buildroot systemd[1]: Mounted Writable /var via OverlayFS. Oct 17 11:03:10 buildroot systemd[1]: Reached target Local File Systems. Oct 17 11:03:10 buildroot systemd[1]: Starting Fix transient machine-id after mounting /etc... Oct 17 11:03:10 buildroot systemd[1]: Starting Flush Journal to Persistent Storage... Oct 17 11:03:10 buildroot systemd[1]: Starting Commit a transient machine-id on disk... Oct 17 11:03:10 buildroot systemd-journald[169]: Runtime Journal (/run/log/journal/7cfb21354ae846af893241996621c5d1) is 5.0M, max 40.3M, 35.3M free. Oct 17 11:03:10 buildroot systemd-journald[169]: Received client request to flush runtime journal. Oct 17 11:03:10 buildroot systemd[1]: Platform Persistent Storage Archival was skipped because of an unmet condition check (ConditionDirectoryNotEmpty=/sys/fs/pstore). Oct 17 11:03:10 buildroot systemd[1]: Update is Completed was skipped because no trigger condition checks were met. Oct 17 11:03:10 buildroot systemd[1]: Finished Fix transient machine-id after mounting /etc. Oct 17 11:03:10 buildroot systemd[1]: Finished Flush Journal to Persistent Storage. Oct 17 11:03:10 buildroot systemd[1]: Starting Create Volatile Files and Directories... Oct 17 11:03:10 buildroot systemd[1]: Finished Commit a transient machine-id on disk. Oct 17 11:03:10 buildroot systemd[1]: Finished Create Volatile Files and Directories. Oct 17 11:03:10 buildroot systemd[1]: Starting Network Time Synchronization... Oct 17 11:03:10 buildroot systemd[1]: Started Network Time Synchronization. Oct 17 11:03:10 buildroot systemd[1]: Reached target System Initialization. Oct 17 11:03:10 buildroot systemd[1]: Started Daily Cleanup of Temporary Directories. Oct 17 11:03:10 buildroot systemd[1]: Reached target System Time Set. Oct 17 11:03:10 buildroot systemd[1]: Started Discard unused blocks once a week. Oct 17 11:03:10 buildroot systemd[1]: Reached target Timer Units. Oct 17 11:03:10 buildroot systemd[1]: Listening on Avahi mDNS/DNS-SD Stack Activation Socket. Oct 17 11:03:10 buildroot systemd[1]: Listening on D-Bus System Message Bus Socket. Oct 17 11:03:10 buildroot systemd[1]: Reached target Socket Units. Oct 17 11:03:10 buildroot systemd[1]: Reached target Basic System. Oct 17 11:03:10 buildroot systemd[1]: Manage Sound Card State (restore and store) was skipped because of an unmet condition check (ConditionPathExists=/etc/alsa/state-daemon.conf). Oct 17 11:03:10 buildroot systemd[1]: Starting Avahi mDNS/DNS-SD Stack... Oct 17 11:03:10 buildroot systemd[1]: Started Avahi DNS Configuration Daemon. Oct 17 11:03:11 buildroot systemd[1]: Started AZ01 power button emergency shutdown service. Oct 17 11:03:11 buildroot az01-pwrbtn[237]: AZ01 power button daemon v0.3 Oct 17 11:03:11 buildroot systemd[1]: Starting Hostname setup for AZ01... Oct 17 11:03:11 buildroot systemd[1]: Started AZ01 JMicron USB-SATA bridge configuration fixer. Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: AZ01 USB-SATA bridge fixer v0.7 Oct 17 11:03:11 buildroot systemd[1]: Starting AZ0x system info logging... Oct 17 11:03:11 buildroot systemd[1]: Started D-Bus System Message Bus. Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0boot0 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0boot1 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p1 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p2 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p3 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p4 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p5 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p6 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p7 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/virtual/block/loop0 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/virtual/block/loop1 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/virtual/block/loop2 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/virtual/block/loop3 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/virtual/block/loop4 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/virtual/block/loop5 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/virtual/block/loop6 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/virtual/block/loop7 Oct 17 11:03:11 buildroot az01-usbsata-fixer[239]: examining device /sys/devices/virtual/block/ram0 Oct 17 11:03:11 buildroot az0x-info[242]: hardware Oct 17 11:03:11 buildroot az0x-info[242]: ======== Oct 17 11:03:11 buildroot az0x-info[242]: product-code: JP11 Oct 17 11:03:11 buildroot az0x-info[242]: board: AZ01rK Oct 17 11:03:11 buildroot az0x-info[242]: serial-sanitized: A124032453xxxxx Oct 17 11:03:11 buildroot az0x-info[242]: gpu: Mali-T76x 4 cores r1p0 0x0750 Oct 17 11:03:11 buildroot az0x-info[242]: panel: urt,umoh-9522md-t Oct 17 11:03:11 buildroot az0x-info[242]: touch-panel: ili2117 Oct 17 11:03:11 buildroot az0x-info[242]: emmc-manfid: 0x000015 Oct 17 11:03:11 buildroot az0x-info[242]: emmc-oemid: 0x0100 Oct 17 11:03:11 buildroot az0x-info[242]: emmc-name: 8GTF4R Oct 17 11:03:11 buildroot az0x-info[242]: emmc-prv: 0x9 Oct 17 11:03:11 buildroot az0x-info[242]: emmc-fwrev: 0x0900000000000000 Oct 17 11:03:11 buildroot az0x-info[242]: emmc-date: 07/2022 Oct 17 11:03:11 buildroot az0x-info[242]: emmc-size: 15269888 Oct 17 11:03:11 buildroot az0x-info[242]: software Oct 17 11:03:11 buildroot az0x-info[242]: ======== Oct 17 11:03:11 buildroot az0x-info[242]: linux: 6.1.78-inmusic-2024-02-16-p2-rt24 Oct 17 11:03:11 buildroot az0x-info[242]: gpu-driver: mali Oct 17 11:03:11 buildroot az0x-info[242]: bootloader: U-Boot 2016.05-inmusic-20230621 Oct 17 11:03:11 buildroot az0x-info[242]: buildroot: 2023.02.11-5-gfbf213aa23 Oct 17 11:03:11 buildroot az0x-info[242]: az01: 6e34e6d4 Oct 17 11:03:11 buildroot az0x-info[242]: touch-firmware: 5.0 Oct 17 11:03:11 buildroot az0x-info[242]: usage Oct 17 11:03:11 buildroot az0x-info[242]: ===== Oct 17 11:03:11 buildroot az0x-info[242]: emmc-lifetime: 0x01 0x01 Oct 17 11:03:11 buildroot az0x-info[242]: emmc-pre-eol-status: 0x01 Oct 17 11:03:11 buildroot systemd[1]: Started Getty on tty1. Oct 17 11:03:11 buildroot systemd[1]: Starting Network Connectivity... Oct 17 11:03:11 buildroot systemd[1]: Started Serial Getty on ttyS2. Oct 17 11:03:11 buildroot systemd[1]: Reached target Login Prompts. Oct 17 11:03:11 buildroot dbus-daemon[243]: [system] Activating systemd to hand-off: service name='org.freedesktop.hostname1' unit='dbus-org.freedesktop.hostname1.service' requested by ':1.1' (uid=0 pid=241 comm="hostnamectl set-hostname --static primego ") Oct 17 11:03:11 buildroot systemd[1]: Starting Firmware update for Ilitek touchscreens... Oct 17 11:03:11 buildroot touch-fw-upd[247]: touch-fw-upd version 1.4 Oct 17 11:03:11 buildroot touch-fw-upd[247]: found name 'ili2117' Oct 17 11:03:11 buildroot touch-fw-upd[247]: touch-fw-upd: firmware is up-to-date (5.0; target 5.0) Oct 17 11:03:11 buildroot systemd[1]: Starting WPA supplicant... Oct 17 11:03:11 buildroot systemd[1]: Finished AZ0x system info logging. Oct 17 11:03:11 buildroot systemd[1]: Finished Firmware update for Ilitek touchscreens. Oct 17 11:03:11 buildroot dbus-daemon[243]: [system] Successfully activated service 'org.freedesktop.systemd1' Oct 17 11:03:11 buildroot systemd[1]: Starting Engine... Oct 17 11:03:11 buildroot avahi-daemon[235]: Found user 'avahi' (UID 100) and group 'avahi' (GID 101). Oct 17 11:03:11 buildroot wpa_supplicant[248]: Successfully initialized wpa_supplicant Oct 17 11:03:11 buildroot runengine[250]: Setting up prerequisites... Oct 17 11:03:11 buildroot wpa_supplicant[248]: nl80211: 'nl80211' generic netlink not found Oct 17 11:03:11 buildroot wpa_supplicant[248]: Failed to initialize driver 'nl80211' Oct 17 11:03:11 buildroot JP11[256]: Setting up prerequisites... Oct 17 11:03:11 buildroot systemd[1]: Starting Hostname Service... Oct 17 11:03:11 buildroot systemd[1]: wpa_supplicant.service: Main process exited, code=exited, status=255/EXCEPTION Oct 17 11:03:11 buildroot systemd[1]: wpa_supplicant.service: Failed with result 'exit-code'. Oct 17 11:03:11 buildroot systemd[1]: Failed to start WPA supplicant. Oct 17 11:03:11 buildroot avahi-daemon[235]: Successfully dropped root privileges. Oct 17 11:03:11 buildroot avahi-daemon[235]: avahi-daemon 0.8 starting up. Oct 17 11:03:11 buildroot avahi-daemon[235]: WARNING: No NSS support for mDNS detected, consider installing nss-mdns! Oct 17 11:03:11 buildroot systemd[1]: Started Avahi mDNS/DNS-SD Stack. Oct 17 11:03:11 buildroot avahi-daemon[235]: Successfully called chroot(). Oct 17 11:03:11 buildroot avahi-daemon[235]: Successfully dropped remaining capabilities. Oct 17 11:03:11 buildroot avahi-daemon[264]: chroot.c: open() failed: No such file or directory Oct 17 11:03:11 buildroot avahi-daemon[235]: Failed to open /etc/resolv.conf: Invalid argument Oct 17 11:03:11 buildroot avahi-daemon[235]: No service file found in /etc/avahi/services. Oct 17 11:03:11 buildroot avahi-daemon[235]: socket() failed: Address family not supported by protocol Oct 17 11:03:11 buildroot avahi-daemon[235]: Failed to create IPv6 socket, proceeding in IPv4 only mode Oct 17 11:03:11 buildroot systemd[1]: Finished Network Connectivity. Oct 17 11:03:11 buildroot avahi-daemon[235]: socket() failed: Address family not supported by protocol Oct 17 11:03:11 buildroot avahi-daemon[235]: Joining mDNS multicast group on interface lo.IPv4 with address 127.0.0.1. Oct 17 11:03:11 buildroot avahi-daemon[235]: New relevant interface lo.IPv4 for mDNS. Oct 17 11:03:11 buildroot avahi-daemon[235]: Network interface enumeration completed. Oct 17 11:03:11 buildroot avahi-daemon[235]: Registering new address record for 127.0.0.1 on lo.IPv4. Oct 17 11:03:11 buildroot avahi-dnsconfd[236]: Successfully connected to Avahi daemon. Oct 17 11:03:11 buildroot runengine[270]: Setting ffa30000 to CPU: 1 Oct 17 11:03:11 buildroot runengine[274]: sh -c echo $1 > /proc/irq/$2/smp_affinity_list -- 1 57 Oct 17 11:03:11 buildroot runengine[274]: sh -c echo $1 > /proc/irq/$2/smp_affinity_list -- 1 58 Oct 17 11:03:11 buildroot runengine[274]: sh -c echo $1 > /proc/irq/$2/smp_affinity_list -- 1 59 Oct 17 11:03:11 buildroot runengine[278]: Setting ffb20000 to CPU: 3 Oct 17 11:03:11 buildroot runengine[282]: sh -c echo $1 > /proc/irq/$2/smp_affinity_list -- 3 45 Oct 17 11:03:11 buildroot runengine[282]: sh -c echo $1 > /proc/irq/$2/smp_affinity_list -- 3 46 Oct 17 11:03:11 buildroot runengine[285]: Setting eth0 to CPU: 1 Oct 17 11:03:11 buildroot runengine[290]: Setting ehci_hcd to CPU: 1 Oct 17 11:03:11 buildroot runengine[294]: sh -c echo $1 > /proc/irq/$2/smp_affinity_list -- 1 66 Oct 17 11:03:11 buildroot runengine[296]: Setting ff540000 to CPU: 1 Oct 17 11:03:11 buildroot runengine[300]: sh -c echo $1 > /proc/irq/$2/smp_affinity_list -- 1 64 Oct 17 11:03:11 buildroot runengine[302]: Setting ttyS0 to CPU: 0 Oct 17 11:03:11 buildroot runengine[257]: /usr/Engine/Scripts/setup-prerequisites.sh: line 23: can't create /sys/bus/platform/devices/sd-mux/state: nonexistent directory Oct 17 11:03:11 buildroot runengine[257]: /usr/Engine/Scripts/setup-prerequisites.sh: line 39: can't create /sys/class/graphics/fb0/vsync_on_pan: Permission denied Oct 17 11:03:11 buildroot runengine[250]: Starting application ... Oct 17 11:03:11 buildroot JP11[308]: Starting application ... Oct 17 11:03:11 buildroot runengine[250]: JP11 start done. Oct 17 11:03:11 buildroot JP11[310]: JP11 start done. Oct 17 11:03:11 buildroot systemd[1]: Started Engine. Oct 17 11:03:11 buildroot runengine[309]: Screen rotation is set to -90 Oct 17 11:03:11 buildroot dbus-daemon[243]: [system] Successfully activated service 'org.freedesktop.hostname1' Oct 17 11:03:11 buildroot systemd[1]: Started Hostname Service. Oct 17 11:03:11 buildroot runengine[312]: Encrypting /data/downloads [Done] Oct 17 11:03:11 primego systemd-hostnamed[253]: Hostname set to <primego> (static) Oct 17 11:03:11 primego systemd[1]: Finished Hostname setup for AZ01. Oct 17 11:03:11 primego systemd[1]: Reached target Preparation for Network. Oct 17 11:03:11 primego runengine[312]: Encrypting /data/stems [Done] Oct 17 11:03:11 primego kernel: rk_gmac-dwmac ff290000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0 Oct 17 11:03:11 primego systemd[1]: Starting Connection service... Oct 17 11:03:11 primego kernel: rk_gmac-dwmac ff290000.ethernet eth0: PHY [stmmac-0:01] driver [RTL8211E Gigabit Ethernet] (irq=63) Oct 17 11:03:11 primego kernel: rk_gmac-dwmac ff290000.ethernet eth0: No Safety Features support found Oct 17 11:03:11 primego kernel: rk_gmac-dwmac ff290000.ethernet eth0: PTP not supported by HW Oct 17 11:03:11 primego kernel: rk_gmac-dwmac ff290000.ethernet eth0: configuring for phy/rgmii link mode Oct 17 11:03:11 primego kernel: process '/usr/Engine/Engine' started with executable stack Oct 17 11:03:11 primego systemd[1]: Started Connection service. Oct 17 11:03:11 primego connmand[333]: Connection Manager version 1.42 Oct 17 11:03:11 primego systemd[1]: Reached target Network. Oct 17 11:03:11 primego systemd[1]: Starting Flush IP Tables... Oct 17 11:03:11 primego connmand[333]: iptables support missing error 2 (No such file or directory) Oct 17 11:03:11 primego connmand[333]: Failed to flush table 'mangle': Invalid argument Oct 17 11:03:11 primego systemd[1]: Started AZ01 script runner service. Oct 17 11:03:11 primego connmand[333]: iptables support missing error 2 (No such file or directory) Oct 17 11:03:11 primego connmand[333]: Failed to flush table 'nat': Invalid argument Oct 17 11:03:11 primego connmand[333]: Checking loopback interface settings Oct 17 11:03:11 primego connmand[333]: System hostname is primego Oct 17 11:03:11 primego dbus-daemon[243]: [system] Activating via systemd: service name='fi.w1.wpa_supplicant1' unit='wpa_supplicant.service' requested by ':1.8' (uid=0 pid=333 comm="/usr/sbin/connmand -n ") Oct 17 11:03:11 primego connmand[333]: No IPv6 support Oct 17 11:03:11 primego connmand[333]: No IPv6 support Oct 17 11:03:11 primego connmand[333]: lo {newlink} index 1 address 00:00:00:00:00:00 mtu 65536 Oct 17 11:03:11 primego connmand[333]: lo {newlink} index 1 operstate 0 <UNKNOWN> Oct 17 11:03:11 primego connmand[333]: failed to read /proc/sys/net/ipv6/conf/eth0/disable_ipv6 Oct 17 11:03:11 primego connmand[333]: failed to read /proc/sys/net/ipv6/conf/eth0/use_tempaddr Oct 17 11:03:11 primego connmand[333]: eth0 {create} index 2 type 1 <ETHER> Oct 17 11:03:11 primego connmand[333]: eth0 {update} flags 4099 <UP> Oct 17 11:03:11 primego connmand[333]: eth0 {newlink} index 2 address 00:05:95:04:D8:20 mtu 1500 Oct 17 11:03:11 primego connmand[333]: eth0 {newlink} index 2 operstate 2 <DOWN> Oct 17 11:03:11 primego connmand[333]: Adding interface eth0 [ ethernet ] Oct 17 11:03:11 primego systemd[1]: Starting WPA supplicant... Oct 17 11:03:11 primego systemd[1]: FlushIptables.service: Deactivated successfully. Oct 17 11:03:11 primego systemd[1]: Finished Flush IP Tables. Oct 17 11:03:11 primego dbus-daemon[243]: [system] Successfully activated service 'fi.w1.wpa_supplicant1' Oct 17 11:03:11 primego wpa_supplicant[351]: Successfully initialized wpa_supplicant Oct 17 11:03:11 primego systemd[1]: Started WPA supplicant. Oct 17 11:03:11 primego wpa_supplicant[351]: nl80211: 'nl80211' generic netlink not found Oct 17 11:03:11 primego wpa_supplicant[351]: Failed to initialize driver 'nl80211' Oct 17 11:03:11 primego systemd[1]: wpa_supplicant.service: Main process exited, code=exited, status=255/EXCEPTION Oct 17 11:03:11 primego systemd[1]: wpa_supplicant.service: Failed with result 'exit-code'. Oct 17 11:03:11 primego systemd[1]: Starting OpenSSH server daemon... Oct 17 11:03:12 primego avahi-daemon[235]: Server startup complete. Host name is buildroot.local. Local service cookie is 715342938. Oct 17 11:03:12 primego systemd[1]: Started OpenSSH server daemon. Oct 17 11:03:12 primego systemd[1]: Reached target Multi-User System. Oct 17 11:03:12 primego systemd[1]: Startup finished in 1.146s (kernel) + 5.117s (userspace) = 6.264s. Oct 17 11:03:12 primego sshd[355]: Server listening on 0.0.0.0 port 22. Oct 17 11:03:13 primego runengine[338]: DropboxManager: Dropbox application has not been found. Oct 17 11:03:13 primego runengine[338]: Setting QT_QPA_EGLFS_KMS_CONFIG to "/usr/Engine/ScreenConfiguration/Default/ScreenConfiguration.json" Oct 17 11:03:15 primego runengine[338]: Flush to zero not applied. This may lead to audio dropouts and/or freezes. Oct 17 11:03:15 primego runengine[338]: QStandardPaths: XDG_RUNTIME_DIR not set, defaulting to '/tmp/runtime-root' Oct 17 11:03:15 primego runengine[338]: Unable to set double buffer mode! (Invalid argument) Oct 17 11:03:15 primego runengine[338]: QVirtualKeyboardPlugin default IM has been initialized Oct 17 11:03:15 primego runengine[338]: [I] ============================================================================ [2024-10-17T15:03:15.636Z] [ ] Oct 17 11:03:15 primego runengine[338]: [I] Engine - 4.1.0 [2024-10-17T15:03:15.636Z] [ ] Oct 17 11:03:15 primego runengine[338]: [I] ============================================================================ [2024-10-17T15:03:15.636Z] [ ] Oct 17 11:03:15 primego runengine[338]: [I] Command Line Arguments: [2024-10-17T15:03:15.637Z] [ ] Oct 17 11:03:15 primego runengine[338]: [I] -d0 [2024-10-17T15:03:15.637Z] [ ] Oct 17 11:03:15 primego runengine[338]: [I] DenonDJ "PRIME GO 4.1.0 346332f4d7" starting up [2024-10-17T15:03:15.648Z] [ ] Oct 17 11:03:15 primego runengine[338]: [I] sentry id: 12b64ccd-13d3-4d97-829a-8d3d0a54e538 [2024-10-17T15:03:15.654Z] [ ] Oct 17 11:03:15 primego runengine[338]: [I] session id: c6277efe-37a9-4ca9-84d4-cb68c0b5481e [2024-10-17T15:03:15.655Z] [ ] Oct 17 11:03:15 primego runengine[338]: [I] Anonymous Statistics : enabled [2024-10-17T15:03:15.718Z] [ ] Oct 17 11:03:15 primego runengine[372]: [372:372:20241017,110315.750100:INFO retry_upload_thread.cc:39] Start Oct 17 11:03:15 primego runengine[372]: [372:374:20241017,110315.770484:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/completed/dbf68674-790a-44df-a2d0-b11938fa0bc6.lock: File exists (17) Oct 17 11:03:15 primego runengine[372]: [372:373:20241017,110315.769867:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/7e3e24fd-4873-424a-bc1b-12c9a7687352.lock: File exists (17) Oct 17 11:03:15 primego runengine[372]: [372:373:20241017,110315.771126:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/4270189b-28c3-4f9f-b580-33e0031afb05.lock: File exists (17) Oct 17 11:03:15 primego runengine[372]: [372:373:20241017,110315.771308:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/a3dbcbb2-d606-4952-a5a5-cf5b9b92473c.lock: File exists (17) Oct 17 11:03:15 primego runengine[372]: [372:374:20241017,110315.779319:INFO retry_upload_thread.cc:72] report uuid=bdf5044c-c311-43d3-999b-27fe0c6edb4c, creation time=Wed Oct 16 08:47:56 2024 EDT, uploaded=1, upload_attempts=1 Oct 17 11:03:15 primego runengine[372]: [372:374:20241017,110315.779422:INFO retry_upload_thread.cc:72] report uuid=873a28a6-6e39-4c68-8894-8a849bccd9d0, creation time=Wed Oct 16 08:47:03 2024 EDT, uploaded=1, upload_attempts=1 Oct 17 11:03:15 primego runengine[372]: [372:374:20241017,110315.779470:INFO retry_upload_thread.cc:72] report uuid=e7546443-12de-4b78-9aae-48c472a011f2, creation time=Wed Oct 16 08:48:28 2024 EDT, uploaded=1, upload_attempts=1 Oct 17 11:03:15 primego runengine[372]: [372:374:20241017,110315.779512:INFO retry_upload_thread.cc:72] report uuid=c39a2cbe-8325-4f5e-8dc5-0315dce56a81, creation time=Wed Oct 16 08:48:38 2024 EDT, uploaded=1, upload_attempts=1 Oct 17 11:03:15 primego runengine[372]: [372:374:20241017,110315.779554:INFO retry_upload_thread.cc:72] report uuid=8381accd-208d-4081-b321-4d4806ccef0b, creation time=Wed Oct 16 08:48:07 2024 EDT, uploaded=1, upload_attempts=1 Oct 17 11:03:15 primego runengine[372]: [372:374:20241017,110315.779595:INFO retry_upload_thread.cc:72] report uuid=983ff64e-5215-40ba-a5eb-0351ae7b86cf, creation time=Wed Oct 16 08:47:24 2024 EDT, uploaded=1, upload_attempts=1 Oct 17 11:03:15 primego runengine[372]: [372:374:20241017,110315.779636:INFO retry_upload_thread.cc:72] report uuid=e8a170f2-205d-4793-b063-a426733cc0ca, creation time=Wed Oct 16 08:47:35 2024 EDT, uploaded=1, upload_attempts=1 Oct 17 11:03:15 primego runengine[372]: [372:374:20241017,110315.779675:INFO retry_upload_thread.cc:72] report uuid=c231fd40-5e3b-4123-9ddd-46db938178e0, creation time=Wed Oct 16 08:46:53 2024 EDT, uploaded=1, upload_attempts=1 Oct 17 11:03:15 primego runengine[372]: [372:374:20241017,110315.779714:INFO retry_upload_thread.cc:72] report uuid=cf8f4e31-243e-4e4e-8a6c-d9980bb9f763, creation time=Wed Oct 16 08:47:14 2024 EDT, uploaded=1, upload_attempts=1 Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.807900:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/a3dbcbb2-d606-4952-a5a5-cf5b9b92473c.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.808448:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/7e3e24fd-4873-424a-bc1b-12c9a7687352.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.808522:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/4270189b-28c3-4f9f-b580-33e0031afb05.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.808575:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/7e3e24fd-4873-424a-bc1b-12c9a7687352.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.808627:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/4270189b-28c3-4f9f-b580-33e0031afb05.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.808676:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/a3dbcbb2-d606-4952-a5a5-cf5b9b92473c.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.815012:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/4270189b-28c3-4f9f-b580-33e0031afb05.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.816371:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/7e3e24fd-4873-424a-bc1b-12c9a7687352.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.818084:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/a3dbcbb2-d606-4952-a5a5-cf5b9b92473c.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.818231:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/7e3e24fd-4873-424a-bc1b-12c9a7687352.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.818289:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/4270189b-28c3-4f9f-b580-33e0031afb05.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [338:338:20241017,110315.818337:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/a3dbcbb2-d606-4952-a5a5-cf5b9b92473c.lock: File exists (17) Oct 17 11:03:15 primego runengine[338]: [I] Automatic crash reporting: enabled [2024-10-17T15:03:15.824Z] [ ] Oct 17 11:03:15 primego runengine[338]: [I] Local UUID: "{cbf378c5-a9be-4381-b5fd-b550961cc7ce}" [2024-10-17T15:03:15.865Z] [ ] Oct 17 11:03:15 primego runengine[338]: [W] The port isn't' opened for Midi::Out::PRIME GO Control Surface [2024-10-17T15:03:15.909Z] [air.devicemanager.midi.o] Oct 17 11:03:16 primego runengine[338]: [W] void airHost::updateAudioDeviceChanged(bool) Failed to fetch the audio device "" from the device manager. [2024-10-17T15:03:16.116Z] [ ] Oct 17 11:03:16 primego runengine[338]: [W] EDisks service claims not to be valid - mounting drives may not work. [2024-10-17T15:03:16.133Z] [air.devicemanager.hotplu] Oct 17 11:03:16 primego runengine[338]: [I] Semantic version: "4.1.0" [2024-10-17T15:03:16.133Z] [ ] Oct 17 11:03:16 primego dbus-daemon[243]: [system] Activating via systemd: service name='io.github.inmusicdev.edisksd' unit='edisksd.service' requested by ':1.10' (uid=0 pid=338 comm="/usr/Engine/Engine -d0 ") Oct 17 11:03:16 primego systemd[1]: Starting Disk mounting service... Oct 17 11:03:16 primego runengine[338]: [ ] _analyzerApplicationPath "OfflineAnalyzer" [2024-10-17T15:03:16.159Z] [ ] Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0: EDISKS_REMOVABLE=??? media=11 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0boot0 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0boot0: EDISKS_REMOVABLE=??? media=11 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0boot1 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0boot1: EDISKS_REMOVABLE=??? media=11 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p1 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p1: EDISKS_REMOVABLE=??? media=11 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p2 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p2: EDISKS_REMOVABLE=??? media=11 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p3 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p3: EDISKS_REMOVABLE=??? media=11 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p4 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p4: EDISKS_REMOVABLE=??? media=11 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p5 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p5: EDISKS_REMOVABLE=??? media=11 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p6 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p6: EDISKS_REMOVABLE=??? media=11 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p7 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p7: EDISKS_REMOVABLE=??? media=11 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/virtual/block/loop0 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/virtual/block/loop0: EDISKS_REMOVABLE=??? media=0 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/virtual/block/loop1 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/virtual/block/loop1: EDISKS_REMOVABLE=??? media=0 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/virtual/block/loop2 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/virtual/block/loop2: EDISKS_REMOVABLE=??? media=0 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/virtual/block/loop3 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/virtual/block/loop3: EDISKS_REMOVABLE=??? media=0 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/virtual/block/loop4 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/virtual/block/loop4: EDISKS_REMOVABLE=??? media=0 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/virtual/block/loop5 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/virtual/block/loop5: EDISKS_REMOVABLE=??? media=0 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/virtual/block/loop6 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/virtual/block/loop6: EDISKS_REMOVABLE=??? media=0 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/virtual/block/loop7 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/virtual/block/loop7: EDISKS_REMOVABLE=??? media=0 Oct 17 11:03:16 primego edisksd[399]: initial device: /devices/virtual/block/ram0 Oct 17 11:03:16 primego edisksd[399]: block_is_removable for /devices/virtual/block/ram0: EDISKS_REMOVABLE=??? media=0 Oct 17 11:03:16 primego edisksd[399]: mounted 179:6 at / Oct 17 11:03:16 primego edisksd[399]: mounted 0:5 at /dev Oct 17 11:03:16 primego edisksd[399]: mounted 0:15 at /proc Oct 17 11:03:16 primego edisksd[399]: mounted 0:16 at /sys Oct 17 11:03:16 primego edisksd[399]: mounted 0:17 at /dev/shm Oct 17 11:03:16 primego edisksd[399]: mounted 0:18 at /dev/pts Oct 17 11:03:16 primego edisksd[399]: mounted 0:19 at /run Oct 17 11:03:16 primego edisksd[399]: mounted 0:20 at /sys/fs/cgroup Oct 17 11:03:16 primego edisksd[399]: mounted 0:19 at /etc/machine-id Oct 17 11:03:16 primego edisksd[399]: mounted 0:21 at /media Oct 17 11:03:16 primego edisksd[399]: mounted 0:22 at /secure-media Oct 17 11:03:16 primego edisksd[399]: mounted 0:6 at /sys/kernel/debug Oct 17 11:03:16 primego edisksd[399]: mounted 0:23 at /tmp Oct 17 11:03:16 primego edisksd[399]: mounted 179:6 at /usr/lib/libmali.so.14.0 Oct 17 11:03:16 primego edisksd[399]: mounted 0:24 at /run/credentials/systemd-tmpfiles-setup-dev.service Oct 17 11:03:16 primego edisksd[399]: mounted 0:25 at /run/credentials/systemd-sysctl.service Oct 17 11:03:16 primego edisksd[399]: mounted 0:26 at /sys/fs/fuse/connections Oct 17 11:03:16 primego edisksd[399]: mounted 0:14 at /sys/kernel/config Oct 17 11:03:16 primego edisksd[399]: mounted 179:7 at /data Oct 17 11:03:16 primego edisksd[399]: mounted 179:7 at /media/az01-internal Oct 17 11:03:16 primego edisksd[399]: mounted 0:27 at /etc Oct 17 11:03:16 primego edisksd[399]: mounted 0:30 at /var Oct 17 11:03:16 primego edisksd[399]: mounted 0:33 at /run/credentials/systemd-tmpfiles-setup.service Oct 17 11:03:16 primego dbus-daemon[243]: [system] Successfully activated service 'io.github.inmusicdev.edisksd' Oct 17 11:03:16 primego systemd[1]: Started Disk mounting service. Oct 17 11:03:16 primego kernel: fscrypt: AES-256-CTS-CBC using implementation "cts(cbc(aes-generic))" Oct 17 11:03:16 primego runengine[338]: [W] There is no databases available! [2024-10-17T15:03:16.408Z] [ ] Oct 17 11:03:16 primego runengine[338]: [W] There is no databases available! [2024-10-17T15:03:16.411Z] [ ] Oct 17 11:03:16 primego runengine[338]: [W] Numeric mode unsupported in the posix collation implementation [2024-10-17T15:03:16.412Z] [ ] Oct 17 11:03:16 primego runengine[338]: [I] TimeZone detect started "JP11" "4.1.0" "346332f4d7" [2024-10-17T15:03:16.415Z] [air.planck.controller.ti] Oct 17 11:03:16 primego runengine[338]: [W] EDisks filesystem added: "/io/github/inmusicdev/edisksd/dev/mmcblk0p7" label: "b27b20f5e019cb4f" [2024-10-17T15:03:16.426Z] [ ] Oct 17 11:03:16 primego runengine[338]: [I] New device connected: "/io/github/inmusicdev/edisksd/dev/mmcblk0p7" [2024-10-17T15:03:16.426Z] [air.devicemanager.hotplu] Oct 17 11:03:16 primego runengine[338]: [I] "/io/github/inmusicdev/edisksd/dev/mmcblk0p7" mounted at "bd47413b5c03dfc6" [2024-10-17T15:03:16.428Z] [air.devicemanager.hotplu] Oct 17 11:03:16 primego runengine[338]: [I] "/io/github/inmusicdev/edisksd/dev/mmcblk0p7" mounted at "/97227e70daeb56c4" [2024-10-17T15:03:16.431Z] [air.devicemanager.hotplu] Oct 17 11:03:16 primego runengine[338]: [W] EDisks filesystem added: "/io/github/inmusicdev/edisksd/dev/mmcblk0p6" label: "1244c94bdd26dbae" [2024-10-17T15:03:16.434Z] [ ] Oct 17 11:03:16 primego runengine[338]: [I] New device connected: "/io/github/inmusicdev/edisksd/dev/mmcblk0p6" [2024-10-17T15:03:16.435Z] [air.devicemanager.hotplu] Oct 17 11:03:16 primego runengine[338]: [I] "/io/github/inmusicdev/edisksd/dev/mmcblk0p6" mounted at "8a5edab282632443" [2024-10-17T15:03:16.436Z] [air.devicemanager.hotplu] Oct 17 11:03:16 primego runengine[338]: [I] "/io/github/inmusicdev/edisksd/dev/mmcblk0p6" mounted at "/usr/4b2f4473e24574e8/601ad8d0cac495d5.0" [2024-10-17T15:03:16.439Z] [air.devicemanager.hotplu] Oct 17 11:03:16 primego runengine[338]: [W] [ 0x33a58ec ] Job Failed "Reading Playlists" "" [2024-10-17T15:03:16.445Z] [air.planck.jobcontroller] Oct 17 11:03:16 primego runengine[338]: [W] [ 0x33ab99c ] Job Failed "Reading Playlists" "" [2024-10-17T15:03:16.446Z] [air.planck.jobcontroller] Oct 17 11:03:16 primego runengine[338]: [I] TimeZone detect started "JP11" "4.1.0" "346332f4d7" [2024-10-17T15:03:16.964Z] [air.planck.controller.ti] Oct 17 11:03:16 primego runengine[338]: [ ] Core Dump disabled [2024-10-17T15:03:16.970Z] [ ] Oct 17 11:03:16 primego runengine[338]: [W] There is no databases available! [2024-10-17T15:03:16.971Z] [ ] Oct 17 11:03:16 primego dbus-daemon[243]: [system] Activating via systemd: service name='org.bluez' unit='dbus-org.bluez.service' requested by ':1.10' (uid=0 pid=338 comm="/usr/Engine/Engine -d0 ") Oct 17 11:03:16 primego runengine[338]: [W] [ 0x3a70ad4 ] Job Failed "Reading Playlists" "" [2024-10-17T15:03:16.983Z] [air.planck.jobcontroller] Oct 17 11:03:17 primego systemd[1]: Starting Bluetooth service... Oct 17 11:03:17 primego systemd[497]: ConfigurationDirectory 'bluetooth' already exists but the mode is different. (File system: 755 ConfigurationDirectoryMode: 555) Oct 17 11:03:17 primego bluetoothd[497]: Bluetooth daemon 5.72 Oct 17 11:03:17 primego dbus-daemon[243]: [system] Successfully activated service 'org.bluez' Oct 17 11:03:17 primego systemd[1]: Started Bluetooth service. Oct 17 11:03:17 primego bluetoothd[497]: Starting SDP server Oct 17 11:03:17 primego bluetoothd[497]: src/plugin.c:plugin_init() System does not support csip plugin Oct 17 11:03:17 primego bluetoothd[497]: profiles/audio/micp.c:micp_init() D-Bus experimental not enabled Oct 17 11:03:17 primego bluetoothd[497]: src/plugin.c:plugin_init() System does not support micp plugin Oct 17 11:03:17 primego bluetoothd[497]: src/plugin.c:plugin_init() System does not support vcp plugin Oct 17 11:03:17 primego bluetoothd[497]: src/plugin.c:plugin_init() System does not support mcp plugin Oct 17 11:03:17 primego bluetoothd[497]: src/plugin.c:plugin_init() System does not support bass plugin Oct 17 11:03:17 primego bluetoothd[497]: src/plugin.c:plugin_init() System does not support bap plugin Oct 17 11:03:17 primego bluetoothd[497]: profiles/network/bnep.c:bnep_init() kernel lacks bnep-protocol support Oct 17 11:03:17 primego bluetoothd[497]: src/plugin.c:plugin_init() System does not support network plugin Oct 17 11:03:17 primego bluetoothd[497]: Bluetooth management interface 1.22 initialized Oct 17 11:03:19 primego login[246]: invalid password for 'UNKNOWN' on 'ttyS2' Oct 17 11:03:21 primego runengine[338]: [W] QQmlExpression: Expression qrc:/Skins/EmbeddedCommon/Views/ControlCenter/Tabs/Preferences/Entries [2024-10-17T15:03:21.788Z] [ ] Oct 17 11:03:21 primego runengine[338]: [W] /ProfileIndicators.qml:164:4 depends on non-NOTIFYable properties: [2024-10-17T15:03:21.788Z] [ ] Oct 17 11:03:21 primego runengine[338]: [W] profiles::ProfilesLoginController::tokenLoaded [2024-10-17T15:03:21.788Z] [ ] Oct 17 11:03:21 primego runengine[338]: [ ] No provider set [2024-10-17T15:03:21.943Z] [qml ] Oct 17 11:03:22 primego login[246]: root login on 'ttyS2' Oct 17 11:03:22 primego runengine[338]: [ ] No provider set [2024-10-17T15:03:22.338Z] [qml ] Oct 17 11:03:22 primego runengine[338]: [W] QQmlExpression: Expression qrc:/Skins/EmbeddedCommon/EmbeddedMain.qml:252:6 depends on non-NOTIFYable properties: [2024-10-17T15:03:22.338Z] [ ] Oct 17 11:03:22 primego runengine[338]: [W] QQuickItem::transform [2024-10-17T15:03:22.338Z] [ ] Oct 17 11:03:22 primego runengine[338]: [I] Board revision: 10 [2024-10-17T15:03:22.343Z] [qml ] Oct 17 11:03:22 primego systemd[1]: sys-devices-platform-mipi\x2dbacklight-backlight-mipi\x2dbacklight.device: Failed to enqueue SYSTEMD_WANTS= job, ignoring: Unit systemd-backlight@backlight:mipi-backlight.service not found. Oct 17 11:03:22 primego runengine[338]: [ ] FORCING SWAP INTERVAL = 1 [2024-10-17T15:03:22.593Z] [ ] Oct 17 11:03:23 primego runengine[338]: [ ] FORCING SWAP INTERVAL = 1 [2024-10-17T15:03:23.023Z] [ ] Oct 17 11:03:23 primego runengine[338]: [W] setLatestLocalVersion version: "" path: "" [2024-10-17T15:03:23.023Z] [ ] Oct 17 11:03:23 primego runengine[338]: [W] setLatestLocalVersion version: "" path: "" (repeated 3 times) [2024-10-17T15:03:23.391Z] [ ] Oct 17 11:03:23 primego runengine[338]: [W] MigrationFinished uuid for path "851c9b64ee7abb42" "9b7a80aa-4f11-4118-a42f-d631c2dddd34" [2024-10-17T15:03:23.391Z] [air.planck.database ] Oct 17 11:03:23 primego runengine[338]: [W] MigrationFinished uuid for path "a394739a3f3a75b5" "0992b059-9b42-4a42-b840-b63e49fdf11c" [2024-10-17T15:03:23.410Z] [air.planck.database ] Oct 17 11:03:23 primego runengine[338]: [C] Planck init complete, handing over to exec. Took 10299 ms [2024-10-17T15:03:23.483Z] [air.planck ] Oct 17 11:03:23 primego runengine[338]: [W] JobController state: [2024-10-17T15:03:23.627Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] current number of threads: 8 [2024-10-17T15:03:23.627Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] maximum number of threads: 8 [2024-10-17T15:03:23.627Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] queue length: 8 jobs size: 13 [2024-10-17T15:03:23.628Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] Jobs running: [2024-10-17T15:03:23.628Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Collecting database stats for analytic" count 1 [2024-10-17T15:03:23.628Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Searching missing files for analytic" count 1 [2024-10-17T15:03:23.628Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Searching on device" count 1 [2024-10-17T15:03:23.629Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] Jobs queued: [2024-10-17T15:03:23.629Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Processing view state controller event" count 1 [2024-10-17T15:03:23.629Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Reading History" count 1 [2024-10-17T15:03:23.629Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Reading Playlists" count 1 [2024-10-17T15:03:23.629Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Searching on device" count 5 [2024-10-17T15:03:23.629Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] JobController state: [2024-10-17T15:03:23.807Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] current number of threads: 8 [2024-10-17T15:03:23.807Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] maximum number of threads: 8 [2024-10-17T15:03:23.807Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] queue length: 13 jobs size: 18 [2024-10-17T15:03:23.807Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] Jobs running: [2024-10-17T15:03:23.807Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Collecting database stats for analytic" count 1 [2024-10-17T15:03:23.807Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Searching missing files for analytic" count 1 [2024-10-17T15:03:23.808Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Searching on device" count 1 [2024-10-17T15:03:23.808Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] Jobs queued: [2024-10-17T15:03:23.808Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Clearing up prepare list" count 1 [2024-10-17T15:03:23.808Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Loading persisted samples" count 1 [2024-10-17T15:03:23.808Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Processing view state controller event" count 3 [2024-10-17T15:03:23.808Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Reading History" count 1 [2024-10-17T15:03:23.808Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Reading Playlists" count 1 [2024-10-17T15:03:23.809Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Searching on device" count 5 [2024-10-17T15:03:23.809Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] "Updating track list" count 1 [2024-10-17T15:03:23.809Z] [air.planck.jobcontroller] Oct 17 11:03:23 primego runengine[338]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/private/STMBank.qml:14:2: QML Connections: Implicitly defined onFoo [2024-10-17T15:03:23.894Z] [ ] Oct 17 11:03:23 primego runengine[338]: [W] properties in Connections are deprecated. Use this syntax instead: function onFoo(<arguments>) { ... } [2024-10-17T15:03:23.894Z] [ ] Oct 17 11:03:23 primego runengine[338]: [W] Failed to set discovery name Error: bluetooth::error::Code::NoUsableAdapter [2024-10-17T15:03:23.908Z] [air.planck.bluetooth.con] Oct 17 11:03:23 primego runengine[338]: [W] Failed to set set discoverable Error: bluetooth::error::Code::NoUsableAdapter [2024-10-17T15:03:23.909Z] [air.planck.bluetooth.con] Oct 17 11:03:23 primego runengine[338]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/private/STMBank.qml:14:2: QML Connections: Implicitly defined onFoo [2024-10-17T15:03:23.978Z] [ ] Oct 17 11:03:23 primego runengine[338]: [W] properties in Connections are deprecated. Use this syntax instead: function onFoo(<arguments>) { ... } [2024-10-17T15:03:23.978Z] [ ] Oct 17 11:03:23 primego runengine[338]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/HardwareMixerMic.qml:35:2: QML Connections: Implicitly defined [2024-10-17T15:03:23.979Z] [ ] Oct 17 11:03:23 primego runengine[338]: [W] onFoo properties in Connections are deprecated. Use this syntax instead: function onFoo(<arguments>) { ... } [2024-10-17T15:03:23.979Z] [ ] Oct 17 11:03:24 primego runengine[338]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/HardwareMixerMic.qml:35:2: QML Connections: Implicitly defined [2024-10-17T15:03:24.033Z] [ ] Oct 17 11:03:24 primego runengine[338]: [W] onFoo properties in Connections are deprecated. Use this syntax instead: function onFoo(<arguments>) { ... } [2024-10-17T15:03:24.033Z] [ ] Oct 17 11:03:24 primego runengine[338]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/VUMeter.qml:109: TypeError: Cannot read property 'c5fafca31e7f33c7' [2024-10-17T15:03:24.033Z] [ ] Oct 17 11:03:24 primego runengine[338]: [W] of null [2024-10-17T15:03:24.034Z] [ ] Oct 17 11:03:24 primego runengine[338]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/VUMeter.qml:108: TypeError: Cannot read property 'c5fafca31e7f33c7' [2024-10-17T15:03:24.034Z] [ ] Oct 17 11:03:24 primego runengine[338]: [W] of null [2024-10-17T15:03:24.034Z] [ ] Oct 17 11:03:24 primego runengine[338]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/VUMeter.qml:109: TypeError: Cannot read property 'c5fafca31e7f33c7' [2024-10-17T15:03:24.034Z] [ ] Oct 17 11:03:24 primego runengine[338]: [W] of null [2024-10-17T15:03:24.034Z] [ ] Oct 17 11:03:24 primego runengine[338]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/VUMeter.qml:108: TypeError: Cannot read property 'c5fafca31e7f33c7' [2024-10-17T15:03:24.034Z] [ ] Oct 17 11:03:24 primego runengine[338]: [W] of null [2024-10-17T15:03:24.034Z] [ ] Oct 17 11:03:24 primego runengine[338]: [ ] No special power on request [2024-10-17T15:03:24.043Z] [qml ] Oct 17 11:03:26 primego runengine[338]: [I] Timezone detect returned with error: "Host api.inmusicbrands.com not found, " [2024-10-17T15:03:26.449Z] [air.planck.controller.ti] Oct 17 11:03:26 primego runengine[338]: [I] Scheduled TimeZone detect retry # 1 [2024-10-17T15:03:26.449Z] [air.planck.controller.ti] Oct 17 11:03:26 primego runengine[338]: [I] Timezone detect returned with error: "Host api.inmusicbrands.com not found, " [2024-10-17T15:03:26.450Z] [air.planck.controller.ti] Oct 17 11:03:26 primego runengine[338]: [I] Scheduled TimeZone detect retry # 2 [2024-10-17T15:03:26.450Z] [air.planck.controller.ti] Oct 17 11:03:47 primego systemd[1]: systemd-hostnamed.service: Deactivated successfully. Oct 17 11:04:25 primego kernel: usb 3-1: new high-speed USB device number 2 using ehci-platform Oct 17 11:04:25 primego kernel: usb 3-1: New USB device found, idVendor=090c, idProduct=1000, bcdDevice=11.00 Oct 17 11:04:25 primego kernel: usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3 Oct 17 11:04:25 primego kernel: usb 3-1: Product: Type-C Oct 17 11:04:25 primego kernel: usb 3-1: Manufacturer: Samsung Oct 17 11:04:25 primego kernel: usb 3-1: SerialNumber: 0374822020007227 Oct 17 11:04:25 primego kernel: usb-storage 3-1:1.0: USB Mass Storage device detected Oct 17 11:04:25 primego kernel: scsi host0: usb-storage 3-1:1.0 Oct 17 11:04:30 primego kernel: scsi 0:0:0:0: Direct-Access Samsung Type-C 1100 PQ: 0 ANSI: 6 Oct 17 11:04:30 primego kernel: sd 0:0:0:0: [sda] 250626566 512-byte logical blocks: (128 GB/120 GiB) Oct 17 11:04:30 primego kernel: sd 0:0:0:0: [sda] Write Protect is off Oct 17 11:04:30 primego kernel: sd 0:0:0:0: [sda] Mode Sense: 43 00 00 00 Oct 17 11:04:30 primego kernel: sd 0:0:0:0: [sda] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA Oct 17 11:04:30 primego kernel: sda: Oct 17 11:04:30 primego kernel: sd 0:0:0:0: [sda] Attached SCSI removable disk Oct 17 11:04:30 primego edisksd[399]: add device: /devices/platform/ff500000.usb/usb3/3-1/3-1:1.0/host0/target0:0:0/0:0:0:0/block/sda Oct 17 11:04:30 primego az01-usbsata-fixer[239]: examining device /sys/devices/platform/ff500000.usb/usb3/3-1/3-1:1.0/host0/target0:0:0/0:0:0:0/block/sda Oct 17 11:04:30 primego edisksd[399]: block_is_removable for /devices/platform/ff500000.usb/usb3/3-1/3-1:1.0/host0/target0:0:0/0:0:0:0/block/sda: EDISKS_REMOVABLE=??? media=0 Oct 17 11:04:30 primego runengine[338]: [W] EDisks filesystem added: "/io/github/inmusicdev/edisksd/dev/sda" [2024-10-17T15:04:30.341Z] [ ] Oct 17 11:04:30 primego runengine[338]: [W] fa70e8751d5a8e29lfa70e8751d5a8e29afa70e8751d5a8e29bfa70e8751d5a8e29efa70e8751d5a8e29lfa70e8751d5a8e29:fa70e8751d5a8 [2024-10-17T15:04:30.341Z] [ ] Oct 17 11:04:30 primego runengine[338]: [W] e29 fa70e8751d5a8e29 fa70e8751d5a8e29"fa70e8751d5a8e29"fa70e8751d5a8e29 [2024-10-17T15:04:30.341Z] [ ] Oct 17 11:04:30 primego runengine[338]: [I] New device connected: "/io/github/inmusicdev/edisksd/dev/sda" [2024-10-17T15:04:30.341Z] [air.devicemanager.hotplu] Oct 17 11:04:30 primego kernel: FAT-fs (sda): Volume was not properly unmounted. Some data may be corrupt. Please run fsck. Oct 17 11:04:30 primego edisksd[399]: mounted 8:0 at /media/1942-FA32 Oct 17 11:04:30 primego runengine[338]: [I] "/io/github/inmusicdev/edisksd/dev/sda" mounted at "/a36ea5233df09752" [2024-10-17T15:04:30.368Z] [air.devicemanager.hotplu] Oct 17 11:04:30 primego runengine[338]: [I] Mounting succeeded: "/io/github/inmusicdev/edisksd/dev/sda" at: "/a36ea5233df09752" [2024-10-17T15:04:30.381Z] [air.devicemanager.hotplu] Oct 17 11:04:30 primego runengine[338]: [W] setLatestLocalVersion version: "" path: "" [2024-10-17T15:04:30.386Z] [ ] Oct 17 11:04:30 primego runengine[338]: [W] setLatestLocalVersion version: "" path: "" [2024-10-17T15:04:30.456Z] [ ] Oct 17 11:04:30 primego runengine[338]: [W] setLatestLocalVersion version: "4.1.100" path: "/media/1a6ca4482bdbf480/PRIMEGO-4.1.100-Update.img" [2024-10-17T15:04:30.456Z] [ ] Oct 17 11:04:31 primego runengine[338]: [W] setLatestLocalVersion version: "4.1.100" path: "/media/1a6ca4482bdbf480/PRIMEGO-4.1.100-Update.img" [2024-10-17T15:04:31.278Z] [ ] Oct 17 11:04:31 primego runengine[338]: [W] MigrationFinished uuid for path "1a6ca4482bdbf480" "d3c400fa-6db7-4e6e-9b88-98ddc04d57aa" [2024-10-17T15:04:31.278Z] [air.planck.database ] Oct 17 11:04:31 primego runengine[338]: [W] Numeric mode unsupported in the posix collation implementation [2024-10-17T15:04:31.539Z] [ ]

U-Boot SPL 2016.05-inmusic-20200917 (Oct 21 2020 - 14:45:34) Trying to boot from MMC1 U-Boot 2016.05-inmusic-20200917 (Oct 21 2020 - 14:45:34 +0000), Build: jenkins-Planck-Embedded_Release-157 Model: Denon DJ SC6000 Prime DRAM: 2 GiB TSADC last_tshut_cru=1 (auto_con=0x03000000) MMC: dwmmc@ff0f0000: 0 In: gpio-keys Out: serial Err: serial AZ01b PCB revN (raw=6) Hit any key to stop autoboot: 0 switch to partitions #0, OK mmc0(part 0) is current device Scanning mmc 0:6... Found U-Boot script /boot/boot.scr.uimg 535 bytes read in 8 ms (64.5 KiB/s) ## Executing script at 00000000 5898280 bytes read in 283 ms (19.9 MiB/s) 51979 bytes read in 11 ms (4.5 MiB/s) ** File not found /boot/rk3288-az01b.dtbo ** Kernel image @ 0x2000000 [ 0x000000 - 0x5a0028 ] ## Flattened Device Tree blob at 01f00000 Booting using the fdt blob at 0x1f00000 Loading Device Tree to 1fff0000, end 1ffffb0a ... OK Starting kernel ...

=> printenv arch=arm az01_bootcmd=if test x${dorecovery} = x1; then run az01_recovercmd; fi; run distro_bootcmd; echo 'Boot failed, resetting to bootloader...'; reset_bootloader az01_recovercmd=echo 'Starting fastboot...'; fastboot 0 baudrate=115200 board=az01 board_name=az01b boot_a_script=load ${devtype} ${devnum}:${distro_bootpart} ${scriptaddr} ${prefix}${script}; source ${scriptaddr} boot_extlinux=sysboot ${devtype} ${devnum}:${distro_bootpart} any ${scriptaddr} ${prefix}extlinux/extlinux.conf boot_prefixes=/ /boot/ boot_script_dhcp=boot.scr.uimg boot_scripts=boot.scr.uimg boot.scr boot_targets=mmc0 mmc1 bootargs=root=PARTUUID=24d1deac-3434-1a4e-98d1-68ee2945a5f1 rootwait ro rfkill.default_state=0 isolcpus=1,2,3 earlyprintk bootcmd=run az01_bootcmd bootcmd_mmc0=setenv devnum 0; run mmc_boot bootcmd_mmc1=setenv devnum 1; run mmc_boot bootdelay=0 cpu=armv7 distro_bootcmd=for target in ${boot_targets}; do run bootcmd_${target}; done ethaddr=00:05:95:xx:xx:xx fastboot.partition-type:data=ext4 fastboot.partition-type:rootfs=ext4 fdt_addr_r=0x01f00000 fdt_high=0x1fffffff fdtcontroladdr=7b3aa1c8 fdtfile=rk3288-az01-jp13.dtb initrd_high=0x1fffffff kernel_addr_r=0x02000000 loadaddr=0x00800800 mmc_boot=if mmc dev ${devnum}; then setenv devtype mmc; run scan_dev_for_boot_part; fi partitions=uuid_disk=02bebde5-b5a4-48cd-b262-512fe8b6ae06;name=uboot-spl,size=64KiB,start=32KiB,uuid=f6217a3c-1c7d-4969-8f05-88c0b9c0f0e6;name=env,size=32KiB,start=96KiB,uuid=be8b868f-89d8-4ff8-a64d-d077e73b4f09;name=uboot,size=384KiB,start=128KiB,uuid=461be792-3b29-4c0a-a6a2-3460c0119cbe;name=splash,size=4MiB,uuid=40bfa9cd-6d2c-4e22-a662-f0a803794462;name=recoverysplash,size=4MiB,uuid=e050b8e2-ee92-43ca-98ad-9aa4fbca8616;name=rootfs,bootable,size=500MiB,uuid=acded124-3434-4e1a-98d1-68ee2945a5f1;name=data,size=0,uuid=9dd41a93-59ad-4908-833a-9bf00af5b60e; pcb_rev=N pxefile_addr_r=0x00100000 ramdisk_addr_r=0x04000000 scan_dev_for_boot=echo Scanning ${devtype} ${devnum}:${distro_bootpart}...; for prefix in ${boot_prefixes}; do run scan_dev_for_extlinux; run scan_dev_for_scripts; done; scan_dev_for_boot_part=part list ${devtype} ${devnum} -bootable devplist; env exists devplist || setenv devplist 1; for distro_bootpart in ${devplist}; do if fstype ${devtype} ${devnum}:${distro_bootpart} bootfstype; then run scan_dev_for_boot; fi; done scan_dev_for_extlinux=if test -e ${devtype} ${devnum}:${distro_bootpart} ${prefix}extlinux/extlinux.conf; then echo Found ${prefix}extlinux/extlinux.conf; run boot_extlinux; echo SCRIPT FAILED: continuing...; fi scan_dev_for_scripts=for script in ${boot_scripts}; do if test -e ${devtype} ${devnum}:${distro_bootpart} ${prefix}${script}; then echo Found U-Boot script ${prefix}${script}; run boot_a_script; echo SCRIPT FAILED: continuing...; fi; done scriptaddr=0x00000000 serial#=<redacted> soc=rockchip splashpos=m stderr=serial stdin=serial,gpio-keys stdout=serial vendor=inmusic Environment size: 3012/8188 bytes

=> mmc part Partition Map for MMC device 0 -- Partition Type: EFI Part Start LBA End LBA Name Attributes Type GUID Partition GUID 1 0x00000040 0x000000bf "uboot-spl" attrs: 0x0000000000000000 type: ebd0a0a2-b9e5-4433-87c0-68b6b72699c7 guid: 3c7a21f6-7d1c-6949-8f05-88c0b9c0f0e6 2 0x000000c0 0x000000ff "env" attrs: 0x0000000000000000 type: ebd0a0a2-b9e5-4433-87c0-68b6b72699c7 guid: 8f868bbe-d889-f84f-a64d-d077e73b4f09 3 0x00000100 0x000003ff "uboot" attrs: 0x0000000000000000 type: ebd0a0a2-b9e5-4433-87c0-68b6b72699c7 guid: 92e71b46-293b-0a4c-a6a2-3460c0119cbe 4 0x00000400 0x000023ff "splash" attrs: 0x0000000000000000 type: ebd0a0a2-b9e5-4433-87c0-68b6b72699c7 guid: cda9bf40-2c6d-224e-a662-f0a803794462 5 0x00002400 0x000043ff "recoverysplash" attrs: 0x0000000000000000 type: ebd0a0a2-b9e5-4433-87c0-68b6b72699c7 guid: e2b850e0-92ee-ca43-98ad-9aa4fbca8616 6 0x00004400 0x000fe3ff "rootfs" attrs: 0x0000000000000004 type: ebd0a0a2-b9e5-4433-87c0-68b6b72699c7 guid: 24d1deac-3434-1a4e-98d1-68ee2945a5f1 7 0x000fe400 0x00e8ffde "data" attrs: 0x0000000000000000 type: ebd0a0a2-b9e5-4433-87c0-68b6b72699c7 guid: 931ad49d-ad59-0849-833a-9bf00af5b60e

=> help ? - alias for 'help' adc - ADC sub-system base - print or set address offset bdinfo - print Board Info structure bmp - manipulate BMP image data boot - boot default, i.e., run 'bootcmd' bootd - boot default, i.e., run 'bootcmd' bootm - boot application image from memory bootz - boot Linux zImage image from memory clock - display information about clocks cmp - memory compare coninfo - print console devices and information cp - memory copy dm - Driver model low level access echo - echo args to console editenv - edit environment variable env - environment handling commands erase - erase FLASH memory exit - exit script false - do nothing, unsuccessfully fastboot- use USB Fastboot protocol fdt - flattened device tree utility commands flinfo - print FLASH memory information fstype - Look up a filesystem type go - start application at address 'addr' gpio - query and control gpio pins gpt - GUID Partition Table help - print command description/usage i2c - I2C sub-system iminfo - print header information for application image itest - return true/false on integer compare lcdputs - print string on video framebuffer load - load binary file from a filesystem loadb - load binary file over serial line (kermit mode) loads - load S-Record file over serial line loadx - load binary file over serial line (xmodem mode) loady - load binary file over serial line (ymodem mode) loop - infinite loop on address range ls - list files in a directory (default /) md - memory display mm - memory modify (auto-incrementing address) mmc - MMC sub system mmcinfo - display MMC info mw - memory write (fill) nm - memory modify (constant address) part - disk partition related commands pmic - operations poweroff- Perform POWEROFF of the device printenv- print environment variables protect - enable or disable FLASH write protection regulator- uclass operations reset - Perform RESET of the CPU reset_bootloader- reset to fastboot mode run - run commands in an environment variable save - save file to a filesystem saveenv - save environment variables to persistent storage setcurs - set cursor position within screen setenv - set environment variables showvar - print local hushshell variables size - determine a file's size sleep - delay execution for some time source - run script from memory sysboot - command to get and boot from syslinux files test - minimal test like /bin/sh thermal - uclass operations time - run commands and summarize execution time true - do nothing, successfully version - print monitor, compiler and linker version

=> version U-Boot 2016.05-inmusic-20200917 (Oct 21 2020 - 14:45:34 +0000) arm-buildroot-linux-gnueabihf-gcc.br_real (Buildroot 2020.02.1-00010-ga47ecce36b) 8.4.0 GNU ld (GNU Binutils) 2.32

=> mmc info Device: dwmmc@ff0f0000 Manufacturer ID: 11 OEM: 100 Name: 008GB Tran Speed: 52000000 Rd Block Len: 512 MMC version 4.0 High Capacity: Yes Capacity: 7.3 GiB Bus Width: 8-bit Erase Group Size: 512 KiB

=> bdinfo arch_number = 0x00000000 boot_params = 0x00000000 DRAM bank = 0x00000000 -> start = 0x00000000 -> size = 0x80000000 baudrate = 115200 bps TLB addr = 0x7FFF0000 relocaddr = 0x7F3B6000 reloc off = 0x7F2B6000 irq_sp = 0x7B3AA1B0 sp start = 0x7B3AA1A0

=> clock osc: 24000000 apll: 1608000000 dpll: 533000000 cpll: 400000000 gpll: 594000000 npll: 73000000

=> coninfo List of available devices: serial@ff690000 00000003 IO gpio-keys 00000001 I. stdin vidconsole 00000002 .O serial 00000003 IO stdout stderr nulldev 00000003 IO

=> showvar HUSH_VERSION=0.01

Booting Linux on physical CPU 0x500 Linux version 6.6.119-az01-2025-12-17-rt67 (oe-user@oe-host) (arm-poky-linux-gnueabi-gcc (GCC) 13.4.0, GNU ld (GNU Binutils) 2.42.0.20240723) #1 SMP PREEMPT_RT Wed Dec 17 11:04:42 UTC 2025 CPU: ARMv7 Processor [410fc0d1] revision 1 (ARMv7), cr=10c5387d CPU: div instructions available: patching division code CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache OF: fdt: Machine model: Denon DJ SC6000 Prime Memory policy: Data cache writealloc OF: reserved mem: initialized node framebuffer, compatible id rockchip,framebuffer-memory OF: reserved mem: 0x7f400000..0x7fffffff (12288 KiB) map non-reusable framebuffer OF: reserved mem: 0xfe000000..0xfeffffff (16384 KiB) map non-reusable dma-unusable@fe000000 Zone ranges: Normal [mem 0x0000000000000000-0x000000002fffffff] HighMem [mem 0x0000000030000000-0x000000007fffffff] Movable zone start for each node Early memory node ranges node 0: [mem 0x0000000000000000-0x000000007fffffff] Initmem setup node 0 [mem 0x0000000000000000-0x000000007fffffff] percpu: Embedded 12 pages/cpu s18528 r8192 d22432 u49152 Kernel command line: root=PARTUUID=24d1deac-3434-1a4e-98d1-68ee2945a5f1 rootwait ro rfkill.default_state=0 isolcpus=1,2,3 earlyprintk fsck.repair=yes Unknown kernel command line parameters "earlyprintk", will be passed to user space. Dentry cache hash table entries: 131072 (order: 7, 524288 bytes, linear) Inode-cache hash table entries: 65536 (order: 6, 262144 bytes, linear) Built 1 zonelists, mobility grouping on. Total pages: 522752 mem auto-init: stack:all(zero), heap alloc:off, heap free:off Memory: 2053868K/2097152K available (8192K kernel code, 823K rwdata, 2612K rodata, 1024K init, 279K bss, 30996K reserved, 12288K cma-reserved, 1298432K highmem) SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 rcu: Preemptible hierarchical RCU implementation. rcu: RCU event tracing is enabled. rcu: RCU priority boosting: priority 1 delay 500 ms. rcu: RCU_SOFTIRQ processing moved to rcuc kthreads. No expedited grace period (rcu_normal_after_boot). rcu: RCU calculated value of scheduler-enlistment delay is 100 jiffies. NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16 rcu: srcu_init: Setting srcu_struct sizes based on contention. rockchip: reset MMC AHB arbitor arch_timer: cp15 timer(s) running at 24.00MHz (phys). clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns Switching to timer-based delay loop, resolution 41ns Console: colour dummy device 80x30 printk: legacy console [tty0] enabled Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=24000) CPU: Testing write buffer coherency: ok Spectre V2: workarounds disabled by configuration pid_max: default: 32768 minimum: 301 Mount-cache hash table entries: 2048 (order: 1, 8192 bytes, linear) Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes, linear) CPU0: thread -1, cpu 0, socket 5, mpidr 80000500 Setting up static identity map for 0x100000 - 0x100060 rcu: Hierarchical SRCU implementation. rcu: Max phase no-delay instances is 400. smp: Bringing up secondary CPUs ... CPU1: thread -1, cpu 1, socket 5, mpidr 80000501 CPU2: thread -1, cpu 2, socket 5, mpidr 80000502 CPU3: thread -1, cpu 3, socket 5, mpidr 80000503 smp: Brought up 1 node, 4 CPUs SMP: Total of 4 processors activated (192.00 BogoMIPS). CPU: All CPU(s) started in SVC mode. devtmpfs: initialized VFP support v0.3: implementor 41 architecture 3 part 30 variant d rev 0 clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 1911260446275000 ns futex hash table entries: 1024 (order: 4, 65536 bytes, linear) pinctrl core: initialized pinctrl subsystem NET: Registered PF_NETLINK/PF_ROUTE protocol family DMA: preallocated 256 KiB pool for atomic coherent allocations thermal_sys: Registered thermal governor 'step_wise' thermal_sys: Registered thermal governor 'user_space' cpuidle: using governor menu No ATAGs? hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers. hw-breakpoint: maximum watchpoint size is 4 bytes. /vop@ff940000: Fixed dependency cycle(s) with /mipi@ff960000 /mipi@ff960000: Fixed dependency cycle(s) with /mipi@ff960000/panel@0 /mipi@ff960000: Fixed dependency cycle(s) with /vop@ff940000 /mipi@ff960000/panel@0: Fixed dependency cycle(s) with /mipi@ff960000 /pinctrl: Fixed dependency cycle(s) with /pinctrl/az01/az01-pcb-rev gpio gpiochip0: Static allocation of GPIO base is deprecated, use dynamic allocation. rockchip-gpio ff750000.gpio: probed /pinctrl/gpio@ff750000 gpio gpiochip1: Static allocation of GPIO base is deprecated, use dynamic allocation. rockchip-gpio ff780000.gpio: probed /pinctrl/gpio@ff780000 gpio gpiochip2: Static allocation of GPIO base is deprecated, use dynamic allocation. rockchip-gpio ff790000.gpio: probed /pinctrl/gpio@ff790000 gpio gpiochip3: Static allocation of GPIO base is deprecated, use dynamic allocation. rockchip-gpio ff7a0000.gpio: probed /pinctrl/gpio@ff7a0000 gpio gpiochip4: Static allocation of GPIO base is deprecated, use dynamic allocation. rockchip-gpio ff7b0000.gpio: probed /pinctrl/gpio@ff7b0000 gpio gpiochip5: Static allocation of GPIO base is deprecated, use dynamic allocation. rockchip-gpio ff7c0000.gpio: probed /pinctrl/gpio@ff7c0000 gpio gpiochip6: Static allocation of GPIO base is deprecated, use dynamic allocation. rockchip-gpio ff7d0000.gpio: probed /pinctrl/gpio@ff7d0000 gpio gpiochip7: Static allocation of GPIO base is deprecated, use dynamic allocation. rockchip-gpio ff7e0000.gpio: probed /pinctrl/gpio@ff7e0000 gpio gpiochip8: Static allocation of GPIO base is deprecated, use dynamic allocation. rockchip-gpio ff7f0000.gpio: probed /pinctrl/gpio@ff7f0000 iommu: Default domain type: Translated iommu: DMA domain TLB invalidation policy: strict mode SCSI subsystem initialized usbcore: registered new interface driver usbfs usbcore: registered new interface driver hub usbcore: registered new device driver usb pps_core: LinuxPPS API ver. 1 registered pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it> PTP clock support registered Advanced Linux Sound Architecture Driver Initialized. Bluetooth: Core ver 2.22 NET: Registered PF_BLUETOOTH protocol family Bluetooth: HCI device and connection manager initialized Bluetooth: HCI socket layer initialized Bluetooth: L2CAP socket layer initialized Bluetooth: SCO socket layer initialized clocksource: Switched to clocksource arch_sys_counter NET: Registered PF_INET protocol family IP idents hash table entries: 16384 (order: 5, 131072 bytes, linear) tcp_listen_portaddr_hash hash table entries: 512 (order: 2, 10240 bytes, linear) Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) TCP established hash table entries: 8192 (order: 3, 32768 bytes, linear) TCP bind hash table entries: 8192 (order: 7, 327680 bytes, linear) TCP: Hash tables configured (established 8192 bind 8192) UDP hash table entries: 512 (order: 3, 24576 bytes, linear) UDP-Lite hash table entries: 512 (order: 3, 24576 bytes, linear) NET: Registered PF_UNIX/PF_LOCAL protocol family hw perfevents: enabled with armv7_cortex_a12 PMU driver, 7 counters available Initialise system trusted keyrings workingset: timestamp_bits=30 max_order=19 bucket_order=0 squashfs: version 4.0 (2009/01/31) Phillip Lougher ntfs3: Read-only LZX/Xpress compression included fuse: init (API version 7.39) NET: Registered PF_ALG protocol family Key type asymmetric registered Asymmetric key parser 'x509' registered Asymmetric key parser 'pkcs8' registered bounce: pool size: 64 pages Block layer SCSI generic (bsg) driver version 0.4 loaded (major 248) io scheduler mq-deadline registered io scheduler kyber registered io scheduler bfq registered dma-pl330 ff250000.dma-controller: Loaded driver for PL330 DMAC-241330 dma-pl330 ff250000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-20 Num_Events-16 dma-pl330 ffb20000.dma-controller: Loaded driver for PL330 DMAC-241330 dma-pl330 ffb20000.dma-controller: DBUFF-64x8bytes Num_Chans-5 Num_Peri-6 Num_Events-10 Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled ff180000.serial: ttyS0 at MMIO 0xff180000 (irq = 47, base_baud = 1500000) is a 16550A serial serial0: tty port ttyS0 registered ff690000.serial: ttyS2 at MMIO 0xff690000 (irq = 48, base_baud = 1500000) is a 16550A printk: console [ttyS2] enabled ff1b0000.serial: ttyS3 at MMIO 0xff1b0000 (irq = 49, base_baud = 1500000) is a 16550A i2c_dev: i2c /dev entries driver /i2c@ff650000/act8846@5a: Fixed dependency cycle(s) with /i2c@ff650000/act8846@5a/regulators/REG4 /i2c@ff650000/act8846@5a: Fixed dependency cycle(s) with /i2c@ff650000/act8846@5a/regulators/REG2 fan53555-regulator 0-0040: FAN53555 Option[8] Rev[1] Detected! fan53555-regulator 0-0041: FAN53555 Option[8] Rev[1] Detected! rockchip-vop ff930000.vop: Adding to iommu group 0 rockchip-vop ff940000.vop: Adding to iommu group 1 /mipi@ff960000: Fixed dependency cycle(s) with /mipi@ff960000/panel@0 /mipi@ff960000/panel@0: Fixed dependency cycle(s) with /mipi@ff960000 rockchip_framebuffer_rmem_device_init: initializing with base address 0x7f400000 size=0x00c00000 rockchip-drm display-subsystem: assigned reserved memory node framebuffer rockchip-drm display-subsystem: bound ff930000.vop (ops 0xc0962378) rockchip-vop ff940000.vop: enabled by bootloader rockchip-drm display-subsystem: bound ff940000.vop (ops 0xc0962378) rockchip-drm display-subsystem: bound ff960000.mipi (ops 0xc096628c) [drm] Initialized rockchip 1.0.0 20140818 for display-subsystem on minor 0 rockchip-drm display-subsystem: framebugger sg_size=12582912 size=12288000 rockchip-drm display-subsystem: [drm] fb0: rockchipdrmfb frame buffer device panfrost ffa30000.gpu: clock rate = 400000000 panfrost ffa30000.gpu: mali-t760 id 0x750 major 0x1 minor 0x0 status 0x0 panfrost ffa30000.gpu: features: 00000000,00000407, issues: 00000000,24040400 panfrost ffa30000.gpu: Features: L2:0x07120206 Shader:0x00000000 Tiler:0x00000809 Mem:0x1 MMU:0x00002830 AS:0xff JS:0x7 panfrost ffa30000.gpu: shader_present=0xf l2_present=0x1 [drm] Initialized panfrost 1.2.0 20180908 for ffa30000.gpu on minor 1 brd: module loaded loop: module loaded rk_gmac-dwmac ff290000.ethernet: IRQ eth_lpi not found rk_gmac-dwmac ff290000.ethernet: PTP uses main clock rk_gmac-dwmac ff290000.ethernet: clock input or output? (input). rk_gmac-dwmac ff290000.ethernet: TX delay(0x23). rk_gmac-dwmac ff290000.ethernet: RX delay(0x1a). rk_gmac-dwmac ff290000.ethernet: integrated PHY? (no). rk_gmac-dwmac ff290000.ethernet: clock input from PHY rk_gmac-dwmac ff290000.ethernet: init for RGMII rk_gmac-dwmac ff290000.ethernet: User ID: 0x10, Synopsys ID: 0x35 rk_gmac-dwmac ff290000.ethernet: DWMAC1000 rk_gmac-dwmac ff290000.ethernet: DMA HW capability register supported rk_gmac-dwmac ff290000.ethernet: RX Checksum Offload Engine supported rk_gmac-dwmac ff290000.ethernet: COE Type 2 rk_gmac-dwmac ff290000.ethernet: TX Checksum insertion supported rk_gmac-dwmac ff290000.ethernet: Wake-Up On Lan supported rk_gmac-dwmac ff290000.ethernet: Normal descriptors rk_gmac-dwmac ff290000.ethernet: Ring mode enabled rk_gmac-dwmac ff290000.ethernet: Enable RX Mitigation via HW Watchdog Timer dwc2 ff540000.usb: supply vusb_d not found, using dummy regulator dwc2 ff540000.usb: supply vusb_a not found, using dummy regulator dwc2 ff540000.usb: DWC OTG Controller dwc2 ff540000.usb: new USB bus registered, assigned bus number 1 usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.06 usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 usb usb1: Product: DWC OTG Controller usb usb1: Manufacturer: Linux 6.6.119-az01-2025-12-17-rt67 dwc2_hsotg usb usb1: SerialNumber: ff540000.usb hub 1-0:1.0: USB hub found hub 1-0:1.0: 1 port detected dwc2 ff580000.usb: supply vusb_d not found, using dummy regulator dwc2 ff580000.usb: supply vusb_a not found, using dummy regulator dwc2 ff580000.usb: EPs: 10, dedicated fifos, 972 entries in SPRAM dwc2 ff580000.usb: DWC OTG Controller dwc2 ff580000.usb: new USB bus registered, assigned bus number 2 usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.06 usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1 usb usb2: Product: DWC OTG Controller usb usb2: Manufacturer: Linux 6.6.119-az01-2025-12-17-rt67 dwc2_hsotg usb usb2: SerialNumber: ff580000.usb hub 2-0:1.0: USB hub found hub 2-0:1.0: 1 port detected ehci-platform ff500000.usb: EHCI Host Controller ehci-platform ff500000.usb: new USB bus registered, assigned bus number 3 ehci-platform ff500000.usb: irq 67, io mem 0xff500000 usbcore: registered new interface driver uas usbcore: registered new interface driver usb-storage usbcore: registered new interface driver usbserial_generic usbserial: USB Serial support registered for generic usbcore: registered new interface driver cp210x usbserial: USB Serial support registered for cp210x usbcore: registered new interface driver ftdi_sio usbserial: USB Serial support registered for FTDI USB Serial Device usbcore: registered new interface driver pl2303 usbserial: USB Serial support registered for pl2303 usbcore: registered new interface driver usb_serial_simple usbserial: USB Serial support registered for carelink usbserial: USB Serial support registered for flashloader usbserial: USB Serial support registered for funsoft usbserial: USB Serial support registered for google usbserial: USB Serial support registered for hp4x usbserial: USB Serial support registered for kaufmann usbserial: USB Serial support registered for libtransistor usbserial: USB Serial support registered for moto_modem usbserial: USB Serial support registered for motorola_tetra usbserial: USB Serial support registered for nokia usbserial: USB Serial support registered for novatel_gps usbserial: USB Serial support registered for owon usbserial: USB Serial support registered for siemens_mpi usbserial: USB Serial support registered for suunto usbserial: USB Serial support registered for vivopay usbserial: USB Serial support registered for zio usb 1-1: new high-speed USB device number 2 using dwc2 ehci-platform ff500000.usb: USB 2.0 started, EHCI 1.00 usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.06 usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1 usb usb3: Product: EHCI Host Controller usb usb3: Manufacturer: Linux 6.6.119-az01-2025-12-17-rt67 ehci_hcd usb usb3: SerialNumber: ff500000.usb hub 3-0:1.0: USB hub found hub 3-0:1.0: 1 port detected rtc-hym8563 0-0051: registered as rtc0 rtc-hym8563 0-0051: setting system clock to 2026-10-05T11:49:44 UTC (1791200984) ili2117 4-0026: ILI2117 vendor 0x00 firmware version 2.0 input: ILI2117 Touchscreen as /devices/platform/ff160000.i2c/i2c-4/4-0026/input/input0 ili2117 4-0026: bad packet ID (expected 0x5a): 0x00 dw_wdt ff800000.watchdog: No valid TOPs array specified device-mapper: uevent: version 1.0.3 device-mapper: ioctl: 4.48.0-ioctl (2023-03-01) initialised: dm-devel@redhat.com Synopsys Designware Multimedia Card Interface Driver dwmmc_rockchip ff0d0000.dwmmc: IDMAC supports 32-bit address mode. dwmmc_rockchip ff0d0000.dwmmc: Using internal DMA controller. dwmmc_rockchip ff0d0000.dwmmc: Version ID is 270a dwmmc_rockchip ff0d0000.dwmmc: DW MMC controller at irq 72,32 bit host data width,256 deep fifo dwmmc_rockchip ff0d0000.dwmmc: allocated mmc-pwrseq mmc_host mmc2: card is non-removable. hid: raw HID events driver (C) Jiri Kosina usbcore: registered new interface driver usbhid usbhid: USB HID core driver usb 1-1: language id specifier not provided by device, defaulting to English usb 1-1: New USB device found, idVendor=15e4, idProduct=900d, bcdDevice= 0.50 usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 usb 1-1: Product: SC6000 Prime Wheel Display usb 1-1: Manufacturer: Denon DJ usbcore: registered new interface driver snd-usb-audio NET: Registered PF_INET6 protocol family Segment Routing with IPv6 In-situ OAM (IOAM) with IPv6 sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver NET: Registered PF_PACKET protocol family Bluetooth: HIDP (Human Interface Emulation) ver 1.2 Bluetooth: HIDP socket layer initialized Registering SWP/SWPB emulation handler usb5537 1-002d: switched to HUB mode usb5537 1-002d: usb5537_probe: probed in hub mode usb5537 1-002d: reg 0x3c00 = 0x03 usb5537 1-002d: reg 0x3c04 = 0x03 usb5537 1-002d: reg 0x3c08 = 0x03 usb5537 1-002d: reg 0x3c0c = 0x03 usb5537 1-002d: reg 0x3c10 = 0x04 usb5537 1-002d: reg 0x3c14 = 0x03 usb5537 1-002d: reg 0x3c18 = 0x03 usb5537 1-002d: reg 0x3c1c = 0x00 usb5537 1-002d: reg 0x3c20 = 0x01 usb5537 1-002d: reg 0x3c24 = 0x01 usb5537 1-002d: reg 0x3c28 = 0x01 usb5537 1-002d: reg 0x3c2c = 0x01 usb5537 1-002d: reg 0x3c30 = 0x01 usb5537 1-002d: reg 0x3c34 = 0x01 usb5537 1-002d: reg 0x3c38 = 0x01 Loading compiled-in X.509 certificates mmc_host mmc2: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) Key type .fscrypt registered Key type fscrypt-provisioning registered dwmmc_rockchip ff0f0000.dwmmc: IDMAC supports 32-bit address mode. dwmmc_rockchip ff0f0000.dwmmc: Using internal DMA controller. dwmmc_rockchip ff0f0000.dwmmc: Version ID is 270a dwmmc_rockchip ff0c0000.dwmmc: IDMAC supports 32-bit address mode. dwmmc_rockchip ff0c0000.dwmmc: Using internal DMA controller. dwmmc_rockchip ff0c0000.dwmmc: Version ID is 270a input: gpio-keys as /devices/platform/gpio-keys/input/input1 dwmmc_rockchip ff0f0000.dwmmc: DW MMC controller at irq 75,32 bit host data width,256 deep fifo dwmmc_rockchip ff0c0000.dwmmc: DW MMC controller at irq 74,32 bit host data width,256 deep fifo dwmmc_rockchip ff0f0000.dwmmc: allocated mmc-pwrseq mmc_host mmc0: card is non-removable. clk: Disabling unused clocks usb 3-1: new high-speed USB device number 2 using ehci-platform dwmmc_rockchip ff0c0000.dwmmc: Got CD GPIO dwmmc_rockchip ff0c0000.dwmmc: Got WP GPIO ALSA device list: #0: Denon DJ SC6000 0rime Wheel Display at usb-ff540000.usb-1, high speed mmc_host mmc0: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) dw-apb-uart ff690000.serial: forbid DMA for kernel console Waiting for root device PARTUUID=24d1deac-3434-1a4e-98d1-68ee2945a5f1... usb 3-1: New USB device found, idVendor=15e4, idProduct=e00d, bcdDevice=60.80 usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 usb 3-1: Product: SC6000 PRIME Hub usb 3-1: Manufacturer: Denon DJ mmc_host mmc0: Bus speed (slot 0) = 50000000Hz (slot req 52000000Hz, actual 50000000HZ div = 0) mmc_host mmc0: Bus speed (slot 0) = 148500000Hz (slot req 150000000Hz, actual 148500000HZ div = 0) hub 3-1:1.0: USB hub found hub 3-1:1.0: 7 ports detected mmc_host mmc2: Bus speed (slot 0) = 25000000Hz (slot req 25000000Hz, actual 25000000HZ div = 0) mmc2: new ultra high speed SDR12 SDIO card at address 0001 usb 3-1.4: new high-speed USB device number 3 using ehci-platform usb 3-1.4: New USB device found, idVendor=152d, idProduct=0578, bcdDevice= 2.14 usb 3-1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3 usb 3-1.4: Product: USB to ATA/ATAPI Bridge usb 3-1.4: Manufacturer: JMicron usb 3-1.4: SerialNumber: 0123456789ABCDEF scsi host0: uas scsi 0:0:0:0: Direct-Access JMicron Generic 0214 PQ: 0 ANSI: 6 usb 3-1.5: new full-speed USB device number 4 using ehci-platform dwmmc_rockchip ff0f0000.dwmmc: Successfully tuned phase to 347 mmc0: new HS200 MMC card at address 0001 mmcblk0: mmc0:0001 008GB0 7.28 GiB mmcblk0: p1 p2 p3 p4 p5 p6 p7 mmcblk0boot0: mmc0:0001 008GB0 4.00 MiB usb 3-1.5: language id specifier not provided by device, defaulting to English usb 3-1.5: New USB device found, idVendor=15e4, idProduct=800d, bcdDevice= 0.16 usb 3-1.5: New USB device strings: Mfr=1, Product=2, SerialNumber=0 usb 3-1.5: Product: SC6000 Prime Controller usb 3-1.5: Manufacturer: Denon DJ mmcblk0boot1: mmc0:0001 008GB0 4.00 MiB mmcblk0rpmb: mmc0:0001 008GB0 4.00 MiB, chardev (245:0) sd 0:0:0:0: [sda] Unit Not Ready sd 0:0:0:0: [sda] Sense Key : 0x4 [current] sd 0:0:0:0: [sda] ASC=0x44 <<vendor>>ASCQ=0x81 sd 0:0:0:0: [sda] Read Capacity(16) failed: Result: hostbyte=0x00 driverbyte=DRIVER_OK sd 0:0:0:0: [sda] Sense Key : 0x4 [current] sd 0:0:0:0: [sda] ASC=0x44 <<vendor>>ASCQ=0x81 sd 0:0:0:0: [sda] Read Capacity(10) failed: Result: hostbyte=0x00 driverbyte=DRIVER_OK sd 0:0:0:0: [sda] Sense Key : 0x4 [current] sd 0:0:0:0: [sda] ASC=0x44 <<vendor>>ASCQ=0x81 sd 0:0:0:0: [sda] 0 512-byte logical blocks: (0 B/0 B) sd 0:0:0:0: [sda] 0-byte physical blocks sd 0:0:0:0: [sda] Test WP failed, assume Write Enabled sd 0:0:0:0: [sda] Asking for cache data failed sd 0:0:0:0: [sda] Assuming drive cache: write through sd 0:0:0:0: [sda] Preferred minimum I/O size 4096 bytes not a multiple of physical block size (0 bytes) sd 0:0:0:0: [sda] Optimal transfer size 33553920 bytes not a multiple of physical block size (0 bytes) sd 0:0:0:0: [sda] Attached SCSI disk EXT4-fs (mmcblk0p6): mounted filesystem 0e4504c8-4440-4646-bef5-5749504c43ee ro without journal. Quota mode: disabled. VFS: Mounted root (ext4 filesystem) readonly on device 179:6. devtmpfs: mounted Freeing unused kernel image (initmem) memory: 1024K Run /sbin/init as init process systemd[1]: systemd 255.21^ running in system mode (-PAM -AUDIT -SELINUX -APPARMOR +IMA -SMACK +SECCOMP -GCRYPT -GNUTLS -OPENSSL +ACL +BLKID -CURL -ELFUTILS -FIDO2 -IDN2 -IDN -IPTC +KMOD -LIBCRYPTSETUP +LIBFDISK -PCRE2 -PWQUALITY -P11KIT -QRENCODE -TPM2 -BZIP2 -LZ4 -XZ -ZLIB +ZSTD -BPF_FRAMEWORK -XKBCOMMON +UTMP -SYSVINIT default-hierarchy=unified) systemd[1]: Detected architecture arm. Welcome to az0x (inMusic Brands AZ0x base distribution) 5.0.14 (scarthgap)! systemd[1]: No hostname configured, using default hostname. systemd[1]: Hostname set to <localhost>. systemd[1]: Initializing machine ID from random generator. systemd[1]: Installed transient /etc/machine-id file. systemd[1]: Queued start job for default target Multi-User System. systemd[1]: Created slice Slice /system/getty. [ OK ] Created slice Slice /system/getty. systemd[1]: Created slice Slice /system/modprobe. [ OK ] Created slice Slice /system/modprobe. systemd[1]: Created slice Slice /system/serial-getty. [ OK ] Created slice Slice /system/serial-getty. systemd[1]: Started Dispatch Password Requests to Console Directory Watch. [ OK ] Started Dispatch Password Requests to Console Directory Watch. systemd[1]: Started Forward Password Requests to Wall Directory Watch. [ OK ] Started Forward Password Requests to Wall Directory Watch. systemd[1]: Expecting device /dev/disk/by-partuuid/931ad49d-ad59-0849-833a-9bf00af5b60e... Expecting device /dev/disk/by-partb&d49d-ad59-0849-833a-9bf00af5b60e... systemd[1]: Expecting device /dev/ttyS2... Expecting device /dev/ttyS2... systemd[1]: Reached target Host and Network Name Lookups. [ OK ] Reached target Host and Network Name Lookups. systemd[1]: Reached target Path Units. [ OK ] Reached target Path Units. systemd[1]: Reached target Remote File Systems. [ OK ] Reached target Remote File Systems. systemd[1]: Reached target Slice Units. [ OK ] Reached target Slice Units. systemd[1]: Reached target Swaps. [ OK ] Reached target Swaps. systemd[1]: Journal Audit Socket was skipped because of an unmet condition check (ConditionSecurity=audit). systemd[1]: Listening on Journal Socket (/dev/log). [ OK ] Listening on Journal Socket (/dev/log). systemd[1]: Listening on Journal Socket. [ OK ] Listening on Journal Socket. systemd[1]: Listening on Network Service Netlink Socket. [ OK ] Listening on Network Service Netlink Socket. systemd[1]: Listening on udev Control Socket. [ OK ] Listening on udev Control Socket. systemd[1]: Listening on udev Kernel Socket. [ OK ] Listening on udev Kernel Socket. systemd[1]: Listening on User Database Manager Socket. [ OK ] Listening on User Database Manager Socket. systemd[1]: Huge Pages File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/mm/hugepages). systemd[1]: POSIX Message Queue File System was skipped because of an unmet condition check (ConditionPathExists=/proc/sys/fs/mqueue). systemd[1]: Mounting Kernel Debug File System... Mounting Kernel Debug File System... systemd[1]: Kernel Trace File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/tracing). systemd[1]: Mounting Temporary Directory /tmp... Mounting Temporary Directory /tmp... systemd[1]: Create List of Static Device Nodes was skipped because of an unmet condition check (ConditionFileNotEmpty=/lib/modules/6.6.119-az01-2025-12-17-rt67/modules.devname). systemd[1]: Starting Load Kernel Module configfs... Starting Load Kernel Module configfs... systemd[1]: Starting Load Kernel Module fuse... Starting Load Kernel Module fuse... systemd[1]: systemd-journald.service: unit configures an IP firewall, but the local system does not support BPF/cgroup firewalling. systemd[1]: systemd-journald.service: (This warning is only shown for the first unit using IP firewalling.) systemd[1]: Starting Journal Service... Starting Journal Service... systemd[1]: Starting Load Kernel Modules... Starting Load Kernel Modules... systemd[1]: Starting Generate network units from Kernel command line... Starting Generate network units from Kernel command line... systemd[1]: Starting Remount Root and Kernel File Systems... Starting Remount Root and Kernel File Systems... systemd[1]: Starting Create Static Device Nodes in /dev gracefully... Starting Create Static Device Nodes in /dev gracefully... systemd-journald[131]: Collecting audit messages is disabled. systemd[1]: Starting Coldplug All udev Devices... jnl: loading out-of-tree module taints kernel. jnl: driver (UFSD_HEAD lke_10.9.2_b331, LBD=OFF) ufsd: module license 'Commercial product' taints kernel. Disabling lock debugging due to kernel taint ufsd: module license taints kernel. ufsd: driver (UFSD_HEAD lke_10.9.2_b331, LBD=OFF, acl, sd2(5), tr) Hfs+J support included Build_for__inMusic_Embedded_k5.4_2021-11-18_lke_10.9.2_b331 EXT4-fs (mmcblk0p6): re-mounted 0e4504c8-4440-4646-bef5-5749504c43ee. ufsd: PAGE_SIZE=4K, THREAD_SIZE=8k ufsd: Kernel .config hash: original 0x8d3f891a, current can't check. ufsd: 132(systemd-modules): Kernel .config hash: original 0x8d3f891a, current can't check systemd[1]: Mounted Kernel Debug File System. [ OK ] Mounted Kernel Debug File System. systemd[1]: Mounted Temporary Directory /tmp. [ OK ] Mounted Temporary Directory /tmp. systemd[1]: modprobe@configfs.service: Deactivated successfully. systemd[1]: Finished Load Kernel Module configfs. [ OK ] Finished Load Kernel Module configfs. systemd[1]: modprobe@fuse.service: Deactivated successfully. systemd[1]: Finished Load Kernel Module fuse. [ OK ] Finished Load Kernel Module fuse. systemd[1]: Finished Load Kernel Modules. [ OK ] Finished Load Kernel Modules. systemd[1]: Finished Generate network units from Kernel command line. [ OK ] Finished Generate network units from Kernel command line. systemd[1]: Finished Remount Root and Kernel File Systems. [ OK ] Finished Remount Root and Kernel File Systems. systemd[1]: Mounting FUSE Control File System... Mounting FUSE Control File System... systemd[1]: Mounting Kernel Configuration File System... Mounting Kernel Configuration File System... systemd[1]: Rebuild Hardware Database was skipped because of an unmet condition check (ConditionNeedsUpdate=/etc). systemd[1]: Starting Apply Kernel Variables... Starting Apply Kernel Variables... systemd[1]: Finished Create Static Device Nodes in /dev gracefully. [ OK ] Finished Create Static Device Nodes in /dev gracefully. systemd[1]: Mounted FUSE Control File System. [ OK ] Mounted FUSE Control File System. systemd[1]: Mounted Kernel Configuration File System. [ OK ] Mounted Kernel Configuration File System. systemd[1]: Create System Users was skipped because no trigger condition checks were met. systemd[1]: Starting Create Static Device Nodes in /dev... Starting Create Static Device Nodes in /dev... [ OK ] Finished Apply Kernel Variables. [ OK ] Finished Create Static Device Nodes in /dev. [ OK ] Reached target Preparation for Local File Systems. Mounting Mount /media... Mounting Mount /secure-media... Starting Rule-based Manager for Device Events and Files... [ OK ] Started Journal Service. [ OK ] Mounted Mount /media. [ OK ] Mounted Mount /secure-media. [ OK ] Started Rule-based Manager for Device Events and Files. [ OK ] Found device /dev/ttyS2. [ OK ] Finished Coldplug All udev Devices. [ OK ] Found device /dev/disk/by-partuuidb&1ad49d-ad59-0849-833a-9bf00af5b60e. [ OK ] Reached target Sound Card. [ OK ] Reached target Hardware activated USB gadget. Starting Create /data filesystem if necessary... [ OK ] Finished Create /data filesystem if necessary. Mounting Mount /data... [ OK ] Mounted Mount /data. Mounting Mount /media/az01-internal... Starting Setup directories for overlayfs mounts... [ OK ] Mounted Mount /media/az01-internal. [ OK ] Finished Setup directories for overlayfs mounts. Mounting Writable /etc via OverlayFS... Mounting Writable /var via OverlayFS... [ OK ] Mounted Writable /etc via OverlayFS. [ OK ] Mounted Writable /var via OverlayFS. [ OK ] Listening on Load/Save RF Kill Switch Status /dev/rfkill Watch. Mounting /var/volatile... Starting Fix transient machine-id after mounting /etc... Starting Hostname setup for AZ0x... Starting Flush Journal to Persistent Storage... [ OK ] Mounted /var/volatile. [ OK ] Finished Fix transient machine-id after mounting /etc. [ OK ] Finished Hostname setup for AZ0x. [ OK ] Finished Flush Journal to Persistent Storage. Starting Load/Save RF Kill Switch Status... Starting Load/Save OS Random Seed... Starting Bind mount volatile /srv... [ OK ] Started Load/Save RF Kill Switch Status. [ OK ] Finished Bind mount volatile /srv. [ OK ] Reached target Local File Systems. Starting Create System Files and Directories... [ OK ] Finished Create System Files and Directories. Starting Network Name Resolution... Starting Network Time Synchronization... Starting Record System Boot/Shutdown in UTMP... Starting User Database Manager... [ OK ] Finished Record System Boot/Shutdown in UTMP. [ OK ] Started User Database Manager. [ OK ] Started Network Time Synchronization. [ OK ] Reached target System Time Set. [ OK ] Started Network Name Resolution. [ OK ] Reached target System Initialization. [ OK ] Started Daily Cleanup of Temporary Directories. [ OK ] Reached target Timer Units. [ OK ] Listening on Avahi mDNS/DNS-SD Stack Activation Socket. [ OK ] Listening on D-Bus System Message Bus Socket. [ OK ] Reached target Socket Units. [ OK ] Reached target Basic System. [ OK ] Started AZ01 power button emergency shutdown service. [ OK ] Started AZ01 JMicron USB-SATA bridge configuration fixer. Starting AZ0x system info logging... Starting Bluetooth service... Starting D-Bus System Message Bus... [ OK ] Started Getty on tty1. Starting IPv6 Packet Filtering Framework... Starting IPv4 Packet Filtering Framework... [ OK ] Started Serial Getty on ttyS2. [ OK ] Reached target Login Prompts. Starting Engine... [ OK ] Finished Load/Save OS Random Seed. [ OK ] Finished AZ0x system info logging. [ OK ] Finished IPv6 Packet Filtering Framework. [ OK ] Started D-Bus System Message Bus. [ OK ] Finished IPv4 Packet Filtering Framework. [ OK ] Reached target Preparation for Network. Starting Connection service... Starting Commit a transient machine-id on disk... Starting Network Configuration... [ OK ] Started Bluetooth service. [ OK ] Reached target Bluetooth Support. Starting Hostname Service... [ OK ] Started Engine. [ OK ] Finished Commit a transient machine-id on disk. [ OK ] Started Connection service. Starting Avahi mDNS/DNS-SD Stack... [ OK ] Started Avahi mDNS/DNS-SD Stack. Starting WPA supplicant... [ OK ] Started Network Configuration. [ OK ] Started WPA supplicant. [ OK ] Reached target Network. [ OK ] Started AZ01 script runner service. [ OK ] Reached target Multi-User System. [ OK ] Started Hostname Service. az0x (inMusic Brands AZ0x base distribution) 5.0.14 sc6000 ttyS2 sc6000 login: root Password: root@sc6000:~#

[ 0.000000] Booting Linux on physical CPU 0x500 [ 0.000000] Linux version 6.6.119-az01-2025-12-17-rt67 (oe-user@oe-host) (arm-poky-linux-gnueabi-gcc (GCC) 13.4.0, GNU ld (GNU Binutils) 2.42.0.20240723) #1 SMP PREEMPT_RT Wed Dec 17 11:04:42 UTC 2025 [ 0.000000] CPU: ARMv7 Processor [410fc0d1] revision 1 (ARMv7), cr=10c5387d [ 0.000000] CPU: div instructions available: patching division code [ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache [ 0.000000] OF: fdt: Machine model: Denon DJ SC6000 Prime [ 0.000000] Memory policy: Data cache writealloc [ 0.000000] OF: reserved mem: initialized node framebuffer, compatible id rockchip,framebuffer-memory [ 0.000000] OF: reserved mem: 0x7f400000..0x7fffffff (12288 KiB) map non-reusable framebuffer [ 0.000000] OF: reserved mem: 0xfe000000..0xfeffffff (16384 KiB) map non-reusable dma-unusable@fe000000 [ 0.000000] Zone ranges: [ 0.000000] Normal [mem 0x0000000000000000-0x000000002fffffff] [ 0.000000] HighMem [mem 0x0000000030000000-0x000000007fffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000000000-0x000000007fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000007fffffff] [ 0.000000] percpu: Embedded 12 pages/cpu s18528 r8192 d22432 u49152 [ 0.000000] pcpu-alloc: s18528 r8192 d22432 u49152 alloc=12*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [ 0.000000] Kernel command line: root=PARTUUID=24d1deac-3434-1a4e-98d1-68ee2945a5f1 rootwait ro rfkill.default_state=0 isolcpus=1,2,3 earlyprintk fsck.repair=yes [ 0.000000] Unknown kernel command line parameters "earlyprintk", will be passed to user space. [ 0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes, linear) [ 0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes, linear) [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 522752 [ 0.000000] mem auto-init: stack:all(zero), heap alloc:off, heap free:off [ 0.000000] Memory: 2053868K/2097152K available (8192K kernel code, 823K rwdata, 2612K rodata, 1024K init, 279K bss, 30996K reserved, 12288K cma-reserved, 1298432K highmem) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] rcu: Preemptible hierarchical RCU implementation. [ 0.000000] rcu: RCU event tracing is enabled. [ 0.000000] rcu: RCU priority boosting: priority 1 delay 500 ms. [ 0.000000] rcu: RCU_SOFTIRQ processing moved to rcuc kthreads. [ 0.000000] No expedited grace period (rcu_normal_after_boot). [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 100 jiffies. [ 0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16 [ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention. [ 0.000000] rockchip: reset MMC AHB arbitor [ 0.000000] arch_timer: cp15 timer(s) running at 24.00MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns [ 0.000000] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns [ 0.000008] Switching to timer-based delay loop, resolution 41ns [ 0.000698] Console: colour dummy device 80x30 [ 0.000707] printk: legacy console [tty0] enabled [ 0.000730] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=24000) [ 0.000737] CPU: Testing write buffer coherency: ok [ 0.000758] Spectre V2: workarounds disabled by configuration [ 0.000760] pid_max: default: 32768 minimum: 301 [ 0.000844] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes, linear) [ 0.000854] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes, linear) [ 0.001351] CPU0: thread -1, cpu 0, socket 5, mpidr 80000500 [ 0.002009] Setting up static identity map for 0x100000 - 0x100060 [ 0.002426] rcu: Hierarchical SRCU implementation. [ 0.002429] rcu: Max phase no-delay instances is 400. [ 0.003226] smp: Bringing up secondary CPUs ... [ 0.004773] CPU1: thread -1, cpu 1, socket 5, mpidr 80000501 [ 0.006425] CPU2: thread -1, cpu 2, socket 5, mpidr 80000502 [ 0.008020] CPU3: thread -1, cpu 3, socket 5, mpidr 80000503 [ 0.008086] smp: Brought up 1 node, 4 CPUs [ 0.008092] SMP: Total of 4 processors activated (192.00 BogoMIPS). [ 0.008097] CPU: All CPU(s) started in SVC mode. [ 0.008446] devtmpfs: initialized [ 0.017901] VFP support v0.3: implementor 41 architecture 3 part 30 variant d rev 0 [ 0.018122] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 1911260446275000 ns [ 0.018133] futex hash table entries: 1024 (order: 4, 65536 bytes, linear) [ 0.018344] pinctrl core: initialized pinctrl subsystem [ 0.018567] regulator-dummy: no parameters, enabled [ 0.019205] NET: Registered PF_NETLINK/PF_ROUTE protocol family [ 0.019450] DMA: preallocated 256 KiB pool for atomic coherent allocations [ 0.020726] thermal_sys: Registered thermal governor 'step_wise' [ 0.020729] thermal_sys: Registered thermal governor 'user_space' [ 0.020800] cpuidle: using governor menu [ 0.021077] No ATAGs? [ 0.021168] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers. [ 0.021174] hw-breakpoint: maximum watchpoint size is 4 bytes. [ 0.029743] /vop@ff940000: Fixed dependency cycle(s) with /mipi@ff960000 [ 0.029805] /mipi@ff960000: Fixed dependency cycle(s) with /mipi@ff960000/panel@0 [ 0.029815] /mipi@ff960000: Fixed dependency cycle(s) with /vop@ff940000 [ 0.029917] /mipi@ff960000/panel@0: Fixed dependency cycle(s) with /mipi@ff960000 [ 0.033720] /pinctrl: Fixed dependency cycle(s) with /pinctrl/az01/az01-pcb-rev [ 0.036035] gpio gpiochip0: Static allocation of GPIO base is deprecated, use dynamic allocation. [ 0.036299] rockchip-gpio ff750000.gpio: probed /pinctrl/gpio@ff750000 [ 0.036521] gpio gpiochip1: Static allocation of GPIO base is deprecated, use dynamic allocation. [ 0.036706] rockchip-gpio ff780000.gpio: probed /pinctrl/gpio@ff780000 [ 0.036957] gpio gpiochip2: Static allocation of GPIO base is deprecated, use dynamic allocation. [ 0.037138] rockchip-gpio ff790000.gpio: probed /pinctrl/gpio@ff790000 [ 0.037456] gpio gpiochip3: Static allocation of GPIO base is deprecated, use dynamic allocation. [ 0.037631] rockchip-gpio ff7a0000.gpio: probed /pinctrl/gpio@ff7a0000 [ 0.038044] gpio gpiochip4: Static allocation of GPIO base is deprecated, use dynamic allocation. [ 0.038224] rockchip-gpio ff7b0000.gpio: probed /pinctrl/gpio@ff7b0000 [ 0.038456] gpio gpiochip5: Static allocation of GPIO base is deprecated, use dynamic allocation. [ 0.038676] rockchip-gpio ff7c0000.gpio: probed /pinctrl/gpio@ff7c0000 [ 0.038924] gpio gpiochip6: Static allocation of GPIO base is deprecated, use dynamic allocation. [ 0.039103] rockchip-gpio ff7d0000.gpio: probed /pinctrl/gpio@ff7d0000 [ 0.039411] gpio gpiochip7: Static allocation of GPIO base is deprecated, use dynamic allocation. [ 0.039603] rockchip-gpio ff7e0000.gpio: probed /pinctrl/gpio@ff7e0000 [ 0.039810] gpio gpiochip8: Static allocation of GPIO base is deprecated, use dynamic allocation. [ 0.039974] rockchip-gpio ff7f0000.gpio: probed /pinctrl/gpio@ff7f0000 [ 0.046094] iommu: Default domain type: Translated [ 0.046100] iommu: DMA domain TLB invalidation policy: strict mode [ 0.046566] vcc_sys: 5000 mV, enabled [ 0.046678] reg-fixed-voltage vsys-regulator: vcc_sys supplying 5000000uV [ 0.046857] reg-fixed-voltage vcc-mipi: Looking up vin-supply from device tree [ 0.046867] vcc_mipi: supplied by vcc_sys [ 0.046872] vcc_sys: could not add device link regulator.2: -ENOENT [ 0.047095] reg-fixed-voltage vcc-sata: Looking up vin-supply from device tree [ 0.047104] vcc_sata: supplied by vcc_sys [ 0.047109] vcc_sys: could not add device link regulator.3: -ENOENT [ 0.047140] vcc_sata: 5000 mV, enabled [ 0.047242] reg-fixed-voltage vcc-sata: vcc_sata supplying 5000000uV [ 0.047453] SCSI subsystem initialized [ 0.047603] usbcore: registered new interface driver usbfs [ 0.047637] usbcore: registered new interface driver hub [ 0.047664] usbcore: registered new device driver usb [ 0.047756] pps_core: LinuxPPS API ver. 1 registered [ 0.047759] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it> [ 0.047771] PTP clock support registered [ 0.048002] vcc_host: no parameters, enabled [ 0.048113] reg-fixed-voltage vcc-host-regulator: vcc_host supplying 0uV [ 0.048257] vcc_otg_5v: 5000 mV, enabled [ 0.048356] reg-fixed-voltage usb-otg-regulator: vcc_otg_5v supplying 5000000uV [ 0.048583] Advanced Linux Sound Architecture Driver Initialized. [ 0.049064] Bluetooth: Core ver 2.22 [ 0.049085] NET: Registered PF_BLUETOOTH protocol family [ 0.049088] Bluetooth: HCI device and connection manager initialized [ 0.049095] Bluetooth: HCI socket layer initialized [ 0.049100] Bluetooth: L2CAP socket layer initialized [ 0.049110] Bluetooth: SCO socket layer initialized [ 0.049556] clocksource: Switched to clocksource arch_sys_counter [ 0.055573] NET: Registered PF_INET protocol family [ 0.055709] IP idents hash table entries: 16384 (order: 5, 131072 bytes, linear) [ 0.056647] tcp_listen_portaddr_hash hash table entries: 512 (order: 2, 10240 bytes, linear) [ 0.056685] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) [ 0.056697] TCP established hash table entries: 8192 (order: 3, 32768 bytes, linear) [ 0.056741] TCP bind hash table entries: 8192 (order: 7, 327680 bytes, linear) [ 0.057017] TCP: Hash tables configured (established 8192 bind 8192) [ 0.057095] UDP hash table entries: 512 (order: 3, 24576 bytes, linear) [ 0.057119] UDP-Lite hash table entries: 512 (order: 3, 24576 bytes, linear) [ 0.057232] NET: Registered PF_UNIX/PF_LOCAL protocol family [ 0.057656] vcc_mipi: 3300 mV, enabled [ 0.057792] reg-fixed-voltage vcc-mipi: vcc_mipi supplying 3300000uV [ 0.058230] hw perfevents: enabled with armv7_cortex_a12 PMU driver, 7 counters available [ 0.059262] Initialise system trusted keyrings [ 0.059362] workingset: timestamp_bits=30 max_order=19 bucket_order=0 [ 0.059654] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.059691] ntfs3: Read-only LZX/Xpress compression included [ 0.059798] fuse: init (API version 7.39) [ 0.111122] NET: Registered PF_ALG protocol family [ 0.111132] Key type asymmetric registered [ 0.111136] Asymmetric key parser 'x509' registered [ 0.111139] Asymmetric key parser 'pkcs8' registered [ 0.111191] bounce: pool size: 64 pages [ 0.111219] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 248) [ 0.111224] io scheduler mq-deadline registered [ 0.111229] io scheduler kyber registered [ 0.111241] io scheduler bfq registered [ 0.111969] phy phy-ff770000.syscon:usbphy.0: Looking up phy-supply from device tree [ 0.111977] phy phy-ff770000.syscon:usbphy.0: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@320 failed [ 0.112059] phy phy-ff770000.syscon:usbphy.0: Looking up vbus-supply from device tree [ 0.112065] phy phy-ff770000.syscon:usbphy.0: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@320 failed [ 0.112265] phy phy-ff770000.syscon:usbphy.1: Looking up phy-supply from device tree [ 0.112271] phy phy-ff770000.syscon:usbphy.1: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@334 failed [ 0.112345] phy phy-ff770000.syscon:usbphy.1: Looking up vbus-supply from device tree [ 0.112351] phy phy-ff770000.syscon:usbphy.1: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@334 failed [ 0.112542] phy phy-ff770000.syscon:usbphy.2: Looking up phy-supply from device tree [ 0.112548] phy phy-ff770000.syscon:usbphy.2: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@348 failed [ 0.112657] phy phy-ff770000.syscon:usbphy.2: Looking up vbus-supply from device tree [ 0.112663] phy phy-ff770000.syscon:usbphy.2: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@348 failed [ 0.113490] pwm-backlight mipi-backlight: Looking up power-supply from device tree [ 0.114571] dma-pl330 ff250000.dma-controller: WARN: Device release is not defined so it is not safe to unbind this driver while in use [ 0.115525] dma-pl330 ff250000.dma-controller: Loaded driver for PL330 DMAC-241330 [ 0.115531] dma-pl330 ff250000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-20 Num_Events-16 [ 0.115949] dma-pl330 ffb20000.dma-controller: WARN: Device release is not defined so it is not safe to unbind this driver while in use [ 0.116254] dma-pl330 ffb20000.dma-controller: Loaded driver for PL330 DMAC-241330 [ 0.116260] dma-pl330 ffb20000.dma-controller: DBUFF-64x8bytes Num_Chans-5 Num_Peri-6 Num_Events-10 [ 0.116988] Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled [ 0.119054] ff180000.serial: ttyS0 at MMIO 0xff180000 (irq = 47, base_baud = 1500000) is a 16550A [ 0.119278] serial serial0: tty port ttyS0 registered [ 0.120172] ff690000.serial: ttyS2 at MMIO 0xff690000 (irq = 48, base_baud = 1500000) is a 16550A [ 0.120329] printk: console [ttyS2] enabled [ 0.149458] ff1b0000.serial: ttyS3 at MMIO 0xff1b0000 (irq = 49, base_baud = 1500000) is a 16550A [ 0.315640] i2c_dev: i2c /dev entries driver [ 0.537681] /i2c@ff650000/act8846@5a: Fixed dependency cycle(s) with /i2c@ff650000/act8846@5a/regulators/REG4 [ 0.537751] /i2c@ff650000/act8846@5a: Fixed dependency cycle(s) with /i2c@ff650000/act8846@5a/regulators/REG2 [ 0.537894] act8865 0-005a: Looking up vp1-supply from device tree [ 0.537905] VCC_DDR: supplied by vcc_sys [ 0.537912] vcc_sys: could not add device link regulator.6: -ENOENT [ 0.546710] VCC_DDR: 1200 <--> 1500 mV at 1500 mV, enabled [ 0.548668] act8865 0-005a: Looking up vp2-supply from device tree [ 0.548676] VCC_IO: supplied by vcc_sys [ 0.548682] vcc_sys: could not add device link regulator.7: -ENOENT [ 0.558558] VCC_IO: 3300 mV, enabled [ 0.565663] act8865 0-005a: Looking up vp3-supply from device tree [ 0.565672] VDD_LOG: supplied by vcc_sys [ 0.565678] vcc_sys: could not add device link regulator.8: -ENOENT [ 0.605047] fan53555-regulator 0-0040: FAN53555 Option[8] Rev[1] Detected! [ 0.605062] fan53555-regulator 0-0040: Looking up vin-supply from device tree [ 0.605071] vdd_cpu: supplied by vcc_sys [ 0.605077] vcc_sys: could not add device link regulator.9: -ENOENT [ 0.614541] fan53555-regulator 0-0041: FAN53555 Option[8] Rev[1] Detected! [ 0.614590] fan53555-regulator 0-0041: Looking up vin-supply from device tree [ 0.614598] vdd_gpu: supplied by vcc_sys [ 0.614603] vcc_sys: could not add device link regulator.10: -ENOENT [ 0.620522] VDD_LOG: 950 <--> 1400 mV at 1200 mV, enabled [ 0.622022] act8865 0-005a: Looking up vp4-supply from device tree [ 0.622030] VCC_20: supplied by vcc_sys [ 0.622036] vcc_sys: could not add device link regulator.11: -ENOENT [ 0.771763] VCC_20: 2000 mV, enabled [ 0.773395] act8865 0-005a: Looking up inl1-supply from device tree [ 0.773405] VCCIO_SD: supplied by VCC_IO [ 0.773411] VCC_IO: could not add device link regulator.12: -ENOENT [ 0.774430] vdd_cpu: 850 <--> 1500 mV at 1350 mV, enabled [ 0.775453] vdd_gpu: 850 <--> 1350 mV at 1000 mV, enabled [ 0.781710] VCCIO_SD: 1800 <--> 3300 mV at 3300 mV, enabled [ 0.782349] act8865 0-005a: Looking up inl1-supply from device tree [ 0.782358] VDD10_LCD: supplied by VCC_IO [ 0.782364] VCC_IO: could not add device link regulator.13: -ENOENT [ 0.784692] VDD10_LCD: 1000 mV, enabled [ 0.785321] act8865 0-005a: Looking up inl1-supply from device tree [ 0.785329] VCCA_CODEC: supplied by VCC_IO [ 0.785335] VCC_IO: could not add device link regulator.14: -ENOENT [ 0.795407] VCCA_CODEC: 3300 mV, enabled [ 0.796039] act8865 0-005a: Looking up inl2-supply from device tree [ 0.796048] VCCA_TP: supplied by vcc_sys [ 0.796053] vcc_sys: could not add device link regulator.15: -ENOENT [ 0.805558] VCCA_TP: 3300 mV, enabled [ 0.810368] rockchip-vop ff930000.vop: Adding to iommu group 0 [ 0.897667] act8865 0-005a: Looking up inl2-supply from device tree [ 0.897677] VCCIO_PMU: supplied by vcc_sys [ 0.897683] vcc_sys: could not add device link regulator.16: -ENOENT [ 0.899180] VCCIO_PMU: 3300 mV, enabled [ 0.901569] rockchip-vop ff940000.vop: Adding to iommu group 1 [ 0.902268] act8865 0-005a: Looking up inl3-supply from device tree [ 0.902278] VDD_10: supplied by VCC_20 [ 0.902284] VCC_20: could not add device link regulator.17: -ENOENT [ 0.904256] VDD_10: 1000 mV, enabled [ 0.904882] act8865 0-005a: Looking up inl3-supply from device tree [ 0.904892] VCC_18: supplied by VCC_20 [ 0.904897] VCC_20: could not add device link regulator.18: -ENOENT [ 0.914204] phy phy-ff960000.mipi.3: Looking up phy-supply from device tree [ 0.914217] phy phy-ff960000.mipi.3: Looking up phy-supply property in node /mipi@ff960000 failed [ 0.914395] /mipi@ff960000: Fixed dependency cycle(s) with /mipi@ff960000/panel@0 [ 0.914510] /mipi@ff960000/panel@0: Fixed dependency cycle(s) with /mipi@ff960000 [ 0.960031] VCC_18: 1800 mV, enabled [ 0.997654] act8865 0-005a: Looking up inl3-supply from device tree [ 0.997664] VCC18_LCD: supplied by VCC_20 [ 0.997670] VCC_20: could not add device link regulator.19: -ENOENT [ 0.999646] VCC18_LCD: 1800 mV, enabled [ 1.000832] panel-urt-umo-p080md-t ff960000.mipi.0: Looking up power-supply from device tree [ 1.040902] rockchip_framebuffer_rmem_device_init: initializing with base address 0x7f400000 size=0x00c00000 [ 1.050462] rockchip-drm display-subsystem: assigned reserved memory node framebuffer [ 1.058161] rockchip-drm display-subsystem: bound ff930000.vop (ops 0xc0962378) [ 1.061647] rockchip-vop ff940000.vop: enabled by bootloader [ 1.069839] rockchip-drm display-subsystem: bound ff940000.vop (ops 0xc0962378) [ 1.070002] rockchip-drm display-subsystem: bound ff960000.mipi (ops 0xc096628c) [ 1.083948] [drm] Initialized rockchip 1.0.0 20140818 for display-subsystem on minor 0 [ 1.084649] rockchip-drm display-subsystem: framebugger sg_size=12582912 size=12288000 [ 1.099148] rockchip-drm display-subsystem: [drm] fb0: rockchipdrmfb frame buffer device [ 1.107324] panfrost ffa30000.gpu: clock rate = 400000000 [ 1.107358] panfrost ffa30000.gpu: Looking up mali-supply from device tree [ 1.115089] panfrost ffa30000.gpu: mali-t760 id 0x750 major 0x1 minor 0x0 status 0x0 [ 1.122302] panfrost ffa30000.gpu: features: 00000000,00000407, issues: 00000000,24040400 [ 1.122309] panfrost ffa30000.gpu: Features: L2:0x07120206 Shader:0x00000000 Tiler:0x00000809 Mem:0x1 MMU:0x00002830 AS:0xff JS:0x7 [ 1.122317] panfrost ffa30000.gpu: shader_present=0xf l2_present=0x1 [ 1.148255] [drm] Initialized panfrost 1.2.0 20180908 for ffa30000.gpu on minor 1 [ 1.155829] brd: module loaded [ 1.162244] loop: module loaded [ 1.167629] rk_gmac-dwmac ff290000.ethernet: IRQ eth_lpi not found [ 1.173153] rk_gmac-dwmac ff290000.ethernet: PTP uses main clock [ 1.173172] rk_gmac-dwmac ff290000.ethernet: Looking up phy-supply from device tree [ 1.174639] rk_gmac-dwmac ff290000.ethernet: clock input or output? (input). [ 1.174646] rk_gmac-dwmac ff290000.ethernet: TX delay(0x23). [ 1.174651] rk_gmac-dwmac ff290000.ethernet: RX delay(0x1a). [ 1.174658] rk_gmac-dwmac ff290000.ethernet: integrated PHY? (no). [ 1.174684] rk_gmac-dwmac ff290000.ethernet: clock input from PHY [ 1.210679] rk_gmac-dwmac ff290000.ethernet: init for RGMII [ 1.215618] rk_gmac-dwmac ff290000.ethernet: User ID: 0x10, Synopsys ID: 0x35 [ 1.222156] rk_gmac-dwmac ff290000.ethernet: DWMAC1000 [ 1.222161] rk_gmac-dwmac ff290000.ethernet: DMA HW capability register supported [ 1.222165] rk_gmac-dwmac ff290000.ethernet: RX Checksum Offload Engine supported [ 1.222168] rk_gmac-dwmac ff290000.ethernet: COE Type 2 [ 1.222172] rk_gmac-dwmac ff290000.ethernet: TX Checksum insertion supported [ 1.222175] rk_gmac-dwmac ff290000.ethernet: Wake-Up On Lan supported [ 1.222222] rk_gmac-dwmac ff290000.ethernet: Normal descriptors [ 1.222226] rk_gmac-dwmac ff290000.ethernet: Ring mode enabled [ 1.222230] rk_gmac-dwmac ff290000.ethernet: Enable RX Mitigation via HW Watchdog Timer [ 1.362709] dwc2 ff540000.usb: Looking up vusb_d-supply from device tree [ 1.362741] dwc2 ff540000.usb: Looking up vusb_d-supply property in node /usb@ff540000 failed [ 1.362763] dwc2 ff540000.usb: supply vusb_d not found, using dummy regulator [ 1.362858] dwc2 ff540000.usb: Looking up vusb_a-supply from device tree [ 1.362865] dwc2 ff540000.usb: Looking up vusb_a-supply property in node /usb@ff540000 failed [ 1.362878] dwc2 ff540000.usb: supply vusb_a not found, using dummy regulator [ 1.362909] dwc2 ff540000.usb: Looking up vbus-supply from device tree [ 1.362915] dwc2 ff540000.usb: Looking up vbus-supply property in node /usb@ff540000 failed [ 1.414650] dwc2 ff540000.usb: DWC OTG Controller [ 1.417571] dwc2 ff540000.usb: new USB bus registered, assigned bus number 1 [ 1.424940] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.06 [ 1.427560] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.427566] usb usb1: Product: DWC OTG Controller [ 1.427570] usb usb1: Manufacturer: Linux 6.6.119-az01-2025-12-17-rt67 dwc2_hsotg [ 1.427574] usb usb1: SerialNumber: ff540000.usb [ 1.448633] hub 1-0:1.0: USB hub found [ 1.456558] hub 1-0:1.0: 1 port detected [ 1.459967] dwc2 ff580000.usb: Looking up vusb_d-supply from device tree [ 1.459989] dwc2 ff580000.usb: Looking up vusb_d-supply property in node /usb@ff580000 failed [ 1.460006] dwc2 ff580000.usb: supply vusb_d not found, using dummy regulator [ 1.460092] dwc2 ff580000.usb: Looking up vusb_a-supply from device tree [ 1.460099] dwc2 ff580000.usb: Looking up vusb_a-supply property in node /usb@ff580000 failed [ 1.460112] dwc2 ff580000.usb: supply vusb_a not found, using dummy regulator [ 1.460145] dwc2 ff580000.usb: Looking up vbus-supply from device tree [ 1.460150] dwc2 ff580000.usb: Looking up vbus-supply property in node /usb@ff580000 failed [ 1.599591] dwc2 ff580000.usb: EPs: 10, dedicated fifos, 972 entries in SPRAM [ 1.602618] dwc2 ff580000.usb: DWC OTG Controller [ 1.602634] dwc2 ff580000.usb: new USB bus registered, assigned bus number 2 [ 1.614595] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.06 [ 1.614602] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.614608] usb usb2: Product: DWC OTG Controller [ 1.614612] usb usb2: Manufacturer: Linux 6.6.119-az01-2025-12-17-rt67 dwc2_hsotg [ 1.614615] usb usb2: SerialNumber: ff580000.usb [ 1.636624] hub 2-0:1.0: USB hub found [ 1.644558] hub 2-0:1.0: 1 port detected [ 1.652340] ehci-platform ff500000.usb: EHCI Host Controller [ 1.657296] ehci-platform ff500000.usb: new USB bus registered, assigned bus number 3 [ 1.661590] ehci-platform ff500000.usb: irq 67, io mem 0xff500000 [ 1.670270] usbcore: registered new interface driver uas [ 1.674811] usbcore: registered new interface driver usb-storage [ 1.674885] usbcore: registered new interface driver usbserial_generic [ 1.674905] usbserial: USB Serial support registered for generic [ 1.674935] usbcore: registered new interface driver cp210x [ 1.674952] usbserial: USB Serial support registered for cp210x [ 1.674991] usbcore: registered new interface driver ftdi_sio [ 1.675009] usbserial: USB Serial support registered for FTDI USB Serial Device [ 1.675061] usbcore: registered new interface driver pl2303 [ 1.675079] usbserial: USB Serial support registered for pl2303 [ 1.675112] usbcore: registered new interface driver usb_serial_simple [ 1.675130] usbserial: USB Serial support registered for carelink [ 1.675147] usbserial: USB Serial support registered for flashloader [ 1.675164] usbserial: USB Serial support registered for funsoft [ 1.675181] usbserial: USB Serial support registered for google [ 1.675197] usbserial: USB Serial support registered for hp4x [ 1.675217] usbserial: USB Serial support registered for kaufmann [ 1.675234] usbserial: USB Serial support registered for libtransistor [ 1.675254] usbserial: USB Serial support registered for moto_modem [ 1.675272] usbserial: USB Serial support registered for motorola_tetra [ 1.675288] usbserial: USB Serial support registered for nokia [ 1.675305] usbserial: USB Serial support registered for novatel_gps [ 1.675322] usbserial: USB Serial support registered for owon [ 1.675338] usbserial: USB Serial support registered for siemens_mpi [ 1.675355] usbserial: USB Serial support registered for suunto [ 1.675371] usbserial: USB Serial support registered for vivopay [ 1.675387] usbserial: USB Serial support registered for zio [ 1.754573] usb 1-1: new high-speed USB device number 2 using dwc2 [ 1.769749] ehci-platform ff500000.usb: USB 2.0 started, EHCI 1.00 [ 1.781575] usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.06 [ 1.781583] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.781588] usb usb3: Product: EHCI Host Controller [ 1.781592] usb usb3: Manufacturer: Linux 6.6.119-az01-2025-12-17-rt67 ehci_hcd [ 1.781596] usb usb3: SerialNumber: ff500000.usb [ 1.805638] hub 3-0:1.0: USB hub found [ 1.813559] hub 3-0:1.0: 1 port detected [ 1.818739] rtc-hym8563 0-0051: registered as rtc0 [ 1.833568] rtc-hym8563 0-0051: setting system clock to 2026-10-05T11:49:44 UTC (1791200984) [ 1.874984] ili2117 4-0026: ILI2117 vendor 0x00 firmware version 2.0 [ 1.880774] input: ILI2117 Touchscreen as /devices/platform/ff160000.i2c/i2c-4/4-0026/input/input0 [ 1.885860] ili2117 4-0026: bad packet ID (expected 0x5a): 0x00 [ 1.895389] dw_wdt ff800000.watchdog: No valid TOPs array specified [ 1.901245] device-mapper: uevent: version 1.0.3 [ 1.904983] device-mapper: ioctl: 4.48.0-ioctl (2023-03-01) initialised: dm-devel@redhat.com [ 1.905123] cpu cpu0: Looking up cpu0-supply from device tree [ 1.910201] Synopsys Designware Multimedia Card Interface Driver [ 1.921207] dwmmc_rockchip ff0d0000.dwmmc: IDMAC supports 32-bit address mode. [ 1.927857] dwmmc_rockchip ff0d0000.dwmmc: Using internal DMA controller. [ 1.927867] dwmmc_rockchip ff0d0000.dwmmc: Version ID is 270a [ 1.927982] dwmmc_rockchip ff0d0000.dwmmc: DW MMC controller at irq 72,32 bit host data width,256 deep fifo [ 1.928059] dwmmc_rockchip ff0d0000.dwmmc: Looking up vmmc-supply from device tree [ 1.936307] dwmmc_rockchip ff0d0000.dwmmc: Looking up vqmmc-supply from device tree [ 1.938685] dwmmc_rockchip ff0d0000.dwmmc: allocated mmc-pwrseq [ 1.938692] mmc_host mmc2: card is non-removable. [ 1.958448] hid: raw HID events driver (C) Jiri Kosina [ 1.962955] usbcore: registered new interface driver usbhid [ 1.962959] usbhid: USB HID core driver [ 1.963220] rockchip-saradc ff100000.saradc: Looking up vref-supply from device tree [ 1.970166] usb 1-1: language id specifier not provided by device, defaulting to English [ 1.970310] usb 1-1: New USB device found, idVendor=15e4, idProduct=900d, bcdDevice= 0.50 [ 1.970317] usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 [ 1.970322] usb 1-1: Product: SC6000 Prime Wheel Display [ 1.970326] usb 1-1: Manufacturer: Denon DJ [ 2.003131] usbcore: registered new interface driver snd-usb-audio [ 2.009243] NET: Registered PF_INET6 protocol family [ 2.013930] Segment Routing with IPv6 [ 2.016586] In-situ OAM (IOAM) with IPv6 [ 2.016629] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver [ 2.017042] NET: Registered PF_PACKET protocol family [ 2.017047] Bluetooth: HIDP (Human Interface Emulation) ver 1.2 [ 2.017055] Bluetooth: HIDP socket layer initialized [ 2.017147] Registering SWP/SWPB emulation handler [ 2.043010] usb5537 1-002d: switched to HUB mode [ 2.046723] usb5537 1-002d: usb5537_probe: probed in hub mode [ 2.053894] usb5537 1-002d: reg 0x3c00 = 0x03 [ 2.056258] usb5537 1-002d: reg 0x3c04 = 0x03 [ 2.058587] usb5537 1-002d: reg 0x3c08 = 0x03 [ 2.060914] usb5537 1-002d: reg 0x3c0c = 0x03 [ 2.063236] usb5537 1-002d: reg 0x3c10 = 0x04 [ 2.066560] usb5537 1-002d: reg 0x3c14 = 0x03 [ 2.068928] usb5537 1-002d: reg 0x3c18 = 0x03 [ 2.071255] usb5537 1-002d: reg 0x3c1c = 0x00 [ 2.073577] usb5537 1-002d: reg 0x3c20 = 0x01 [ 2.075904] usb5537 1-002d: reg 0x3c24 = 0x01 [ 2.081875] usb5537 1-002d: reg 0x3c28 = 0x01 [ 2.084196] usb5537 1-002d: reg 0x3c2c = 0x01 [ 2.086524] usb5537 1-002d: reg 0x3c30 = 0x01 [ 2.088890] usb5537 1-002d: reg 0x3c34 = 0x01 [ 2.091216] usb5537 1-002d: reg 0x3c38 = 0x01 [ 2.109264] Loading compiled-in X.509 certificates [ 2.119638] mmc_host mmc2: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) [ 2.128700] Key type .fscrypt registered [ 2.131630] Key type fscrypt-provisioning registered [ 2.148884] vcc_flash: will resolve supply early: vin [ 2.148931] reg-fixed-voltage flash-regulator: Looking up vin-supply from device tree [ 2.148947] vcc_flash: supplied by VCC_IO [ 2.148954] VCC_IO: could not add device link regulator.20: -ENOENT [ 2.149525] vcc_flash: 1800 mV, enabled [ 2.149710] reg-fixed-voltage flash-regulator: vcc_flash supplying 1800000uV [ 2.149861] rockchip-iodomain ff770000.syscon:io-domains: Looking up lcdc-supply from device tree [ 2.149928] vcc_sd: 3300 mV, disabled [ 2.150038] reg-fixed-voltage sdmmc-regulator: Looking up vin-supply from device tree [ 2.150461] vcc_sd: supplied by VCC_IO [ 2.150997] reg-fixed-voltage sdmmc-regulator: vcc_sd supplying 3300000uV [ 2.151543] rockchip-iodomain ff770000.syscon:io-domains: Looking up dvp-supply from device tree [ 2.152594] rockchip-iodomain ff770000.syscon:io-domains: Looking up flash0-supply from device tree [ 2.152779] rockchip-iodomain ff770000.syscon:io-domains: Looking up flash1-supply from device tree [ 2.153859] rockchip-iodomain ff770000.syscon:io-domains: Looking up wifi-supply from device tree [ 2.154954] rockchip-iodomain ff770000.syscon:io-domains: Looking up bb-supply from device tree [ 2.155981] rockchip-iodomain ff770000.syscon:io-domains: Looking up audio-supply from device tree [ 2.157008] rockchip-iodomain ff770000.syscon:io-domains: Looking up sdcard-supply from device tree [ 2.158122] rockchip-iodomain ff770000.syscon:io-domains: Looking up gpio30-supply from device tree [ 2.159154] rockchip-iodomain ff770000.syscon:io-domains: Looking up gpio1830-supply from device tree [ 2.162505] dwmmc_rockchip ff0f0000.dwmmc: IDMAC supports 32-bit address mode. [ 2.165589] dwmmc_rockchip ff0f0000.dwmmc: Using internal DMA controller. [ 2.165600] dwmmc_rockchip ff0f0000.dwmmc: Version ID is 270a [ 2.165760] dwmmc_rockchip ff0c0000.dwmmc: IDMAC supports 32-bit address mode. [ 2.165775] dwmmc_rockchip ff0c0000.dwmmc: Using internal DMA controller. [ 2.165783] dwmmc_rockchip ff0c0000.dwmmc: Version ID is 270a [ 2.167754] input: gpio-keys as /devices/platform/gpio-keys/input/input1 [ 2.179585] dwmmc_rockchip ff0f0000.dwmmc: DW MMC controller at irq 75,32 bit host data width,256 deep fifo [ 2.179663] dwmmc_rockchip ff0f0000.dwmmc: Looking up vmmc-supply from device tree [ 2.186013] dwmmc_rockchip ff0c0000.dwmmc: DW MMC controller at irq 74,32 bit host data width,256 deep fifo [ 2.186079] dwmmc_rockchip ff0c0000.dwmmc: Looking up vmmc-supply from device tree [ 2.186181] dwmmc_rockchip ff0c0000.dwmmc: Looking up vqmmc-supply from device tree [ 2.186293] dwmmc_rockchip ff0f0000.dwmmc: Looking up vqmmc-supply from device tree [ 2.186426] dwmmc_rockchip ff0f0000.dwmmc: allocated mmc-pwrseq [ 2.186433] mmc_host mmc0: card is non-removable. [ 2.219504] clk: Disabling unused clocks [ 2.221570] usb 3-1: new high-speed USB device number 2 using ehci-platform [ 2.226671] dwmmc_rockchip ff0c0000.dwmmc: Got CD GPIO [ 2.226696] dwmmc_rockchip ff0c0000.dwmmc: Got WP GPIO [ 2.251376] ALSA device list: [ 2.253247] #0: Denon DJ SC6000 Prime Wheel Display at usb-ff540000.usb-1, high speed [ 2.255626] mmc_host mmc0: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) [ 2.255679] dw-apb-uart ff690000.serial: forbid DMA for kernel console [ 2.287921] Waiting for root device PARTUUID=24d1deac-3434-1a4e-98d1-68ee2945a5f1... [ 2.350619] usb 3-1: New USB device found, idVendor=15e4, idProduct=e00d, bcdDevice=60.80 [ 2.351568] usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 [ 2.351575] usb 3-1: Product: SC6000 PRIME Hub [ 2.351579] usb 3-1: Manufacturer: Denon DJ [ 2.361458] mmc_host mmc0: Bus speed (slot 0) = 50000000Hz (slot req 52000000Hz, actual 50000000HZ div = 0) [ 2.364118] mmc_host mmc0: Bus speed (slot 0) = 148500000Hz (slot req 150000000Hz, actual 148500000HZ div = 0) [ 2.377617] hub 3-1:1.0: USB hub found [ 2.392166] hub 3-1:1.0: 7 ports detected [ 2.410362] mmc_host mmc2: Bus speed (slot 0) = 25000000Hz (slot req 25000000Hz, actual 25000000HZ div = 0) [ 2.422795] mmc2: new ultra high speed SDR12 SDIO card at address 0001 [ 2.683564] usb 3-1.4: new high-speed USB device number 3 using ehci-platform [ 2.856837] usb 3-1.4: New USB device found, idVendor=152d, idProduct=0578, bcdDevice= 2.14 [ 2.859558] usb 3-1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3 [ 2.859564] usb 3-1.4: Product: USB to ATA/ATAPI Bridge [ 2.859568] usb 3-1.4: Manufacturer: JMicron [ 2.859571] usb 3-1.4: SerialNumber: 0123456789ABCDEF [ 2.884125] scsi host0: uas [ 2.886988] scsi 0:0:0:0: Direct-Access JMicron Generic 0214 PQ: 0 ANSI: 6 [ 2.961564] usb 3-1.5: new full-speed USB device number 4 using ehci-platform [ 3.043435] dwmmc_rockchip ff0f0000.dwmmc: Successfully tuned phase to 347 [ 3.048580] mmc0: new HS200 MMC card at address 0001 [ 3.054101] mmcblk0: mmc0:0001 008GB0 7.28 GiB [ 3.061641] mmcblk0: p1 p2 p3 p4 p5 p6 p7 [ 3.066177] mmcblk0boot0: mmc0:0001 008GB0 4.00 MiB [ 3.068712] usb 3-1.5: language id specifier not provided by device, defaulting to English [ 3.069593] usb 3-1.5: New USB device found, idVendor=15e4, idProduct=800d, bcdDevice= 0.16 [ 3.069600] usb 3-1.5: New USB device strings: Mfr=1, Product=2, SerialNumber=0 [ 3.069605] usb 3-1.5: Product: SC6000 Prime Controller [ 3.069609] usb 3-1.5: Manufacturer: Denon DJ [ 3.102219] mmcblk0boot1: mmc0:0001 008GB0 4.00 MiB [ 3.108319] mmcblk0rpmb: mmc0:0001 008GB0 4.00 MiB, chardev (245:0) [ 8.856593] sd 0:0:0:0: [sda] Unit Not Ready [ 8.859569] sd 0:0:0:0: [sda] Sense Key : 0x4 [current] [ 8.859575] sd 0:0:0:0: [sda] ASC=0x44 <<vendor>>ASCQ=0x81 [ 8.866568] sd 0:0:0:0: [sda] Read Capacity(16) failed: Result: hostbyte=0x00 driverbyte=DRIVER_OK [ 8.866576] sd 0:0:0:0: [sda] Sense Key : 0x4 [current] [ 8.866581] sd 0:0:0:0: [sda] ASC=0x44 <<vendor>>ASCQ=0x81 [ 8.874560] sd 0:0:0:0: [sda] Read Capacity(10) failed: Result: hostbyte=0x00 driverbyte=DRIVER_OK [ 8.874567] sd 0:0:0:0: [sda] Sense Key : 0x4 [current] [ 8.874572] sd 0:0:0:0: [sda] ASC=0x44 <<vendor>>ASCQ=0x81 [ 8.877361] sd 0:0:0:0: [sda] 0 512-byte logical blocks: (0 B/0 B) [ 8.877367] sd 0:0:0:0: [sda] 0-byte physical blocks [ 8.884363] sd 0:0:0:0: [sda] Test WP failed, assume Write Enabled [ 8.885561] sd 0:0:0:0: [sda] Asking for cache data failed [ 8.885567] sd 0:0:0:0: [sda] Assuming drive cache: write through [ 8.895529] sd 0:0:0:0: [sda] Preferred minimum I/O size 4096 bytes not a multiple of physical block size (0 bytes) [ 8.895538] sd 0:0:0:0: [sda] Optimal transfer size 33553920 bytes not a multiple of physical block size (0 bytes) [ 8.910950] sd 0:0:0:0: [sda] Attached SCSI disk [ 8.955176] EXT4-fs (mmcblk0p6): mounted filesystem 0e4504c8-4440-4646-bef5-5749504c43ee ro without journal. Quota mode: disabled. [ 8.959589] VFS: Mounted root (ext4 filesystem) readonly on device 179:6. [ 8.969604] devtmpfs: mounted [ 8.975474] Freeing unused kernel image (initmem) memory: 1024K [ 8.975604] Run /sbin/init as init process [ 8.975616] with arguments: [ 8.975619] /sbin/init [ 8.975622] earlyprintk [ 8.975624] with environment: [ 8.975627] HOME=/ [ 8.975630] TERM=linux [ 9.094943] systemd[1]: systemd 255.21^ running in system mode (-PAM -AUDIT -SELINUX -APPARMOR +IMA -SMACK +SECCOMP -GCRYPT -GNUTLS -OPENSSL +ACL +BLKID -CURL -ELFUTILS -FIDO2 -IDN2 -IDN -IPTC +KMOD -LIBCRYPTSETUP +LIBFDISK -PCRE2 -PWQUALITY -P11KIT -QRENCODE -TPM2 -BZIP2 -LZ4 -XZ -ZLIB +ZSTD -BPF_FRAMEWORK -XKBCOMMON +UTMP -SYSVINIT default-hierarchy=unified) [ 9.110574] systemd[1]: Detected architecture arm. [ 9.144316] systemd[1]: No hostname configured, using default hostname. [ 9.150449] systemd[1]: Hostname set to <localhost>. [ 9.157580] systemd[1]: Initializing machine ID from random generator. [ 9.163526] systemd[1]: Installed transient /etc/machine-id file. [ 9.530099] systemd[1]: Queued start job for default target Multi-User System. [ 9.546755] systemd[1]: Created slice Slice /system/getty. [ 9.561304] systemd[1]: Created slice Slice /system/modprobe. [ 9.575252] systemd[1]: Created slice Slice /system/serial-getty. [ 9.589794] systemd[1]: Started Dispatch Password Requests to Console Directory Watch. [ 9.608748] systemd[1]: Started Forward Password Requests to Wall Directory Watch. [ 9.627664] systemd[1]: Expecting device /dev/disk/by-partuuid/931ad49d-ad59-0849-833a-9bf00af5b60e... [ 9.648622] systemd[1]: Expecting device /dev/ttyS2... [ 9.660689] systemd[1]: Reached target Host and Network Name Lookups. [ 9.675651] systemd[1]: Reached target Path Units. [ 9.687651] systemd[1]: Reached target Remote File Systems. [ 9.701641] systemd[1]: Reached target Slice Units. [ 9.714689] systemd[1]: Reached target Swaps. [ 9.729181] systemd[1]: Journal Audit Socket was skipped because of an unmet condition check (ConditionSecurity=audit). [ 9.736152] systemd[1]: Listening on Journal Socket (/dev/log). [ 9.755040] systemd[1]: Listening on Journal Socket. [ 9.768042] systemd[1]: Listening on Network Service Netlink Socket. [ 9.785046] systemd[1]: Listening on udev Control Socket. [ 9.798932] systemd[1]: Listening on udev Kernel Socket. [ 9.812982] systemd[1]: Listening on User Database Manager Socket. [ 9.827884] systemd[1]: Huge Pages File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/mm/hugepages). [ 9.828794] systemd[1]: POSIX Message Queue File System was skipped because of an unmet condition check (ConditionPathExists=/proc/sys/fs/mqueue). [ 9.872743] systemd[1]: Mounting Kernel Debug File System... [ 9.886861] systemd[1]: Kernel Trace File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/tracing). [ 9.904831] systemd[1]: Mounting Temporary Directory /tmp... [ 9.921664] systemd[1]: Create List of Static Device Nodes was skipped because of an unmet condition check (ConditionFileNotEmpty=/lib/modules/6.6.119-az01-2025-12-17-rt67/modules.devname). [ 9.940964] systemd[1]: Starting Load Kernel Module configfs... [ 9.957955] systemd[1]: Starting Load Kernel Module fuse... [ 9.970184] systemd[1]: systemd-journald.service: unit configures an IP firewall, but the local system does not support BPF/cgroup firewalling. [ 9.983169] systemd[1]: systemd-journald.service: (This warning is only shown for the first unit using IP firewalling.) [ 10.019791] systemd[1]: Starting Journal Service... [ 10.040274] systemd[1]: Starting Load Kernel Modules... [ 10.059945] systemd[1]: Starting Generate network units from Kernel command line... [ 10.108453] systemd[1]: Starting Remount Root and Kernel File Systems... [ 10.132014] systemd[1]: Starting Create Static Device Nodes in /dev gracefully... [ 10.165859] systemd-journald[131]: Collecting audit messages is disabled. [ 10.186632] systemd[1]: Starting Coldplug All udev Devices... [ 10.193629] jnl: loading out-of-tree module taints kernel. [ 10.196252] jnl: driver (UFSD_HEAD lke_10.9.2_b331, LBD=OFF) [ 10.226770] ufsd: module license 'Commercial product' taints kernel. [ 10.236592] Disabling lock debugging due to kernel taint [ 10.236602] ufsd: module license taints kernel. [ 10.251666] ufsd: driver (UFSD_HEAD lke_10.9.2_b331, LBD=OFF, acl, sd2(5), tr) Hfs+J support included Build_for__inMusic_Embedded_k5.4_2021-11-18_lke_10.9.2_b331 [ 10.258563] EXT4-fs (mmcblk0p6): re-mounted 0e4504c8-4440-4646-bef5-5749504c43ee. [ 10.262557] ufsd: PAGE_SIZE=4K, THREAD_SIZE=8k [ 10.262563] ufsd: Kernel .config hash: original 0x8d3f891a, current can't check. [ 10.262569] ufsd: 132(systemd-modules): Kernel .config hash: original 0x8d3f891a, current can't check [ 10.302806] systemd[1]: Mounted Kernel Debug File System. [ 10.319678] systemd[1]: Mounted Temporary Directory /tmp. [ 10.334401] systemd[1]: modprobe@configfs.service: Deactivated successfully. [ 10.342803] systemd[1]: Finished Load Kernel Module configfs. [ 10.357403] systemd[1]: modprobe@fuse.service: Deactivated successfully. [ 10.367625] systemd[1]: Finished Load Kernel Module fuse. [ 10.385454] systemd[1]: Finished Load Kernel Modules. [ 10.401627] systemd[1]: Finished Generate network units from Kernel command line. [ 10.421635] systemd[1]: Finished Remount Root and Kernel File Systems. [ 10.466904] systemd[1]: Mounting FUSE Control File System... [ 10.481134] systemd[1]: Mounting Kernel Configuration File System... [ 10.496088] systemd[1]: Rebuild Hardware Database was skipped because of an unmet condition check (ConditionNeedsUpdate=/etc). [ 10.543790] systemd[1]: Starting Apply Kernel Variables... [ 10.557451] systemd[1]: Finished Create Static Device Nodes in /dev gracefully. [ 10.576160] systemd[1]: Mounted FUSE Control File System. [ 10.610402] systemd[1]: Mounted Kernel Configuration File System. [ 10.627322] systemd[1]: Create System Users was skipped because no trigger condition checks were met. [ 10.669049] systemd[1]: Starting Create Static Device Nodes in /dev... [ 10.734833] systemd[1]: Finished Apply Kernel Variables. [ 10.802979] systemd[1]: Finished Create Static Device Nodes in /dev. [ 10.811887] systemd[1]: Reached target Preparation for Local File Systems. [ 10.846918] systemd[1]: Mounting Mount /media... [ 10.858980] systemd[1]: Mounting Mount /secure-media... [ 10.902973] systemd[1]: Starting Rule-based Manager for Device Events and Files... [ 10.915113] systemd[1]: Started Journal Service. [ 11.761336] Bluetooth: HCI UART driver ver 2.3 [ 11.765056] Bluetooth: HCI UART protocol H4 registered [ 11.765499] hci_uart_bcm serial0-0: Looking up vbat-supply from device tree [ 11.765507] hci_uart_bcm serial0-0: Looking up vbat-supply property in node /serial@ff180000/bluetooth failed [ 11.765534] hci_uart_bcm serial0-0: supply vbat not found, using dummy regulator [ 11.765781] hci_uart_bcm serial0-0: Looking up vddio-supply from device tree [ 11.765801] hci_uart_bcm serial0-0: Looking up vddio-supply property in node /serial@ff180000/bluetooth failed [ 11.765819] hci_uart_bcm serial0-0: supply vddio not found, using dummy regulator [ 11.771735] Bluetooth: HCI UART protocol Broadcom registered [ 12.055307] cfg80211: Loading compiled-in X.509 certificates for regulatory database [ 12.057394] jp07-audio sound: jp07_get_dai_fmt: gpio_val=-1, fmt=0x00001001 [ 12.061007] jp07-codec sound-codec: jp07_codec_set_bias_level: 0 -> 1; mute=1 [ 12.097433] Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7' [ 12.101457] Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600' [ 12.144232] Bluetooth: hci0: BCM: chip id 130 [ 12.144753] Bluetooth: hci0: BCM: features 0x0f [ 12.146978] Bluetooth: hci0: BCM4345C5 [ 12.147012] Bluetooth: hci0: BCM4345C5 (003.006.006) build 0000 [ 12.150030] Bluetooth: hci0: BCM4345C5 'brcm/BCM4345C5.hcd' Patch [ 12.198414] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43456-sdio for chip BCM4345/9 [ 12.198661] brcmfmac mmc2:0001:1: Direct firmware load for brcm/brcmfmac43456-sdio.inmusic,jp13.bin failed with error -2 [ 12.268787] brcmfmac mmc2:0001:1: Direct firmware load for brcm/brcmfmac43456-sdio.clm_blob failed with error -2 [ 12.436337] brcmfmac: brcmf_c_process_clm_blob: no clm_blob available (err=-2), device may have limited channels available [ 12.436369] brcmfmac: brcmf_c_process_txcap_blob: no txcap_blob available (err=-2) [ 12.437020] brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM4345/9 wl0: Oct 31 2024 03:00:50 version 7.45.96.217 (gadbea8c5) FWID 01-dde3796b [ 13.057518] EXT4-fs (mmcblk0p7): mounted filesystem 4edde164-86b9-11f1-a657-411c475a56fb r/w with ordered data mode. Quota mode: disabled. [ 13.177044] Bluetooth: hci0: BCM: features 0x0f [ 13.179690] Bluetooth: hci0: BCM4345C5 Ampak_CL1 UART 37.4 MHz BT 5.2 [Version: 1021.1043] [ 13.179713] Bluetooth: hci0: BCM4345C5 (003.006.006) build 1043 [ 13.349722] systemd-journald[131]: Received client request to flush runtime journal. [ 14.592581] random: crng init done [ 15.029368] Bluetooth: MGMT ver 1.22 [ 15.371695] rk_gmac-dwmac ff290000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0 [ 15.409624] rk_gmac-dwmac ff290000.ethernet eth0: PHY [stmmac-0:01] driver [RTL8211E Gigabit Ethernet] (irq=64) [ 15.420050] rk_gmac-dwmac ff290000.ethernet eth0: No Safety Features support found [ 15.420090] rk_gmac-dwmac ff290000.ethernet eth0: PTP not supported by HW [ 15.444862] rk_gmac-dwmac ff290000.ethernet eth0: configuring for phy/rgmii link mode [ 15.461085] process '/usr/Engine/Engine' started with executable stack [ 17.929213] warning: `Network Discove' uses wireless extensions which will stop working for Wi-Fi 7 hardware; use nl80211 [ 18.549059] fscrypt: AES-256-CTS-CBC using implementation "cts(cbc(aes-generic))" [ 18.992071] jp07-codec sound-codec: jp07_codec_set_bias_level: 1 -> 2; mute=1 [ 18.992135] jp07-codec sound-codec: jp07_codec_set_bias_level: 2 -> 3; mute=1 [ 19.127602] EMain[384]: memfd_create() called without MFD_EXEC or MFD_NOEXEC_SEAL set [ 1745.000416] EXT4-fs (mmcblk0p6): re-mounted 0e4504c8-4440-4646-bef5-5749504c43ee r/w.

Oct 05 07:49:52 localhost kernel: Booting Linux on physical CPU 0x500 Oct 05 07:49:52 localhost kernel: Linux version 6.6.119-az01-2025-12-17-rt67 (oe-user@oe-host) (arm-poky-linux-gnueabi-gcc (GCC) 13.4.0, GNU ld (GNU Binutils) 2.42.0.20240723) #1 SMP PREEMPT_RT Wed Dec 17 11:04:42 UTC 2025 Oct 05 07:49:52 localhost kernel: CPU: ARMv7 Processor [410fc0d1] revision 1 (ARMv7), cr=10c5387d Oct 05 07:49:52 localhost kernel: CPU: div instructions available: patching division code Oct 05 07:49:52 localhost kernel: CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache Oct 05 07:49:52 localhost kernel: OF: fdt: Machine model: Denon DJ SC6000 Prime Oct 05 07:49:52 localhost kernel: Memory policy: Data cache writealloc Oct 05 07:49:52 localhost kernel: OF: reserved mem: initialized node framebuffer, compatible id rockchip,framebuffer-memory Oct 05 07:49:52 localhost kernel: OF: reserved mem: 0x7f400000..0x7fffffff (12288 KiB) map non-reusable framebuffer Oct 05 07:49:52 localhost kernel: OF: reserved mem: 0xfe000000..0xfeffffff (16384 KiB) map non-reusable dma-unusable@fe000000 Oct 05 07:49:52 localhost kernel: Zone ranges: Oct 05 07:49:52 localhost kernel: Normal [mem 0x0000000000000000-0x000000002fffffff] Oct 05 07:49:52 localhost kernel: HighMem [mem 0x0000000030000000-0x000000007fffffff] Oct 05 07:49:52 localhost kernel: Movable zone start for each node Oct 05 07:49:52 localhost kernel: Early memory node ranges Oct 05 07:49:52 localhost kernel: node 0: [mem 0x0000000000000000-0x000000007fffffff] Oct 05 07:49:52 localhost kernel: Initmem setup node 0 [mem 0x0000000000000000-0x000000007fffffff] Oct 05 07:49:52 localhost kernel: percpu: Embedded 12 pages/cpu s18528 r8192 d22432 u49152 Oct 05 07:49:52 localhost kernel: pcpu-alloc: s18528 r8192 d22432 u49152 alloc=12*4096 Oct 05 07:49:52 localhost kernel: pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 Oct 05 07:49:52 localhost kernel: Kernel command line: root=PARTUUID=24d1deac-3434-1a4e-98d1-68ee2945a5f1 rootwait ro rfkill.default_state=0 isolcpus=1,2,3 earlyprintk fsck.repair=yes Oct 05 07:49:52 localhost kernel: Unknown kernel command line parameters "earlyprintk", will be passed to user space. Oct 05 07:49:52 localhost kernel: Dentry cache hash table entries: 131072 (order: 7, 524288 bytes, linear) Oct 05 07:49:52 localhost kernel: Inode-cache hash table entries: 65536 (order: 6, 262144 bytes, linear) Oct 05 07:49:52 localhost kernel: Built 1 zonelists, mobility grouping on. Total pages: 522752 Oct 05 07:49:52 localhost kernel: mem auto-init: stack:all(zero), heap alloc:off, heap free:off Oct 05 07:49:52 localhost kernel: Memory: 2053868K/2097152K available (8192K kernel code, 823K rwdata, 2612K rodata, 1024K init, 279K bss, 30996K reserved, 12288K cma-reserved, 1298432K highmem) Oct 05 07:49:52 localhost kernel: SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 Oct 05 07:49:52 localhost kernel: rcu: Preemptible hierarchical RCU implementation. Oct 05 07:49:52 localhost kernel: rcu: RCU event tracing is enabled. Oct 05 07:49:52 localhost kernel: rcu: RCU priority boosting: priority 1 delay 500 ms. Oct 05 07:49:52 localhost kernel: rcu: RCU_SOFTIRQ processing moved to rcuc kthreads. Oct 05 07:49:52 localhost kernel: No expedited grace period (rcu_normal_after_boot). Oct 05 07:49:52 localhost kernel: rcu: RCU calculated value of scheduler-enlistment delay is 100 jiffies. Oct 05 07:49:52 localhost kernel: NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16 Oct 05 07:49:52 localhost kernel: rcu: srcu_init: Setting srcu_struct sizes based on contention. Oct 05 07:49:52 localhost kernel: rockchip: reset MMC AHB arbitor Oct 05 07:49:52 localhost kernel: arch_timer: cp15 timer(s) running at 24.00MHz (phys). Oct 05 07:49:52 localhost kernel: clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns Oct 05 07:49:52 localhost kernel: sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns Oct 05 07:49:52 localhost kernel: Switching to timer-based delay loop, resolution 41ns Oct 05 07:49:52 localhost kernel: Console: colour dummy device 80x30 Oct 05 07:49:52 localhost kernel: printk: legacy console [tty0] enabled Oct 05 07:49:52 localhost kernel: Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=24000) Oct 05 07:49:52 localhost kernel: CPU: Testing write buffer coherency: ok Oct 05 07:49:52 localhost kernel: Spectre V2: workarounds disabled by configuration Oct 05 07:49:52 localhost kernel: pid_max: default: 32768 minimum: 301 Oct 05 07:49:52 localhost kernel: Mount-cache hash table entries: 2048 (order: 1, 8192 bytes, linear) Oct 05 07:49:52 localhost kernel: Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes, linear) Oct 05 07:49:52 localhost kernel: CPU0: thread -1, cpu 0, socket 5, mpidr 80000500 Oct 05 07:49:52 localhost kernel: Setting up static identity map for 0x100000 - 0x100060 Oct 05 07:49:52 localhost kernel: rcu: Hierarchical SRCU implementation. Oct 05 07:49:52 localhost kernel: rcu: Max phase no-delay instances is 400. Oct 05 07:49:52 localhost kernel: smp: Bringing up secondary CPUs ... Oct 05 07:49:52 localhost kernel: CPU1: thread -1, cpu 1, socket 5, mpidr 80000501 Oct 05 07:49:52 localhost kernel: CPU2: thread -1, cpu 2, socket 5, mpidr 80000502 Oct 05 07:49:52 localhost kernel: CPU3: thread -1, cpu 3, socket 5, mpidr 80000503 Oct 05 07:49:52 localhost kernel: smp: Brought up 1 node, 4 CPUs Oct 05 07:49:52 localhost kernel: SMP: Total of 4 processors activated (192.00 BogoMIPS). Oct 05 07:49:52 localhost kernel: CPU: All CPU(s) started in SVC mode. Oct 05 07:49:52 localhost kernel: devtmpfs: initialized Oct 05 07:49:52 localhost kernel: VFP support v0.3: implementor 41 architecture 3 part 30 variant d rev 0 Oct 05 07:49:52 localhost kernel: clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 1911260446275000 ns Oct 05 07:49:52 localhost kernel: futex hash table entries: 1024 (order: 4, 65536 bytes, linear) Oct 05 07:49:52 localhost kernel: pinctrl core: initialized pinctrl subsystem Oct 05 07:49:52 localhost kernel: regulator-dummy: no parameters, enabled Oct 05 07:49:52 localhost kernel: NET: Registered PF_NETLINK/PF_ROUTE protocol family Oct 05 07:49:52 localhost kernel: DMA: preallocated 256 KiB pool for atomic coherent allocations Oct 05 07:49:52 localhost kernel: thermal_sys: Registered thermal governor 'step_wise' Oct 05 07:49:52 localhost kernel: thermal_sys: Registered thermal governor 'user_space' Oct 05 07:49:52 localhost kernel: cpuidle: using governor menu Oct 05 07:49:52 localhost kernel: No ATAGs? Oct 05 07:49:52 localhost kernel: hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers. Oct 05 07:49:52 localhost kernel: hw-breakpoint: maximum watchpoint size is 4 bytes. Oct 05 07:49:52 localhost kernel: /vop@ff940000: Fixed dependency cycle(s) with /mipi@ff960000 Oct 05 07:49:52 localhost kernel: /mipi@ff960000: Fixed dependency cycle(s) with /mipi@ff960000/panel@0 Oct 05 07:49:52 localhost kernel: /mipi@ff960000: Fixed dependency cycle(s) with /vop@ff940000 Oct 05 07:49:52 localhost kernel: /mipi@ff960000/panel@0: Fixed dependency cycle(s) with /mipi@ff960000 Oct 05 07:49:52 localhost kernel: /pinctrl: Fixed dependency cycle(s) with /pinctrl/az01/az01-pcb-rev Oct 05 07:49:52 localhost kernel: gpio gpiochip0: Static allocation of GPIO base is deprecated, use dynamic allocation. Oct 05 07:49:52 localhost kernel: rockchip-gpio ff750000.gpio: probed /pinctrl/gpio@ff750000 Oct 05 07:49:52 localhost kernel: gpio gpiochip1: Static allocation of GPIO base is deprecated, use dynamic allocation. Oct 05 07:49:52 localhost kernel: rockchip-gpio ff780000.gpio: probed /pinctrl/gpio@ff780000 Oct 05 07:49:52 localhost kernel: gpio gpiochip2: Static allocation of GPIO base is deprecated, use dynamic allocation. Oct 05 07:49:52 localhost kernel: rockchip-gpio ff790000.gpio: probed /pinctrl/gpio@ff790000 Oct 05 07:49:52 localhost kernel: gpio gpiochip3: Static allocation of GPIO base is deprecated, use dynamic allocation. Oct 05 07:49:52 localhost kernel: rockchip-gpio ff7a0000.gpio: probed /pinctrl/gpio@ff7a0000 Oct 05 07:49:52 localhost kernel: gpio gpiochip4: Static allocation of GPIO base is deprecated, use dynamic allocation. Oct 05 07:49:52 localhost kernel: rockchip-gpio ff7b0000.gpio: probed /pinctrl/gpio@ff7b0000 Oct 05 07:49:52 localhost kernel: gpio gpiochip5: Static allocation of GPIO base is deprecated, use dynamic allocation. Oct 05 07:49:52 localhost kernel: rockchip-gpio ff7c0000.gpio: probed /pinctrl/gpio@ff7c0000 Oct 05 07:49:52 localhost kernel: gpio gpiochip6: Static allocation of GPIO base is deprecated, use dynamic allocation. Oct 05 07:49:52 localhost kernel: rockchip-gpio ff7d0000.gpio: probed /pinctrl/gpio@ff7d0000 Oct 05 07:49:53 localhost kernel: gpio gpiochip7: Static allocation of GPIO base is deprecated, use dynamic allocation. Oct 05 07:49:53 localhost kernel: rockchip-gpio ff7e0000.gpio: probed /pinctrl/gpio@ff7e0000 Oct 05 07:49:53 localhost kernel: gpio gpiochip8: Static allocation of GPIO base is deprecated, use dynamic allocation. Oct 05 07:49:53 localhost kernel: rockchip-gpio ff7f0000.gpio: probed /pinctrl/gpio@ff7f0000 Oct 05 07:49:53 localhost kernel: iommu: Default domain type: Translated Oct 05 07:49:53 localhost kernel: iommu: DMA domain TLB invalidation policy: strict mode Oct 05 07:49:53 localhost kernel: vcc_sys: 5000 mV, enabled Oct 05 07:49:53 localhost kernel: reg-fixed-voltage vsys-regulator: vcc_sys supplying 5000000uV Oct 05 07:49:53 localhost kernel: reg-fixed-voltage vcc-mipi: Looking up vin-supply from device tree Oct 05 07:49:53 localhost kernel: vcc_mipi: supplied by vcc_sys Oct 05 07:49:53 localhost kernel: vcc_sys: could not add device link regulator.2: -ENOENT Oct 05 07:49:53 localhost kernel: reg-fixed-voltage vcc-sata: Looking up vin-supply from device tree Oct 05 07:49:53 localhost kernel: vcc_sata: supplied by vcc_sys Oct 05 07:49:53 localhost kernel: vcc_sys: could not add device link regulator.3: -ENOENT Oct 05 07:49:53 localhost kernel: vcc_sata: 5000 mV, enabled Oct 05 07:49:53 localhost kernel: reg-fixed-voltage vcc-sata: vcc_sata supplying 5000000uV Oct 05 07:49:53 localhost kernel: SCSI subsystem initialized Oct 05 07:49:53 localhost kernel: usbcore: registered new interface driver usbfs Oct 05 07:49:53 localhost kernel: usbcore: registered new interface driver hub Oct 05 07:49:53 localhost kernel: usbcore: registered new device driver usb Oct 05 07:49:53 localhost kernel: pps_core: LinuxPPS API ver. 1 registered Oct 05 07:49:53 localhost kernel: pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it> Oct 05 07:49:53 localhost kernel: PTP clock support registered Oct 05 07:49:53 localhost kernel: vcc_host: no parameters, enabled Oct 05 07:49:53 localhost kernel: reg-fixed-voltage vcc-host-regulator: vcc_host supplying 0uV Oct 05 07:49:53 localhost kernel: vcc_otg_5v: 5000 mV, enabled Oct 05 07:49:53 localhost kernel: reg-fixed-voltage usb-otg-regulator: vcc_otg_5v supplying 5000000uV Oct 05 07:49:53 localhost kernel: Advanced Linux Sound Architecture Driver Initialized. Oct 05 07:49:53 localhost kernel: Bluetooth: Core ver 2.22 Oct 05 07:49:53 localhost kernel: NET: Registered PF_BLUETOOTH protocol family Oct 05 07:49:53 localhost kernel: Bluetooth: HCI device and connection manager initialized Oct 05 07:49:53 localhost kernel: Bluetooth: HCI socket layer initialized Oct 05 07:49:53 localhost kernel: Bluetooth: L2CAP socket layer initialized Oct 05 07:49:53 localhost kernel: Bluetooth: SCO socket layer initialized Oct 05 07:49:53 localhost kernel: clocksource: Switched to clocksource arch_sys_counter Oct 05 07:49:53 localhost kernel: NET: Registered PF_INET protocol family Oct 05 07:49:53 localhost kernel: IP idents hash table entries: 16384 (order: 5, 131072 bytes, linear) Oct 05 07:49:53 localhost kernel: tcp_listen_portaddr_hash hash table entries: 512 (order: 2, 10240 bytes, linear) Oct 05 07:49:53 localhost kernel: Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) Oct 05 07:49:53 localhost kernel: TCP established hash table entries: 8192 (order: 3, 32768 bytes, linear) Oct 05 07:49:53 localhost kernel: TCP bind hash table entries: 8192 (order: 7, 327680 bytes, linear) Oct 05 07:49:53 localhost kernel: TCP: Hash tables configured (established 8192 bind 8192) Oct 05 07:49:53 localhost kernel: UDP hash table entries: 512 (order: 3, 24576 bytes, linear) Oct 05 07:49:53 localhost kernel: UDP-Lite hash table entries: 512 (order: 3, 24576 bytes, linear) Oct 05 07:49:53 localhost kernel: NET: Registered PF_UNIX/PF_LOCAL protocol family Oct 05 07:49:53 localhost kernel: vcc_mipi: 3300 mV, enabled Oct 05 07:49:53 localhost kernel: reg-fixed-voltage vcc-mipi: vcc_mipi supplying 3300000uV Oct 05 07:49:53 localhost kernel: hw perfevents: enabled with armv7_cortex_a12 PMU driver, 7 counters available Oct 05 07:49:53 localhost kernel: Initialise system trusted keyrings Oct 05 07:49:53 localhost kernel: workingset: timestamp_bits=30 max_order=19 bucket_order=0 Oct 05 07:49:53 localhost kernel: squashfs: version 4.0 (2009/01/31) Phillip Lougher Oct 05 07:49:53 localhost kernel: ntfs3: Read-only LZX/Xpress compression included Oct 05 07:49:53 localhost kernel: fuse: init (API version 7.39) Oct 05 07:49:53 localhost kernel: NET: Registered PF_ALG protocol family Oct 05 07:49:53 localhost kernel: Key type asymmetric registered Oct 05 07:49:53 localhost kernel: Asymmetric key parser 'x509' registered Oct 05 07:49:53 localhost kernel: Asymmetric key parser 'pkcs8' registered Oct 05 07:49:53 localhost kernel: bounce: pool size: 64 pages Oct 05 07:49:53 localhost kernel: Block layer SCSI generic (bsg) driver version 0.4 loaded (major 248) Oct 05 07:49:53 localhost kernel: io scheduler mq-deadline registered Oct 05 07:49:53 localhost kernel: io scheduler kyber registered Oct 05 07:49:53 localhost kernel: io scheduler bfq registered Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.0: Looking up phy-supply from device tree Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.0: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@320 failed Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.0: Looking up vbus-supply from device tree Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.0: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@320 failed Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.1: Looking up phy-supply from device tree Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.1: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@334 failed Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.1: Looking up vbus-supply from device tree Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.1: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@334 failed Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.2: Looking up phy-supply from device tree Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.2: Looking up phy-supply property in node /syscon@ff770000/usbphy/usb-phy@348 failed Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.2: Looking up vbus-supply from device tree Oct 05 07:49:53 localhost kernel: phy phy-ff770000.syscon:usbphy.2: Looking up vbus-supply property in node /syscon@ff770000/usbphy/usb-phy@348 failed Oct 05 07:49:53 localhost kernel: pwm-backlight mipi-backlight: Looking up power-supply from device tree Oct 05 07:49:53 localhost kernel: dma-pl330 ff250000.dma-controller: WARN: Device release is not defined so it is not safe to unbind this driver while in use Oct 05 07:49:53 localhost kernel: dma-pl330 ff250000.dma-controller: Loaded driver for PL330 DMAC-241330 Oct 05 07:49:53 localhost kernel: dma-pl330 ff250000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-20 Num_Events-16 Oct 05 07:49:53 localhost kernel: dma-pl330 ffb20000.dma-controller: WARN: Device release is not defined so it is not safe to unbind this driver while in use Oct 05 07:49:53 localhost kernel: dma-pl330 ffb20000.dma-controller: Loaded driver for PL330 DMAC-241330 Oct 05 07:49:53 localhost kernel: dma-pl330 ffb20000.dma-controller: DBUFF-64x8bytes Num_Chans-5 Num_Peri-6 Num_Events-10 Oct 05 07:49:53 localhost kernel: Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled Oct 05 07:49:53 localhost kernel: ff180000.serial: ttyS0 at MMIO 0xff180000 (irq = 47, base_baud = 1500000) is a 16550A Oct 05 07:49:53 localhost kernel: serial serial0: tty port ttyS0 registered Oct 05 07:49:53 localhost kernel: ff690000.serial: ttyS2 at MMIO 0xff690000 (irq = 48, base_baud = 1500000) is a 16550A Oct 05 07:49:53 localhost kernel: printk: console [ttyS2] enabled Oct 05 07:49:53 localhost kernel: ff1b0000.serial: ttyS3 at MMIO 0xff1b0000 (irq = 49, base_baud = 1500000) is a 16550A Oct 05 07:49:53 localhost kernel: i2c_dev: i2c /dev entries driver Oct 05 07:49:53 localhost kernel: /i2c@ff650000/act8846@5a: Fixed dependency cycle(s) with /i2c@ff650000/act8846@5a/regulators/REG4 Oct 05 07:49:53 localhost kernel: /i2c@ff650000/act8846@5a: Fixed dependency cycle(s) with /i2c@ff650000/act8846@5a/regulators/REG2 Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up vp1-supply from device tree Oct 05 07:49:53 localhost kernel: VCC_DDR: supplied by vcc_sys Oct 05 07:49:53 localhost kernel: vcc_sys: could not add device link regulator.6: -ENOENT Oct 05 07:49:53 localhost kernel: VCC_DDR: 1200 <--> 1500 mV at 1500 mV, enabled Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up vp2-supply from device tree Oct 05 07:49:53 localhost kernel: VCC_IO: supplied by vcc_sys Oct 05 07:49:53 localhost kernel: vcc_sys: could not add device link regulator.7: -ENOENT Oct 05 07:49:53 localhost kernel: VCC_IO: 3300 mV, enabled Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up vp3-supply from device tree Oct 05 07:49:53 localhost kernel: VDD_LOG: supplied by vcc_sys Oct 05 07:49:53 localhost kernel: vcc_sys: could not add device link regulator.8: -ENOENT Oct 05 07:49:53 localhost kernel: fan53555-regulator 0-0040: FAN53555 Option[8] Rev[1] Detected! Oct 05 07:49:53 localhost kernel: fan53555-regulator 0-0040: Looking up vin-supply from device tree Oct 05 07:49:53 localhost kernel: vdd_cpu: supplied by vcc_sys Oct 05 07:49:53 localhost kernel: vcc_sys: could not add device link regulator.9: -ENOENT Oct 05 07:49:53 localhost kernel: fan53555-regulator 0-0041: FAN53555 Option[8] Rev[1] Detected! Oct 05 07:49:53 localhost kernel: fan53555-regulator 0-0041: Looking up vin-supply from device tree Oct 05 07:49:53 localhost kernel: vdd_gpu: supplied by vcc_sys Oct 05 07:49:53 localhost kernel: vcc_sys: could not add device link regulator.10: -ENOENT Oct 05 07:49:53 localhost kernel: VDD_LOG: 950 <--> 1400 mV at 1200 mV, enabled Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up vp4-supply from device tree Oct 05 07:49:53 localhost kernel: VCC_20: supplied by vcc_sys Oct 05 07:49:53 localhost kernel: vcc_sys: could not add device link regulator.11: -ENOENT Oct 05 07:49:53 localhost kernel: VCC_20: 2000 mV, enabled Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up inl1-supply from device tree Oct 05 07:49:53 localhost kernel: VCCIO_SD: supplied by VCC_IO Oct 05 07:49:53 localhost kernel: VCC_IO: could not add device link regulator.12: -ENOENT Oct 05 07:49:53 localhost kernel: vdd_cpu: 850 <--> 1500 mV at 1350 mV, enabled Oct 05 07:49:53 localhost kernel: vdd_gpu: 850 <--> 1350 mV at 1000 mV, enabled Oct 05 07:49:53 localhost kernel: VCCIO_SD: 1800 <--> 3300 mV at 3300 mV, enabled Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up inl1-supply from device tree Oct 05 07:49:53 localhost kernel: VDD10_LCD: supplied by VCC_IO Oct 05 07:49:53 localhost kernel: VCC_IO: could not add device link regulator.13: -ENOENT Oct 05 07:49:53 localhost kernel: VDD10_LCD: 1000 mV, enabled Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up inl1-supply from device tree Oct 05 07:49:53 localhost kernel: VCCA_CODEC: supplied by VCC_IO Oct 05 07:49:53 localhost kernel: VCC_IO: could not add device link regulator.14: -ENOENT Oct 05 07:49:53 localhost kernel: VCCA_CODEC: 3300 mV, enabled Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up inl2-supply from device tree Oct 05 07:49:53 localhost kernel: VCCA_TP: supplied by vcc_sys Oct 05 07:49:53 localhost kernel: vcc_sys: could not add device link regulator.15: -ENOENT Oct 05 07:49:53 localhost kernel: VCCA_TP: 3300 mV, enabled Oct 05 07:49:53 localhost kernel: rockchip-vop ff930000.vop: Adding to iommu group 0 Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up inl2-supply from device tree Oct 05 07:49:53 localhost kernel: VCCIO_PMU: supplied by vcc_sys Oct 05 07:49:53 localhost kernel: vcc_sys: could not add device link regulator.16: -ENOENT Oct 05 07:49:53 localhost kernel: VCCIO_PMU: 3300 mV, enabled Oct 05 07:49:53 localhost kernel: rockchip-vop ff940000.vop: Adding to iommu group 1 Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up inl3-supply from device tree Oct 05 07:49:53 localhost kernel: VDD_10: supplied by VCC_20 Oct 05 07:49:53 localhost kernel: VCC_20: could not add device link regulator.17: -ENOENT Oct 05 07:49:53 localhost kernel: VDD_10: 1000 mV, enabled Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up inl3-supply from device tree Oct 05 07:49:53 localhost kernel: VCC_18: supplied by VCC_20 Oct 05 07:49:53 localhost kernel: VCC_20: could not add device link regulator.18: -ENOENT Oct 05 07:49:53 localhost kernel: phy phy-ff960000.mipi.3: Looking up phy-supply from device tree Oct 05 07:49:53 localhost kernel: phy phy-ff960000.mipi.3: Looking up phy-supply property in node /mipi@ff960000 failed Oct 05 07:49:53 localhost kernel: /mipi@ff960000: Fixed dependency cycle(s) with /mipi@ff960000/panel@0 Oct 05 07:49:53 localhost kernel: /mipi@ff960000/panel@0: Fixed dependency cycle(s) with /mipi@ff960000 Oct 05 07:49:53 localhost kernel: VCC_18: 1800 mV, enabled Oct 05 07:49:53 localhost kernel: act8865 0-005a: Looking up inl3-supply from device tree Oct 05 07:49:53 localhost kernel: VCC18_LCD: supplied by VCC_20 Oct 05 07:49:53 localhost kernel: VCC_20: could not add device link regulator.19: -ENOENT Oct 05 07:49:53 localhost kernel: VCC18_LCD: 1800 mV, enabled Oct 05 07:49:53 localhost kernel: panel-urt-umo-p080md-t ff960000.mipi.0: Looking up power-supply from device tree Oct 05 07:49:53 localhost kernel: rockchip_framebuffer_rmem_device_init: initializing with base address 0x7f400000 size=0x00c00000 Oct 05 07:49:53 localhost kernel: rockchip-drm display-subsystem: assigned reserved memory node framebuffer Oct 05 07:49:53 localhost kernel: rockchip-drm display-subsystem: bound ff930000.vop (ops 0xc0962378) Oct 05 07:49:53 localhost kernel: rockchip-vop ff940000.vop: enabled by bootloader Oct 05 07:49:53 localhost kernel: rockchip-drm display-subsystem: bound ff940000.vop (ops 0xc0962378) Oct 05 07:49:53 localhost kernel: rockchip-drm display-subsystem: bound ff960000.mipi (ops 0xc096628c) Oct 05 07:49:53 localhost kernel: [drm] Initialized rockchip 1.0.0 20140818 for display-subsystem on minor 0 Oct 05 07:49:53 localhost kernel: rockchip-drm display-subsystem: framebugger sg_size=12582912 size=12288000 Oct 05 07:49:53 localhost kernel: rockchip-drm display-subsystem: [drm] fb0: rockchipdrmfb frame buffer device Oct 05 07:49:53 localhost kernel: panfrost ffa30000.gpu: clock rate = 400000000 Oct 05 07:49:53 localhost kernel: panfrost ffa30000.gpu: Looking up mali-supply from device tree Oct 05 07:49:53 localhost kernel: panfrost ffa30000.gpu: mali-t760 id 0x750 major 0x1 minor 0x0 status 0x0 Oct 05 07:49:53 localhost kernel: panfrost ffa30000.gpu: features: 00000000,00000407, issues: 00000000,24040400 Oct 05 07:49:53 localhost kernel: panfrost ffa30000.gpu: Features: L2:0x07120206 Shader:0x00000000 Tiler:0x00000809 Mem:0x1 MMU:0x00002830 AS:0xff JS:0x7 Oct 05 07:49:53 localhost kernel: panfrost ffa30000.gpu: shader_present=0xf l2_present=0x1 Oct 05 07:49:53 localhost kernel: [drm] Initialized panfrost 1.2.0 20180908 for ffa30000.gpu on minor 1 Oct 05 07:49:53 localhost kernel: brd: module loaded Oct 05 07:49:53 localhost kernel: loop: module loaded Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: IRQ eth_lpi not found Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: PTP uses main clock Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: Looking up phy-supply from device tree Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: clock input or output? (input). Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: TX delay(0x23). Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: RX delay(0x1a). Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: integrated PHY? (no). Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: clock input from PHY Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: init for RGMII Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: User ID: 0x10, Synopsys ID: 0x35 Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: DWMAC1000 Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: DMA HW capability register supported Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: RX Checksum Offload Engine supported Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: COE Type 2 Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: TX Checksum insertion supported Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: Wake-Up On Lan supported Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: Normal descriptors Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: Ring mode enabled Oct 05 07:49:53 localhost kernel: rk_gmac-dwmac ff290000.ethernet: Enable RX Mitigation via HW Watchdog Timer Oct 05 07:49:53 localhost kernel: dwc2 ff540000.usb: Looking up vusb_d-supply from device tree Oct 05 07:49:53 localhost kernel: dwc2 ff540000.usb: Looking up vusb_d-supply property in node /usb@ff540000 failed Oct 05 07:49:53 localhost kernel: dwc2 ff540000.usb: supply vusb_d not found, using dummy regulator Oct 05 07:49:53 localhost kernel: dwc2 ff540000.usb: Looking up vusb_a-supply from device tree Oct 05 07:49:53 localhost kernel: dwc2 ff540000.usb: Looking up vusb_a-supply property in node /usb@ff540000 failed Oct 05 07:49:53 localhost kernel: dwc2 ff540000.usb: supply vusb_a not found, using dummy regulator Oct 05 07:49:53 localhost kernel: dwc2 ff540000.usb: Looking up vbus-supply from device tree Oct 05 07:49:53 localhost kernel: dwc2 ff540000.usb: Looking up vbus-supply property in node /usb@ff540000 failed Oct 05 07:49:53 localhost kernel: dwc2 ff540000.usb: DWC OTG Controller Oct 05 07:49:53 localhost kernel: dwc2 ff540000.usb: new USB bus registered, assigned bus number 1 Oct 05 07:49:53 localhost kernel: usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.06 Oct 05 07:49:53 localhost kernel: usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 Oct 05 07:49:53 localhost kernel: usb usb1: Product: DWC OTG Controller Oct 05 07:49:53 localhost kernel: usb usb1: Manufacturer: Linux 6.6.119-az01-2025-12-17-rt67 dwc2_hsotg Oct 05 07:49:53 localhost kernel: usb usb1: SerialNumber: ff540000.usb Oct 05 07:49:53 localhost kernel: hub 1-0:1.0: USB hub found Oct 05 07:49:53 localhost kernel: hub 1-0:1.0: 1 port detected Oct 05 07:49:53 localhost kernel: dwc2 ff580000.usb: Looking up vusb_d-supply from device tree Oct 05 07:49:53 localhost kernel: dwc2 ff580000.usb: Looking up vusb_d-supply property in node /usb@ff580000 failed Oct 05 07:49:53 localhost kernel: dwc2 ff580000.usb: supply vusb_d not found, using dummy regulator Oct 05 07:49:53 localhost kernel: dwc2 ff580000.usb: Looking up vusb_a-supply from device tree Oct 05 07:49:53 localhost kernel: dwc2 ff580000.usb: Looking up vusb_a-supply property in node /usb@ff580000 failed Oct 05 07:49:53 localhost kernel: dwc2 ff580000.usb: supply vusb_a not found, using dummy regulator Oct 05 07:49:53 localhost kernel: dwc2 ff580000.usb: Looking up vbus-supply from device tree Oct 05 07:49:53 localhost kernel: dwc2 ff580000.usb: Looking up vbus-supply property in node /usb@ff580000 failed Oct 05 07:49:53 localhost kernel: dwc2 ff580000.usb: EPs: 10, dedicated fifos, 972 entries in SPRAM Oct 05 07:49:53 localhost kernel: dwc2 ff580000.usb: DWC OTG Controller Oct 05 07:49:53 localhost kernel: dwc2 ff580000.usb: new USB bus registered, assigned bus number 2 Oct 05 07:49:53 localhost kernel: usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.06 Oct 05 07:49:53 localhost kernel: usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1 Oct 05 07:49:53 localhost kernel: usb usb2: Product: DWC OTG Controller Oct 05 07:49:53 localhost kernel: usb usb2: Manufacturer: Linux 6.6.119-az01-2025-12-17-rt67 dwc2_hsotg Oct 05 07:49:53 localhost kernel: usb usb2: SerialNumber: ff580000.usb Oct 05 07:49:53 localhost kernel: hub 2-0:1.0: USB hub found Oct 05 07:49:53 localhost kernel: hub 2-0:1.0: 1 port detected Oct 05 07:49:53 localhost kernel: ehci-platform ff500000.usb: EHCI Host Controller Oct 05 07:49:53 localhost kernel: ehci-platform ff500000.usb: new USB bus registered, assigned bus number 3 Oct 05 07:49:53 localhost kernel: ehci-platform ff500000.usb: irq 67, io mem 0xff500000 Oct 05 07:49:53 localhost kernel: usbcore: registered new interface driver uas Oct 05 07:49:53 localhost kernel: usbcore: registered new interface driver usb-storage Oct 05 07:49:53 localhost kernel: usbcore: registered new interface driver usbserial_generic Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for generic Oct 05 07:49:53 localhost kernel: usbcore: registered new interface driver cp210x Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for cp210x Oct 05 07:49:53 localhost kernel: usbcore: registered new interface driver ftdi_sio Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for FTDI USB Serial Device Oct 05 07:49:53 localhost kernel: usbcore: registered new interface driver pl2303 Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for pl2303 Oct 05 07:49:53 localhost kernel: usbcore: registered new interface driver usb_serial_simple Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for carelink Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for flashloader Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for funsoft Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for google Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for hp4x Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for kaufmann Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for libtransistor Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for moto_modem Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for motorola_tetra Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for nokia Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for novatel_gps Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for owon Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for siemens_mpi Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for suunto Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for vivopay Oct 05 07:49:53 localhost kernel: usbserial: USB Serial support registered for zio Oct 05 07:49:53 localhost kernel: usb 1-1: new high-speed USB device number 2 using dwc2 Oct 05 07:49:53 localhost kernel: ehci-platform ff500000.usb: USB 2.0 started, EHCI 1.00 Oct 05 07:49:53 localhost kernel: usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.06 Oct 05 07:49:53 localhost kernel: usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1 Oct 05 07:49:53 localhost kernel: usb usb3: Product: EHCI Host Controller Oct 05 07:49:53 localhost kernel: usb usb3: Manufacturer: Linux 6.6.119-az01-2025-12-17-rt67 ehci_hcd Oct 05 07:49:53 localhost kernel: usb usb3: SerialNumber: ff500000.usb Oct 05 07:49:53 localhost kernel: hub 3-0:1.0: USB hub found Oct 05 07:49:53 localhost kernel: hub 3-0:1.0: 1 port detected Oct 05 07:49:53 localhost kernel: rtc-hym8563 0-0051: registered as rtc0 Oct 05 07:49:53 localhost kernel: rtc-hym8563 0-0051: setting system clock to 2026-10-05T11:49:44 UTC (1791200984) Oct 05 07:49:53 localhost kernel: ili2117 4-0026: ILI2117 vendor 0x00 firmware version 2.0 Oct 05 07:49:53 localhost kernel: input: ILI2117 Touchscreen as /devices/platform/ff160000.i2c/i2c-4/4-0026/input/input0 Oct 05 07:49:53 localhost kernel: ili2117 4-0026: bad packet ID (expected 0x5a): 0x00 Oct 05 07:49:53 localhost kernel: dw_wdt ff800000.watchdog: No valid TOPs array specified Oct 05 07:49:53 localhost kernel: device-mapper: uevent: version 1.0.3 Oct 05 07:49:53 localhost kernel: device-mapper: ioctl: 4.48.0-ioctl (2023-03-01) initialised: dm-devel@redhat.com Oct 05 07:49:53 localhost kernel: cpu cpu0: Looking up cpu0-supply from device tree Oct 05 07:49:53 localhost kernel: Synopsys Designware Multimedia Card Interface Driver Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0d0000.dwmmc: IDMAC supports 32-bit address mode. Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0d0000.dwmmc: Using internal DMA controller. Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0d0000.dwmmc: Version ID is 270a Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0d0000.dwmmc: DW MMC controller at irq 72,32 bit host data width,256 deep fifo Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0d0000.dwmmc: Looking up vmmc-supply from device tree Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0d0000.dwmmc: Looking up vqmmc-supply from device tree Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0d0000.dwmmc: allocated mmc-pwrseq Oct 05 07:49:53 localhost kernel: mmc_host mmc2: card is non-removable. Oct 05 07:49:53 localhost kernel: hid: raw HID events driver (C) Jiri Kosina Oct 05 07:49:53 localhost kernel: usbcore: registered new interface driver usbhid Oct 05 07:49:53 localhost kernel: usbhid: USB HID core driver Oct 05 07:49:53 localhost kernel: rockchip-saradc ff100000.saradc: Looking up vref-supply from device tree Oct 05 07:49:53 localhost kernel: usb 1-1: language id specifier not provided by device, defaulting to English Oct 05 07:49:53 localhost kernel: usb 1-1: New USB device found, idVendor=15e4, idProduct=900d, bcdDevice= 0.50 Oct 05 07:49:53 localhost kernel: usb 1-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 Oct 05 07:49:53 localhost kernel: usb 1-1: Product: SC6000 Prime Wheel Display Oct 05 07:49:53 localhost kernel: usb 1-1: Manufacturer: Denon DJ Oct 05 07:49:53 localhost kernel: usbcore: registered new interface driver snd-usb-audio Oct 05 07:49:53 localhost kernel: NET: Registered PF_INET6 protocol family Oct 05 07:49:53 localhost kernel: Segment Routing with IPv6 Oct 05 07:49:53 localhost kernel: In-situ OAM (IOAM) with IPv6 Oct 05 07:49:53 localhost kernel: sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver Oct 05 07:49:53 localhost kernel: NET: Registered PF_PACKET protocol family Oct 05 07:49:53 localhost kernel: Bluetooth: HIDP (Human Interface Emulation) ver 1.2 Oct 05 07:49:53 localhost kernel: Bluetooth: HIDP socket layer initialized Oct 05 07:49:53 localhost kernel: Registering SWP/SWPB emulation handler Oct 05 07:49:53 localhost kernel: usb5537 1-002d: switched to HUB mode Oct 05 07:49:53 localhost kernel: usb5537 1-002d: usb5537_probe: probed in hub mode Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c00 = 0x03 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c04 = 0x03 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c08 = 0x03 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c0c = 0x03 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c10 = 0x04 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c14 = 0x03 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c18 = 0x03 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c1c = 0x00 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c20 = 0x01 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c24 = 0x01 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c28 = 0x01 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c2c = 0x01 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c30 = 0x01 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c34 = 0x01 Oct 05 07:49:53 localhost kernel: usb5537 1-002d: reg 0x3c38 = 0x01 Oct 05 07:49:53 localhost kernel: Loading compiled-in X.509 certificates Oct 05 07:49:53 localhost kernel: mmc_host mmc2: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) Oct 05 07:49:53 localhost kernel: Key type .fscrypt registered Oct 05 07:49:53 localhost kernel: Key type fscrypt-provisioning registered Oct 05 07:49:53 localhost kernel: vcc_flash: will resolve supply early: vin Oct 05 07:49:53 localhost kernel: reg-fixed-voltage flash-regulator: Looking up vin-supply from device tree Oct 05 07:49:53 localhost kernel: vcc_flash: supplied by VCC_IO Oct 05 07:49:53 localhost kernel: VCC_IO: could not add device link regulator.20: -ENOENT Oct 05 07:49:53 localhost kernel: vcc_flash: 1800 mV, enabled Oct 05 07:49:53 localhost kernel: reg-fixed-voltage flash-regulator: vcc_flash supplying 1800000uV Oct 05 07:49:53 localhost kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up lcdc-supply from device tree Oct 05 07:49:53 localhost kernel: vcc_sd: 3300 mV, disabled Oct 05 07:49:53 localhost kernel: reg-fixed-voltage sdmmc-regulator: Looking up vin-supply from device tree Oct 05 07:49:53 localhost kernel: vcc_sd: supplied by VCC_IO Oct 05 07:49:53 localhost kernel: reg-fixed-voltage sdmmc-regulator: vcc_sd supplying 3300000uV Oct 05 07:49:53 localhost kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up dvp-supply from device tree Oct 05 07:49:53 localhost kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up flash0-supply from device tree Oct 05 07:49:53 localhost kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up flash1-supply from device tree Oct 05 07:49:53 localhost kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up wifi-supply from device tree Oct 05 07:49:53 localhost kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up bb-supply from device tree Oct 05 07:49:53 localhost kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up audio-supply from device tree Oct 05 07:49:53 localhost kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up sdcard-supply from device tree Oct 05 07:49:53 localhost kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up gpio30-supply from device tree Oct 05 07:49:53 localhost kernel: rockchip-iodomain ff770000.syscon:io-domains: Looking up gpio1830-supply from device tree Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0f0000.dwmmc: IDMAC supports 32-bit address mode. Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0f0000.dwmmc: Using internal DMA controller. Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0f0000.dwmmc: Version ID is 270a Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0c0000.dwmmc: IDMAC supports 32-bit address mode. Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0c0000.dwmmc: Using internal DMA controller. Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0c0000.dwmmc: Version ID is 270a Oct 05 07:49:53 localhost kernel: input: gpio-keys as /devices/platform/gpio-keys/input/input1 Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0f0000.dwmmc: DW MMC controller at irq 75,32 bit host data width,256 deep fifo Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0f0000.dwmmc: Looking up vmmc-supply from device tree Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0c0000.dwmmc: DW MMC controller at irq 74,32 bit host data width,256 deep fifo Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0c0000.dwmmc: Looking up vmmc-supply from device tree Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0c0000.dwmmc: Looking up vqmmc-supply from device tree Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0f0000.dwmmc: Looking up vqmmc-supply from device tree Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0f0000.dwmmc: allocated mmc-pwrseq Oct 05 07:49:53 localhost kernel: mmc_host mmc0: card is non-removable. Oct 05 07:49:53 localhost kernel: clk: Disabling unused clocks Oct 05 07:49:53 localhost kernel: usb 3-1: new high-speed USB device number 2 using ehci-platform Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0c0000.dwmmc: Got CD GPIO Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0c0000.dwmmc: Got WP GPIO Oct 05 07:49:53 localhost kernel: ALSA device list: Oct 05 07:49:53 localhost kernel: #0: Denon DJ SC6000 Prime Wheel Display at usb-ff540000.usb-1, high speed Oct 05 07:49:53 localhost kernel: mmc_host mmc0: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) Oct 05 07:49:53 localhost kernel: dw-apb-uart ff690000.serial: forbid DMA for kernel console Oct 05 07:49:53 localhost kernel: Waiting for root device PARTUUID=24d1deac-3434-1a4e-98d1-68ee2945a5f1... Oct 05 07:49:53 localhost kernel: usb 3-1: New USB device found, idVendor=15e4, idProduct=e00d, bcdDevice=60.80 Oct 05 07:49:53 localhost kernel: usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 Oct 05 07:49:53 localhost kernel: usb 3-1: Product: SC6000 PRIME Hub Oct 05 07:49:53 localhost kernel: usb 3-1: Manufacturer: Denon DJ Oct 05 07:49:53 localhost kernel: mmc_host mmc0: Bus speed (slot 0) = 50000000Hz (slot req 52000000Hz, actual 50000000HZ div = 0) Oct 05 07:49:53 localhost kernel: mmc_host mmc0: Bus speed (slot 0) = 148500000Hz (slot req 150000000Hz, actual 148500000HZ div = 0) Oct 05 07:49:53 localhost kernel: hub 3-1:1.0: USB hub found Oct 05 07:49:53 localhost kernel: hub 3-1:1.0: 7 ports detected Oct 05 07:49:53 localhost kernel: mmc_host mmc2: Bus speed (slot 0) = 25000000Hz (slot req 25000000Hz, actual 25000000HZ div = 0) Oct 05 07:49:53 localhost kernel: mmc2: new ultra high speed SDR12 SDIO card at address 0001 Oct 05 07:49:53 localhost kernel: usb 3-1.4: new high-speed USB device number 3 using ehci-platform Oct 05 07:49:53 localhost kernel: usb 3-1.4: New USB device found, idVendor=152d, idProduct=0578, bcdDevice= 2.14 Oct 05 07:49:53 localhost kernel: usb 3-1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3 Oct 05 07:49:53 localhost kernel: usb 3-1.4: Product: USB to ATA/ATAPI Bridge Oct 05 07:49:53 localhost kernel: usb 3-1.4: Manufacturer: JMicron Oct 05 07:49:53 localhost kernel: usb 3-1.4: SerialNumber: 0123456789ABCDEF Oct 05 07:49:53 localhost kernel: scsi host0: uas Oct 05 07:49:53 localhost kernel: scsi 0:0:0:0: Direct-Access JMicron Generic 0214 PQ: 0 ANSI: 6 Oct 05 07:49:53 localhost kernel: usb 3-1.5: new full-speed USB device number 4 using ehci-platform Oct 05 07:49:53 localhost kernel: dwmmc_rockchip ff0f0000.dwmmc: Successfully tuned phase to 347 Oct 05 07:49:53 localhost kernel: mmc0: new HS200 MMC card at address 0001 Oct 05 07:49:53 localhost kernel: mmcblk0: mmc0:0001 008GB0 7.28 GiB Oct 05 07:49:53 localhost kernel: mmcblk0: p1 p2 p3 p4 p5 p6 p7 Oct 05 07:49:53 localhost kernel: mmcblk0boot0: mmc0:0001 008GB0 4.00 MiB Oct 05 07:49:53 localhost kernel: usb 3-1.5: language id specifier not provided by device, defaulting to English Oct 05 07:49:53 localhost kernel: usb 3-1.5: New USB device found, idVendor=15e4, idProduct=800d, bcdDevice= 0.16 Oct 05 07:49:53 localhost kernel: usb 3-1.5: New USB device strings: Mfr=1, Product=2, SerialNumber=0 Oct 05 07:49:53 localhost kernel: usb 3-1.5: Product: SC6000 Prime Controller Oct 05 07:49:53 localhost kernel: usb 3-1.5: Manufacturer: Denon DJ Oct 05 07:49:53 localhost kernel: mmcblk0boot1: mmc0:0001 008GB0 4.00 MiB Oct 05 07:49:53 localhost kernel: mmcblk0rpmb: mmc0:0001 008GB0 4.00 MiB, chardev (245:0) Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Unit Not Ready Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Sense Key : 0x4 [current] Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] ASC=0x44 <<vendor>>ASCQ=0x81 Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Read Capacity(16) failed: Result: hostbyte=0x00 driverbyte=DRIVER_OK Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Sense Key : 0x4 [current] Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] ASC=0x44 <<vendor>>ASCQ=0x81 Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Read Capacity(10) failed: Result: hostbyte=0x00 driverbyte=DRIVER_OK Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Sense Key : 0x4 [current] Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] ASC=0x44 <<vendor>>ASCQ=0x81 Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] 0 512-byte logical blocks: (0 B/0 B) Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] 0-byte physical blocks Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Test WP failed, assume Write Enabled Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Asking for cache data failed Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Assuming drive cache: write through Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Preferred minimum I/O size 4096 bytes not a multiple of physical block size (0 bytes) Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Optimal transfer size 33553920 bytes not a multiple of physical block size (0 bytes) Oct 05 07:49:53 localhost kernel: sd 0:0:0:0: [sda] Attached SCSI disk Oct 05 07:49:53 localhost kernel: EXT4-fs (mmcblk0p6): mounted filesystem 0e4504c8-4440-4646-bef5-5749504c43ee ro without journal. Quota mode: disabled. Oct 05 07:49:53 localhost kernel: VFS: Mounted root (ext4 filesystem) readonly on device 179:6. Oct 05 07:49:53 localhost kernel: devtmpfs: mounted Oct 05 07:49:53 localhost kernel: Freeing unused kernel image (initmem) memory: 1024K Oct 05 07:49:53 localhost kernel: Run /sbin/init as init process Oct 05 07:49:53 localhost kernel: with arguments: Oct 05 07:49:53 localhost kernel: /sbin/init Oct 05 07:49:53 localhost kernel: earlyprintk Oct 05 07:49:53 localhost kernel: with environment: Oct 05 07:49:53 localhost kernel: HOME=/ Oct 05 07:49:53 localhost kernel: TERM=linux Oct 05 07:49:53 localhost systemd[1]: systemd 255.21^ running in system mode (-PAM -AUDIT -SELINUX -APPARMOR +IMA -SMACK +SECCOMP -GCRYPT -GNUTLS -OPENSSL +ACL +BLKID -CURL -ELFUTILS -FIDO2 -IDN2 -IDN -IPTC +KMOD -LIBCRYPTSETUP +LIBFDISK -PCRE2 -PWQUALITY -P11KIT -QRENCODE -TPM2 -BZIP2 -LZ4 -XZ -ZLIB +ZSTD -BPF_FRAMEWORK -XKBCOMMON +UTMP -SYSVINIT default-hierarchy=unified) Oct 05 07:49:53 localhost systemd[1]: Detected architecture arm. Oct 05 07:49:53 localhost systemd[1]: No hostname configured, using default hostname. Oct 05 07:49:53 localhost systemd[1]: Hostname set to <localhost>. Oct 05 07:49:53 localhost systemd[1]: Initializing machine ID from random generator. Oct 05 07:49:53 localhost systemd[1]: Installed transient /etc/machine-id file. Oct 05 07:49:53 localhost systemd[1]: Queued start job for default target Multi-User System. Oct 05 07:49:53 localhost systemd[1]: Created slice Slice /system/getty. Oct 05 07:49:53 localhost systemd[1]: Created slice Slice /system/modprobe. Oct 05 07:49:53 localhost systemd[1]: Created slice Slice /system/serial-getty. Oct 05 07:49:53 localhost systemd[1]: Started Dispatch Password Requests to Console Directory Watch. Oct 05 07:49:53 localhost systemd[1]: Started Forward Password Requests to Wall Directory Watch. Oct 05 07:49:53 localhost systemd[1]: Expecting device /dev/disk/by-partuuid/931ad49d-ad59-0849-833a-9bf00af5b60e... Oct 05 07:49:53 localhost systemd[1]: Expecting device /dev/ttyS2... Oct 05 07:49:53 localhost systemd[1]: Reached target Host and Network Name Lookups. Oct 05 07:49:53 localhost systemd[1]: Reached target Path Units. Oct 05 07:49:53 localhost systemd[1]: Reached target Remote File Systems. Oct 05 07:49:53 localhost systemd[1]: Reached target Slice Units. Oct 05 07:49:53 localhost systemd[1]: Reached target Swaps. Oct 05 07:49:53 localhost systemd[1]: Journal Audit Socket was skipped because of an unmet condition check (ConditionSecurity=audit). Oct 05 07:49:53 localhost systemd[1]: Listening on Journal Socket (/dev/log). Oct 05 07:49:53 localhost systemd[1]: Listening on Journal Socket. Oct 05 07:49:53 localhost systemd[1]: Listening on Network Service Netlink Socket. Oct 05 07:49:53 localhost systemd[1]: Listening on udev Control Socket. Oct 05 07:49:53 localhost systemd[1]: Listening on udev Kernel Socket. Oct 05 07:49:53 localhost systemd[1]: Listening on User Database Manager Socket. Oct 05 07:49:53 localhost systemd[1]: Huge Pages File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/mm/hugepages). Oct 05 07:49:53 localhost systemd[1]: POSIX Message Queue File System was skipped because of an unmet condition check (ConditionPathExists=/proc/sys/fs/mqueue). Oct 05 07:49:53 localhost systemd[1]: Mounting Kernel Debug File System... Oct 05 07:49:53 localhost systemd[1]: Kernel Trace File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/tracing). Oct 05 07:49:53 localhost systemd[1]: Mounting Temporary Directory /tmp... Oct 05 07:49:53 localhost systemd[1]: Create List of Static Device Nodes was skipped because of an unmet condition check (ConditionFileNotEmpty=/lib/modules/6.6.119-az01-2025-12-17-rt67/modules.devname). Oct 05 07:49:53 localhost systemd[1]: Starting Load Kernel Module configfs... Oct 05 07:49:53 localhost systemd[1]: Starting Load Kernel Module fuse... Oct 05 07:49:53 localhost systemd[1]: systemd-journald.service: unit configures an IP firewall, but the local system does not support BPF/cgroup firewalling. Oct 05 07:49:53 localhost systemd[1]: systemd-journald.service: (This warning is only shown for the first unit using IP firewalling.) Oct 05 07:49:53 localhost systemd[1]: Starting Journal Service... Oct 05 07:49:53 localhost systemd[1]: Starting Load Kernel Modules... Oct 05 07:49:53 localhost systemd[1]: Starting Generate network units from Kernel command line... Oct 05 07:49:53 localhost systemd[1]: Starting Remount Root and Kernel File Systems... Oct 05 07:49:53 localhost systemd[1]: Starting Create Static Device Nodes in /dev gracefully... Oct 05 07:49:53 localhost systemd-journald[131]: Collecting audit messages is disabled. Oct 05 07:49:53 localhost systemd[1]: Starting Coldplug All udev Devices... Oct 05 07:49:53 localhost kernel: jnl: loading out-of-tree module taints kernel. Oct 05 07:49:53 localhost kernel: jnl: driver (UFSD_HEAD lke_10.9.2_b331, LBD=OFF) Oct 05 07:49:53 localhost kernel: ufsd: module license 'Commercial product' taints kernel. Oct 05 07:49:53 localhost kernel: Disabling lock debugging due to kernel taint Oct 05 07:49:53 localhost kernel: ufsd: module license taints kernel. Oct 05 07:49:53 localhost kernel: ufsd: driver (UFSD_HEAD lke_10.9.2_b331, LBD=OFF, acl, sd2(5), tr) Hfs+J support included Build_for__inMusic_Embedded_k5.4_2021-11-18_lke_10.9.2_b331 Oct 05 07:49:53 localhost kernel: EXT4-fs (mmcblk0p6): re-mounted 0e4504c8-4440-4646-bef5-5749504c43ee. Oct 05 07:49:53 localhost kernel: ufsd: PAGE_SIZE=4K, THREAD_SIZE=8k Oct 05 07:49:53 localhost kernel: ufsd: Kernel .config hash: original 0x8d3f891a, current can't check. Oct 05 07:49:53 localhost kernel: ufsd: 132(systemd-modules): Kernel .config hash: original 0x8d3f891a, current can't check Oct 05 07:49:53 localhost systemd[1]: Mounted Kernel Debug File System. Oct 05 07:49:53 localhost systemd[1]: Mounted Temporary Directory /tmp. Oct 05 07:49:53 localhost systemd[1]: modprobe@configfs.service: Deactivated successfully. Oct 05 07:49:53 localhost systemd[1]: Finished Load Kernel Module configfs. Oct 05 07:49:53 localhost systemd[1]: modprobe@fuse.service: Deactivated successfully. Oct 05 07:49:53 localhost systemd[1]: Finished Load Kernel Module fuse. Oct 05 07:49:53 localhost systemd[1]: Finished Load Kernel Modules. Oct 05 07:49:53 localhost systemd[1]: Finished Generate network units from Kernel command line. Oct 05 07:49:53 localhost systemd[1]: Finished Remount Root and Kernel File Systems. Oct 05 07:49:53 localhost systemd[1]: Mounting FUSE Control File System... Oct 05 07:49:53 localhost systemd[1]: Mounting Kernel Configuration File System... Oct 05 07:49:53 localhost systemd[1]: Rebuild Hardware Database was skipped because of an unmet condition check (ConditionNeedsUpdate=/etc). Oct 05 07:49:53 localhost systemd[1]: Starting Apply Kernel Variables... Oct 05 07:49:53 localhost systemd[1]: Finished Create Static Device Nodes in /dev gracefully. Oct 05 07:49:53 localhost systemd[1]: Mounted FUSE Control File System. Oct 05 07:49:53 localhost systemd[1]: Mounted Kernel Configuration File System. Oct 05 07:49:53 localhost systemd[1]: Create System Users was skipped because no trigger condition checks were met. Oct 05 07:49:53 localhost systemd[1]: Starting Create Static Device Nodes in /dev... Oct 05 07:49:53 localhost systemd[1]: Finished Apply Kernel Variables. Oct 05 07:49:53 localhost systemd[1]: Finished Create Static Device Nodes in /dev. Oct 05 07:49:53 localhost systemd[1]: Reached target Preparation for Local File Systems. Oct 05 07:49:53 localhost systemd-journald[131]: Journal started Oct 05 07:49:53 localhost systemd-journald[131]: Runtime Journal (/run/log/journal/beaca803d1194a8e884f0517da710b13) is 8.0M, max 64.0M, 56.0M free. Oct 05 07:49:52 localhost systemd-modules-load[132]: Inserted module 'ufsd' Oct 05 07:49:53 localhost systemd-sysctl[144]: Couldn't write '1' to 'net/ipv4/tcp_syncookies', ignoring: No such file or directory Oct 05 07:49:53 localhost systemd[1]: Mounting Mount /media... Oct 05 07:49:53 localhost systemd[1]: Mounting Mount /secure-media... Oct 05 07:49:53 localhost systemd[1]: Starting Rule-based Manager for Device Events and Files... Oct 05 07:49:53 localhost systemd[1]: Started Journal Service. Oct 05 07:49:53 localhost systemd[1]: Mounted Mount /media. Oct 05 07:49:53 localhost systemd[1]: Mounted Mount /secure-media. Oct 05 07:49:53 localhost systemd-udevd[150]: Using default interface naming scheme 'v255'. Oct 05 07:49:53 localhost systemd[1]: Started Rule-based Manager for Device Events and Files. Oct 05 07:49:53 localhost (udev-worker)[173]: eth0: Failed to get driver for 'eth0': Device or resource busy Oct 05 07:49:53 localhost systemd[1]: Found device /dev/ttyS2. Oct 05 07:49:54 localhost systemd[1]: Finished Coldplug All udev Devices. Oct 05 07:49:54 localhost kernel: Bluetooth: HCI UART driver ver 2.3 Oct 05 07:49:54 localhost kernel: Bluetooth: HCI UART protocol H4 registered Oct 05 07:49:54 localhost kernel: hci_uart_bcm serial0-0: Looking up vbat-supply from device tree Oct 05 07:49:54 localhost kernel: hci_uart_bcm serial0-0: Looking up vbat-supply property in node /serial@ff180000/bluetooth failed Oct 05 07:49:54 localhost kernel: hci_uart_bcm serial0-0: supply vbat not found, using dummy regulator Oct 05 07:49:54 localhost kernel: hci_uart_bcm serial0-0: Looking up vddio-supply from device tree Oct 05 07:49:54 localhost kernel: hci_uart_bcm serial0-0: Looking up vddio-supply property in node /serial@ff180000/bluetooth failed Oct 05 07:49:54 localhost kernel: hci_uart_bcm serial0-0: supply vddio not found, using dummy regulator Oct 05 07:49:54 localhost kernel: Bluetooth: HCI UART protocol Broadcom registered Oct 05 07:49:54 localhost kernel: cfg80211: Loading compiled-in X.509 certificates for regulatory database Oct 05 07:49:54 localhost kernel: jp07-audio sound: jp07_get_dai_fmt: gpio_val=-1, fmt=0x00001001 Oct 05 07:49:54 localhost kernel: jp07-codec sound-codec: jp07_codec_set_bias_level: 0 -> 1; mute=1 Oct 05 07:49:54 localhost kernel: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7' Oct 05 07:49:54 localhost kernel: Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600' Oct 05 07:49:54 localhost kernel: Bluetooth: hci0: BCM: chip id 130 Oct 05 07:49:54 localhost kernel: Bluetooth: hci0: BCM: features 0x0f Oct 05 07:49:54 localhost kernel: Bluetooth: hci0: BCM4345C5 Oct 05 07:49:54 localhost kernel: Bluetooth: hci0: BCM4345C5 (003.006.006) build 0000 Oct 05 07:49:54 localhost kernel: Bluetooth: hci0: BCM4345C5 'brcm/BCM4345C5.hcd' Patch Oct 05 07:49:54 localhost kernel: brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43456-sdio for chip BCM4345/9 Oct 05 07:49:54 localhost kernel: brcmfmac mmc2:0001:1: Direct firmware load for brcm/brcmfmac43456-sdio.inmusic,jp13.bin failed with error -2 Oct 05 07:49:54 localhost kernel: brcmfmac mmc2:0001:1: Direct firmware load for brcm/brcmfmac43456-sdio.clm_blob failed with error -2 Oct 05 07:49:55 localhost systemd[1]: Found device /dev/disk/by-partuuid/931ad49d-ad59-0849-833a-9bf00af5b60e. Oct 05 07:49:55 localhost kernel: brcmfmac: brcmf_c_process_clm_blob: no clm_blob available (err=-2), device may have limited channels available Oct 05 07:49:55 localhost kernel: brcmfmac: brcmf_c_process_txcap_blob: no txcap_blob available (err=-2) Oct 05 07:49:55 localhost kernel: brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM4345/9 wl0: Oct 31 2024 03:00:50 version 7.45.96.217 (gadbea8c5) FWID 01-dde3796b Oct 05 07:49:55 localhost systemd[1]: Reached target Sound Card. Oct 05 07:49:55 localhost systemd[1]: Reached target Hardware activated USB gadget. Oct 05 07:49:55 localhost systemd[1]: Huge Pages File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/mm/hugepages). Oct 05 07:49:55 localhost systemd[1]: POSIX Message Queue File System was skipped because of an unmet condition check (ConditionPathExists=/proc/sys/fs/mqueue). Oct 05 07:49:55 localhost systemd[1]: Kernel Trace File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/tracing). Oct 05 07:49:55 localhost systemd[1]: Starting Create /data filesystem if necessary... Oct 05 07:49:55 localhost systemd[1]: Create List of Static Device Nodes was skipped because of an unmet condition check (ConditionFileNotEmpty=/lib/modules/6.6.119-az01-2025-12-17-rt67/modules.devname). Oct 05 07:49:55 localhost systemd[1]: Rebuild Hardware Database was skipped because of an unmet condition check (ConditionNeedsUpdate=/etc). Oct 05 07:49:55 localhost systemd[1]: Create System Users was skipped because no trigger condition checks were met. Oct 05 07:49:55 localhost az0x-data-mkfs[228]: tune2fs 1.47.0 (5-Feb-2023) Oct 05 07:49:55 localhost az0x-data-mkfs[228]: Recovering journal. Oct 05 07:49:55 localhost az0x-data-mkfs[231]: e2fsck 1.47.0 (5-Feb-2023) Oct 05 07:49:55 localhost az0x-data-mkfs[231]: az01-data primary superblock features different from backup, check forced. Oct 05 07:49:55 localhost az0x-data-mkfs[231]: Pass 1: Checking inodes, blocks, and sizes Oct 05 07:49:55 localhost az0x-data-mkfs[231]: Pass 2: Checking directory structure Oct 05 07:49:55 localhost az0x-data-mkfs[231]: Pass 3: Checking directory connectivity Oct 05 07:49:55 localhost az0x-data-mkfs[231]: Pass 4: Checking reference counts Oct 05 07:49:55 localhost az0x-data-mkfs[231]: Pass 5: Checking group summary information Oct 05 07:49:55 localhost az0x-data-mkfs[231]: Free blocks count wrong (1701178, counted=1701177). Oct 05 07:49:55 localhost az0x-data-mkfs[231]: Fix? yes Oct 05 07:49:55 localhost az0x-data-mkfs[231]: Feature orphan_present is set but orphan file is clean. Oct 05 07:49:55 localhost az0x-data-mkfs[231]: Clear? yes Oct 05 07:49:55 localhost az0x-data-mkfs[231]: az01-data: ***** FILE SYSTEM WAS MODIFIED ***** Oct 05 07:49:55 localhost az0x-data-mkfs[231]: az01-data: 877/445280 files (6.4% non-contiguous), 77378/1778555 blocks Oct 05 07:49:55 localhost systemd[1]: Finished Create /data filesystem if necessary. Oct 05 07:49:55 localhost systemd[1]: Mounting Mount /data... Oct 05 07:49:55 localhost kernel: EXT4-fs (mmcblk0p7): mounted filesystem 4edde164-86b9-11f1-a657-411c475a56fb r/w with ordered data mode. Quota mode: disabled. Oct 05 07:49:55 localhost systemd[1]: Mounted Mount /data. Oct 05 07:49:55 localhost systemd[1]: Mounting Mount /media/az01-internal... Oct 05 07:49:55 localhost systemd[1]: Starting Setup directories for overlayfs mounts... Oct 05 07:49:55 localhost systemd[1]: Mounted Mount /media/az01-internal. Oct 05 07:49:55 localhost systemd[1]: Finished Setup directories for overlayfs mounts. Oct 05 07:49:55 localhost systemd[1]: etc.mount: Directory /etc to mount over is not empty, mounting anyway. Oct 05 07:49:55 localhost systemd[1]: Mounting Writable /etc via OverlayFS... Oct 05 07:49:55 localhost kernel: Bluetooth: hci0: BCM: features 0x0f Oct 05 07:49:55 localhost systemd[1]: var.mount: Directory /var to mount over is not empty, mounting anyway. Oct 05 07:49:55 localhost kernel: Bluetooth: hci0: BCM4345C5 Ampak_CL1 UART 37.4 MHz BT 5.2 [Version: 1021.1043] Oct 05 07:49:55 localhost kernel: Bluetooth: hci0: BCM4345C5 (003.006.006) build 1043 Oct 05 07:49:55 localhost systemd[1]: Mounting Writable /var via OverlayFS... Oct 05 07:49:55 localhost systemd[1]: Mounted Writable /etc via OverlayFS. Oct 05 07:49:55 localhost systemd[1]: Mounted Writable /var via OverlayFS. Oct 05 07:49:55 localhost systemd[1]: Listening on Load/Save RF Kill Switch Status /dev/rfkill Watch. Oct 05 07:49:55 localhost systemd[1]: Mounting /var/volatile... Oct 05 07:49:55 localhost systemd[1]: Starting Fix transient machine-id after mounting /etc... Oct 05 07:49:55 localhost systemd[1]: Starting Hostname setup for AZ0x... Oct 05 07:49:55 localhost systemd[1]: Starting Flush Journal to Persistent Storage... Oct 05 07:49:55 localhost systemd[1]: Mounted /var/volatile. Oct 05 07:49:56 sc6000 systemd[1]: Finished Fix transient machine-id after mounting /etc. Oct 05 07:49:56 sc6000 systemd-journald[131]: Runtime Journal (/run/log/journal/beaca803d1194a8e884f0517da710b13) is 8.0M, max 64.0M, 56.0M free. Oct 05 07:49:56 sc6000 systemd-journald[131]: Received client request to flush runtime journal. Oct 05 07:49:56 sc6000 systemd[1]: Finished Hostname setup for AZ0x. Oct 05 07:49:56 sc6000 systemd[1]: Finished Flush Journal to Persistent Storage. Oct 05 07:49:56 sc6000 systemd[1]: Starting Load/Save RF Kill Switch Status... Oct 05 07:49:56 sc6000 systemd[1]: Bind mount volatile /var/cache was skipped because of an unmet condition check (ConditionPathIsReadWrite=!/var/cache). Oct 05 07:49:56 sc6000 systemd[1]: Bind mount volatile /var/lib was skipped because of an unmet condition check (ConditionPathIsReadWrite=!/var/lib). Oct 05 07:49:56 sc6000 systemd[1]: Starting Load/Save OS Random Seed... Oct 05 07:49:56 sc6000 systemd[1]: Bind mount volatile /var/spool was skipped because of an unmet condition check (ConditionPathIsReadWrite=!/var/spool). Oct 05 07:49:56 sc6000 systemd[1]: Starting Bind mount volatile /srv... Oct 05 07:49:56 sc6000 systemd[1]: Started Load/Save RF Kill Switch Status. Oct 05 07:49:56 sc6000 systemd-random-seed[263]: Kernel entropy pool is not initialized yet, waiting until it is. Oct 05 07:49:56 sc6000 systemd[1]: Finished Bind mount volatile /srv. Oct 05 07:49:56 sc6000 systemd[1]: Reached target Local File Systems. Oct 05 07:49:56 sc6000 systemd[1]: Rebuild Dynamic Linker Cache was skipped because no trigger condition checks were met. Oct 05 07:49:56 sc6000 systemd[1]: Starting Create System Files and Directories... Oct 05 07:49:56 sc6000 systemd-tmpfiles[270]: /usr/lib/tmpfiles.d/systemd-resolve.conf:10: Duplicate line for path "/etc/resolv.conf", ignoring. Oct 05 07:49:56 sc6000 systemd-tmpfiles[270]: /usr/lib/tmpfiles.d/tmp.conf:12: Duplicate line for path "/var/tmp", ignoring. Oct 05 07:49:56 sc6000 systemd-tmpfiles[270]: /usr/lib/tmpfiles.d/var.conf:14: Duplicate line for path "/var/log", ignoring. Oct 05 07:49:56 sc6000 systemd[1]: Finished Create System Files and Directories. Oct 05 07:49:56 sc6000 systemd[1]: Rebuild Journal Catalog was skipped because of an unmet condition check (ConditionNeedsUpdate=/var). Oct 05 07:49:56 sc6000 systemd[1]: Starting Network Name Resolution... Oct 05 07:49:56 sc6000 systemd[1]: Starting Network Time Synchronization... Oct 05 07:49:56 sc6000 systemd[1]: Update is Completed was skipped because no trigger condition checks were met. Oct 05 07:49:56 sc6000 systemd[1]: Starting Record System Boot/Shutdown in UTMP... Oct 05 07:49:56 sc6000 systemd[1]: Starting User Database Manager... Oct 05 07:49:56 sc6000 systemd[1]: Finished Record System Boot/Shutdown in UTMP. Oct 05 07:49:56 sc6000 systemd[1]: Started User Database Manager. Oct 05 07:49:57 sc6000 systemd[1]: Started Network Time Synchronization. Oct 05 07:49:57 sc6000 systemd[1]: Reached target System Time Set. Oct 05 07:49:57 sc6000 systemd-resolved[273]: Positive Trust Anchors: Oct 05 07:49:57 sc6000 systemd-resolved[273]: . IN DS 20326 8 2 e06d44b80b8f1d39a95c0b0d7c65d08458e880409bbc683457104237c7f8ec8d Oct 05 07:49:57 sc6000 systemd-resolved[273]: . IN DS 38696 8 2 683d2d0acb8c9b712a1948b27f741219298d0a450d612c483af444a4c0fb2b16 Oct 05 07:49:57 sc6000 systemd-resolved[273]: Negative trust anchors: home.arpa 10.in-addr.arpa 16.172.in-addr.arpa 17.172.in-addr.arpa 18.172.in-addr.arpa 19.172.in-addr.arpa 20.172.in-addr.arpa 21.172.in-addr.arpa 22.172.in-addr.arpa 23.172.in-addr.arpa 24.172.in-addr.arpa 25.172.in-addr.arpa 26.172.in-addr.arpa 27.172.in-addr.arpa 28.172.in-addr.arpa 29.172.in-addr.arpa 30.172.in-addr.arpa 31.172.in-addr.arpa 170.0.0.192.in-addr.arpa 171.0.0.192.in-addr.arpa 168.192.in-addr.arpa d.f.ip6.arpa ipv4only.arpa resolver.arpa corp home internal intranet lan local private test Oct 05 07:49:57 sc6000 systemd-resolved[273]: Using system hostname 'sc6000'. Oct 05 07:49:57 sc6000 systemd[1]: Started Network Name Resolution. Oct 05 07:49:57 sc6000 systemd[1]: Reached target System Initialization. Oct 05 07:49:57 sc6000 systemd[1]: Started Daily Cleanup of Temporary Directories. Oct 05 07:49:57 sc6000 systemd[1]: Reached target Timer Units. Oct 05 07:49:57 sc6000 systemd[1]: Listening on Avahi mDNS/DNS-SD Stack Activation Socket. Oct 05 07:49:57 sc6000 systemd[1]: Listening on D-Bus System Message Bus Socket. Oct 05 07:49:57 sc6000 systemd[1]: Reached target Socket Units. Oct 05 07:49:57 sc6000 systemd[1]: Reached target Basic System. Oct 05 07:49:57 sc6000 systemd[1]: Started AZ01 power button emergency shutdown service. Oct 05 07:49:57 sc6000 az01-pwrbtn[284]: AZ01 power button daemon v0.3 Oct 05 07:49:57 sc6000 kernel: random: crng init done Oct 05 07:49:57 sc6000 systemd[1]: Started AZ01 JMicron USB-SATA bridge configuration fixer. Oct 05 07:49:57 sc6000 systemd[1]: Starting AZ0x system info logging... Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: AZ01 USB-SATA bridge fixer v0.7 Oct 05 07:49:57 sc6000 systemd[1]: Starting Bluetooth service... Oct 05 07:49:57 sc6000 systemd[1]: Starting D-Bus System Message Bus... Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0boot0 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0boot1 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p1 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p2 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p3 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p4 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p5 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p6 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p7 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/platform/ff500000.usb/usb3/3-1/3-1.4/3-1.4:1.0/host0/target0:0:0/0:0:0:0/block/sda Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: found SATA device /dev/sda Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: skipping device: firmware version 00020104 > 00010006 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/virtual/block/loop0 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/virtual/block/loop1 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/virtual/block/loop2 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/virtual/block/loop3 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/virtual/block/loop4 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/virtual/block/loop5 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/virtual/block/loop6 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/virtual/block/loop7 Oct 05 07:49:57 sc6000 az01-usbsata-fixer[285]: examining device /sys/devices/virtual/block/ram0 Oct 05 07:49:57 sc6000 az0x-info[286]: hardware Oct 05 07:49:57 sc6000 az0x-info[286]: ======== Oct 05 07:49:57 sc6000 az0x-info[286]: product-code: JP13 Oct 05 07:49:57 sc6000 az0x-info[286]: board: AZ01brN Oct 05 07:49:57 sc6000 az0x-info[286]: serial-sanitized: A121032485xxxxx Oct 05 07:49:57 sc6000 az0x-info[286]: cpuid-sanitized: URKV09007??????? Oct 05 07:49:57 sc6000 az0x-info[286]: gpu: r1p0 Oct 05 07:49:57 sc6000 az0x-info[286]: usb-hub: USB5537B-6080 Oct 05 07:49:57 sc6000 az0x-info[286]: panel: urt,umo-p080md-t Oct 05 07:49:57 sc6000 az0x-info[286]: touch-panel: ili2118 Oct 05 07:49:57 sc6000 az0x-info[286]: wireless-chip: AP6256 Oct 05 07:49:57 sc6000 az0x-info[286]: secure-boot: 0 Oct 05 07:49:57 sc6000 az0x-info[286]: emmc-manfid: 0x000011 Oct 05 07:49:57 sc6000 az0x-info[286]: emmc-oemid: 0x0100 Oct 05 07:49:57 sc6000 az0x-info[286]: emmc-name: 008GB0 Oct 05 07:49:57 sc6000 az0x-info[286]: emmc-prv: 0x0 Oct 05 07:49:57 sc6000 az0x-info[286]: emmc-fwrev: 0x0300000000000000 Oct 05 07:49:57 sc6000 az0x-info[286]: emmc-date: 01/2020 Oct 05 07:49:57 sc6000 az0x-info[286]: emmc-size: 15269888 Oct 05 07:49:57 sc6000 az0x-info[286]: software Oct 05 07:49:57 sc6000 az0x-info[286]: ======== Oct 05 07:49:57 sc6000 az0x-info[286]: linux: 6.6.119-az01-2025-12-17-rt67 Oct 05 07:49:57 sc6000 az0x-info[286]: gpu-driver: panfrost Oct 05 07:49:57 sc6000 az0x-info[286]: bootloader: U-Boot 2016.05-inmusic-20200917 Oct 05 07:49:57 sc6000 az0x-info[286]: buildroot: 5.0.14 (scarthgap) Oct 05 07:49:57 sc6000 az0x-info[286]: az01: b0cd31c0 Oct 05 07:49:57 sc6000 az0x-info[286]: touch-firmware: 2.0 Oct 05 07:49:57 sc6000 az0x-info[286]: usage Oct 05 07:49:57 sc6000 az0x-info[286]: ===== Oct 05 07:49:57 sc6000 az0x-info[286]: emmc-lifetime: 0x01 0x00 Oct 05 07:49:57 sc6000 az0x-info[286]: emmc-pre-eol-status: 0x01 Oct 05 07:49:57 sc6000 systemd[1]: Started Getty on tty1. Oct 05 07:49:57 sc6000 (uetoothd)[287]: bluetooth.service: ConfigurationDirectory 'bluetooth' already exists but the mode is different. (File system: 755 ConfigurationDirectoryMode: 555) Oct 05 07:49:57 sc6000 systemd[1]: Starting IPv6 Packet Filtering Framework... Oct 05 07:49:57 sc6000 systemd[1]: Starting IPv4 Packet Filtering Framework... Oct 05 07:49:57 sc6000 systemd[1]: Started Serial Getty on ttyS2. Oct 05 07:49:57 sc6000 systemd[1]: Reached target Login Prompts. Oct 05 07:49:57 sc6000 systemd[1]: Firmware update for Ilitek touchscreens was skipped because no trigger condition checks were met. Oct 05 07:49:57 sc6000 systemd[1]: Starting Engine... Oct 05 07:49:57 sc6000 systemd[1]: Finished Load/Save OS Random Seed. Oct 05 07:49:57 sc6000 systemd[1]: Finished AZ0x system info logging. Oct 05 07:49:57 sc6000 systemd[1]: Finished IPv6 Packet Filtering Framework. Oct 05 07:49:57 sc6000 systemd[1]: Started D-Bus System Message Bus. Oct 05 07:49:57 sc6000 runengine[293]: Setting up prerequisites... Oct 05 07:49:57 sc6000 JP13[295]: Setting up prerequisites... Oct 05 07:49:57 sc6000 systemd[1]: Finished IPv4 Packet Filtering Framework. Oct 05 07:49:57 sc6000 systemd[1]: First Boot Complete was skipped because of an unmet condition check (ConditionFirstBoot=yes). Oct 05 07:49:57 sc6000 runengine[306]: Setting ffa30000 to CPU: 1 Oct 05 07:49:57 sc6000 systemd[1]: Reached target Preparation for Network. Oct 05 07:49:57 sc6000 runengine[312]: Setting ffb20000 to CPU: 3 Oct 05 07:49:57 sc6000 runengine[316]: sh -c echo $1 > /proc/irq/$2/smp_affinity_list -- 3 45 Oct 05 07:49:57 sc6000 systemd[1]: Starting Connection service... Oct 05 07:49:57 sc6000 runengine[316]: sh -c echo $1 > /proc/irq/$2/smp_affinity_list -- 3 46 Oct 05 07:49:57 sc6000 runengine[319]: Setting eth0 to CPU: 1 Oct 05 07:49:57 sc6000 systemd[1]: Starting Commit a transient machine-id on disk... Oct 05 07:49:57 sc6000 bluetoothd[287]: Bluetooth daemon 5.72 Oct 05 07:49:57 sc6000 runengine[326]: Setting ehci_hcd to CPU: 1 Oct 05 07:49:57 sc6000 bluetoothd[287]: Starting SDP server Oct 05 07:49:57 sc6000 systemd[1]: Starting Network Configuration... Oct 05 07:49:57 sc6000 bluetoothd[287]: /usr/src/debug/bluez5/5.72/src/plugin.c:plugin_init() System does not support csip plugin Oct 05 07:49:57 sc6000 bluetoothd[287]: /usr/src/debug/bluez5/5.72/profiles/audio/micp.c:micp_init() D-Bus experimental not enabled Oct 05 07:49:57 sc6000 bluetoothd[287]: /usr/src/debug/bluez5/5.72/src/plugin.c:plugin_init() System does not support micp plugin Oct 05 07:49:57 sc6000 bluetoothd[287]: /usr/src/debug/bluez5/5.72/src/plugin.c:plugin_init() System does not support vcp plugin Oct 05 07:49:57 sc6000 bluetoothd[287]: /usr/src/debug/bluez5/5.72/src/plugin.c:plugin_init() System does not support mcp plugin Oct 05 07:49:57 sc6000 bluetoothd[287]: /usr/src/debug/bluez5/5.72/src/plugin.c:plugin_init() System does not support bass plugin Oct 05 07:49:57 sc6000 bluetoothd[287]: /usr/src/debug/bluez5/5.72/src/plugin.c:plugin_init() System does not support bap plugin Oct 05 07:49:57 sc6000 kernel: Bluetooth: MGMT ver 1.22 Oct 05 07:49:57 sc6000 systemd[1]: Started Bluetooth service. Oct 05 07:49:57 sc6000 runengine[330]: sh -c echo $1 > /proc/irq/$2/smp_affinity_list -- 1 67 Oct 05 07:49:57 sc6000 bluetoothd[287]: Bluetooth management interface 1.22 initialized Oct 05 07:49:57 sc6000 systemd[1]: Reached target Bluetooth Support. Oct 05 07:49:57 sc6000 dbus-daemon[288]: [system] Activating via systemd: service name='org.freedesktop.hostname1' unit='dbus-org.freedesktop.hostname1.service' requested by ':1.3' (uid=0 pid=287 comm="/usr/libexec/bluetooth/bluetoothd") Oct 05 07:49:57 sc6000 bluetoothd[287]: Battery Provider Manager created Oct 05 07:49:57 sc6000 runengine[333]: Setting ff540000 to CPU: 1 Oct 05 07:49:57 sc6000 runengine[338]: sh -c echo $1 > /proc/irq/$2/smp_affinity_list -- 1 65 Oct 05 07:49:57 sc6000 runengine[296]: /usr/Engine/Scripts/setup-prerequisites.sh: line 22: can't create /sys/bus/platform/devices/sd-mux/state: nonexistent directory Oct 05 07:49:57 sc6000 systemd[1]: Starting Hostname Service... Oct 05 07:49:57 sc6000 runengine[296]: /usr/Engine/Scripts/setup-prerequisites.sh: line 40: can't create /sys/class/graphics/fb0/vsync_on_pan: Permission denied Oct 05 07:49:57 sc6000 runengine[293]: Starting application ... Oct 05 07:49:57 sc6000 JP13[347]: Starting application ... Oct 05 07:49:57 sc6000 runengine[293]: JP13 start done. Oct 05 07:49:57 sc6000 JP13[349]: JP13 start done. Oct 05 07:49:57 sc6000 systemd[1]: Started Engine. Oct 05 07:49:57 sc6000 systemd[1]: Finished Commit a transient machine-id on disk. Oct 05 07:49:57 sc6000 runengine[348]: Screen rotation is set to -90 Oct 05 07:49:57 sc6000 systemd[1]: Started Connection service. Oct 05 07:49:57 sc6000 time[311]: Connection Manager version 1.42 Oct 05 07:49:57 sc6000 systemd[1]: Starting Avahi mDNS/DNS-SD Stack... Oct 05 07:49:57 sc6000 runengine[351]: Encrypting /data/downloads [Done] Oct 05 07:49:58 sc6000 runengine[351]: Encrypting /data/stems [Done] Oct 05 07:49:58 sc6000 time[311]: iptables support missing error 2 (No such file or directory) Oct 05 07:49:58 sc6000 time[311]: Failed to flush table 'mangle': Invalid argument Oct 05 07:49:58 sc6000 kernel: rk_gmac-dwmac ff290000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0 Oct 05 07:49:58 sc6000 avahi-daemon[364]: Found user 'avahi' (UID 998) and group 'avahi' (GID 997). Oct 05 07:49:58 sc6000 avahi-daemon[364]: Successfully dropped root privileges. Oct 05 07:49:58 sc6000 avahi-daemon[364]: avahi-daemon 0.8 starting up. Oct 05 07:49:58 sc6000 systemd[1]: Started Avahi mDNS/DNS-SD Stack. Oct 05 07:49:58 sc6000 avahi-daemon[364]: Successfully called chroot(). Oct 05 07:49:58 sc6000 avahi-daemon[364]: Successfully dropped remaining capabilities. Oct 05 07:49:58 sc6000 avahi-daemon[379]: /usr/src/debug/avahi/0.8/avahi-daemon/chroot.c: open() failed: No such file or directory Oct 05 07:49:58 sc6000 avahi-daemon[364]: Failed to open /etc/resolv.conf: Invalid argument Oct 05 07:49:58 sc6000 avahi-daemon[364]: No service file found in /etc/avahi/services. Oct 05 07:49:58 sc6000 avahi-daemon[364]: *** WARNING: Detected another IPv4 mDNS stack running on this host. This makes mDNS unreliable and is thus not recommended. *** Oct 05 07:49:58 sc6000 avahi-daemon[364]: *** WARNING: Detected another IPv6 mDNS stack running on this host. This makes mDNS unreliable and is thus not recommended. *** Oct 05 07:49:58 sc6000 time[311]: iptables support missing error 2 (No such file or directory) Oct 05 07:49:58 sc6000 time[311]: Failed to flush table 'nat': Invalid argument Oct 05 07:49:58 sc6000 time[311]: Checking loopback interface settings Oct 05 07:49:58 sc6000 kernel: rk_gmac-dwmac ff290000.ethernet eth0: PHY [stmmac-0:01] driver [RTL8211E Gigabit Ethernet] (irq=64) Oct 05 07:49:58 sc6000 kernel: rk_gmac-dwmac ff290000.ethernet eth0: No Safety Features support found Oct 05 07:49:58 sc6000 kernel: rk_gmac-dwmac ff290000.ethernet eth0: PTP not supported by HW Oct 05 07:49:58 sc6000 kernel: rk_gmac-dwmac ff290000.ethernet eth0: configuring for phy/rgmii link mode Oct 05 07:49:58 sc6000 time[311]: System hostname is sc6000 Oct 05 07:49:58 sc6000 avahi-daemon[364]: Joining mDNS multicast group on interface lo.IPv6 with address ::1. Oct 05 07:49:58 sc6000 avahi-daemon[364]: New relevant interface lo.IPv6 for mDNS. Oct 05 07:49:58 sc6000 avahi-daemon[364]: Joining mDNS multicast group on interface lo.IPv4 with address 127.0.0.1. Oct 05 07:49:58 sc6000 avahi-daemon[364]: New relevant interface lo.IPv4 for mDNS. Oct 05 07:49:58 sc6000 avahi-daemon[364]: Network interface enumeration completed. Oct 05 07:49:58 sc6000 avahi-daemon[364]: Registering new address record for ::1 on lo.*. Oct 05 07:49:58 sc6000 avahi-daemon[364]: Registering new address record for 127.0.0.1 on lo.IPv4. Oct 05 07:49:58 sc6000 kernel: process '/usr/Engine/Engine' started with executable stack Oct 05 07:49:58 sc6000 dbus-daemon[288]: [system] Activating via systemd: service name='fi.w1.wpa_supplicant1' unit='wpa_supplicant.service' requested by ':1.4' (uid=0 pid=311 comm="/usr/sbin/connmand -n") Oct 05 07:49:58 sc6000 time[311]: eth0 {create} index 2 type 1 <ETHER> Oct 05 07:49:58 sc6000 time[311]: eth0 {update} flags 4099 <UP> Oct 05 07:49:58 sc6000 time[311]: eth0 {newlink} index 2 address 00:05:95:xx:xx:xx mtu 1500 Oct 05 07:49:58 sc6000 time[311]: eth0 {newlink} index 2 operstate 2 <DOWN> Oct 05 07:49:58 sc6000 time[311]: Adding interface eth0 [ ethernet ] Oct 05 07:49:58 sc6000 time[311]: lo {newlink} index 1 address 00:00:00:00:00:00 mtu 65536 Oct 05 07:49:58 sc6000 time[311]: lo {newlink} index 1 operstate 0 <UNKNOWN> Oct 05 07:49:58 sc6000 time[311]: eth0 {newlink} index 2 address 00:05:95:xx:xx:xx mtu 1500 Oct 05 07:49:58 sc6000 time[311]: eth0 {newlink} index 2 operstate 2 <DOWN> Oct 05 07:49:58 sc6000 time[311]: sit0 {newlink} index 3 address 00:00:00:00:08:00 mtu 1480 Oct 05 07:49:58 sc6000 time[311]: sit0 {newlink} index 3 operstate 2 <DOWN> Oct 05 07:49:58 sc6000 time[311]: wlan0 {create} index 4 type 1 <ETHER> Oct 05 07:49:58 sc6000 time[311]: wlan0 {update} flags 4098 <DOWN> Oct 05 07:49:58 sc6000 time[311]: wlan0 {newlink} index 4 address 10:2C:6B:xx:xx:xx mtu 1500 Oct 05 07:49:58 sc6000 time[311]: wlan0 {newlink} index 4 operstate 2 <DOWN> Oct 05 07:49:58 sc6000 time[311]: Adding interface wlan0 [ wifi ] Oct 05 07:49:58 sc6000 systemd[1]: Starting WPA supplicant... Oct 05 07:49:58 sc6000 systemd-networkd[325]: lo: Link UP Oct 05 07:49:58 sc6000 systemd-networkd[325]: lo: Gained carrier Oct 05 07:49:58 sc6000 systemd-networkd[325]: eth0: Link UP Oct 05 07:49:58 sc6000 systemd-networkd[325]: Enumeration completed Oct 05 07:49:58 sc6000 systemd[1]: Started Network Configuration. Oct 05 07:49:58 sc6000 systemd-networkd[325]: eth0: found matching network '/usr/lib/systemd/network/69-default.network', based on potentially unpredictable interface name. Oct 05 07:49:58 sc6000 dbus-daemon[288]: [system] Successfully activated service 'fi.w1.wpa_supplicant1' Oct 05 07:49:58 sc6000 systemd[1]: Started WPA supplicant. Oct 05 07:49:58 sc6000 wpa_supplicant[385]: Successfully initialized wpa_supplicant Oct 05 07:49:58 sc6000 systemd[1]: Reached target Network. Oct 05 07:49:58 sc6000 systemd[1]: Started AZ01 script runner service. Oct 05 07:49:58 sc6000 systemd-networkd[325]: wlan0: Link UP Oct 05 07:49:58 sc6000 time[311]: wlan0 {update} flags 36867 <UP> Oct 05 07:49:58 sc6000 systemd[1]: Reached target Multi-User System. Oct 05 07:49:58 sc6000 time[311]: wlan0 {newlink} index 4 address 10:2C:6B:xx:xx:xx mtu 1500 Oct 05 07:49:58 sc6000 time[311]: wlan0 {newlink} index 4 operstate 2 <DOWN> Oct 05 07:49:58 sc6000 time[311]: wlan0 {newlink} index 4 address 10:2C:6B:xx:xx:xx mtu 1500 Oct 05 07:49:58 sc6000 time[311]: wlan0 {newlink} index 4 operstate 2 <DOWN> Oct 05 07:49:58 sc6000 dbus-daemon[288]: [system] Successfully activated service 'org.freedesktop.hostname1' Oct 05 07:49:58 sc6000 systemd[1]: Started Hostname Service. Oct 05 07:49:58 sc6000 systemd[1]: Startup finished in 9.057s (kernel) + 6.736s (userspace) = 15.794s. Oct 05 07:49:58 sc6000 wpa_supplicant[385]: WPS: Converting push_button to virtual_push_button for WPS 2.0 compliance Oct 05 07:49:58 sc6000 wpa_supplicant[385]: wlan0: Trying to associate with SSID '<redacted>' Oct 05 07:49:58 sc6000 wpa_supplicant[385]: wlan0: CTRL-EVENT-ASSOC-REJECT bssid=00:00:00:00:00:00 status_code=16 Oct 05 07:49:59 sc6000 runengine[384]: DropboxManager: Dropbox application has not been found. Oct 05 07:49:59 sc6000 avahi-daemon[364]: Server startup complete. Host name is sc6000.local. Local service cookie is 604055102. Oct 05 07:49:59 sc6000 runengine[384]: Found screen configuration file at location "/usr/Engine/ScreenConfiguration/Default/ScreenConfiguration.json" Oct 05 07:49:59 sc6000 runengine[384]: Setting QT_QPA_EGLFS_KMS_CONFIG to "/tmp/ScreenConfig.json" Oct 05 07:50:00 sc6000 runengine[384]: RunGuard: tryToRun returning true Oct 05 07:50:00 sc6000 runengine[384]: Flush to zero not applied. This may lead to audio dropouts and/or freezes. Oct 05 07:50:00 sc6000 runengine[384]: Detected locale "C" with character encoding "ANSI_X3.4-1968", which is not UTF-8. Oct 05 07:50:00 sc6000 runengine[384]: Qt depends on a UTF-8 locale, and has switched to "C.UTF-8" instead. Oct 05 07:50:00 sc6000 runengine[384]: If this causes problems, reconfigure your locale. See the locale(1) manual Oct 05 07:50:00 sc6000 runengine[384]: for more information. Oct 05 07:50:00 sc6000 runengine[384]: Failed to create /root/.cache for shader cache (Read-only file system)---disabling. Oct 05 07:50:00 sc6000 runengine[384]: [I] ============================================================================ [EMainPreGui ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [I] Engine - 5.0.4 [EMainPreGui ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [I] ============================================================================ [EMainPreGui ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [I] Command Line Arguments: [EMainPreGui ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [I] -d0 [EMainPreGui ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [I] -loggerOptions [EMainPreGui ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [I] Type, Message, Thread, Category, SplitLongLines [EMainPreGui ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "QmlRefHolder"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "BluetoothDeviceTypes"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "InsertListOptions"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "RemoteDeckPickerContext"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "SpecialTrackFlags"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "StreamingTrackFlags"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "SpecialCategoryFlags"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "TrackLoadSource"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "DeviceModelRoles"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "WifiModelRoles"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "SweepEffect"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "QuadPadsMode"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "StemsDialogActions"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "ZValues"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [W] Invalid QML element name "BrowserSourceRoles"; value type names should begin with a lowercase letter [EPlanckApp ] [qt.qml.typeregistration ] Oct 05 07:50:00 sc6000 runengine[384]: [I] Analytics: true [EPlanckApp ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [ ] IRQ "ttyS0" set to CPU 0 [EPlanckApp ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [ ] IRQ "panfrost" set to CPU 1 [EPlanckApp ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [I] DenonDJ "SC6000 5.0.4 097b837e2d" starting up [EMain ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [I] sentry id: fb173bca-7123-4a7d-a3bd-01900a5c009b [EMain ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [I] session id: 831acb17-ae6f-4c05-8331-c26fc8da7e66 [EMain ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [I] Anonymous Statistics : enabled [EMain ] [ ] Oct 05 07:50:00 sc6000 runengine[412]: [412:412:20261005,075000.550916:INFO retry_upload_thread.cc:39] Start Oct 05 07:50:00 sc6000 runengine[412]: [412:414:20261005,075000.552842:INFO retry_upload_thread.cc:72] report uuid=5ef69922-d8bb-4874-bdfd-39b4c6eb5666, creation time=Fri Aug 21 22:30:43 2026 EDT, uploaded=0, upload_attempts=31 Oct 05 07:50:00 sc6000 runengine[384]: [384:384:20261005,075000.557527:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/5ef69922-d8bb-4874-bdfd-39b4c6eb5666.lock: File exists (17) Oct 05 07:50:00 sc6000 runengine[384]: [384:384:20261005,075000.557749:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/5ef69922-d8bb-4874-bdfd-39b4c6eb5666.lock: File exists (17) Oct 05 07:50:00 sc6000 runengine[384]: [384:384:20261005,075000.557943:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/5ef69922-d8bb-4874-bdfd-39b4c6eb5666.lock: File exists (17) Oct 05 07:50:00 sc6000 runengine[384]: [384:384:20261005,075000.558062:ERROR file_io_posix.cc:153] open /data/AppDataUser/AIR Music Technology/Engine/CrashReportDB/pending/5ef69922-d8bb-4874-bdfd-39b4c6eb5666.lock: File exists (17) Oct 05 07:50:00 sc6000 runengine[384]: [I] Automatic crash reporting: true [EMain ] [ ] Oct 05 07:50:00 sc6000 runengine[412]: [412:413:20261005,075000.588328:ERROR http_transport_libcurl.cc:477] curl_easy_perform: Couldn't connect to server (7) Oct 05 07:50:00 sc6000 kernel: warning: `Network Discove' uses wireless extensions which will stop working for Wi-Fi 7 hardware; use nl80211 Oct 05 07:50:00 sc6000 runengine[384]: [I] Local UUID: "{8a6f7878-be2c-4d68-a895-bdfcf5a26662}" [EMain ] [ ] Oct 05 07:50:00 sc6000 runengine[384]: [W] The port isn't' opened for Midi::Out::SC6000 Prime Wheel Display MIDI [EMain ] [air.devicemanager.midi.o] Oct 05 07:50:00 sc6000 runengine[384]: [W] The port isn't' opened for Midi::Out::SC6000 Prime Controller [EMain ] [air.devicemanager.midi.o] Oct 05 07:50:01 sc6000 runengine[384]: [W] EDisks service claims not to be valid - mounting drives may not work. [EMain ] [air.devicemanager.hotplu] Oct 05 07:50:01 sc6000 runengine[384]: [I] Semantic version: "5.0.4" [EMain ] [ ] Oct 05 07:50:01 sc6000 dbus-daemon[288]: [system] Activating via systemd: service name='io.github.inmusicdev.edisksd' unit='edisksd.service' requested by ':1.9' (uid=0 pid=384 comm="/usr/Engine/Engine -d0 -loggerOptions Type, Messag") Oct 05 07:50:01 sc6000 systemd[1]: Starting Disk mounting service... Oct 05 07:50:01 sc6000 edisksd[430]: Loaded configuration from /etc/edisksd/main.conf Oct 05 07:50:01 sc6000 runengine[384]: [ ] _analyzerApplicationPath "OfflineAnalyzer" [EMain ] [ ] Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0boot0 Oct 05 07:50:01 sc6000 edisksd[430]: setting parent /dev/mmcblk0 for /dev/mmcblk0boot0 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0boot1 Oct 05 07:50:01 sc6000 edisksd[430]: setting parent /dev/mmcblk0 for /dev/mmcblk0boot1 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p1 Oct 05 07:50:01 sc6000 edisksd[430]: setting parent /dev/mmcblk0 for /dev/mmcblk0p1 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p2 Oct 05 07:50:01 sc6000 edisksd[430]: setting parent /dev/mmcblk0 for /dev/mmcblk0p2 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p3 Oct 05 07:50:01 sc6000 edisksd[430]: setting parent /dev/mmcblk0 for /dev/mmcblk0p3 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p4 Oct 05 07:50:01 sc6000 edisksd[430]: setting parent /dev/mmcblk0 for /dev/mmcblk0p4 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p5 Oct 05 07:50:01 sc6000 edisksd[430]: setting parent /dev/mmcblk0 for /dev/mmcblk0p5 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p6 Oct 05 07:50:01 sc6000 edisksd[430]: setting parent /dev/mmcblk0 for /dev/mmcblk0p6 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/platform/ff0f0000.dwmmc/mmc_host/mmc0/mmc0:0001/block/mmcblk0/mmcblk0p7 Oct 05 07:50:01 sc6000 edisksd[430]: setting parent /dev/mmcblk0 for /dev/mmcblk0p7 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/platform/ff500000.usb/usb3/3-1/3-1.4/3-1.4:1.0/host0/target0:0:0/0:0:0:0/block/sda Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/virtual/block/loop0 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/virtual/block/loop1 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/virtual/block/loop2 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/virtual/block/loop3 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/virtual/block/loop4 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/virtual/block/loop5 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/virtual/block/loop6 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/virtual/block/loop7 Oct 05 07:50:01 sc6000 edisksd[430]: initial device: /devices/virtual/block/ram0 Oct 05 07:50:01 sc6000 edisksd[430]: mounted 179:6 at / Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:5 at /dev Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:15 at /proc Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:16 at /sys Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:17 at /dev/shm Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:18 at /dev/pts Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:19 at /run Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:20 at /sys/fs/cgroup Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:19 at /etc/machine-id Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:6 at /sys/kernel/debug Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:21 at /tmp Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:22 at /sys/fs/fuse/connections Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:14 at /sys/kernel/config Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:23 at /media Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:24 at /secure-media Oct 05 07:50:01 sc6000 edisksd[430]: mounted 179:7 at /data Oct 05 07:50:01 sc6000 edisksd[430]: mounted 179:7 at /media/az01-internal Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:25 at /etc Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:28 at /var Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:31 at /var/volatile Oct 05 07:50:01 sc6000 edisksd[430]: mounted 0:32 at /srv Oct 05 07:50:01 sc6000 dbus-daemon[288]: [system] Successfully activated service 'io.github.inmusicdev.edisksd' Oct 05 07:50:01 sc6000 systemd[1]: Started Disk mounting service. Oct 05 07:50:01 sc6000 kernel: fscrypt: AES-256-CTS-CBC using implementation "cts(cbc(aes-generic))" Oct 05 07:50:01 sc6000 runengine[384]: [W] QObject::connect(RemoteHostScreen::SourcesController, RemoteHostScreen::RemoteHostScreenCollectionController): [EMain ] [qt.core.qobject.connect ] Oct 05 07:50:01 sc6000 runengine[384]: [W] invalid nullptr parameter [EMain ] [qt.core.qobject.connect ] Oct 05 07:50:01 sc6000 runengine[384]: [W] There is no databases available! [Queue(0x436deb0] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [W] There is no databases available! [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [I] TimeZone detect started "JP13" "5.0.4" "097b837e2d" [EMain ] [air.planck.controller.ti] Oct 05 07:50:01 sc6000 runengine[384]: [W] EDisks filesystem added: "/io/github/inmusicdev/edisksd/dev/mmcblk0p7" label: "ade3d22e3f9cb15c" [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [I] New device connected: "/io/github/inmusicdev/edisksd/dev/mmcblk0p7" [EMain ] [air.devicemanager.hotplu] Oct 05 07:50:01 sc6000 runengine[384]: [I] "/io/github/inmusicdev/edisksd/dev/mmcblk0p7" mounted at "bd47413b5c03dfc6" [EMain ] [air.devicemanager.hotplu] Oct 05 07:50:01 sc6000 runengine[384]: [I] "/io/github/inmusicdev/edisksd/dev/mmcblk0p7" mounted at "/97227e70daeb56c4" [EMain ] [air.devicemanager.hotplu] Oct 05 07:50:01 sc6000 runengine[384]: [W] EDisks filesystem added: "/io/github/inmusicdev/edisksd/dev/mmcblk0p6" [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [W] fa70e8751d5a8e29lfa70e8751d5a8e29afa70e8751d5a8e29bfa70e8751d5a8e29efa70e8751d5a8e29lfa70e8751d5a8e29:fa70e8751d5a8 [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [W] e29 fa70e8751d5a8e29 fa70e8751d5a8e29"fa70e8751d5a8e29"fa70e8751d5a8e29 [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [I] New device connected: "/io/github/inmusicdev/edisksd/dev/mmcblk0p6" [EMain ] [air.devicemanager.hotplu] Oct 05 07:50:01 sc6000 runengine[384]: [I] "/io/github/inmusicdev/edisksd/dev/mmcblk0p6" mounted at "8a5edab282632443" [EMain ] [air.devicemanager.hotplu] Oct 05 07:50:01 sc6000 runengine[384]: [W] [0x45d8c6c] Job Failed '8425e92e253c42ff' (dbs.empty()) [EMain ] [air.planck.jobcontroller] Oct 05 07:50:01 sc6000 runengine[384]: [W] [0x44572bc] Job Failed '8425e92e253c42ff' (dbs.empty()) [EMain ] [air.planck.jobcontroller] Oct 05 07:50:01 sc6000 runengine[384]: [I] Timezone detect returned with error: "Host api.inmusicbrands.com not found, " [EMain ] [air.planck.controller.ti] Oct 05 07:50:01 sc6000 runengine[384]: [I] Scheduled TimeZone detect retry # 1 [EMain ] [air.planck.controller.ti] Oct 05 07:50:01 sc6000 runengine[384]: [W] QObject::moveToThread: Current thread (0x4348200) is not the object's thread (0x4196cc8). [NetworkExchange] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [W] Cannot move to target thread (0x4348200) [NetworkExchange] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [W] [NetworkExchange] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [ ] Core Dump disabled [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [I] TimeZone detect started "JP13" "5.0.4" "097b837e2d" [EMain ] [air.planck.controller.ti] Oct 05 07:50:01 sc6000 runengine[384]: [W] There is no databases available! [Queue(0x436deb0] [ ] Oct 05 07:50:01 sc6000 kernel: jp07-codec sound-codec: jp07_codec_set_bias_level: 1 -> 2; mute=1 Oct 05 07:50:01 sc6000 kernel: jp07-codec sound-codec: jp07_codec_set_bias_level: 2 -> 3; mute=1 Oct 05 07:50:01 sc6000 runengine[384]: [W] [0x7f7586c] Job Failed '8425e92e253c42ff' (dbs.empty()) [EMain ] [air.planck.jobcontroller] Oct 05 07:50:01 sc6000 runengine[384]: [I] Timezone detect returned with error: "Host api.inmusicbrands.com not found, " [EMain ] [air.planck.controller.ti] Oct 05 07:50:01 sc6000 runengine[384]: [I] Scheduled TimeZone detect retry # 1 [EMain ] [air.planck.controller.ti] Oct 05 07:50:01 sc6000 runengine[384]: [ ] OfflineAnalyzer (1): Detected locale "C" with character encoding "ANSI_X3.4-1968", which is not UTF-8. [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [ ] OfflineAnalyzer (1): Qt depends on a UTF-8 locale, and has switched to "C.UTF-8" instead. [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [ ] OfflineAnalyzer (1): If this causes problems, reconfigure your locale. See the locale(1) manual [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [ ] OfflineAnalyzer (1): for more information. [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [ ] OfflineAnalyzer (0): Detected locale "C" with character encoding "ANSI_X3.4-1968", which is not UTF-8. [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [ ] OfflineAnalyzer (0): Qt depends on a UTF-8 locale, and has switched to "C.UTF-8" instead. [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [ ] OfflineAnalyzer (0): If this causes problems, reconfigure your locale. See the locale(1) manual [EMain ] [ ] Oct 05 07:50:01 sc6000 runengine[384]: [ ] OfflineAnalyzer (0): for more information. [EMain ] [ ] Oct 05 07:50:01 sc6000 time[311]: Bluetooth device /org/bluez/hci0 not enabled Oct 05 07:50:01 sc6000 kernel: EMain[384]: memfd_create() called without MFD_EXEC or MFD_NOEXEC_SEAL set Oct 05 07:50:02 sc6000 wpa_supplicant[385]: wlan0: CTRL-EVENT-REGDOM-CHANGE init=BEACON_HINT type=UNKNOWN Oct 05 07:50:02 sc6000 wpa_supplicant[385]: wlan0: CTRL-EVENT-REGDOM-CHANGE init=BEACON_HINT type=UNKNOWN Oct 05 07:50:02 sc6000 wpa_supplicant[385]: wlan0: Trying to associate with SSID '<redacted>' Oct 05 07:50:02 sc6000 time[311]: wlan0 {RX} 2 packets 198 bytes Oct 05 07:50:02 sc6000 time[311]: wlan0 {TX} 0 packets 0 bytes Oct 05 07:50:02 sc6000 wpa_supplicant[385]: wlan0: Associated with a2:ba:5f:xx:xx:xx Oct 05 07:50:02 sc6000 systemd-networkd[325]: wlan0: Connected WiFi access point: <redacted> (a2:ba:5f:xx:xx:xx) Oct 05 07:50:02 sc6000 time[311]: wlan0 {update} flags 102403 <UP,LOWER_UP> Oct 05 07:50:02 sc6000 time[311]: wlan0 {newlink} index 4 address 10:2C:6B:xx:xx:xx mtu 1500 Oct 05 07:50:02 sc6000 time[311]: wlan0 {newlink} index 4 operstate 5 <DORMANT> Oct 05 07:50:02 sc6000 wpa_supplicant[385]: wlan0: CTRL-EVENT-SUBNET-STATUS-UPDATE status=0 Oct 05 07:50:02 sc6000 wpa_supplicant[385]: wlan0: WPA: Key negotiation completed with a2:ba:5f:xx:xx:xx [PTK=CCMP GTK=CCMP] Oct 05 07:50:02 sc6000 wpa_supplicant[385]: wlan0: CTRL-EVENT-CONNECTED - Connection to a2:ba:5f:xx:xx:xx completed [id=0 id_str=] Oct 05 07:50:02 sc6000 time[311]: wlan0 {add} route fe80:: gw :: scope 0 <UNIVERSE> Oct 05 07:50:02 sc6000 systemd-networkd[325]: wlan0: Gained carrier Oct 05 07:50:02 sc6000 time[311]: wlan0 {RX} 3 packets 401 bytes Oct 05 07:50:02 sc6000 time[311]: wlan0 {TX} 2 packets 254 bytes Oct 05 07:50:02 sc6000 time[311]: wlan0 {update} flags 102467 <UP,RUNNING,LOWER_UP> Oct 05 07:50:02 sc6000 time[311]: wlan0 {newlink} index 4 address 10:2C:6B:xx:xx:xx mtu 1500 Oct 05 07:50:02 sc6000 time[311]: wlan0 {newlink} index 4 operstate 6 <UP> Oct 05 07:50:02 sc6000 avahi-daemon[364]: Joining mDNS multicast group on interface wlan0.IPv4 with address 10.2.0.211. Oct 05 07:50:02 sc6000 systemd-timesyncd[274]: Network configuration changed, trying to establish connection. Oct 05 07:50:02 sc6000 avahi-daemon[364]: New relevant interface wlan0.IPv4 for mDNS. Oct 05 07:50:02 sc6000 avahi-daemon[364]: Registering new address record for 10.2.0.211 on wlan0.IPv4. Oct 05 07:50:02 sc6000 time[311]: Setting hostname to sc6000 Oct 05 07:50:02 sc6000 time[311]: Setting domainname to lan Oct 05 07:50:02 sc6000 time[311]: wlan0 {add} address 10.2.0.211/24 label wlan0 family 2 Oct 05 07:50:02 sc6000 time[311]: wlan0 {add} route 10.2.0.0 gw 0.0.0.0 scope 253 <LINK> Oct 05 07:50:02 sc6000 time[311]: wlan0 {add} route 10.2.0.1 gw 0.0.0.0 scope 253 <LINK> Oct 05 07:50:02 sc6000 time[311]: wlan0 {add} route 0.0.0.0 gw 10.2.0.1 scope 0 <UNIVERSE> Oct 05 07:50:02 sc6000 time[311]: Failed to find URL:http://ipv4.connman.inmusicbrands.com/ Oct 05 07:50:03 sc6000 time[311]: wlan0 {add} route 99.84.237.33 gw 10.2.0.1 scope 0 <UNIVERSE> Oct 05 07:50:03 sc6000 time[311]: wlan0 {del} route 99.84.237.33 gw 10.2.0.1 scope 0 <UNIVERSE> Oct 05 07:50:04 sc6000 systemd-networkd[325]: wlan0: Gained IPv6LL Oct 05 07:50:04 sc6000 avahi-daemon[364]: Joining mDNS multicast group on interface wlan0.IPv6 with address fe80::122c:6bff:fe69:d2f8. Oct 05 07:50:04 sc6000 avahi-daemon[364]: New relevant interface wlan0.IPv6 for mDNS. Oct 05 07:50:04 sc6000 systemd-timesyncd[274]: Network configuration changed, trying to establish connection. Oct 05 07:50:04 sc6000 avahi-daemon[364]: Registering new address record for fe80::122c:6bff:fe69:d2f8 on wlan0.*. Oct 05 07:50:04 sc6000 time[311]: wlan0 {add} route fd71:7b58:adb2:5fa3:: gw :: scope 0 <UNIVERSE> Oct 05 07:50:05 sc6000 runengine[384]: [W] Cannot create directory for user data "//.config/qtvirtualkeyboard" [EMain ] [qt.virtualkeyboard ] Oct 05 07:50:05 sc6000 runengine[384]: [W] qrc:/Skins/EmbeddedCommon/Views/BrowseView/Components/BreadcrumbView/BreadcrumbView.qml: Could not set initial [EMain ] [ ] Oct 05 07:50:05 sc6000 runengine[384]: [W] property sourceParentIndex [EMain ] [ ] Oct 05 07:50:06 sc6000 time[311]: wlan0 {add} address fd71:7b58:adb2:5fa3:122c:6bff:fe69:d2f8/64 label (null) family 10 Oct 05 07:50:06 sc6000 avahi-daemon[364]: Leaving mDNS multicast group on interface wlan0.IPv6 with address fe80::122c:6bff:fe69:d2f8. Oct 05 07:50:06 sc6000 avahi-daemon[364]: Joining mDNS multicast group on interface wlan0.IPv6 with address fd71:7b58:adb2:5fa3:122c:6bff:fe69:d2f8. Oct 05 07:50:06 sc6000 avahi-daemon[364]: Registering new address record for fd71:7b58:adb2:5fa3:122c:6bff:fe69:d2f8 on wlan0.*. Oct 05 07:50:06 sc6000 avahi-daemon[364]: Withdrawing address record for fe80::122c:6bff:fe69:d2f8 on wlan0. Oct 05 07:50:06 sc6000 systemd-timesyncd[274]: Network configuration changed, trying to establish connection. Oct 05 07:50:06 sc6000 runengine[384]: [W] qrc:/Skins/EmbeddedCommon/Views/BrowseView/Components/BreadcrumbView/BreadcrumbView.qml: Could not set initial [EMain ] [ ] Oct 05 07:50:06 sc6000 runengine[384]: [W] property sourceParentIndex [EMain ] [ ] Oct 05 07:50:06 sc6000 runengine[384]: [W] The path /GUI/Scripted/ShowTrackInfo could not be created because it already exists [EMain ] [ ] Oct 05 07:50:06 sc6000 runengine[384]: [W] The path /GUI/Scripted/ToggleTrackPreview could not be created because it already exists [EMain ] [ ] Oct 05 07:50:06 sc6000 systemd[1]: systemd-rfkill.service: Deactivated successfully. Oct 05 07:50:06 sc6000 avahi-daemon[364]: Withdrawing address record for 10.2.0.211 on wlan0. Oct 05 07:50:06 sc6000 avahi-daemon[364]: Withdrawing address record for ::1 on lo. Oct 05 07:50:06 sc6000 avahi-daemon[364]: Withdrawing address record for 127.0.0.1 on lo. Oct 05 07:50:06 sc6000 avahi-daemon[364]: Host name conflict, retrying with sc6000-2 Oct 05 07:50:06 sc6000 avahi-daemon[364]: Registering new address record for fd71:7b58:adb2:5fa3:122c:6bff:fe69:d2f8 on wlan0.*. Oct 05 07:50:06 sc6000 avahi-daemon[364]: Registering new address record for 10.2.0.211 on wlan0.IPv4. Oct 05 07:50:06 sc6000 avahi-daemon[364]: Registering new address record for ::1 on lo.*. Oct 05 07:50:06 sc6000 avahi-daemon[364]: Registering new address record for 127.0.0.1 on lo.IPv4. Oct 05 07:50:08 sc6000 runengine[384]: [W] Model size of -1 is less than 0 [EMain ] [ ] Oct 05 07:50:08 sc6000 avahi-daemon[364]: Server startup complete. Host name is sc6000-2.local. Local service cookie is 604055102. Oct 05 07:50:08 sc6000 runengine[384]: [ ] No provider set [EMain ] [qml ] Oct 05 07:50:08 sc6000 runengine[384]: [ ] No provider set [EMain ] [qml ] Oct 05 07:50:08 sc6000 runengine[384]: [W] The path /GUI/Scripted/ShowTrackInfo could not be created because it already exists [EMain ] [ ] Oct 05 07:50:08 sc6000 runengine[384]: [W] The path /GUI/Scripted/ToggleTrackPreview could not be created because it already exists [EMain ] [ ] Oct 05 07:50:08 sc6000 runengine[384]: [W] qrc:/Skins/EmbeddedCommon/Views/BrowseView/Components/BreadcrumbView/BreadcrumbView.qml: Could not set initial [EMain ] [ ] Oct 05 07:50:08 sc6000 runengine[384]: [W] property sourceParentIndex [EMain ] [ ] Oct 05 07:50:10 sc6000 runengine[384]: [W] qrc:/Skins/EmbeddedCommon/Views/BrowseView/Components/BreadcrumbView/BreadcrumbView.qml: Could not set initial [EMain ] [ ] Oct 05 07:50:10 sc6000 runengine[384]: [W] property sourceParentIndex [EMain ] [ ] Oct 05 07:50:10 sc6000 runengine[384]: [W] setLatestLocalVersion version: "" path: "" [EMain ] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] setLatestLocalVersion version: "" path: "" (repeated 3 times) [EMain ] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] MigrationFinished uuid for path "851c9b64ee7abb42" "9b7a80aa-4f11-4118-a42f-d631c2dddd34" [EMain ] [air.planck.database ] Oct 05 07:50:11 sc6000 runengine[384]: [W] MigrationFinished uuid for path "a394739a3f3a75b5" "0992b059-9b42-4a42-b840-b63e49fdf11c" [EMain ] [air.planck.database ] Oct 05 07:50:11 sc6000 runengine[384]: [W] Could not find file: "JP13_Controller_Assignments.qml" [EMain ] [air.assignments.devicead] Oct 05 07:50:11 sc6000 runengine[384]: [W] Could not find file: "JP13_Controller_Device.qml" [EMain ] [air.assignments.devicead] Oct 05 07:50:11 sc6000 runengine[384]: [W] Could not find file: "JP13_Controller_Assignments.qml" [Midi(Controller] [air.assignments.devicead] Oct 05 07:50:11 sc6000 runengine[384]: [W] Could not find file: "JP13_Controller_Device.qml" [Midi(Controller] [air.assignments.devicead] Oct 05 07:50:11 sc6000 runengine[384]: [W] Could not find file: "JP13_Display_Assignments.qml" [EMain ] [air.assignments.devicead] Oct 05 07:50:11 sc6000 runengine[384]: [W] Could not find file: "JP13_Display_Device.qml" [EMain ] [air.assignments.devicead] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/airAssignments/InputAssignment/LocalTarget.qml:55:2: QML Binding: Property '' does not exist on LocalTarget. [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [ ] SchedulerManager: Original scheduler: "mq-deadline" [EMain ] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/GlobalAssignmentConfig.qml:119: TypeError: Cannot read property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] 'c5fafca31e7f33c7' of null [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/GlobalAssignmentConfig.qml:118: TypeError: Cannot read property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] 'c5fafca31e7f33c7' of null [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/GlobalAssignmentConfig.qml:37: TypeError: Cannot read property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] 'c5fafca31e7f33c7' of null [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/DeckAssignmentConfig.qml:139: TypeError: Cannot read property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] 'c5fafca31e7f33c7' of null [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/DeckAssignmentConfig.qml:119: TypeError: Cannot read property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] 'c5fafca31e7f33c7' of null [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/DeckAssignmentConfig.qml:82: TypeError: Cannot read property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] 'c5fafca31e7f33c7' of null [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/DeckAssignmentConfig.qml:41: TypeError: Cannot read property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] '3b75c112b022b001' of null [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] Could not find file: "JP13_Display_Assignments.qml" [Midi (Display) ] [air.assignments.devicead] Oct 05 07:50:11 sc6000 runengine[384]: [W] Could not find file: "JP13_Display_Device.qml" [Midi (Display) ] [air.assignments.devicead] Oct 05 07:50:11 sc6000 runengine[384]: [ ] SchedulerManager: BFQ scheduler applied with strict_guarantees [EMain ] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/airAssignments/InputAssignment/LocalTarget.qml:55:2: QML Binding: Property '' does not exist on LocalTarget. [Midi (Display) ] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [ ] Start decoding images [Midi (Display) ] [qml ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "index" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "note" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "index" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "note" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "index" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "note" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "index" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "note" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "index" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "note" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "index" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "note" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "index" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "note" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "index" [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] qrc:/ControlSurfaceModules/ControlSurfaceModules/ActionPads.qml:60: Error: Cannot assign to non-existent property [Midi(Controller] [ ] Oct 05 07:50:11 sc6000 runengine[384]: [W] "note" [Midi(Controller] [ ] Oct 05 07:50:12 sc6000 bluetoothd[287]: Endpoint registered: sender=:1.9 path=/MediaEndpoint/Sink/Sbc Oct 05 07:50:12 sc6000 runengine[384]: [W] JobControl queue length exceeded threshold: [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [W] length : 8 [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [W] threshold: 8 [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [W] JobController state: [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [W] current number of threads: 4 [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [W] maximum number of threads: 4 [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [W] queue length: 8 jobs size: 9 [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [W] Jobs running: [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [W] "Searching on device" count 1 [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [W] Jobs queued: [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [W] "Checking internet connection" count 1 [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [W] "Fetching performance data" count 7 [EMain ] [air.planck.jobcontroller] Oct 05 07:50:12 sc6000 runengine[384]: [I] TimeZone detect started "JP13" "5.0.4" "097b837e2d" [EMain ] [air.planck.controller.ti] Oct 05 07:50:12 sc6000 runengine[384]: [I] TimeZone detected: "America/New_York" [EMain ] [air.planck.controller.ti] Oct 05 07:50:16 sc6000 runengine[384]: [W] Received an invalid SSO provider, name: "Spotify" type: 0 [EMain ] [air.planck.streaming.sso] Oct 05 07:50:23 sc6000 login[292]: ROOT LOGIN on '/dev/ttyS2' Oct 05 07:50:23 sc6000 runengine[384]: [ ] Image decoding finished 0xf0 0x00 0x02 0x0b 0x01 0x0d 0x10 0x00 0x00 0xf7 [Midi (Display) ] [qml ] Oct 05 07:50:28 sc6000 systemd[1]: systemd-hostnamed.service: Deactivated successfully. Oct 05 07:50:30 sc6000 runengine[384]: [W] QObject::connect(prompts::Prompt, profiles::ProfilesLoginController): invalid nullptr parameter [EMain ] [qt.core.qobject.connect ] Oct 05 07:50:34 sc6000 systemd-timesyncd[274]: Contacted time server 216.239.35.8:123 (time3.google.com). Oct 05 07:50:34 sc6000 systemd-timesyncd[274]: Initial clock synchronization to Mon 2026-10-05 07:50:34.505951 EDT. Oct 05 07:50:34 sc6000 systemd-resolved[273]: Clock change detected. Flushing caches. Oct 05 07:50:59 sc6000 runengine[384]: [W] Error: QNetworkReply::ConnectionRefusedError [EMain ] [air.planck.analytics ] Oct 05 08:04:47 sc6000 systemd[1]: Starting Cleanup of Temporary Directories... Oct 05 08:04:47 sc6000 systemd-tmpfiles[630]: /usr/lib/tmpfiles.d/tmp.conf:12: Duplicate line for path "/var/tmp", ignoring. Oct 05 08:04:47 sc6000 systemd-tmpfiles[630]: /usr/lib/tmpfiles.d/var.conf:14: Duplicate line for path "/var/log", ignoring. Oct 05 08:04:47 sc6000 systemd[1]: systemd-tmpfiles-clean.service: Deactivated successfully. Oct 05 08:04:47 sc6000 systemd[1]: Finished Cleanup of Temporary Directories. Oct 05 08:17:28 sc6000 systemd[1]: Starting OpenSSH Key Generation... Oct 05 08:17:28 sc6000 systemd[1]: Finished OpenSSH Key Generation. Oct 05 08:17:28 sc6000 systemd[1]: Starting OpenSSH server daemon... Oct 05 08:17:28 sc6000 sshd[690]: Server listening on 0.0.0.0 port 22. Oct 05 08:17:28 sc6000 sshd[690]: Server listening on :: port 22. Oct 05 08:17:28 sc6000 systemd[1]: Started OpenSSH server daemon. Oct 05 08:17:39 sc6000 sshd[696]: Connection closed by authenticating user root 10.2.0.197 port 47562 [preauth] Oct 05 08:17:53 sc6000 sshd[698]: Connection closed by authenticating user root 10.2.0.197 port 48338 [preauth] Oct 05 08:18:29 sc6000 sshd[702]: Connection closed by authenticating user root 10.2.0.197 port 43740 [preauth] Oct 05 08:18:45 sc6000 kernel: EXT4-fs (mmcblk0p6): re-mounted 0e4504c8-4440-4646-bef5-5749504c43ee r/w. Oct 05 08:18:45 sc6000 edisksd[430]: unhandle mount table diff operation 4 Oct 05 08:18:51 sc6000 sshd[706]: Accepted publickey for root from 10.2.0.197 port 52776 ssh2: RSA SHA256:b+JXFPfCZenCh8sgrk0G5vwfrMD56N3lnHufHVgZf2o

root@sc6000:~# lsmod Module Size Used by brcmfmac_wcc 12288 -2 brcmfmac 208896 -2 snd_soc_rockchip_inmusic_jp07 16384 -2 cfg80211 327680 -2 snd_soc_inmusic_jp07 16384 -2 snd_soc_rockchip_i2s 20480 -2 brcmutil 12288 -2 hci_uart 32768 -2 btbcm 12288 -2 ufsd 299008 -2 jnl 40960 -2

root@sc6000:~# cat /sys/kernel/debug/usb/devices T: Bus=01 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=480 MxCh= 1 B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0 D: Ver= 2.00 Cls=09(hub ) Sub=00 Prot=01 MxPS=64 #Cfgs= 1 P: Vendor=1d6b ProdID=0002 Rev= 6.06 S: Manufacturer=Linux 6.6.119-az01-2025-12-17-rt67 dwc2_hsotg S: Product=DWC OTG Controller S: SerialNumber=ff540000.usb C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms T: Bus=01 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#= 2 Spd=480 MxCh= 0 D: Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS=64 #Cfgs= 1 P: Vendor=15e4 ProdID=900d Rev= 0.50 S: Manufacturer=Denon DJ S: Product=SC6000 Prime Wheel Display C:* #Ifs= 2 Cfg#= 1 Atr=c0 MxPwr= 0mA I:* If#= 0 Alt= 0 #EPs= 0 Cls=01(audio) Sub=01 Prot=00 Driver=snd-usb-audio I:* If#= 1 Alt= 0 #EPs= 2 Cls=01(audio) Sub=03 Prot=00 Driver=snd-usb-audio E: Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms E: Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms T: Bus=02 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=480 MxCh= 1 B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0 D: Ver= 2.00 Cls=09(hub ) Sub=00 Prot=01 MxPS=64 #Cfgs= 1 P: Vendor=1d6b ProdID=0002 Rev= 6.06 S: Manufacturer=Linux 6.6.119-az01-2025-12-17-rt67 dwc2_hsotg S: Product=DWC OTG Controller S: SerialNumber=ff580000.usb C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms T: Bus=03 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=480 MxCh= 1 B: Alloc= 0/800 us ( 0%), #Int= 1, #Iso= 0 D: Ver= 2.00 Cls=09(hub ) Sub=00 Prot=00 MxPS=64 #Cfgs= 1 P: Vendor=1d6b ProdID=0002 Rev= 6.06 S: Manufacturer=Linux 6.6.119-az01-2025-12-17-rt67 ehci_hcd S: Product=EHCI Host Controller S: SerialNumber=ff500000.usb C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms T: Bus=03 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#= 2 Spd=480 MxCh= 7 D: Ver= 2.10 Cls=09(hub ) Sub=00 Prot=02 MxPS=64 #Cfgs= 1 P: Vendor=15e4 ProdID=e00d Rev=60.80 S: Manufacturer=Denon DJ S: Product=SC6000 PRIME Hub C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA I: If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=01 Driver=hub E: Ad=81(I) Atr=03(Int.) MxPS= 1 Ivl=256ms I:* If#= 0 Alt= 1 #EPs= 1 Cls=09(hub ) Sub=00 Prot=02 Driver=hub E: Ad=81(I) Atr=03(Int.) MxPS= 1 Ivl=256ms T: Bus=03 Lev=02 Prnt=02 Port=03 Cnt=01 Dev#= 3 Spd=480 MxCh= 0 D: Ver= 2.10 Cls=00(>ifc ) Sub=00 Prot=00 MxPS=64 #Cfgs= 1 P: Vendor=152d ProdID=0578 Rev= 2.14 S: Manufacturer=JMicron S: Product=USB to ATA/ATAPI Bridge S: SerialNumber=0123456789ABCDEF C:* #Ifs= 1 Cfg#= 1 Atr=80 MxPwr=500mA I: If#= 0 Alt= 0 #EPs= 2 Cls=08(stor.) Sub=06 Prot=50 Driver=uas E: Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms E: Ad=02(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms I:* If#= 0 Alt= 1 #EPs= 4 Cls=08(stor.) Sub=06 Prot=62 Driver=uas E: Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms E: Ad=82(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms E: Ad=83(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms E: Ad=04(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms T: Bus=03 Lev=02 Prnt=02 Port=04 Cnt=02 Dev#= 4 Spd=12 MxCh= 0 D: Ver= 2.00 Cls=00(>ifc ) Sub=00 Prot=00 MxPS=64 #Cfgs= 1 P: Vendor=15e4 ProdID=800d Rev= 0.16 S: Manufacturer=Denon DJ S: Product=SC6000 Prime Controller C:* #Ifs= 2 Cfg#= 1 Atr=c0 MxPwr= 0mA I:* If#= 0 Alt= 0 #EPs= 0 Cls=01(audio) Sub=01 Prot=00 Driver=snd-usb-audio I:* If#= 1 Alt= 0 #EPs= 2 Cls=01(audio) Sub=03 Prot=00 Driver=snd-usb-audio E: Ad=01(O) Atr=02(Bulk) MxPS= 64 Ivl=0ms E: Ad=81(I) Atr=02(Bulk) MxPS= 64 Ivl=0ms

root@sc6000:~# cat /proc/asound/cards 0 [Display ]: USB-Audio - SC6000 Prime Wheel Display Denon DJ SC6000 Prime Wheel Display at usb-ff540000.usb-1, high speed 1 [Controller ]: USB-Audio - SC6000 Prime Controller Denon DJ SC6000 Prime Controller at usb-ff500000.usb-1.5, full speed 2 [JP07 ]: JP07 - JP07 JP07 root@sc6000:~# cat /proc/asound/pcm 02-00: JP07 PCM inmusic,jp07-audio-codec-0 : JP07 PCM inmusic,jp07-audio-codec-0 : playback 1 root@sc6000:~# ls -l /dev/snd/by-path/ lrwxrwxrwx 1 root root 12 Oct 5 07:49 platform-ff500000.usb-usb-0:1.5:1.0 -> ../controlC1 lrwxrwxrwx 1 root root 12 Oct 5 07:49 platform-ff500000.usb-usbv2-0:1.5:1.0 -> ../controlC1 lrwxrwxrwx 1 root root 12 Oct 5 07:49 platform-ff540000.usb-usb-0:1:1.0 -> ../controlC0 lrwxrwxrwx 1 root root 12 Oct 5 07:49 platform-ff540000.usb-usbv2-0:1:1.0 -> ../controlC0 lrwxrwxrwx 1 root root 12 Oct 5 07:49 platform-sound -> ../controlC2

root@sc6000:~# systemctl list-units --type=service --all --no-pager UNIT LOAD ACTIVE SUB DESCRIPTION ● auditd.service not-found inactive dead auditd.service avahi-daemon.service loaded active running Avahi mDNS/DNS-SD Stack az01-machine-id.service loaded active exited Fix transient machine-id after mounting /etc az01-power-button.service loaded active running AZ01 power button emergency shutdown service az01-script-runner.service loaded active running AZ01 script runner service az01-usbsata-fixer.service loaded active running AZ01 JMicron USB-SATA bridge configuration fixer az0x-data-mkfs.service loaded active exited Create /data filesystem if necessary az0x-info.service loaded active exited AZ0x system info logging az0x-setup-hostname.service loaded active exited Hostname setup for AZ0x bluetooth.service loaded active running Bluetooth service connman.service loaded active running Connection service dbus.service loaded active running D-Bus System Message Bus edisksd.service loaded active running Disk mounting service emergency.service loaded inactive dead Emergency Shell engine.service loaded active running Engine getty@tty1.service loaded active running Getty on tty1 initrd-cleanup.service loaded inactive dead Cleaning Up and Shutting Down Daemons initrd-parse-etc.service loaded inactive dead Mountpoints Configured in the Real Root initrd-switch-root.service loaded inactive dead Switch Root initrd-udevadm-cleanup-db.service loaded inactive dead Cleanup udev Database ip6tables.service loaded active exited IPv6 Packet Filtering Framework iptables.service loaded active exited IPv4 Packet Filtering Framework kmod-static-nodes.service loaded inactive dead Create List of Static Device Nodes ldconfig.service loaded inactive dead Rebuild Dynamic Linker Cache modprobe@configfs.service loaded inactive dead Load Kernel Module configfs modprobe@fuse.service loaded inactive dead Load Kernel Module fuse overlayfs-setup.service loaded active exited Setup directories for overlayfs mounts ● plymouth-quit-wait.service not-found inactive dead plymouth-quit-wait.service ● plymouth-start.service not-found inactive dead plymouth-start.service rescue.service loaded inactive dead Rescue Shell ● run-postinsts.service not-found inactive dead run-postinsts.service serial-getty@ttyS2.service loaded active running Serial Getty on ttyS2 sshd.service loaded active running OpenSSH server daemon sshdgenkeys.service loaded active exited OpenSSH Key Generation ● syslog.service not-found inactive dead syslog.service systemd-ask-password-console.service loaded inactive dead Dispatch Password Requests to Console systemd-ask-password-wall.service loaded inactive dead Forward Password Requests to Wall systemd-battery-check.service loaded inactive dead Check battery level during early boot systemd-fsck-root.service loaded inactive dead File System Check on Root Device systemd-hibernate-resume.service loaded inactive dead Resume from hibernation systemd-hwdb-update.service loaded inactive dead Rebuild Hardware Database systemd-journal-catalog-update.service loaded inactive dead Rebuild Journal Catalog systemd-journal-flush.service loaded active exited Flush Journal to Persistent Storage systemd-journald.service loaded active running Journal Service systemd-machine-id-commit.service loaded active exited Commit a transient machine-id on disk systemd-modules-load.service loaded active exited Load Kernel Modules systemd-network-generator.service loaded active exited Generate network units from Kernel command line systemd-networkd.service loaded active running Network Configuration systemd-random-seed.service loaded active exited Load/Save OS Random Seed systemd-remount-fs.service loaded active exited Remount Root and Kernel File Systems systemd-resolved.service loaded active running Network Name Resolution systemd-rfkill.service loaded inactive dead Load/Save RF Kill Switch Status systemd-soft-reboot.service loaded inactive dead Reboot System Userspace systemd-sysctl.service loaded active exited Apply Kernel Variables systemd-sysusers.service loaded inactive dead Create System Users systemd-timesyncd.service loaded active running Network Time Synchronization systemd-tmpfiles-clean.service loaded inactive dead Cleanup of Temporary Directories systemd-tmpfiles-setup-dev-early.service loaded active exited Create Static Device Nodes in /dev gracefully systemd-tmpfiles-setup-dev.service loaded active exited Create Static Device Nodes in /dev systemd-tmpfiles-setup.service loaded active exited Create System Files and Directories systemd-udev-settle.service loaded inactive dead Wait for udev To Complete Device Initialization systemd-udev-trigger.service loaded active exited Coldplug All udev Devices systemd-udevd.service loaded active running Rule-based Manager for Device Events and Files systemd-update-done.service loaded inactive dead Update is Completed ● systemd-update-utmp-runlevel.service not-found inactive dead systemd-update-utmp-runlevel.service systemd-update-utmp.service loaded active exited Record System Boot/Shutdown in UTMP ● systemd-user-sessions.service not-found inactive dead systemd-user-sessions.service systemd-userdbd.service loaded active running User Database Manager ● systemd-vconsole-setup.service not-found inactive dead systemd-vconsole-setup.service touch-fw-update.service loaded inactive dead Firmware update for Ilitek touchscreens var-volatile-cache.service loaded inactive dead Bind mount volatile /var/cache var-volatile-lib.service loaded inactive dead Bind mount volatile /var/lib var-volatile-spool.service loaded inactive dead Bind mount volatile /var/spool var-volatile-srv.service loaded active exited Bind mount volatile /srv wpa_supplicant.service loaded active running WPA supplicant ● xmos-update.service not-found inactive dead xmos-update.service Legend: LOAD → Reflects whether the unit definition was properly loaded. ACTIVE → The high-level unit activation state, i.e. generalization of SUB. SUB → The low-level unit activation state, values depend on unit type. 76 loaded units listed. To show all installed unit files use 'systemctl list-unit-files'.

root@sc6000:~# ip addr 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo valid_lft forever preferred_lft forever inet6 ::1/128 scope host noprefixroute valid_lft forever preferred_lft forever 2: eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq qlen 1000 link/ether 00:05:95:xx:xx:xx brd ff:ff:ff:ff:ff:ff 3: sit0@NONE: <NOARP> mtu 1480 qdisc noop qlen 1000 link/sit 0.0.0.0 brd 0.0.0.0 4: wlan0: <BROADCAST,MULTICAST,UP,LOWER_UP8000> mtu 1500 qdisc pfifo_fast qlen 1000 link/ether 10:2c:6b:xx:xx:xx brd ff:ff:ff:ff:ff:ff inet 10.2.0.211/24 brd 10.2.0.255 scope global wlan0 valid_lft forever preferred_lft forever inet6 fd71:7b58:adb2:5fa3:xxxx:xxff:fexx:xxxx/64 scope global dynamic flags 100 valid_lft 1784sec preferred_lft 1784sec inet6 fe80::xxxx:xxff:fexx:xxxx/64 scope link valid_lft forever preferred_lft forever

Booting Linux on physical CPU 0x500 Linux version 4.9.174-inmusic-2019-05-08-rt129 (buildroot@buildroot) (gcc version 7.4.0 (Buildroot 2019.02.2-05411-gf38c18c) ) #1 SMP PREEMPT RT Fri Nov 29 09:44:57 UTC 2019 CPU: ARMv7 Processor [410fc0d1] revision 1 (ARMv7), cr=10c5387d CPU: div instructions available: patching division code CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache OF: fdt:Machine model: InMusic MPC ACV8 OF: reserved mem: initialized node framebuffer, compatible id rockchip,framebuffer-memory Memory policy: Data cache writealloc percpu: Embedded 14 pages/cpu s28000 r8192 d21152 u57344 Built 1 zonelists in Zone order, mobility grouping on. Total pages: 522752 Kernel command line: root=PARTUUID=24d1deac-3434-1a4e-98d1-68ee2945a5f1 rootwait ro console=ttyS2,115200 rfkill.default_state=0 PID hash table entries: 4096 (order: 2, 16384 bytes) Dentry cache hash table entries: 131072 (order: 8, 1048576 bytes) Inode-cache hash table entries: 65536 (order: 6, 262144 bytes) Memory: 2055804K/2097152K available (7168K kernel code, 370K rwdata, 1848K rodata, 1024K init, 311K bss, 29060K reserved, 12288K cma-reserved, 1298432K highmem) Virtual kernel memory layout: vector : 0xffff0000 - 0xffff1000 ( 4 kB) fixmap : 0xffc00000 - 0xfff00000 (3072 kB) vmalloc : 0xf0800000 - 0xff800000 ( 240 MB) lowmem : 0xc0000000 - 0xf0000000 ( 768 MB) pkmap : 0xbfe00000 - 0xc0000000 ( 2 MB) modules : 0xbf000000 - 0xbfe00000 ( 14 MB) .text : 0xc0008000 - 0xc0800000 (8160 kB) .init : 0xc0a00000 - 0xc0b00000 (1024 kB) .data : 0xc0b00000 - 0xc0b5c808 ( 371 kB) .bss : 0xc0b5e000 - 0xc0babcf4 ( 312 kB) SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 Preemptible hierarchical RCU implementation. RCU kthread priority: 1. NR_IRQS:16 nr_irqs:16 16 rockchip: reset MMC AHB arbitor rockchip_mmc_get_phase: invalid clk rate rockchip_mmc_get_phase: invalid clk rate rockchip_mmc_get_phase: invalid clk rate rockchip_mmc_get_phase: invalid clk rate rockchip_mmc_get_phase: invalid clk rate rockchip_mmc_get_phase: invalid clk rate rockchip_mmc_get_phase: invalid clk rate rockchip_mmc_get_phase: invalid clk rate arm_arch_timer: Architected cp15 timer(s) running at 24.00MHz (phys). clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns Switching to timer-based delay loop, resolution 41ns Console: colour dummy device 80x30 Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=24000) pid_max: default: 32768 minimum: 301 Mount-cache hash table entries: 2048 (order: 1, 8192 bytes) Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes) CPU: Testing write buffer coherency: ok CPU0: thread -1, cpu 0, socket 5, mpidr 80000500 Setting up static identity map for 0x100000 - 0x100058 CPU1: thread -1, cpu 1, socket 5, mpidr 80000501 CPU2: thread -1, cpu 2, socket 5, mpidr 80000502 CPU3: thread -1, cpu 3, socket 5, mpidr 80000503 Brought up 4 CPUs SMP: Total of 4 processors activated (192.00 BogoMIPS). CPU: All CPU(s) started in SVC mode. devtmpfs: initialized VFP support v0.3: implementor 41 architecture 3 part 30 variant d rev 0 clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 1911260446275000 ns futex hash table entries: 1024 (order: 4, 65536 bytes) pinctrl core: initialized pinctrl subsystem NET: Registered protocol family 16 DMA: preallocated 256 KiB pool for atomic coherent allocations cpuidle: using governor menu No ATAGs? hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers. hw-breakpoint: maximum watchpoint size is 4 bytes. vcc_mipi: supplied by vcc_sys vcc_sata: supplied by vcc_sys iommu: Adding device ff930000.vop to group 0 SCSI subsystem initialized usbcore: registered new interface driver usbfs usbcore: registered new interface driver hub usbcore: registered new device driver usb pps_core: LinuxPPS API ver. 1 registered pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it> PTP clock support registered Advanced Linux Sound Architecture Driver Initialized. Bluetooth: Core ver 2.22 NET: Registered protocol family 31 Bluetooth: HCI device and connection manager initialized Bluetooth: HCI socket layer initialized Bluetooth: L2CAP socket layer initialized Bluetooth: SCO socket layer initialized clocksource: Switched to clocksource arch_sys_counter NET: Registered protocol family 2 TCP established hash table entries: 8192 (order: 3, 32768 bytes) TCP bind hash table entries: 8192 (order: 5, 229376 bytes) TCP: Hash tables configured (established 8192 bind 8192) UDP hash table entries: 512 (order: 3, 32768 bytes) UDP-Lite hash table entries: 512 (order: 3, 32768 bytes) NET: Registered protocol family 1 hw perfevents: enabled with armv7_cortex_a12 PMU driver, 7 counters available workingset: timestamp_bits=30 max_order=19 bucket_order=0 squashfs: version 4.0 (2009/01/31) Phillip Lougher fuse init (API version 7.26) bounce: pool size: 64 pages Block layer SCSI generic (bsg) driver version 0.4 loaded (major 248) io scheduler noop registered io scheduler deadline registered (default) dma-pl330 ff250000.dma-controller: Loaded driver for PL330 DMAC-241330 dma-pl330 ff250000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-20 Num_Events-16 dma-pl330 ffb20000.dma-controller: Loaded driver for PL330 DMAC-241330 dma-pl330 ffb20000.dma-controller: DBUFF-64x8bytes Num_Chans-5 Num_Peri-6 Num_Events-10 Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled ff180000.serial: ttyS0 at MMIO 0xff180000 (irq = 38, base_baud = 1500000) is a 16550A ff690000.serial: ttyS2 at MMIO 0xff690000 (irq = 39, base_baud = 1500000) is a 16550A console [ttyS2] enabled ff1b0000.serial: ttyS3 at MMIO 0xff1b0000 (irq = 40, base_baud = 1500000) is a 16550A rk3x-i2c ff140000.i2c: Initialized RK3xxx I2C bus at f08b9000 rk3x-i2c ff150000.i2c: Initialized RK3xxx I2C bus at f08bb000 rk3x-i2c ff160000.i2c: Initialized RK3xxx I2C bus at f08bd000 rk3x-i2c ff170000.i2c: Initialized RK3xxx I2C bus at f08bf000 REG1: supplied by vcc_sys REG2: supplied by vcc_sys vcc_flash: supplied by VCC_IO vcc_sd: supplied by VCC_IO REG3: supplied by vcc_sys REG4: supplied by vcc_sys REG5: supplied by VCC_IO REG6: supplied by VCC_IO REG7: supplied by VCC_IO REG8: supplied by vcc_sys REG9: supplied by vcc_sys REG10: supplied by VCC_20 REG11: supplied by VCC_20 REG12: supplied by VCC_20 fan53555-regulator 0-0040: FAN53555 Option[8] Rev[1] Detected! fan53555-reg: supplied by vcc_sys fan53555-regulator 0-0041: FAN53555 Option[8] Rev[1] Detected! fan53555-reg: supplied by vcc_sys rk3x-i2c ff650000.i2c: Initialized RK3xxx I2C bus at f08c1000 [drm] Initialized rockchip_framebuffer_rmem_device_init: initializing with page address (null) rockchip-drm display-subsystem: assigned reserved memory node framebuffer rockchip-vop ff940000.vop: enabled by bootloader rockchip-drm display-subsystem: bound ff940000.vop (ops 0xc08439bc) rockchip-drm display-subsystem: bound ff930000.vop (ops 0xc08439bc) rockchip-drm display-subsystem: bound ff960000.mipi (ops 0xc0843248) [drm] Supports vblank timestamp caching Rev 2 (21.10.2013). [drm] No driver support for vblank timestamp query. rockchip-drm display-subsystem: fb0: frame buffer device mali ffa30000.gpu: GPU identified as 0x0750 r0p0 status 1 mali ffa30000.gpu: Protected mode not available mali ffa30000.gpu: Using configured power model mali-simple-power-model, and fallback mali-simple-power-model mali ffa30000.gpu: Probed as mali0 brd: module loaded loop: module loaded random: fast init done libphy: Fixed MDIO Bus: probed ff580000.usb supply vusb_d not found, using dummy regulator ff580000.usb supply vusb_a not found, using dummy regulator dwc2 ff580000.usb: EPs: 10, dedicated fifos, 972 entries in SPRAM dwc2 ff580000.usb: DWC OTG Controller dwc2 ff580000.usb: new USB bus registered, assigned bus number 1 dwc2 ff580000.usb: irq 43, io mem 0xff580000 usb usb1: New USB device found, idVendor=1d6b, idProduct=0002 usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 usb usb1: Product: DWC OTG Controller usb usb1: Manufacturer: Linux 4.9.174-inmusic-2019-05-08-rt129 dwc2_hsotg usb usb1: SerialNumber: ff580000.usb hub 1-0:1.0: USB hub found hub 1-0:1.0: 1 port detected ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver ehci-platform: EHCI generic platform driver ehci-platform ff500000.usb: EHCI Host Controller ehci-platform ff500000.usb: new USB bus registered, assigned bus number 2 ehci-platform ff500000.usb: irq 42, io mem 0xff500000 ehci-platform ff500000.usb: USB 2.0 started, EHCI 1.00 usb usb2: New USB device found, idVendor=1d6b, idProduct=0002 usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1 usb usb2: Product: EHCI Host Controller usb usb2: Manufacturer: Linux 4.9.174-inmusic-2019-05-08-rt129 ehci_hcd usb usb2: SerialNumber: ff500000.usb hub 2-0:1.0: USB hub found hub 2-0:1.0: 1 port detected ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver ohci-platform: OHCI generic platform driver usbcore: registered new interface driver uas usbcore: registered new interface driver usb-storage usbcore: registered new interface driver usbserial usbcore: registered new interface driver usbserial_generic usbserial: USB Serial support registered for generic usbcore: registered new interface driver cp210x usbserial: USB Serial support registered for cp210x usbcore: registered new interface driver ftdi_sio usbserial: USB Serial support registered for FTDI USB Serial Device usbcore: registered new interface driver pl2303 usbserial: USB Serial support registered for pl2303 usbcore: registered new interface driver usb_serial_simple usbserial: USB Serial support registered for carelink usbserial: USB Serial support registered for zio usbserial: USB Serial support registered for funsoft usbserial: USB Serial support registered for flashloader usbserial: USB Serial support registered for google usbserial: USB Serial support registered for libtransistor usbserial: USB Serial support registered for vivopay usbserial: USB Serial support registered for moto_modem usbserial: USB Serial support registered for motorola_tetra usbserial: USB Serial support registered for novatel_gps usbserial: USB Serial support registered for hp4x usbserial: USB Serial support registered for suunto usbserial: USB Serial support registered for siemens_mpi usb5537 1-002d: Set state=0x87 on mask 0x8 usb 2-1: new high-speed USB device number 2 using ehci-platform usb 2-1: New USB device found, idVendor=09e8, idProduct=503b usb 2-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 usb 2-1: Product: MPC Live Hub usb 2-1: Manufacturer: Akai Professional hub 2-1:1.0: USB hub found hub 2-1:1.0: 7 ports detected usb 2-1.5: new high-speed USB device number 3 using ehci-platform usb 2-1.5: New USB device found, idVendor=09e8, idProduct=203b usb 2-1.5: New USB device strings: Mfr=1, Product=3, SerialNumber=0 usb 2-1.5: Product: MPC Live Audio usb 2-1.5: Manufacturer: Akai Professional usb 2-1.6: new full-speed USB device number 4 using ehci-platform usb 2-1.6: language id specifier not provided by device, defaulting to English usb 2-1.6: New USB device found, idVendor=09e8, idProduct=003b usb 2-1.6: New USB device strings: Mfr=1, Product=2, SerialNumber=0 usb 2-1.6: Product: MPC Live Controller usb 2-1.6: Manufacturer: Akai Pro usb5537 1-002d: Set state=0x82 on mask 0x8 usb5537 1-002d: Disabled SS ports matching 0x8 usb5537 1-002d: switched to HUB mode usb5537 1-002d: usb5537_probe: probed in hub mode usb5537 1-002d: reg 0x3c00 = 0x03 usb5537 1-002d: reg 0x3c04 = 0x03 usb5537 1-002d: reg 0x3c08 = 0x03 usb5537 1-002d: reg 0x3c0c = 0x03 usb5537 1-002d: reg 0x3c10 = 0x04 usb5537 1-002d: reg 0x3c14 = 0x03 usb5537 1-002d: reg 0x3c18 = 0x03 usb5537 1-002d: reg 0x3c1c = 0x00 usb5537 1-002d: reg 0x3c20 = 0x01 usb5537 1-002d: reg 0x3c24 = 0x01 usb5537 1-002d: reg 0x3c28 = 0x01 usb5537 1-002d: reg 0x3c2c = 0x01 usb5537 1-002d: reg 0x3c30 = 0x01 usb5537 1-002d: reg 0x3c34 = 0x01 usb5537 1-002d: reg 0x3c38 = 0x01 mousedev: PS/2 mouse device common for all mice ili2116 4-0041: protocol version 02.03 ili2116 4-0041: ILI2116 firmware version 0.0.4.0 ili2116 4-0041: ILI2116 MCU kernel version 8.0.9.0.1 input: ILI2116 Touchscreen as /devices/platform/ff160000.i2c/i2c-4/4-0041/input/input0 rtc-hym8563 0-0051: rtc core: registered hym8563 as rtc0 lirc_dev: IR Remote Control driver registered, major 245 IR NEC protocol handler initialized IR RC5(x/sz) protocol handler initialized IR RC6 protocol handler initialized IR JVC protocol handler initialized IR Sony protocol handler initialized IR SANYO protocol handler initialized IR Sharp protocol handler initialized IR MCE Keyboard/mouse protocol handler initialized IR LIRC bridge handler initialized IR XMP protocol handler initialized power_supply sbs-3-000b: Not all required supplies found, defer probe sbs-battery 3-000b: sbs_probe: Failed to register power supply rk_tsadcv2_initialize: Missing rockchip,grf property Invalid the conversion, error=0 Invalid the conversion, error=0 Bluetooth: HCI UART driver ver 2.3 Bluetooth: HCI UART protocol H4 registered hci_bcm bcm@0: BCM irq: -22 hci_bcm bcm@0: bcm@0 device registered. Bluetooth: HCI UART protocol Broadcom registered Synopsys Designware Multimedia Card Interface Driver dwmmc_rockchip ff0c0000.dwmmc: IDMAC supports 32-bit address mode. dwmmc_rockchip ff0c0000.dwmmc: Using internal DMA controller. dwmmc_rockchip ff0c0000.dwmmc: Version ID is 270a dwmmc_rockchip ff0c0000.dwmmc: DW MMC controller at irq 30,32 bit host data width,256 deep fifo dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=0 power_mode=0 dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=0 power_mode=1 dwmmc_rockchip ff0c0000.dwmmc: 1 slots initialized dwmmc_rockchip ff0d0000.dwmmc: IDMAC supports 32-bit address mode. dwmmc_rockchip ff0d0000.dwmmc: Using internal DMA controller. dwmmc_rockchip ff0d0000.dwmmc: Version ID is 270a dwmmc_rockchip ff0d0000.dwmmc: DW MMC controller at irq 31,32 bit host data width,256 deep fifo dwmmc_rockchip ff0d0000.dwmmc: allocated mmc-pwrseq dwmmc_rockchip ff0d0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=0 power_mode=1 dwmmc_rockchip ff0d0000.dwmmc: dw_mci_switch_voltage: signal_voltage=0 dwmmc_rockchip ff0d0000.dwmmc: dw_mci_switch_voltage: signal_voltage=1 dwmmc_rockchip ff0d0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 mmc_host mmc1: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) dwmmc_rockchip ff0d0000.dwmmc: 1 slots initialized dwmmc_rockchip ff0f0000.dwmmc: IDMAC supports 32-bit address mode. dwmmc_rockchip ff0f0000.dwmmc: Using internal DMA controller. dwmmc_rockchip ff0f0000.dwmmc: Version ID is 270a dwmmc_rockchip ff0f0000.dwmmc: DW MMC controller at irq 32,32 bit host data width,256 deep fifo dwmmc_rockchip ff0d0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: allocated mmc-pwrseq dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=0 power_mode=1 dwmmc_rockchip ff0f0000.dwmmc: dw_mci_switch_voltage: signal_voltage=0 dwmmc_rockchip ff0f0000.dwmmc: dw_mci_switch_voltage: signal_voltage=1 dwmmc_rockchip ff0d0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0d0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0d0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0d0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 mmc_host mmc2: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) dwmmc_rockchip ff0f0000.dwmmc: 1 slots initialized hidraw: raw HID events driver (C) Jiri Kosina usbcore: registered new interface driver usbhid usbhid: USB HID core driver dwmmc_rockchip ff0f0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0f0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 mmc1: queuing unknown CIS tuple 0x80 (2 bytes) mmc1: queuing unknown CIS tuple 0x80 (3 bytes) mmc1: queuing unknown CIS tuple 0x80 (3 bytes) dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 mmc1: queuing unknown CIS tuple 0x80 (7 bytes) usbcore: registered new interface driver snd-usb-audio ip_tables: (C) 2000-2006 Netfilter Core Team NET: Registered protocol family 10 sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver NET: Registered protocol family 17 Bluetooth: HIDP (Human Interface Emulation) ver 1.2 Bluetooth: HIDP socket layer initialized Registering SWP/SWPB emulation handler dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 power_supply sbs-3-000b: sbs-3-000b: Found supply : az01-ac-power sbs-battery 3-000b: bq40z50: battery gas gauge device registered input: gpio-keys as /devices/platform/gpio-keys/input/input1 rtc-hym8563 0-0051: setting system clock to 2020-01-26 12:26:36 UTC (1580041596) vcc_sd: disabling ALSA device list: #0: Akai Professional MPC Live Audio at usb-ff500000.usb-1.5, high speed #1: Akai Pro MPC Live Controller at usb-ff500000.usb-1.6, full speed dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=1 clock=400000 power_mode=2 dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=1 clock=52000000 power_mode=2 mmc_host mmc2: Bus speed (slot 0) = 50000000Hz (slot req 52000000Hz, actual 50000000HZ div = 0) dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=3 timing=1 clock=52000000 power_mode=2 dwmmc_rockchip ff0f0000.dwmmc: dw_mci_switch_voltage: signal_voltage=1 dwmmc_rockchip ff0f0000.dwmmc: dw_mci_set_ios: bus_width=3 timing=8 clock=52000000 power_mode=2 mmc2: new DDR MMC card at address 0001 mmcblk2: mmc2:0001 SEM04G 3.69 GiB mmcblk2boot0: mmc2:0001 SEM04G partition 1 2.00 MiB mmcblk2boot1: mmc2:0001 SEM04G partition 2 2.00 MiB mmcblk2rpmb: mmc2:0001 SEM04G partition 3 2.00 MiB mmcblk2: p1 p2 p3 p4 p5 p6 p7 dwmmc_rockchip ff0d0000.dwmmc: dw_mci_set_ios: bus_width=2 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0d0000.dwmmc: dw_mci_set_ios: bus_width=2 timing=3 clock=400000 power_mode=2 dwmmc_rockchip ff0d0000.dwmmc: dw_mci_set_ios: bus_width=2 timing=3 clock=25000000 power_mode=2 mmc_host mmc1: Bus speed (slot 0) = 25000000Hz (slot req 25000000Hz, actual 25000000HZ div = 0) mmc1: new ultra high speed SDR12 SDIO card at address 0001 ttyS2 - failed to request DMA EXT4-fs (mmcblk2p6): couldn't mount as ext3 due to feature incompatibilities EXT4-fs (mmcblk2p6): mounted filesystem with ordered data mode. Opts: (null) VFS: Mounted root (ext4 filesystem) readonly on device 179:6. devtmpfs: mounted Freeing unused kernel memory: 1024K dwmmc_rockchip ff0c0000.dwmmc: dw_mci_switch_voltage: signal_voltage=0 rockchip-iodomain ff770000.syscon:io-domains: Setting to 3300000 done rockchip-iodomain ff770000.syscon:io-domains: Setting to 3300000 done dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 mmc_host mmc0: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) cgroup: cgroup2: unknown option "nsdelegate" systemd[1]: systemd 240 running in system mode. (-PAM -AUDIT -SELINUX -IMA -APPARMOR -SMACK +SYSVINIT +UTMP -LIBCRYPTSETUP +GCRYPT -GNUTLS -ACL +XZ -LZ4 -SECCOMP +BLKID -ELFUTILS +KMOD -IDN2 -IDN -PCRE2 default-hierarchy=hybrid) dwmmc_rockchip ff0c0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0c0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0c0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0c0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0c0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0c0000.dwmmc: dw_mci_command_complete: got RTO dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 systemd[1]: Detected architecture arm. Welcome to Buildroot 2019.02.2! systemd[1]: Set hostname to <buildroot>. random: systemd: uninitialized urandom read (16 bytes read) systemd[1]: Initializing machine ID from random generator. systemd[1]: Installed transient /etc/machine-id file. systemd[1]: File /usr/lib/systemd/system/systemd-journald.service:12 configures an IP firewall (IPAddressDeny=any), but the local system does not support BPF/cgroup based firewalling. systemd[1]: Proceeding WITHOUT firewalling in effect! (This warning is only shown for the first loaded unit using IP firewalling.) dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=0 power_mode=2 dwmmc_rockchip ff0c0000.dwmmc: dw_mci_switch_voltage: signal_voltage=1 rockchip-iodomain ff770000.syscon:io-domains: Setting to 3300000 done rockchip-iodomain ff770000.syscon:io-domains: Setting to 1800000 done dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=0 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=2 timing=0 clock=400000 power_mode=2 dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=2 timing=3 clock=400000 power_mode=2 systemd[1]: dev-disk-by\x2dpath-platform\x2dff0c0000.dwmmc\x2dpart1.device: Dependency Before=-.mount ignored (.device units cannot be delayed) random: systemd: uninitialized urandom read (16 bytes read) random: systemd: uninitialized urandom read (16 bytes read) systemd[1]: Started Forward Password Requests to Wall Directory Watch. dwmmc_rockchip ff0c0000.dwmmc: dw_mci_set_ios: bus_width=2 timing=3 clock=25000000 power_mode=2 mmc_host mmc0: Bus speed (slot 0) = 25000000Hz (slot req 25000000Hz, actual 25000000HZ div = 0) [ OK mmc0: new ultra high speed SDR12 SDHC card at address 59b4 ] Started Forward Password R��…uests to Wall Directory Wammcblk0: mmc0:59b4 USD00 14.8 GiB tch. mmcblk0: p1 systemd[1]: Listening on Journal Socket (/dev/log). [ OK ] Listening on Journal Socket (/dev/log). [ OK ] Reached target Remote File Systems. [ OK ] Started Dispatch Password ��…ts to Console Directory Watch. [ OK ] Reached target Paths. [ OK ] Listening on initctl Compatibility Named Pipe. [ OK ] Listening on udev Kernel Socket. [ OK ] Reached target Swap. [ OK ] Listening on udev Control Socket. [ OK ] Listening on Journal Socket. Starting Mali GPU driver setup for AZ01... Mounting Mount /media... Starting File System Check on Root Device... Starting Journal Service... Mounting Kernel Configuration File System... Starting Apply Kernel Variables... Mounting FUSE Control File System... Starting Create Static Device Nodes in /dev... Mounting Kernel Debug File System... [ OK ] Created slice system-serial\x2dgetty.slice. Mounting Temporary Directory (/tmp)... [ OK ] Reached target Slices. Starting udev Coldplug all Devices... [ OK ] Started Mali GPU driver setup for AZ01. [ OK ] Mounted Mount /media. [ OK ] Mounted Kernel Configuration File System. [ OK ] Mounted FUSE Control File System. [ OK ] Mounted Kernel Debug File System. [ OK ] Mounted Temporary Directory (/tmp). [ OK ] Started Apply Kernel Variables. [ OK ] Started Create Static Device Nodes in /dev. [ OK ] Started File System Check on Root Device. Starting Remount Root and Kernel File Systems... [ OK ] Started Remount Root and Kernel File Systems. Starting udev Kernel Device Manager... [ OK ] Reached target Local File Systems (Pre). [ OK ] Started udev Kernel Device Manager. [ OK ] Started Journal Service. [ OK ] Created slice system-btattach.slice. [ OK ] Found device /dev/ttyS2. [ OK ] Started udev Coldplug all Devices. [ OK ] Found device /dev/disk/by-��…d-ad59-0849-833a-9bf00af5b60e. [ OK ] Found device /dev/disk/by-��…platform-ff0c0000.dwmmc-part1. Mounting /media/az01-internal-sd... Starting Create /media/az0��…nal filesystem if necessary... [ OK ] Started Create /media/az01��…ernal filesystem if necessary. Mounting Mount /media/az01-internal... [ OK ] Mounted Mount /media/az01-internal. Starting Setup directories for overlayfs mounts... [ OK ] Started Setup directories for overlayfs mounts. Mounting Writable /var via OverlayFS... Mounting Writable /etc via OverlayFS... [ OK ] Mounted Writable /var via OverlayFS. [ OK ] Mounted Writable /etc via OverlayFS. Starting Fix transient machine-id after mounting /etc... Starting Flush Journal to Persistent Storage... [ OK ] Started Fix transient machine-id after mounting /etc. [ OK ] Mounted /media/az01-internal-sd. [ OK ] Started Flush Journal to Persistent Storage. [ OK ] Reached target Local File Systems. Starting Create Volatile Files and Directories... Starting Commit a transient machine-id on disk... [ OK ] Started Create Volatile Files and Directories. Starting Update UTMP about System Boot/Shutdown... [ OK ] Started Update UTMP about System Boot/Shutdown. [ OK ] Started Commit a transient machine-id on disk. [ OK ] Reached target System Initialization. [ OK ] Started Daily Cleanup of Temporary Directories. [ OK ] Reached target Timers. [ OK ] Listening on D-Bus System Message Bus Socket. [ OK ] Reached target Sockets. [ OK ] Reached target Basic System. [ OK ] Started AZ01 JMicron USB-SATA bridge configuration fixer. Starting Network Connectivity... Starting Firmware update for Ilitek touchscreens... Starting Hostname setup for MPC... [ OK ] Started Serial Getty on ttyS2. [ OK ] Reached target Login Prompts. [ OK ] Reached target Sound Card. Starting Remove all but the most recent core dump... [ OK ] Started Bluetooth HCI attach on ttyS0. [ OK ] Started AZ01 power button emergency shutdown service. Starting Bluetooth service... [ OK ] Started D-Bus System Message Bus. Starting Unsupported device detection service... Starting Firmware update for XMOS USB audio devices... [ OK ] Started Firmware update for Ilitek touchscreens. [ OK ] Started Remove all but the most recent core dump. [ OK ] Started Firmware update for XMOS USB audio devices. [ OK ] Started Network Connectivity. [ OK ] Started Bluetooth service. [ OK ] Started Unsupported device detection service. Starting Hostname Service... [ OK ] Started Hostname Service. [ OK ] Started Hostname setup for MPC. [ OK ] Reached target Network (Pre). Starting Connection service... [ OK ] Started Connection service. [ OK ] Reached target Network. [ OK ] Started AZ01 script runner service. [ OK ] Started AZ01 network MIDI service. [ OK ] Started InMusic MPC Application. [ OK ] Reached target Multi-User System. Starting Update UTMP about System Runlevel Changes... [ OK ] Reached target Bluetooth. Starting WPA supplicant... [ OK ] Started Update UTMP about System Runlevel Changes. [ OK ] Started WPA supplicant. Welcome to Buildroot mpc-live login: root #
